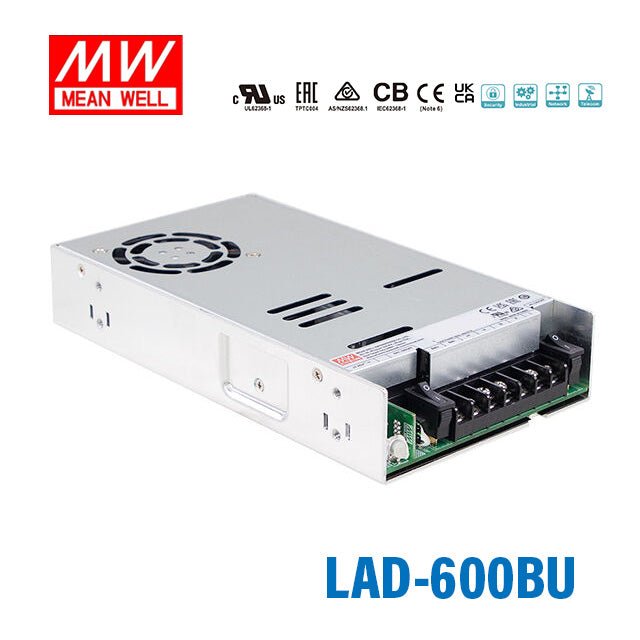

Mean Well LAD-600U Security/Fire Alarm PSU with Battery Charger/UPS, 600W, 27.6V, UART Signal
built-in battery charger and UPS function, TTL signals for status detection, forced UPS mode for battery maintenance, 1U low profile
SKU:
LAD-600BU
$91.35 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LAD-600U Security/Fire Alarm PSU with Battery Charger/UPS...
$91.35 USD
Unit price /
Unavailable
Description
Description
Features
| Built-in battery charger and UPS function |
| TTL signals for status detection: AC OK, Battery disconnect, Battery reverse polarity, Battery low, Battery full and Discharge |
| Forced UPS mode for battery maintenance |
| Protections: Short circuit/Overload/Over voltage/Over temperature/Battery low voltage/Battery reverse polarity (No damage) |
| -20 ~ +60°C wide operating temperature |
| Output voltage adjustable (-2%~+5%) for CH1 by VR |
| Suitable for lead acid and lithium-ion batteries |
| Design refer to GB17945 system requirement |
| 1U low profile (30mm) |
| 3 years warranty |
General Specification
| AC input voltage range | 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (Default switch at 230VAC) |
| AC inrush current | COLD START 60A/115VAC 60A/230VAC |
| Overload protection | CH1:105 ~ 135% CH2:90 ~ 110% |
| Over voltage protection | CH1:31 ~ 36V |
| Setup, rise, hold up time | 2000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load |
| Withstand voltage | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| Working temperature | -20~+60°C |
| Vibration | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| Safety standards | UL62368-1, BS EN/EN62368-1, AS/NZS62368.1, EAC TP TC 004 approved; Design refer to GB 17945-2010 |
| EMC standards | EN55032 class B, EN61000-3-2, EN61000-4-2,3,4,5,6,8 |
| Dimension (LxWxH) | 225x124x41 |
| Packing | 1.02Kg; 12pcs/13.5Kg/0.78CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesLAD Series
-
Power Rating600 Watt
-
Output Voltage27.6 Volt
-
Rated Current18.74 Ampere
-
Input Voltage90V~132V
-
No of Output2
-
Standards MetCB,CE,EAC,EMC,RCM,SAA
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length8.86 in
-
Width4.88 in
-
Height1.61 in
-
Weight2.25 lb
