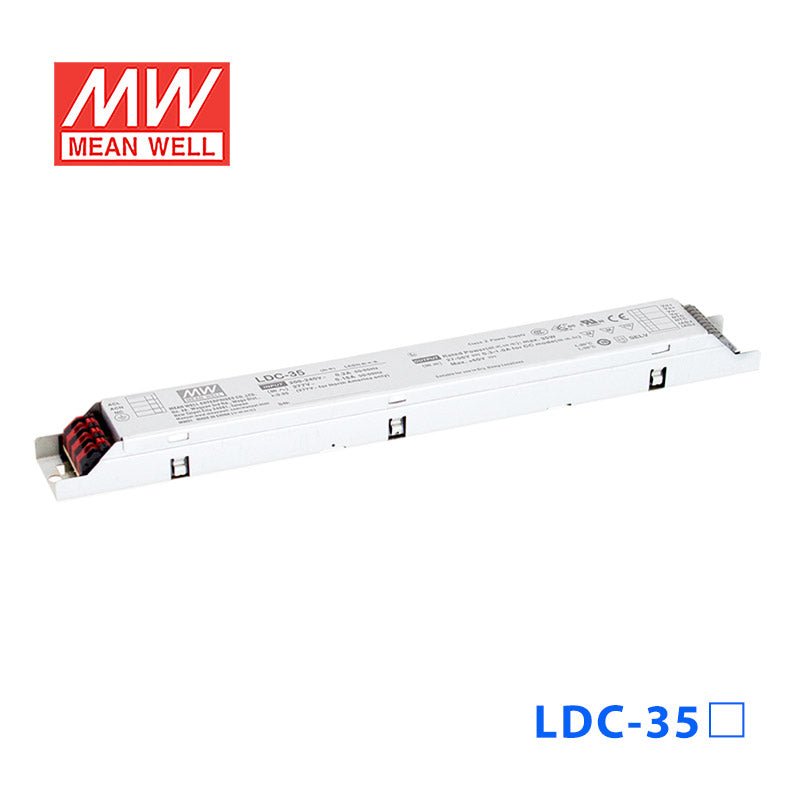

Mean Well LDC-35 Linear LED Driver 35W 300~1000mA Adjustable Output
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDC-35 Linear LED Driver 35W 300~1000mA Adjustable Output
COLD START 30A(twidth=250μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Key Features
- ✓Constant Power mode output
- ✓Metal housing design
- ✓Full power at 70~100% max current
- ✓Built-in active PFC function
- ✓Flicker-free design
- ✓No load/standby power consumption<0.5W
- ✓Output current level pre-settable
- ✓Function options: 3 in 1 dimming(dim-to-off); DALI interface, push dimming
- ✓Typical lifetime>50000 hours
- ✓SELV and isolated
- ✓Class 2 power supply
- ✓5 years warranty
-
BrandMean Well
-
SeriesLDC Series
-
Power Rating35 Watt
-
Output Voltage60 Volt
-
Rated Current0.3 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBIS,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-25°C~80°C
-
Warranty5 Year
-
Length11.02 in
-
Width1.18 in
-
Height0.83 in
-
Weight0.49 lb
::specification::
Frequently Asked Questions
Can I use the LDC-35 to run LED downlights?
Yes, if the downlight uses a constant current driver and the LED load operates within the 27-56V constant current range. This model is a 35W constant current driver with a 300mA output, so it fits downlights designed around that drive current rather than constant voltage input.
Is the LDC-35 suitable for signage modules that need constant current power?
It can be a fit for signage modules built as a constant current LED load in the 27-56V range. It is not a constant voltage supply, so it is intended for modules specified for 300mA constant current operation rather than 12V or 24V constant voltage systems.
Can this driver power a small LED array for a custom light assembly?
Yes, for a small LED array designed as a constant current load at 300mA and operating within 27-56V. The usable number of LEDs depends on the forward voltage of each LED, so compatibility is based on the array's total forward voltage rather than a fixed LED count.
How do I know if an LED load is compatible with the LDC-35?
The LED load must be designed for constant current operation at 300mA, and its total forward voltage must fall inside the 27-56V constant current output range. The number of LEDs depends on the forward voltage of each LED, so this driver should be matched by current and voltage range, not by a stated LED quantity.
How does the LDC-35 compare with other LDC linear drivers in the same family?
Within the listed family, LDC-35, LDC-35B, and LDC-35DA are 35W, 300mA models with a 27-56V CC range, while LDC-35DA2 is 35W at 700mA with the same 27-56V range. LDC-55, LDC-55B, and LDC-55DA are 55W at 500mA, LDC-55DA2 is 55W at 1050mA, LDC-80, LDC-80B, and LDC-80DA are 80W at 700mA, and LDC-80DA2 is 80W at 1400mA, all with a 27-56V CC range; the family list also includes LDC-55B-33K OHM and LDC-80B 68K Ohm variants.
