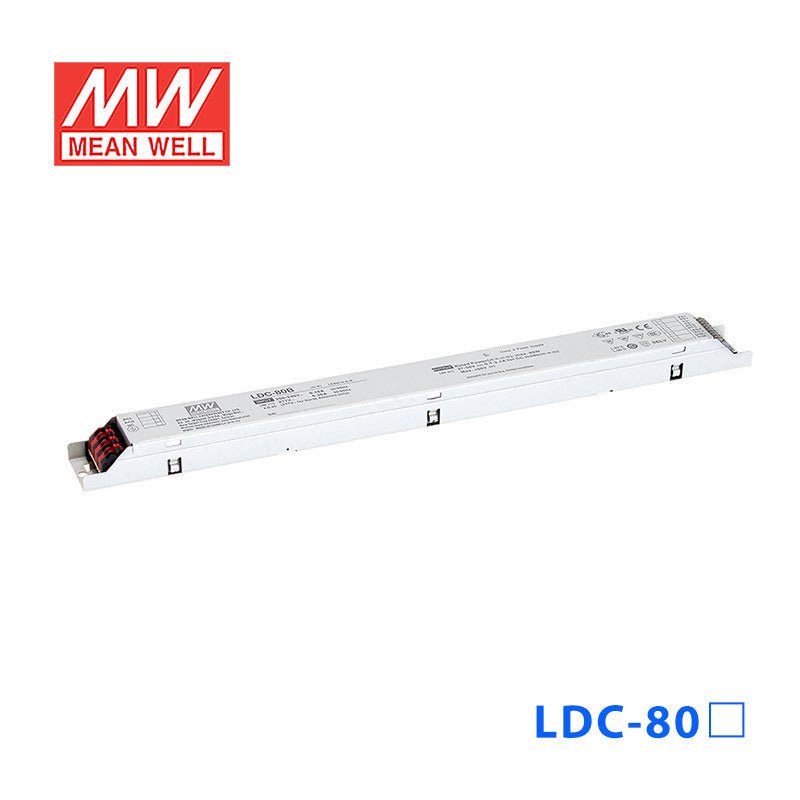

Mean Well LDC-80B Linear LED Driver 80W 700~2100mA Adjustable Output - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDC-80B Linear LED Driver 80W 700~2100mA Adjustable Outpu...
Overview
LDC-80B is the model of this series: rated power 80W, typical efficiency 90%(230VAC@Full load). Type B: 3 in 1 dimming function (0~10Vdc and10V PWM signal and resistance ).
LDC-80 series is a 80W AC/DC LED driver featuring the constant power mode output. LDC-80 operates from 180~295VAC and output current can be adjust between 700mA to 2100mA. Thanks to the efficiency up to 90%, with the fanless design, the entire series is able to operate for -25℃~+85℃ case temperature under free air convection.LDC-80 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Power mode output
- Metal housing design
- Full Power at 70~100% max Current
- Built-in active PFC function
- Flicker Free design
- No load / Standby power consumption <0.5W
- Output current level pre-settable
- Function options: 3 in 1 dimming (dim-to-off)
- Typical lifetime>50000 hours
- SELV and Isolated
- Class 2 power supply
- 5 years warranty
Specifications
OUTPUT
- OUTPUT CURRENT REGION
- 700 ~ 2100mA(1400mA default)
- RATED POWERNote.2
- 80W
- CONSTANT CURRENT REGIONNote.2
- 27 ~ 56V
- FULL POWER CURRENT RANGE
- 1400 ~ 2100mA
- OPEN CIRCUIT VOLTAGE(max.)
- 60V
- LOW FREQUENCY CURRENT RIPPLE
- 3.0% max. @rated current
- CURRENT TOLERANCE
- ±5.0%
- SET UP TIMENote.4
- 500ms/230VAC
INPUT
- VOLTAGE RANGENote.3
- 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- PF≧0.95/230VAC@load≧50%; PF≧0.92/277VAC@load≧75% (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 10%(@load≧50%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
- EFFICIENCY (Typ.)
- 90%(230VAC@Full load)
- AC CURRENT (Typ.)
- 0.48A / 230VAC 0.36A/277VAC
- INRUSH CURRENT(Typ.)
- COLD START 55A(twidth=300μs measured at 50% Ipeak)/230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 6 units (circuit breaker of type B) / 11 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- SHORT CIRCUIT
- Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed
- OVER VOLTAGE
- 61 ~ 80V Shut down o/p voltage with auto-recovery or re-power on to recovery
- OVER TEMPERATURE
- Shut down o/p voltage, with auto-recovery
FUNCTION
- DIMMING
- Please refer to“DIMMING OPERATION”section
- TEMP. COMPENSATION
- By external NTC, please refer to“TEMPERATURE COMPENSATION OPERATION”section
ENVIRONMENT
- WORKING TEMP.
- Tcase=-25 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 60℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDSNote.5
- Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13; BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004, BIS IS15885 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSIONNote.5
- Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;GB/T17743, GB17625.1,EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 2KV,Line-Line:1KV) EAC TP TC 020
OTHERS
- MTBF
- 2321.4K hrs min. Telcordia SR-332 (Bellcore) 259.2Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 360*30*21mm (L*W*H)
- PACKING
- 0.295Kg; 40pcs/12.8Kg/0.81CUFT
MODEL ENCODING
- Blank
- Non dimming
- B (this model)
- 3 in 1 dimming function (0~10Vdc and10V PWM signal and resistance )
- DA
- DALI,push dimming
Test conditions and notes9
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to " OUTPUT CURRENT SETTING ".
- 3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
- 5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 6. This series meets the typical life expectancy of >50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
- 7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
Technical drawings
Typical applications
- LED panel lighting
- Indoor LED lighting
- Linear LED lighting
Downloads
Datasheet1
Certificates10
Test reports1
Catalogues1
FAQ
Can I use the LDC-80B for dimmable LED downlights that run on constant current?
Yes, when the LED downlight is a constant current load within the 27-56V output range and up to 80W. This version is the 3 in 1 dimming (0-10VDC, 10V PWM or resistance) 80W model, so it fits constant current downlight applications where that control style is needed.
Is the LDC-80B suitable for LED arrays in slim architectural fixtures?
It can be a fit for slim fixture builds that use constant current LED arrays operating from 27-56V. The driver body is 360.0 × 30.0 × 21.0 mm, so the narrow 30mm format supports long, low-profile fixture layouts.
Can this driver be used for signage modules with dimming requirements?
It can be used only if the signage module is a constant current LED assembly that operates within 27-56V and up to 80W. It should not be used in place of a constant voltage power supply for 12V or 24V signage systems.
How do I confirm LED compatibility with the LDC-80B?
Check that the LED load requires a constant current source and that its operating voltage falls within the 27-56V CC range at the required current. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver.
Can the LDC-80B operate in demanding ambient temperatures?
The specified working temperature is a case temperature (Tcase) of -25°C to +85°C, with output derating at higher temperatures per the output load vs temperature curve. No IP rating is listed in the provided specs, so exposure conditions should be judged at the fixture or enclosure level.
