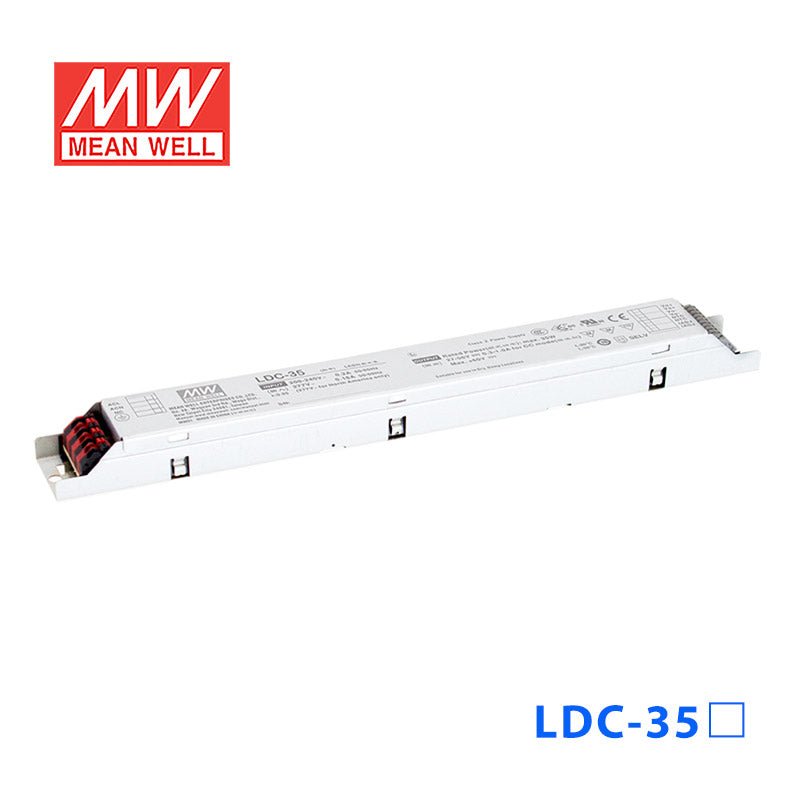

Mean Well LDC-35DA Linear LED Driver 35W 300~1000mA Adjustable Output - DALI

Name: Mean Well LDC-35DA Linear LED Driver 35W 300~1000mA Adjustable Output - DALI
Brand: Mean Well
SKU: LDC-35DA
Price: 35.17 USD
Availability: InStock

constant powerflicker freeultra slim design30mm width

SKU LDC-35DA

$35.17 USD

Shipping calculated at checkout.

Select model — 3 in this family

LDC-35DA

LDC-35 300~1000mA Adjustable Low stock $26.25 USD

LDC-35B 300~1000mA Adjustable-Dimmable Low stock $28.24 USD

LDC-35DA 300~1000mA Adjustable-DALI Low stock $35.17 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

LDC-35DA is the model of this series: rated power 35W, typical efficiency 88%(230VAC@Full load). Type DA: DALI,push dimming.

LDC-35 series is a 35W AC/DC LED driver featuring the constant power mode output. LDC-35 operates from 180~295VAC and output current can be adjust between 300mA to 1000mA. Thanks to the efficiency up to 88%, with the fanless design, the entire series is able to operate for -25℃~+80℃ case temperature under free air convection.LDC-35 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Power mode output
Metal housing design
Full Power at 70~100% max Current
Built-in active PFC function
Flicker Free design
No load / Standby power consumption <0.5W
Output current level pre-settable
Function options: DALI interface, push dimming
Typical lifettime>50000 hours
SELV and Isolated
Class 2 power supply
5 years warranty

Specifications

LDC-35DASpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

OUTPUT CURRENT REGION: 300 ~ 1000mA(700mA default)
RATED POWER^Note.2: 35W
CONSTANT CURRENT REGION^Note.2: 27 ~ 56V
FULL POWER CURRENT RANGE: 625 ~ 1000mA
OPEN CIRCUIT VOLTAGE(max.): 60V
LOW FREQUENCY CURRENT RIPPLE: 3.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.95/230VAC@load≧50%; PF≧0.92/277VAC@load≧75% (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧50%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 88%(230VAC@Full load)
AC CURRENT (Typ.): 0.2A / 230VAC 0.16A / 277VAC
INRUSH CURRENT(Typ.): COLD START 30A(twidth=250μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 17 units (circuit breaker of type B) / 29 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed
OVER VOLTAGE: 61 ~ 80V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, with auto-recovery

FUNCTION

DIMMING: Please refer to“DIMMING OPERATION”section
TEMP. COMPENSATION: By external NTC, please refer to“TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ +80℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13; BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004, BIS IS15885 approved
DALI STANDARDS: Compliance to IEC62386-101.102.207 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.5: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;GB/T17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 2KV,Line-Line:1KV) EAC TP TC 020

OTHERS

MTBF: 2313.3K hrs min. Telcordia SR-332 (Bellcore) 286.8Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*30*21mm (L*W*H)
PACKING: 0.22Kg; 54pcs/12.88Kg/0.91CUFT

MODEL ENCODING

Blank: Non dimming
B: 3 in 1 dimming function (0~10Vdc and10V PWM signal and resistance )
DA (this model): DALI,push dimming

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to " OUTPUT CURRENT SETTING ".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

LDC-35DA OUTPUT CURRENT SETTING — OUTPUT CURRENT SETTING

LDC-35DA Illustration (page 5) — Illustration (page 5)

LDC-35DA TEMPERATURE COMPENSATION OPERATION (2) — TEMPERATURE COMPENSATION OPERATION (2)

LDC-35DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LDC-35DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LDC-35DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
Indoor LED lighting
Linear LED lighting

Downloads

Datasheet1

LDC-35DA datasheetLDC-35-SPEC.PDF · 2026-02-09 edition PDF Download

Certificates7

Mean Well LDC-35 UL Certificate PDF Download

Mean Well LDC-35 BIS Certificate PDF Download

Mean Well LDC-35 CCC Certificate PDF Download

Mean Well LDC-35 EMC Certificate PDF Download

Mean Well LDC-35 ENEC Certificate PDF Download

Mean Well LDC-35 SAA Certificate PDF Download

Mean Well LDC-35 UK Certificate PDF Download

Test reports1

Mean Well LDC-35 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the LDC-35DA be used for DALI-controlled LED downlights?

Yes, if the downlight is designed for constant current operation within the 300-1000mA adjustable output range (700mA default) and the LED load is within the 27-56V constant current range. This is a 35W constant current driver with a DALI interface compliant with IEC62386-101/102/207, so it is intended for LED loads that require regulated current rather than constant voltage.

Is the LDC-35DA suitable for signage modules in a DALI lighting system?

It can be, provided the signage module is a constant current LED load that operates between 300 and 1000mA within 27-56V. It should not be treated like a constant voltage power supply, because this model is designed to regulate current to the LED load.

Can I use this driver for a small LED array in a DALI-based fixture?

Yes, if the array is designed for constant current drive within the 300-1000mA adjustable range and its total forward voltage stays inside the 27-56V range. That makes it suitable for small LED arrays in fixtures that need a constant current driver instead of a constant voltage source.

How do I size an LED load for the LDC-35DA?

Match the LED load to a constant current setting between 300 and 1000mA (700mA default, selected with a resistor on the IADJ terminals) and keep the total forward voltage within the 27-56V CC output range. The number of LEDs depends on the forward voltage of each LED, so the correct match is based on current and combined forward voltage, not a specific LED count.

Is the LDC-35DA suitable for harsher ambient conditions?

This model has a case temperature (Tcase) range of -25°C to +80°C, and the output load must be derated at higher temperatures according to the output load vs temperature curve. No IP rating is listed in the provided specs, so environmental suitability should be judged together with the enclosure and fixture design.
