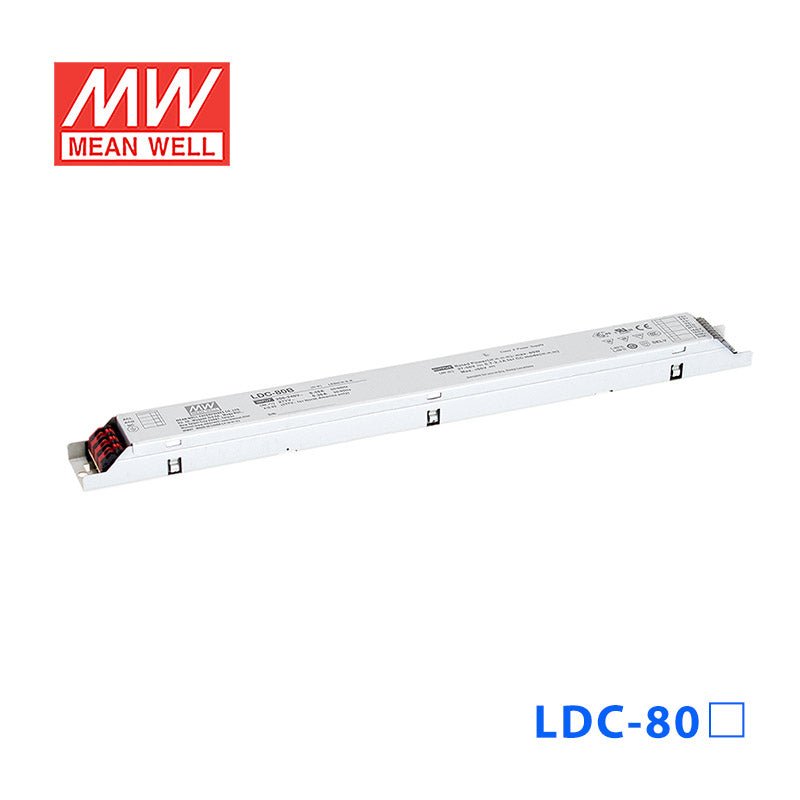

Mean Well LDC-80DA Linear LED Driver 80W 700~2100mA Adjustable Output - DALI

Name: Mean Well LDC-80DA Linear LED Driver 80W 700~2100mA Adjustable Output - DALI
Brand: Mean Well
SKU: LDC-80DA
Price: 39.55 USD
Availability: InStock

constant powerflicker freeultra slim design30mm width

SKU LDC-80DA

$39.55 USD

Shipping calculated at checkout.

Select model — 4 in this family

LDC-80DA

LDC-80 700~2100mA Output Backorder $31.29 USD

LDC-80B 700~2100mA Output-Dimmable Low stock $35.17 USD

LDC-80DA 700~2100mA Output-DALI Backorder $39.55 USD

LDC-80DA2 700~2100mA Output-DALI2 Backorder $39.79 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

LDC-80DA is the model of this series: rated power 80W, typical efficiency 90%(230VAC@Full load). Type DA: DALI,push dimming.

LDC-80 series is a 80W AC/DC LED driver featuring the constant power mode output. LDC-80 operates from 180~295VAC and output current can be adjust between 700mA to 2100mA. Thanks to the efficiency up to 90%, with the fanless design, the entire series is able to operate for -25℃~+85℃ case temperature under free air convection.LDC-80 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Power mode output
Metal housing design
Full Power at 70~100% max Current
Built-in active PFC function
Flicker Free design
No load / Standby power consumption <0.5W
Output current level pre-settable
Function options: DALI interface, push dimming
Typical lifetime>50000 hours
SELV and Isolated
Class 2 power supply
5 years warranty

Specifications

LDC-80DASpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

OUTPUT CURRENT REGION: 700 ~ 2100mA(1400mA default)
RATED POWER^Note.2: 80W
CONSTANT CURRENT REGION^Note.2: 27 ~ 56V
FULL POWER CURRENT RANGE: 1400 ~ 2100mA
OPEN CIRCUIT VOLTAGE(max.): 60V
LOW FREQUENCY CURRENT RIPPLE: 3.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.95/230VAC@load≧50%; PF≧0.92/277VAC@load≧75% (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 10%(@load≧50%/230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%(230VAC@Full load)
AC CURRENT (Typ.): 0.48A / 230VAC 0.36A/277VAC
INRUSH CURRENT(Typ.): COLD START 55A(twidth=300μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 6 units (circuit breaker of type B) / 11 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed
OVER VOLTAGE: 61 ~ 80V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, with auto-recovery

FUNCTION

DIMMING: Please refer to“DIMMING OPERATION”section
TEMP. COMPENSATION: By external NTC, please refer to“TEMPERATURE COMPENSATION OPERATION”section

ENVIRONMENT

WORKING TEMP.: Tcase=-25 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: Ul8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13; BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004, BIS IS15885 approved
DALI STANDARDS: Compliance to IEC62386-101.102.207 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.5: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3;GB/T17743, GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 2KV,Line-Line:1KV) EAC TP TC 020

OTHERS

MTBF: 2321.4K hrs min. Telcordia SR-332 (Bellcore) 259.2Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 360*30*21mm (L*W*H)
PACKING: 0.295Kg; 40pcs/12.8Kg/0.81CUFT

MODEL ENCODING

Blank: Non dimming
B: 3 in 1 dimming function (0~10Vdc and10V PWM signal and resistance )
DA (this model): DALI,push dimming

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to " OUTPUT CURRENT SETTING ".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

LDC-80DA OUTPUT CURRENT SETTING — OUTPUT CURRENT SETTING

LDC-80DA Illustration (page 5) — Illustration (page 5)

LDC-80DA TEMPERATURE COMPENSATION OPERATION (2) — TEMPERATURE COMPENSATION OPERATION (2)

LDC-80DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

LDC-80DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

LDC-80DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED panel lighting
Indoor LED lighting
Linear LED lighting

Downloads

Datasheet1

LDC-80DA datasheetLDC-80-SPEC.PDF · 2026-02-09 edition PDF Download

Certificates10

Mean Well LDC-35 UL Certificate PDF Download

Mean Well LDC-35 BIS Certificate PDF Download

Mean Well LDC-80 EAC Certificate PDF Download

Mean Well LDC-80 CB Certificate PDF Download

Mean Well LDC-80 CCC Certificate PDF Download

Mean Well LDC-80 CE Certificate PDF Download

Mean Well LDC-80 EMC Certificate PDF Download

Mean Well LDC-80 ENEC Certificate PDF Download

Mean Well LDC-80 SAA Certificate PDF Download

Mean Well LDC-80 UK Certificate PDF Download

Test reports1

Mean Well LDC-80 Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the LDC-80DA be used with DALI-controlled LED downlights?

Yes, if the downlight uses a constant current LED engine and the LED load operates within the 27-56V range. This is the 80W DALI version with a 700-2100mA adjustable output (1400mA default), so it is intended for constant current lighting systems rather than constant voltage products.

Is the LDC-80DA appropriate for linear LED arrays in commercial fixtures?

It can be used for linear LED arrays when the array is a constant current load that fits the 27-56V CC range. The 80W rating and slim 360.0 × 30.0 × 21.0 mm form factor make it suited to longer, narrow fixture housings.

Can I use the LDC-80DA for constant current signage lighting?

Yes, when the signage lighting uses constant current LED modules within the 27-56V output range and up to 80W. It is not a constant voltage driver, so it is not intended for standard constant voltage signage modules.

What should I check before pairing LEDs with the LDC-80DA?

The LED load must be specified for constant current operation and must stay within the 27-56V CC output range at a current within 700-2100mA (1400mA default, set by resistor on IADJ). The number of LEDs depends on the forward voltage of each LED, so the load should be evaluated by total forward voltage instead of an assumed LED count.

How is the LDC-80DA different from other LDC family models?

The LDC-80 series datasheet gives every model the same 80W output: 700-2100mA adjustable (1400mA default), a 27-56V constant current region and full power from 1400-2100mA, with resistor current setting on IADJ and NTC temperature compensation. The LDC-80B adds 3 in 1 dimming (0-10VDC, 10V PWM or resistance), while the LDC-80DA adds a DALI interface (IEC62386-101/102/207) and primary-side push dimming.
