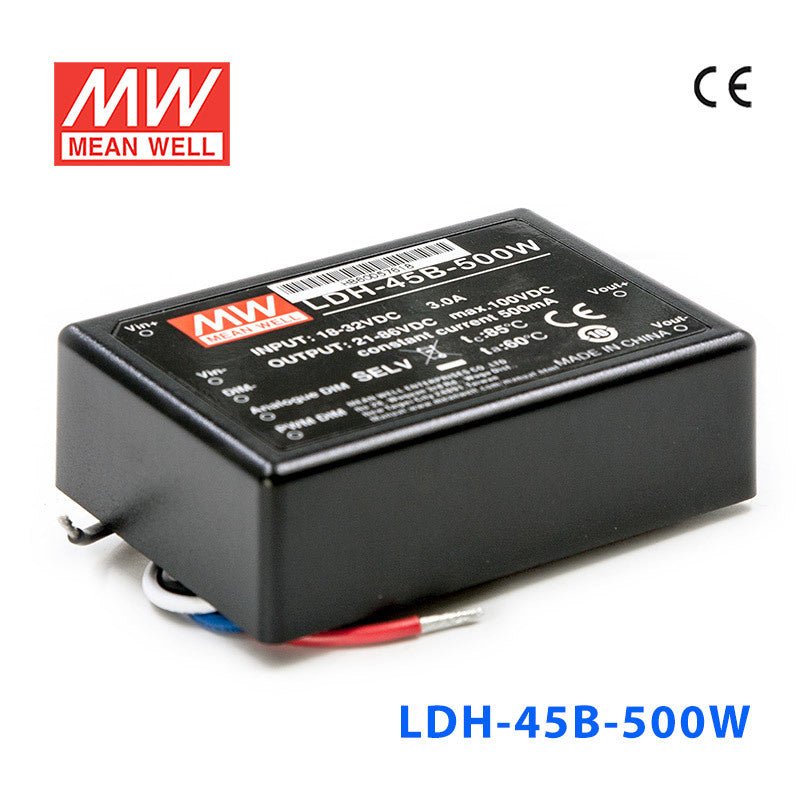

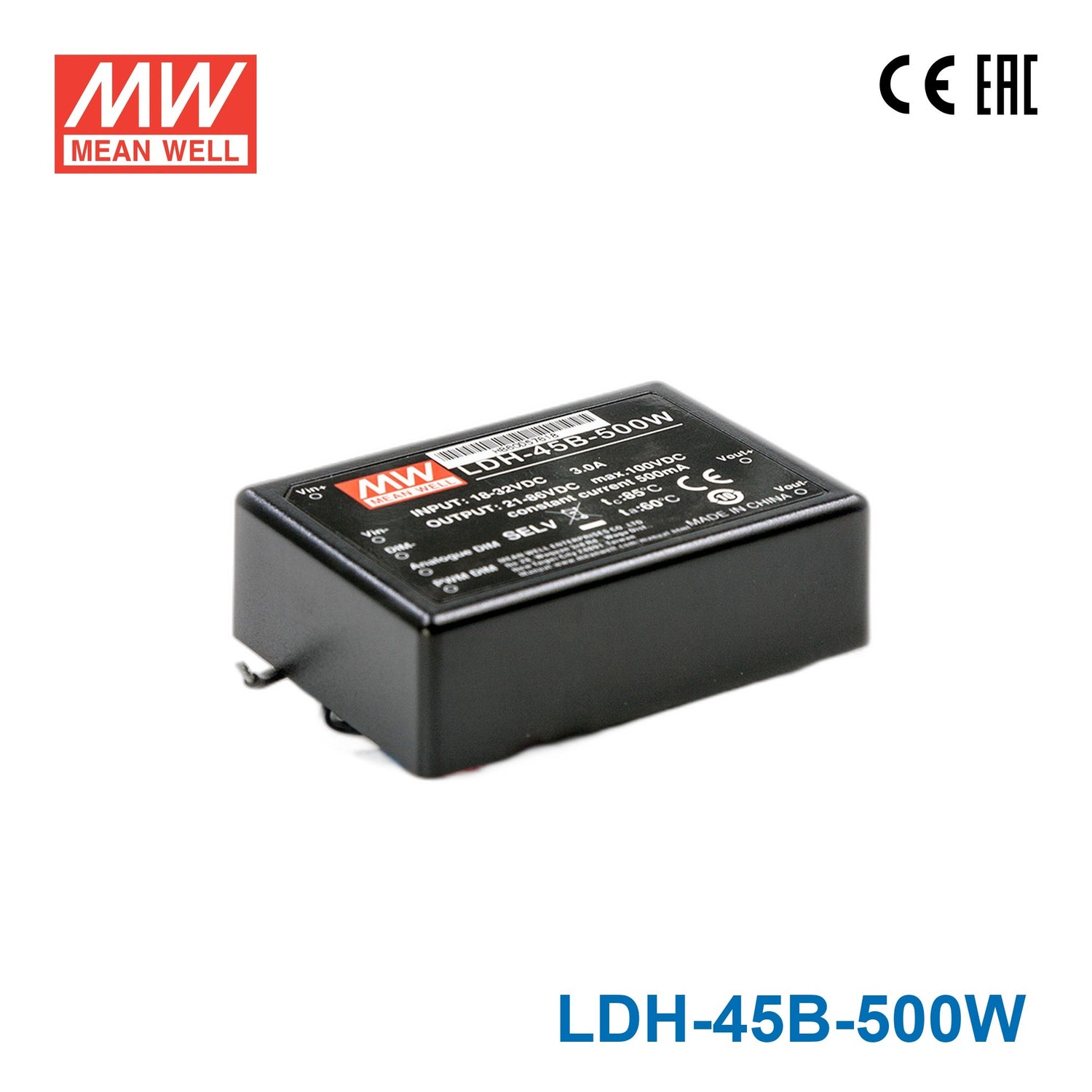

Mean Well LDH-45B-500W DC/DC LED Driver CC 500mA - Step-up
Overview
LDH-45B-500W is the model of this series: rated current 500mA, rated power 43W, typical efficiency 94%.
Features
- DC/DC step-up converter
- Constant current output : 350mA to 1050mA
- Wide output LED string voltage up to 126VDC
- High efficiency up to 95%
- PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]
- DALI dimming [(Blank)DA type or WDA type]
- Protections: Short circuit / Over voltage / Under voltage
- Cooling by free air convection
- Fully encapsulated
- 3 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 500mA
- CURRENT ACCURACY(Typ.)
- ±5% at 24VDC input
- VOLTAGE RANGE Non-DALINote.2
- 21~86VDC
- VOLTAGE RANGE DALINote.2
- 36~86VDC
- NO LOAD OUTPUT VOLTAGE(max.)
- 100V
- RATED POWER
- 43W
- RIPPLE & NOISE (max.)Note.3
- 1.7Vp-p
INPUT
- RATED VOLTAGE
- 24VDC
- VOLTAGE RANGENote.2
- 18~32VDC
- EFFICIENCY (max.)
- 94%
- DC CURRENT (Typ.)
- 2.1A

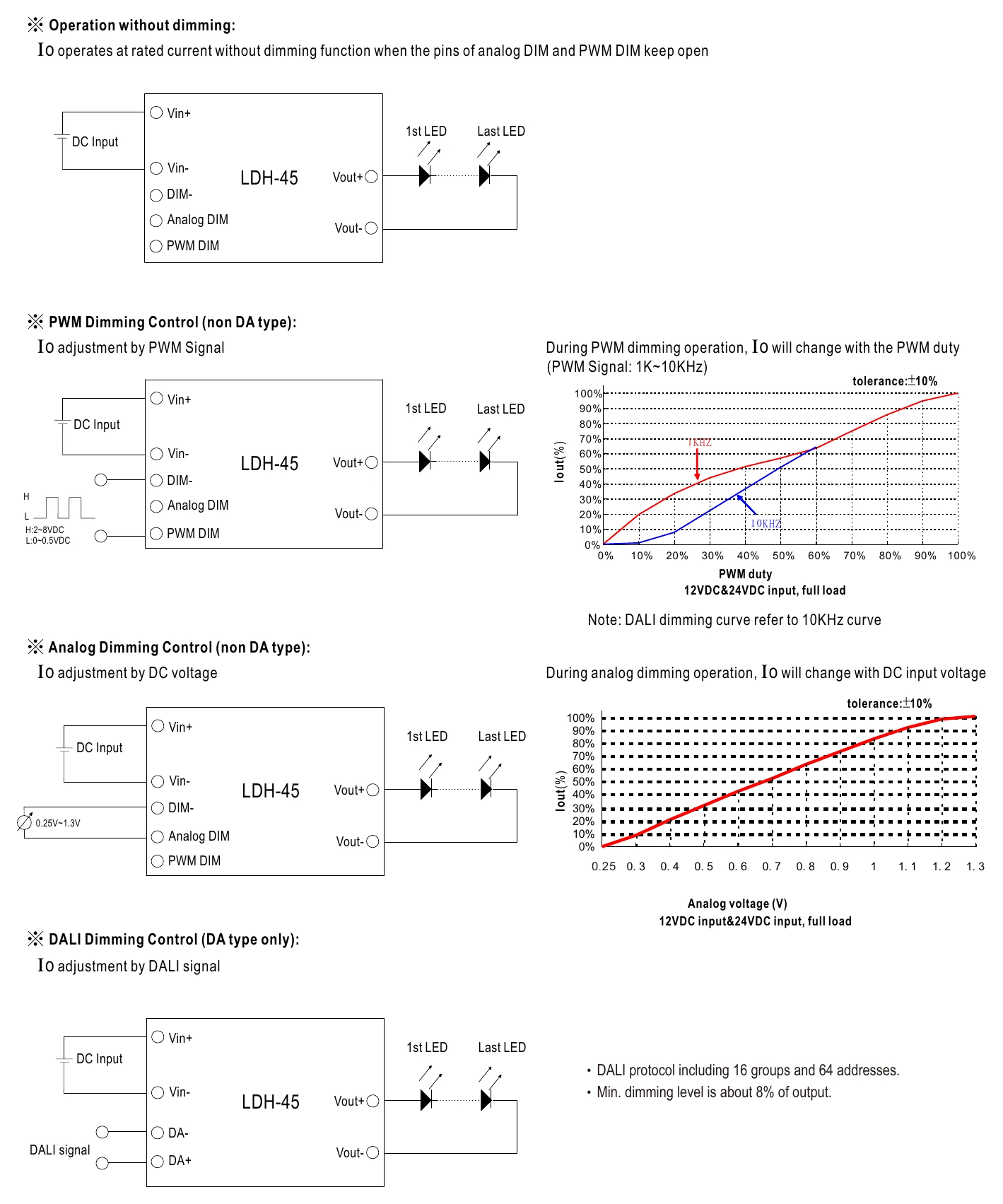

PWM DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power ON with dimming: PWM signal >2~8VDC or open circuit, between PWM DIM and DIM- Power OFF : PWM signal <0.5VDC or short or PWM duty is equal to 0%, between PWM DIM and DIM-
- PWM DIMMING FREQUENCY
- 1K~10KHz
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when PWM dimming OFF
ANALOG DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power on with dimming: DC input >0.25~8VDC or open circuit, between Analog DIM and DIM- Power off : DC input <0.2VDC or short, between Analog DIM and DIM-
- DIM INPUT VOLTAGE RANGE
- 0.25~1.3VDC
- MAX OPERATION VOLTAGE
- 8V; The output current remains constant when voltage changes from 1.3V to 8V
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when Analog dimming OFF
PROTECTION
- SHORT CIRCUIT
- Protection type : Power OFF and fuse open
- OVER VOLTAGE (max.)
- 100V Protection type : Constant output voltage and shut off o/p current, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- LVD BS EN/EN61347-1, BS EN/EN61347-2-13,EAC TP TC 004 approved

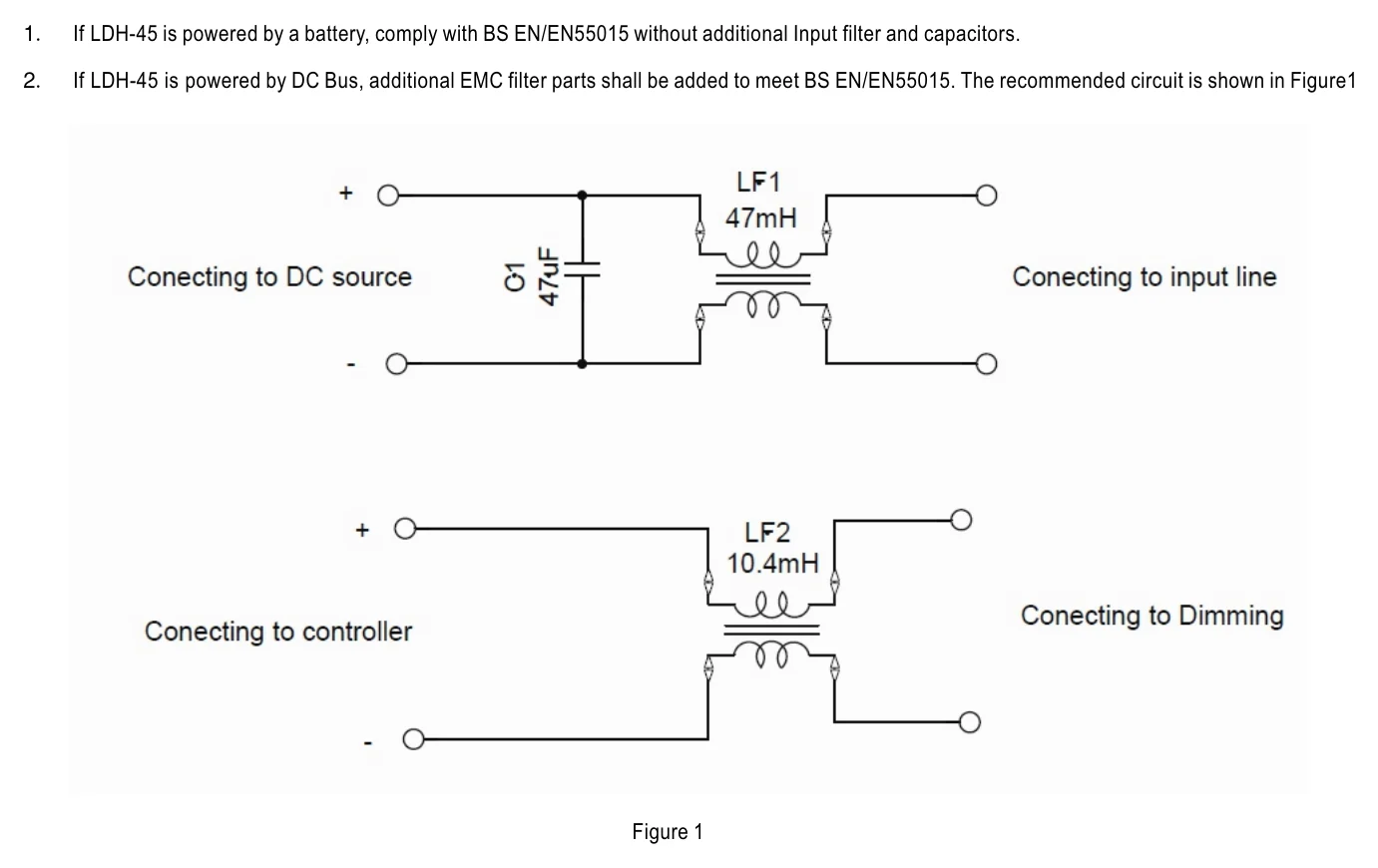

- EMC EMISSION
- Compliance to BS EN/EN55015;EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level;EAC TP TC 020
OTHERS
- MTBF
- 12195.2K hrs min. Telcordia SR-332 (Bellcore) ; 1179.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*53*22.7mm (L*W*H)
- PACKING
- 138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)
Test conditions and notes3
- 1. All parameters are specified at normal input(12VDC,24VDC), rated load, 25℃ 70% RH ambient.
- 2. (Blank) type and W type output voltage must step up by 3 Volts from input DC voltage; (Blank)DA type and WDA type output voltage must step up by 12 Volts from input DC voltage.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf parallel capacitor.

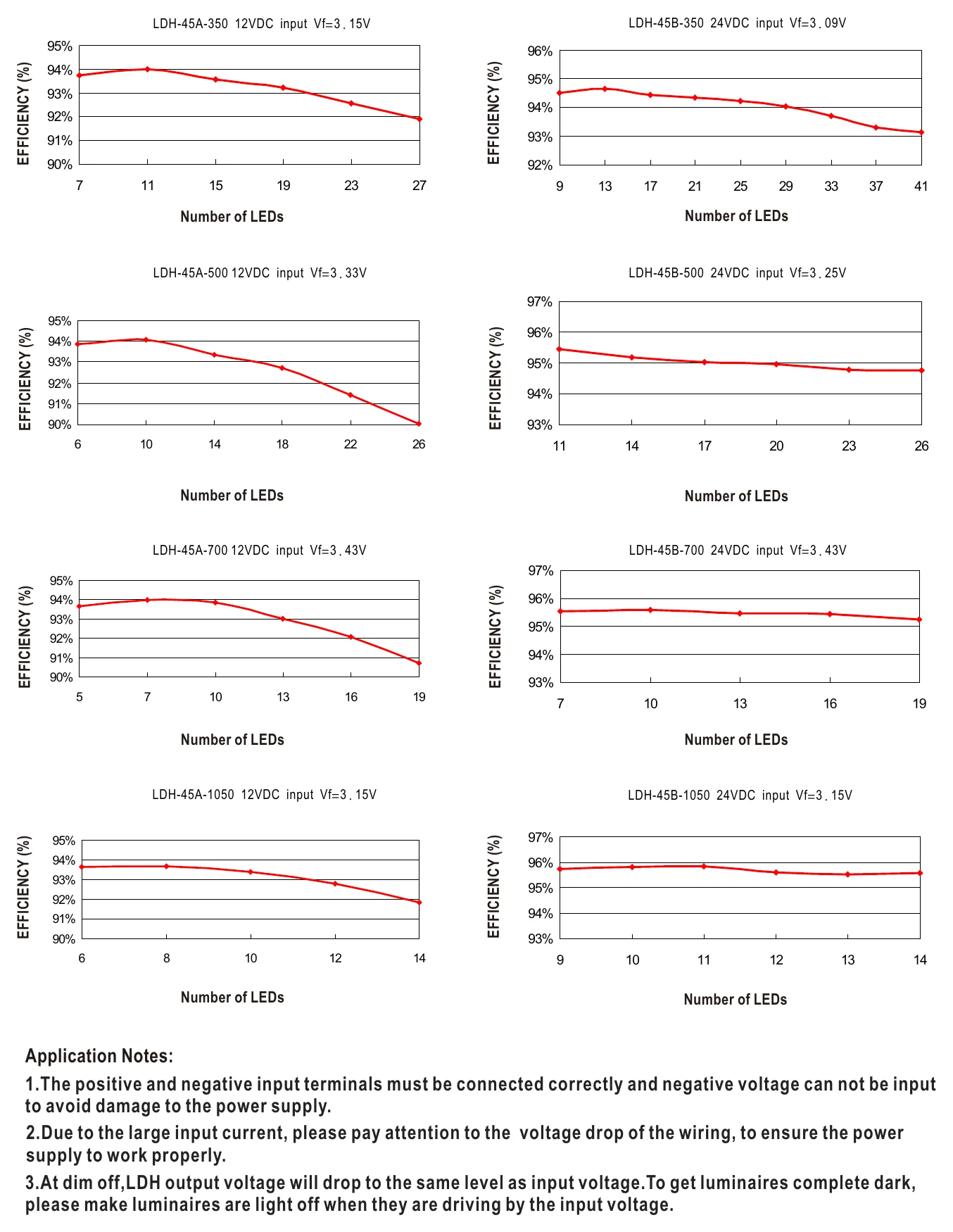

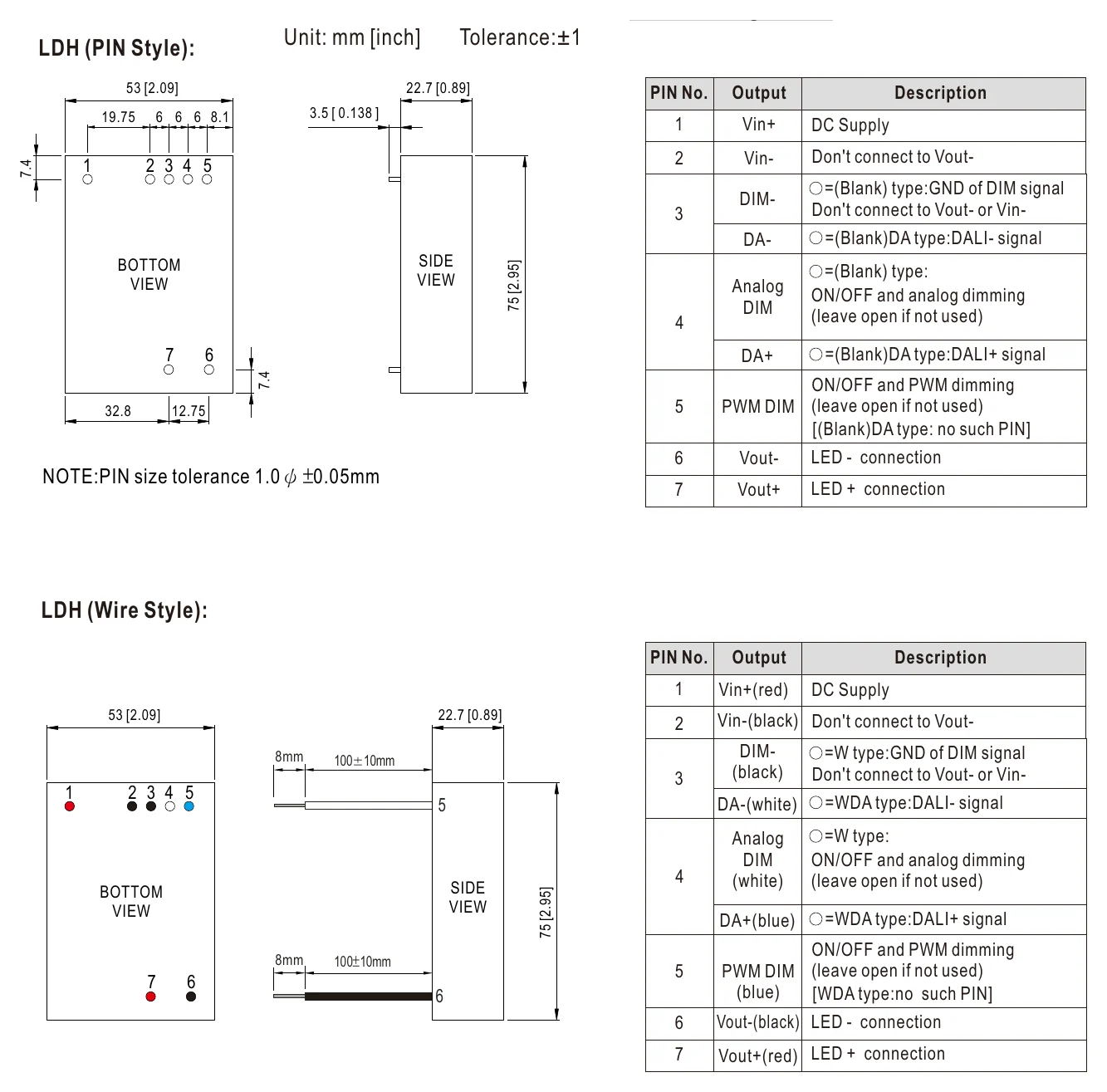

Technical drawings
Downloads
FAQ
Can I use the LDH-45B-500W for a 500mA LED downlight string?
Yes, this driver is built for constant current LED loads at 500mA, which is the typical requirement for many LED downlight assemblies. It operates across a 21-86V constant current output range with up to 43W, so it is suited to downlight strings whose total forward voltage falls inside that range. It is not a constant voltage driver.
Is the LDH-45B-500W suitable for signage LED modules?
It can be suitable for signage modules when the modules are designed to run from a 500mA constant current source rather than a constant voltage supply. The driver provides 500mA constant current over 21-86V and up to 43W, which fits higher-voltage constant current module strings. It should not be used in place of a constant voltage LED power supply for signage products that expect fixed-voltage input.
Can this driver run a small LED array in a sealed outdoor enclosure?
It can, provided the sealed enclosure protects it, since the datasheet gives no IP or waterproof rating and humidity is rated 20-90% RH non-condensing. Its operating temperature range is -40°C to +70°C (refer to the derating curve), which helps in demanding ambient conditions. The LED array still needs to be a 500mA constant current load within the 21-86V range.
How do I know if my LEDs are compatible with the LDH-45B-500W?
Compatibility is based on current and total forward voltage, not a fixed LED quantity. This model supplies 500mA constant current with a 21-86V output range, and the number of LEDs depends on each LED's forward voltage. If your load expects constant voltage instead of constant current, this is not the right type of driver.
How does the LDH-45B-500W compare with other LDH step-up models?
Within the sibling range, the closest 500mA versions are LDH-45B-500 at 500mA, 21-86V, 43W; LDH-45B-500DA at 500mA, 36-86V, 43W; and LDH-45B-500WDA at 500mA, 36-86V, 43W. Other LDH-45B step-up siblings include 350mA models at 21-126V and 44.1W or 36-126V and 44.1W, 700mA models at 21-64V and 44.8W or 36-64V and 44.8W, and 1050mA models at 21-43V and 45.15W or 36-43V and 45.15W.
