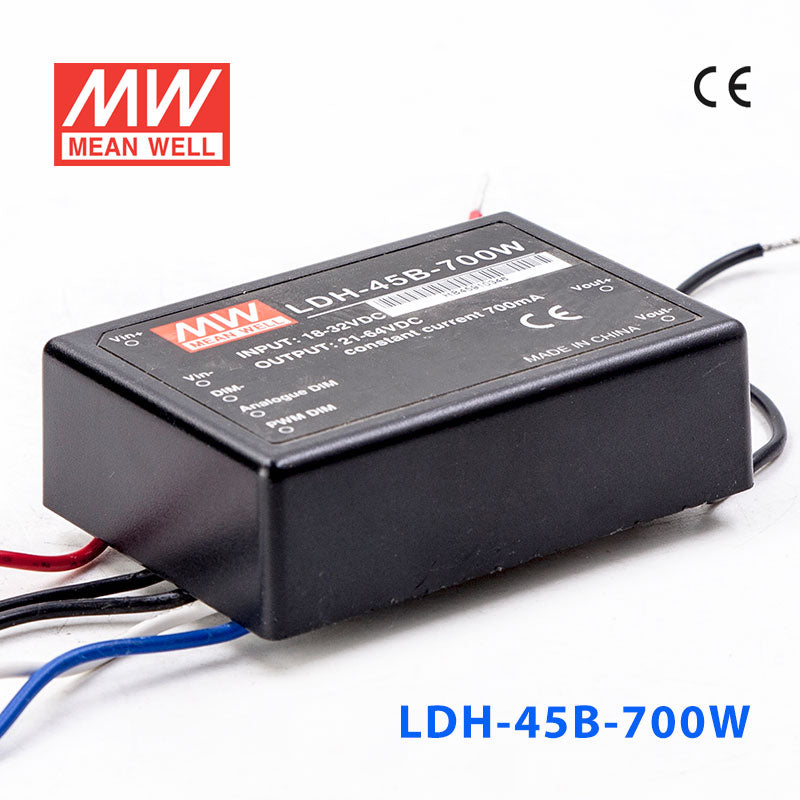

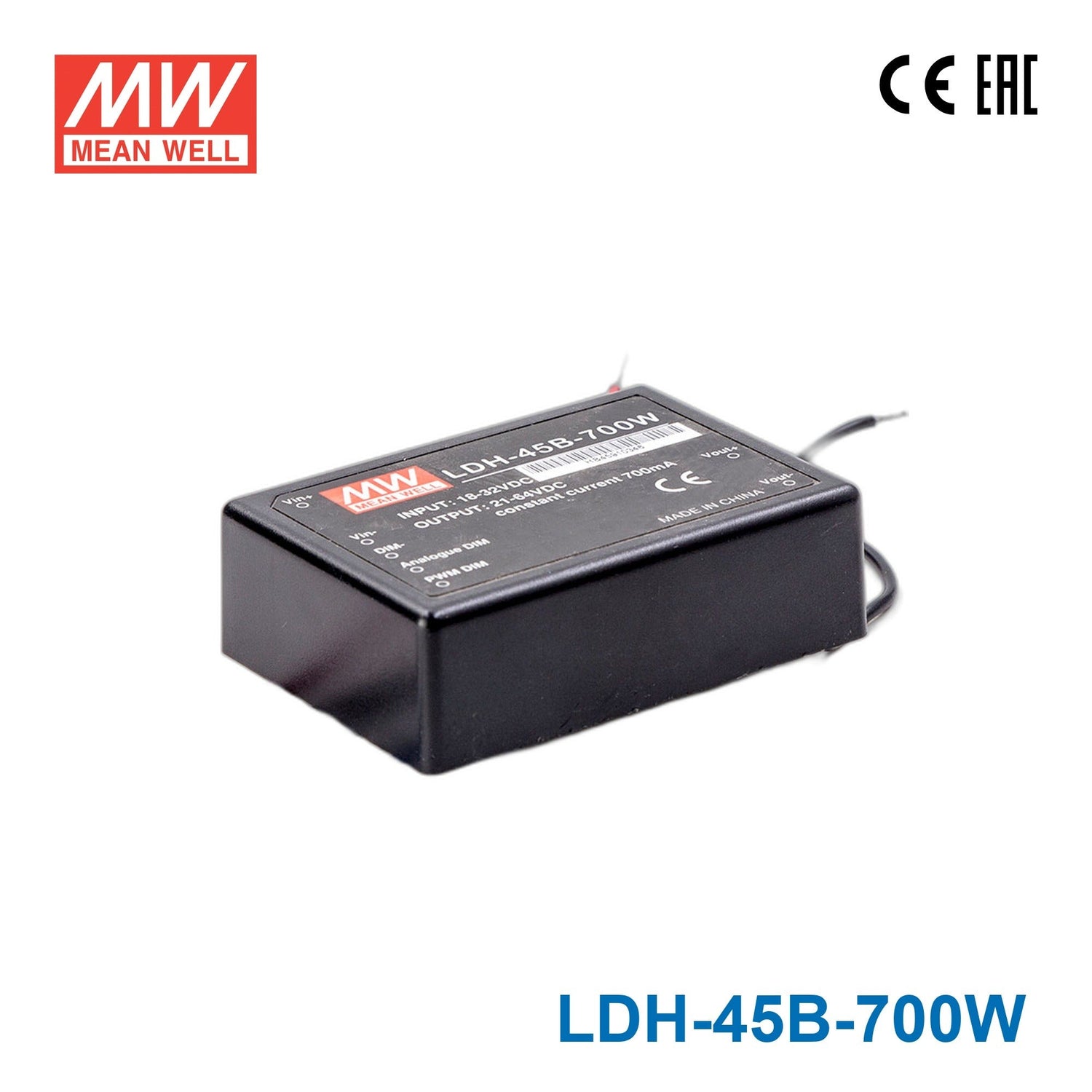

Mean Well LDH-45B-700W DC/DC LED Driver CC 700mA - Step-up
Overview
LDH-45B-700W is the model of this series: rated current 700mA, rated power 44.8W, typical efficiency 95%.
Features
- DC/DC step-up converter
- Constant current output : 350mA to 1050mA
- Wide output LED string voltage up to 126VDC
- High efficiency up to 95%
- PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]
- DALI dimming [(Blank)DA type or WDA type]
- Protections: Short circuit / Over voltage / Under voltage
- Cooling by free air convection
- Fully encapsulated
- 3 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- CURRENT ACCURACY(Typ.)
- ±5% at 24VDC input
- VOLTAGE RANGE Non-DALINote.2
- 21~64VDC
- VOLTAGE RANGE DALINote.2
- 36~64VDC
- NO LOAD OUTPUT VOLTAGE(max.)
- 75V
- RATED POWER
- 44.8W
- RIPPLE & NOISE (max.)Note.3
- 1.2Vp-p
INPUT
- RATED VOLTAGE
- 24VDC
- VOLTAGE RANGENote.2
- 18~32VDC
- EFFICIENCY (max.)
- 95%
- DC CURRENT (Typ.)
- 2A
PWM DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power ON with dimming: PWM signal >2~8VDC or open circuit, between PWM DIM and DIM- Power OFF : PWM signal <0.5VDC or short or PWM duty is equal to 0%, between PWM DIM and DIM-
- PWM DIMMING FREQUENCY
- 1K~10KHz
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when PWM dimming OFF
ANALOG DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power on with dimming: DC input >0.25~8VDC or open circuit, between Analog DIM and DIM- Power off : DC input <0.2VDC or short, between Analog DIM and DIM-
- DIM INPUT VOLTAGE RANGE
- 0.25~1.3VDC
- MAX OPERATION VOLTAGE
- 8V; The output current remains constant when voltage changes from 1.3V to 8V
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when Analog dimming OFF
PROTECTION
- SHORT CIRCUIT
- Protection type : Power OFF and fuse open
- OVER VOLTAGE (max.)
- 75V Protection type : Constant output voltage and shut off o/p current, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- LVD BS EN/EN61347-1, BS EN/EN61347-2-13,EAC TP TC 004 approved
- EMC EMISSION
- Compliance to BS EN/EN55015;EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level;EAC TP TC 020
OTHERS
- MTBF
- 12195.2K hrs min. Telcordia SR-332 (Bellcore) ; 1179.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*53*22.7mm (L*W*H)
- PACKING
- 138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)
Test conditions and notes3
- 1. All parameters are specified at normal input(12VDC,24VDC), rated load, 25℃ 70% RH ambient.
- 2. (Blank) type and W type output voltage must step up by 3 Volts from input DC voltage; (Blank)DA type and WDA type output voltage must step up by 12 Volts from input DC voltage.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf parallel capacitor.
Technical drawings
Downloads
FAQ
Can I use the LDH-45B-700W for a 700mA recessed LED downlight string?
Yes, this driver is meant for constant current LED operation at 700mA, which suits many recessed and architectural downlight strings. It provides a 21-64V constant current range and up to 44.8W, so the total forward voltage of the LEDs must stay within that range. It should not be used for constant voltage LED products.
Is the LDH-45B-700W suitable for constant current channel-letter or signage modules?
It can be suitable when the signage modules are designed for 700mA constant current drive. With a 21-64V output range and 44.8W maximum power, it fits many constant current module strings used in compact signage assemblies. It is not the correct choice for modules that expect a fixed constant voltage supply.
Can this driver be used for a small LED array in damp or outdoor locations?
Only inside a lighting system that keeps the driver dry: the datasheet gives no IP or waterproof rating and specifies 20-90% RH non-condensing. It supports operation from -40°C to +70°C (refer to the derating curve). The LED array must still be a 700mA constant current load within the 21-64V range.
How do I verify LED compatibility with the LDH-45B-700W?
Start by confirming the LEDs require 700mA constant current rather than constant voltage. Then check that the combined LED forward voltage falls within the driver's 21-64V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no fixed LED count.
Does the LDH-45B-700W handle harsh operating environments?
It has an operating temperature range of -40°C to +70°C (refer to the derating curve) and is vibration-rated at 10-500Hz, 2G along the X, Y and Z axes. No IP or waterproof rating is listed, so dust and moisture protection must come from the enclosure. Its output remains 700mA constant current up to 44.8W.
