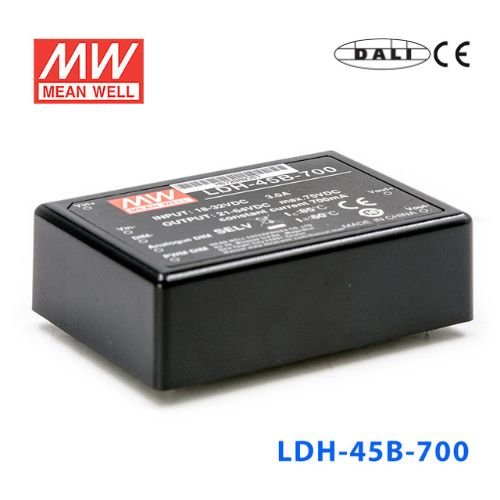

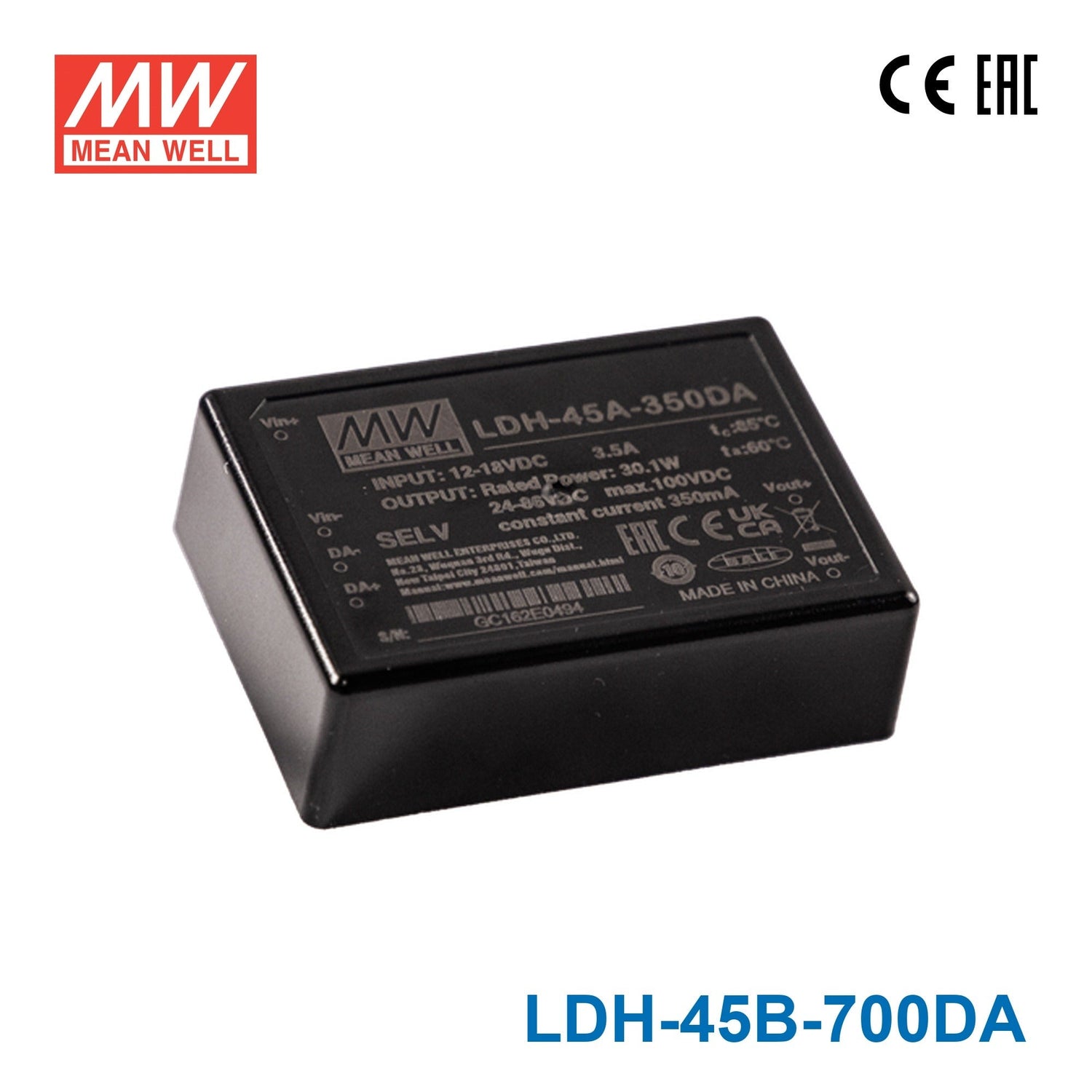

Mean Well LDH-45B-700DA DC/DC LED Driver CC 700mA - Step-up
Overview
LDH-45B-700DA is the model of this series: rated current 700mA, rated power 44.8W, typical efficiency 95%.
Features
- DC/DC step-up converter
- Constant current output : 350mA to 1050mA
- Wide output LED string voltage up to 126VDC
- High efficiency up to 95%
- PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]
- DALI dimming [(Blank)DA type or WDA type]
- Protections: Short circuit / Over voltage / Under voltage
- Cooling by free air convection
- Fully encapsulated
- 3 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- CURRENT ACCURACY(Typ.)
- ±5% at 24VDC input
- VOLTAGE RANGE Non-DALINote.2
- 21~64VDC
- VOLTAGE RANGE DALINote.2
- 36~64VDC
- NO LOAD OUTPUT VOLTAGE(max.)
- 75V
- RATED POWER
- 44.8W
- RIPPLE & NOISE (max.)Note.3
- 1.2Vp-p
INPUT
- RATED VOLTAGE
- 24VDC
- VOLTAGE RANGENote.2
- 18~32VDC
- EFFICIENCY (max.)
- 95%
- DC CURRENT (Typ.)
- 2A
PWM DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power ON with dimming: PWM signal >2~8VDC or open circuit, between PWM DIM and DIM- Power OFF : PWM signal <0.5VDC or short or PWM duty is equal to 0%, between PWM DIM and DIM-
- PWM DIMMING FREQUENCY
- 1K~10KHz
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when PWM dimming OFF
ANALOG DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power on with dimming: DC input >0.25~8VDC or open circuit, between Analog DIM and DIM- Power off : DC input <0.2VDC or short, between Analog DIM and DIM-
- DIM INPUT VOLTAGE RANGE
- 0.25~1.3VDC
- MAX OPERATION VOLTAGE
- 8V; The output current remains constant when voltage changes from 1.3V to 8V
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when Analog dimming OFF
PROTECTION
- SHORT CIRCUIT
- Protection type : Power OFF and fuse open
- OVER VOLTAGE (max.)
- 75V Protection type : Constant output voltage and shut off o/p current, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- LVD BS EN/EN61347-1, BS EN/EN61347-2-13,EAC TP TC 004 approved
- EMC EMISSION
- Compliance to BS EN/EN55015;EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level;EAC TP TC 020
OTHERS
- MTBF
- 12195.2K hrs min. Telcordia SR-332 (Bellcore) ; 1179.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*53*22.7mm (L*W*H)
- PACKING
- 138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)
Test conditions and notes3
- 1. All parameters are specified at normal input(12VDC,24VDC), rated load, 25℃ 70% RH ambient.
- 2. (Blank) type and W type output voltage must step up by 3 Volts from input DC voltage; (Blank)DA type and WDA type output voltage must step up by 12 Volts from input DC voltage.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf parallel capacitor.
Technical drawings
Downloads
FAQ
Can the LDH-45B-700DA power a 700mA LED downlight assembly?
Yes, if the downlight assembly is a constant current load rated for 700mA. This model operates over a 36-64V constant current output range with up to 44.8W, so it fits LED strings whose combined forward voltage is within that range. It is not designed for constant voltage lighting products.
Is this a good option for 700mA signage modules with a higher forward voltage?
Yes, this version is better suited to higher-forward-voltage 700mA module strings because its constant current range starts at 36V and extends to 64V. That makes it a fit for constant current signage modules in that window, up to 44.8W. It is not a substitute for a constant voltage driver.
Can I use the LDH-45B-700DA in outdoor LED equipment?
Only when the equipment protects it from water: the datasheet gives no IP or waterproof rating and specifies 20-90% RH non-condensing. It has a -40°C to +70°C operating temperature range (refer to the derating curve) for demanding conditions. The LED load still must be a 700mA constant current load within 36-64V.
How many LEDs can the LDH-45B-700DA run?
There is no single LED count because the limit depends on each LED's forward voltage. Electrically, the driver supplies 700mA constant current and supports a total LED forward voltage of 36-64V. That means compatibility should be checked against the full string voltage, not by counting LEDs alone.
What environmental conditions is the LDH-45B-700DA built for?
It is specified for -40°C to +70°C operation (refer to the derating curve), 20-90% RH non-condensing humidity and 10-500Hz, 2G vibration; no IP or waterproof rating is listed. Its compact size of 75.0 × 53.0 × 22.7 mm also helps where enclosure space is limited. Those environmental specs do not change the need for a 700mA constant current LED load.
