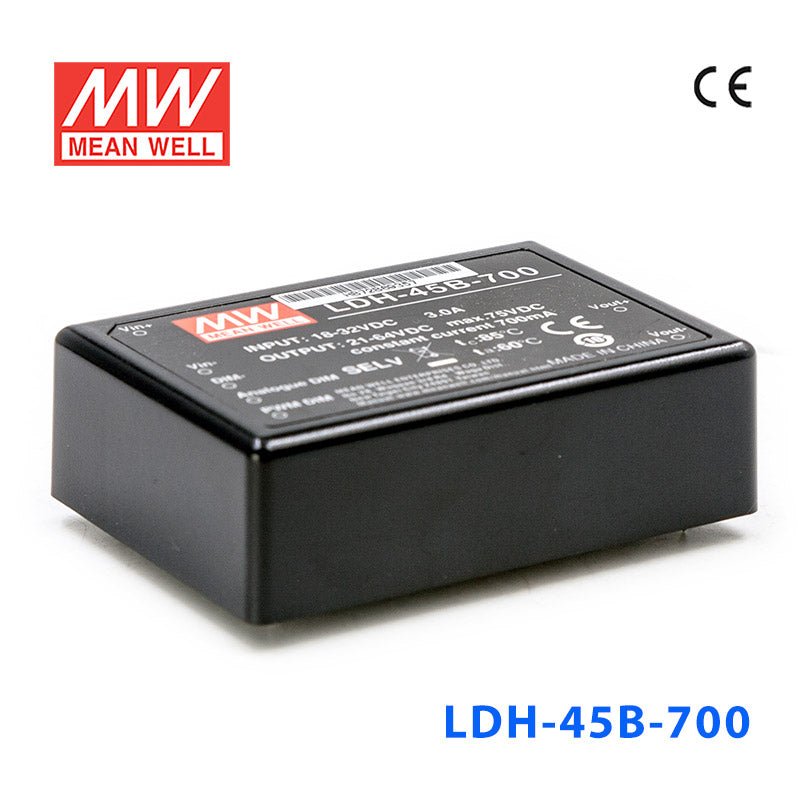

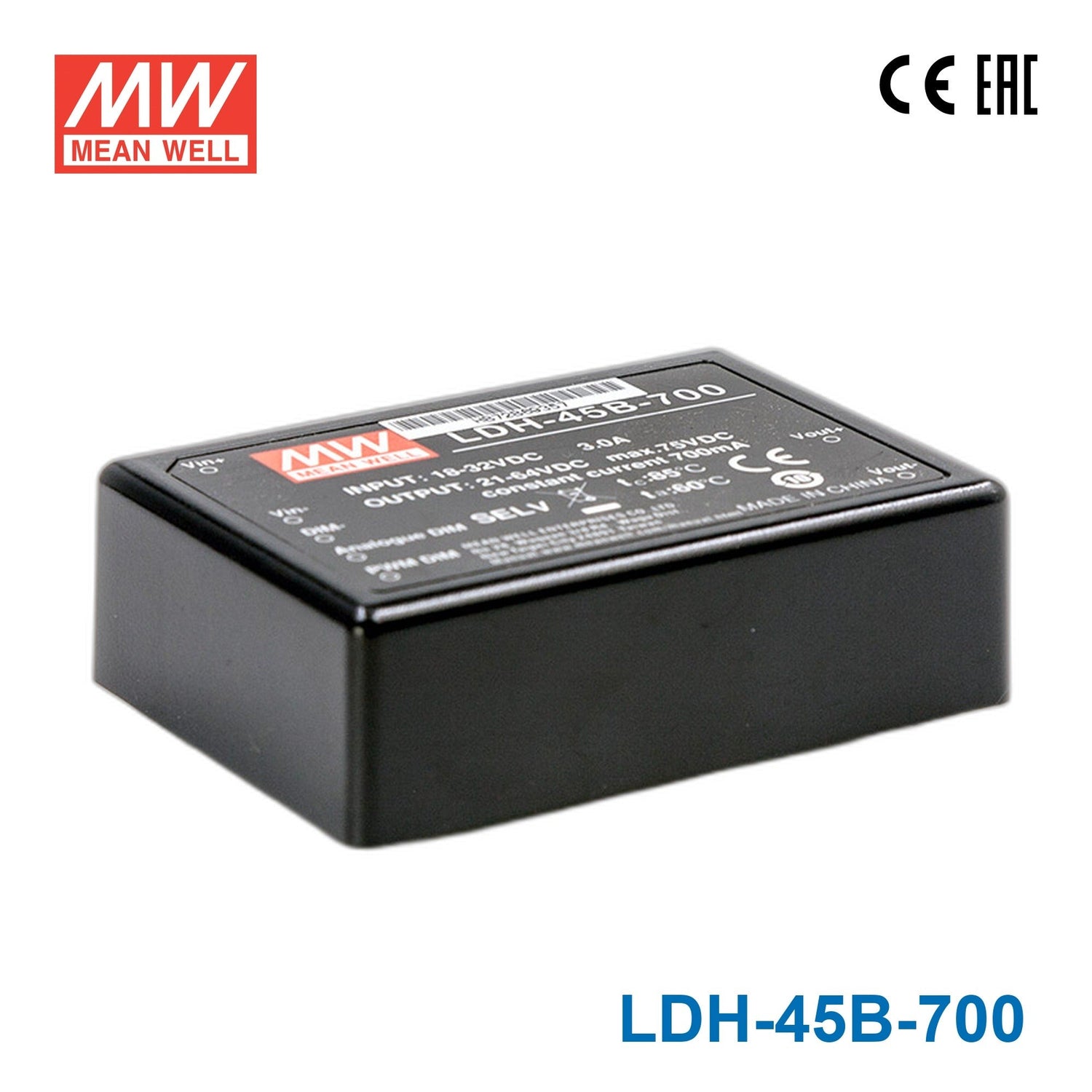

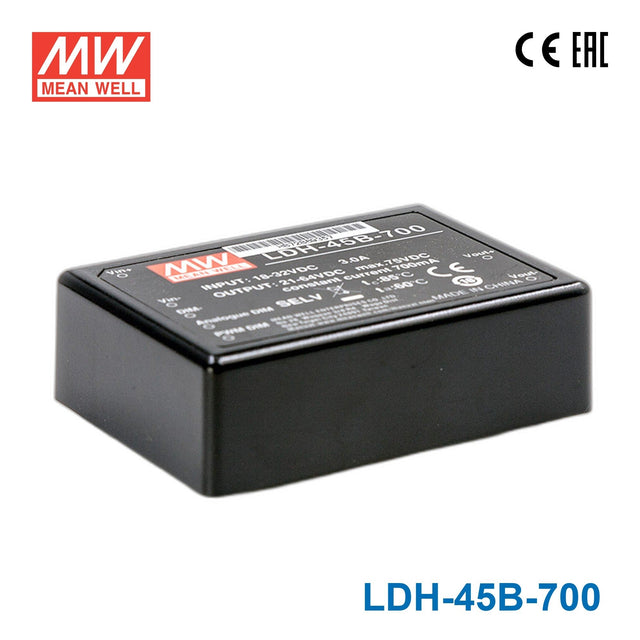

Mean Well LDH-45B-700 DC/DC LED Driver CC 700mA - Step-up
Overview
LDH-45B-700 is the model of this series: rated current 700mA, rated power 44.8W, typical efficiency 95%.
Features
- DC/DC step-up converter
- Constant current output : 350mA to 1050mA
- Wide output LED string voltage up to 126VDC
- High efficiency up to 95%
- PWM + analog dimming and remote ON/OFF control [(Blank) type or W type]
- DALI dimming [(Blank)DA type or WDA type]
- Protections: Short circuit / Over voltage / Under voltage
- Cooling by free air convection
- Fully encapsulated
- 3 years warranty
Specifications
OUTPUT
- RATED CURRENT
- 700mA
- CURRENT ACCURACY(Typ.)
- ±5% at 24VDC input
- VOLTAGE RANGE Non-DALINote.2
- 21~64VDC
- VOLTAGE RANGE DALINote.2
- 36~64VDC
- NO LOAD OUTPUT VOLTAGE(max.)
- 75V
- RATED POWER
- 44.8W
- RIPPLE & NOISE (max.)Note.3
- 1.2Vp-p
INPUT
- RATED VOLTAGE
- 24VDC
- VOLTAGE RANGENote.2
- 18~32VDC
- EFFICIENCY (max.)
- 95%
- DC CURRENT (Typ.)
- 2A
PWM DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power ON with dimming: PWM signal >2~8VDC or open circuit, between PWM DIM and DIM- Power OFF : PWM signal <0.5VDC or short or PWM duty is equal to 0%, between PWM DIM and DIM-
- PWM DIMMING FREQUENCY
- 1K~10KHz
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when PWM dimming OFF
ANALOG DIMMING & ON/OFF CONTROL
- REMOTE ON/OFF
- Leave open if not used Power on with dimming: DC input >0.25~8VDC or open circuit, between Analog DIM and DIM- Power off : DC input <0.2VDC or short, between Analog DIM and DIM-
- DIM INPUT VOLTAGE RANGE
- 0.25~1.3VDC
- MAX OPERATION VOLTAGE
- 8V; The output current remains constant when voltage changes from 1.3V to 8V
- QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.)
- 7mA when Analog dimming OFF
PROTECTION
- SHORT CIRCUIT
- Protection type : Power OFF and fuse open
- OVER VOLTAGE (max.)
- 75V Protection type : Constant output voltage and shut off o/p current, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
- SOLDERING TEMPERATURE
- Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
SAFETY & EMC
- SAFETY STANDARDS
- LVD BS EN/EN61347-1, BS EN/EN61347-2-13,EAC TP TC 004 approved
- EMC EMISSION
- Compliance to BS EN/EN55015;EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level;EAC TP TC 020
OTHERS
- MTBF
- 12195.2K hrs min. Telcordia SR-332 (Bellcore) ; 1179.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 75*53*22.7mm (L*W*H)
- PACKING
- 138g;100pcs/14.8Kg/0.83CUFT[(Blank) type or (Blank) DA type],1.04CUFT(W type or WDA type)
Test conditions and notes3
- 1. All parameters are specified at normal input(12VDC,24VDC), rated load, 25℃ 70% RH ambient.
- 2. (Blank) type and W type output voltage must step up by 3 Volts from input DC voltage; (Blank)DA type and WDA type output voltage must step up by 12 Volts from input DC voltage.
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf parallel capacitor.
Technical drawings
Downloads
FAQ
Can I use the LDH-45B-700 for a 700mA LED downlight string?
Yes, this driver is intended for constant current LED loads at 700mA, which is common in higher-output LED downlights. It supports a 21-64V constant current output range and up to 44.8W, so the full LED string must fall within that forward voltage range. It is not a constant voltage driver.
Will the LDH-45B-700 work for constant current signage modules?
Yes, it can work for signage modules that are specifically designed for 700mA constant current operation. Its 21-64V output range and 44.8W power level fit many mid-voltage constant current module strings. It should not be used where the signage system expects constant voltage input.
Is this driver appropriate for a small high-brightness LED array?
Yes, for a small LED array that needs a regulated 700mA constant current source. The driver can step up within a 21-64V output range and deliver up to 44.8W, which suits compact high-brightness arrays in that electrical window. The array's total forward voltage is the key sizing factor.
How do I size the LED load for the LDH-45B-700?
Match the load by current and total forward voltage rather than by a fixed LED count. This model provides 700mA constant current over 21-64V, and the number of LEDs depends on each LED's forward voltage. If the LEDs need constant voltage instead of 700mA constant current, choose a different driver type.
What are the main differences between the LDH-45B-700 and related LDH models?
The closest siblings are LDH-45B-700DA at 700mA, 36-64V, 44.8W; LDH-45B-700W at 700mA, 21-64V, 44.8W; and LDH-45B-700WDA at 700mA, 36-64V, 44.8W. In the same LDH-45B family, 500mA models are rated 21-86V or 36-86V at 43W, 350mA models are rated 21-126V or 36-126V at 44.1W, and 1050mA models are rated 21-43V or 36-43V at 45.15W.
