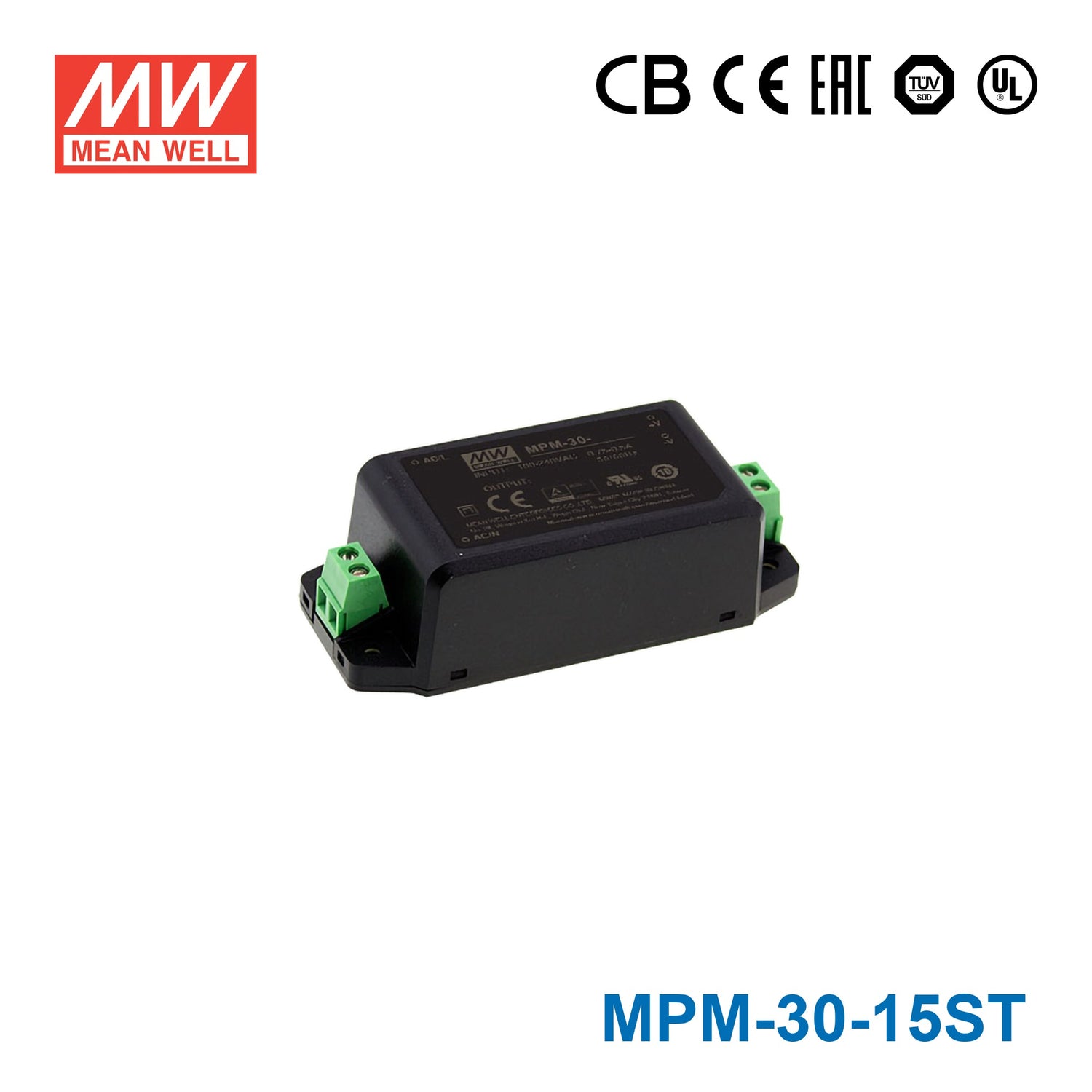

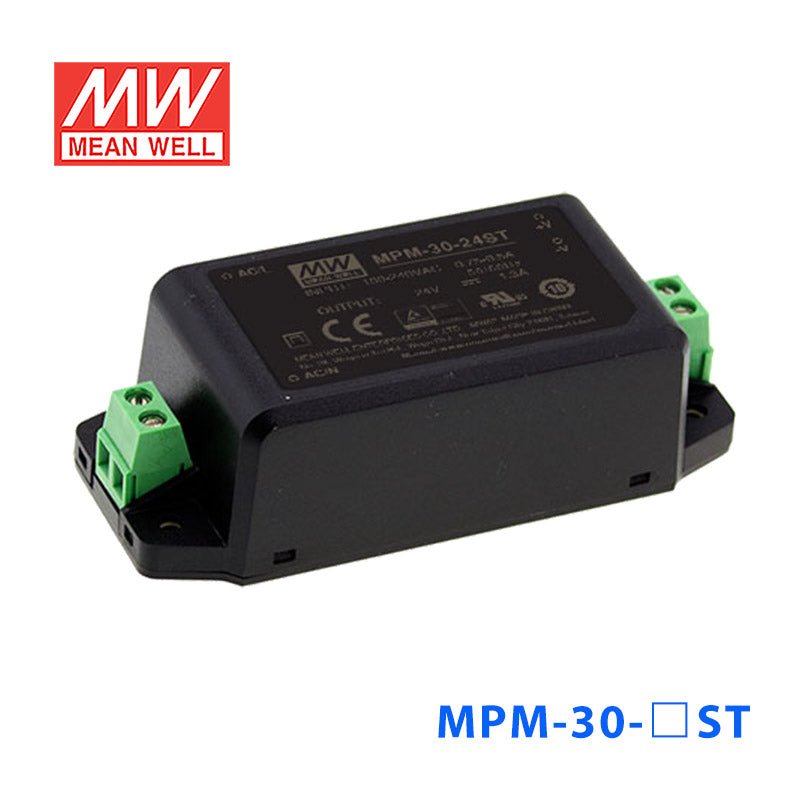

Mean Well MPM-30-15ST Power Supply 30W 15V
encapsulated, compact size, medical safety approved, no load power consumption < 0.1W, extremely low leakage current
SKU:
MPM-30-15ST
$22.70 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-30-15ST Power Supply 30W 15V
$22.70 USD
Unit price /
Unavailable
Description
Description
Features
| 2.73"x1.53" compact size |
| Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 |
| Suitable for BF application with appropriate system consideration |
| No-load power consumption<0.075W |
| Extremely low leakage current |
| Wide operating temp. range -40~+85°C |
| EMI Class B for class II configuration |
| Protections: Short circuit/ Overload/ Over voltage/Over temperature |
| No minimum load required |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC |
| AC inrush current | Cold start 25A/115VAC |
| Leakage current | Touch current<80 μA/264VAC |
| Overload protection | 115 ~ 165% rated output power |
| Over-voltage protection | 106%~136% rated output voltage |
| Setup, rise, hold up time | 500ms, 30ms, 40ms |
| Withstand voltage | I/P-O/P:4KVAC |
| Working temperature | -40~+85°C |
| Vibration | 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes |
| Safety standards | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; Design refer to BS EN/EN60335-1(by request) |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Case No | 291A |
| Dimension (LxWxH) | 69.5x39x24 |
| Packing | 144pcs / 15.7kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.58 in
-
Width1.56 in
-
Height1.12 in
-
Weight0.22 lb
