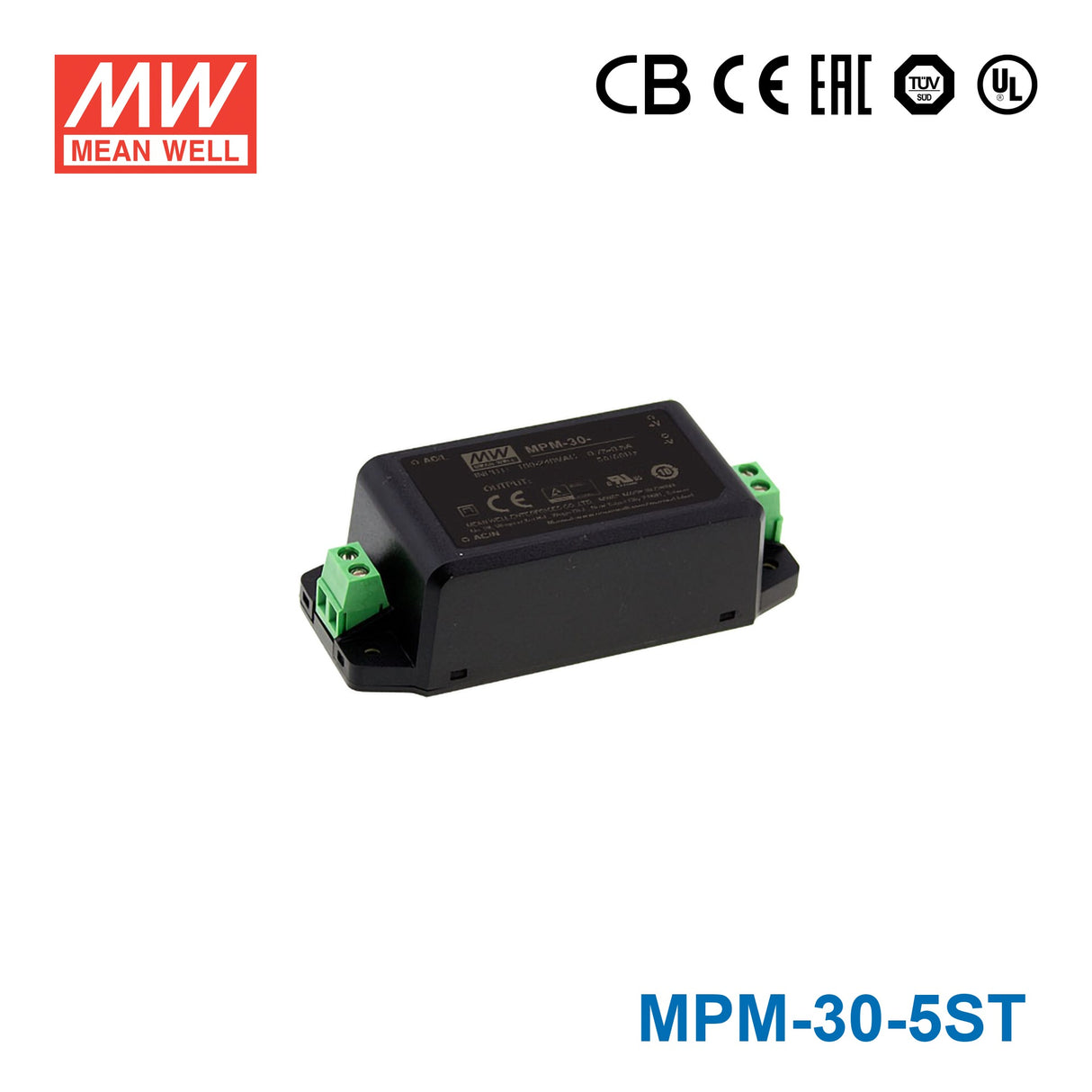

Mean Well MPM-30-5ST Power Supply 30W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well MPM-30-5ST Power Supply 30W 5V
Touch current<80 μA/264VAC
Key Features
- ✓2.73"x1.53" compact size
- ✓Medical safety approved(2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
- ✓Suitable for BF application with appropriate system consideration
- ✓No-load power consumption<0.075W
- ✓Extremely low leakage current
- ✓Wide operating temp. range -40~+85°C
- ✓EMI Class B for class II configuration
- ✓Protections: Short circuit/ Overload/ Over voltage/Over temperature
- ✓No minimum load required
- ✓3 years warranty
-
BrandMean Well
-
SeriesMPM Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length3.58 in
-
Width1.56 in
-
Height1.12 in
-
Weight0.22 lb
::specification::
Frequently Asked Questions
Can I use the MPM-30-5ST for a 5V PLC interface, microcontroller system, or automation board?
Yes, if the application needs a constant 5V output and the total draw stays within 6A and 30W. That makes it suitable for many 5V control and embedded loads used in automation equipment.
Is the MPM-30-5ST suitable for 5V HMI logic, industrial communications, or gateway electronics?
It is appropriate for 5V electronics that need regulated DC power and remain within the 30W output rating. The maximum output current is 6A, so the full system load should stay at or below that level.
Can this model power several low-voltage 5V boards in a compact enclosure?
It can support multiple 5V boards if their combined demand stays within 30W and 6A. Its listed dimensions are 91.0 × 39.5 × 28.5 mm, which helps when space planning matters.
Will the MPM-30-5ST tolerate demanding ambient temperatures?
The specified operating temperature range is -40°C to +85°C. No IP rating is listed, so the temperature capability is documented but wet or outdoor use is not established by these specs.
What should I compare when choosing among the 5V MPM models?
Within the listed 5V group, MPM-05-5 is 5W and 1A, MPM-10-5 is 10W and 2A, MPM-15-5 is 15W and 3A, MPM-20-5 is 20W and 4A, MPM-30-5 and MPM-30-5ST are 30W and 6A, MPM-45-5 and MPM-45-5ST are 40W and 8A, and MPM-65-5 and MPM-65-5ST are 50W and 10A. This model is the 30W, 6A ST version in that lineup.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other MPM-30 Models
11 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well MPM-30-5 Power Supply 30W 5V | 30W | 5V | 6A | Indoor | $20.58 | View |
| Mean Well MPM-30-48ST Power Supply 30W 48V | 30.2W | 48V | 0.63A | Indoor | $22.70 | View |
| Mean Well MPM-30-24 Power Supply 30W 48V | 30.2W | 48V | 0.63A | Indoor | $20.58 | View |
| Mean Well MPM-30-3.3ST Power Supply 30W 3.3V | 19.8W | 3.3V | 6A | Indoor | $22.70 | View |
| Mean Well MPM-30-3.3 Power Supply 30W 3.3V | 19.8W | 3.3V | 6A | Indoor | $20.58 | View |
| Mean Well MPM-30-24ST Power Supply 30W 24V | 31.2W | 24V | 1.3A | Indoor | $22.68 | View |
| Mean Well MPM-30-24 Power Supply 30W 24V | 31.2W | 24V | 1.3A | Indoor | $21.43 | View |
| Mean Well MPM-30-15ST Power Supply 30W 15V | 30W | 15V | 2A | Indoor | $22.70 | View |
| Mean Well MPM-30-30 Power Supply 30W 15V | 30W | 15V | 2A | Indoor | $20.58 | View |
| Mean Well MPM-30-12ST Power Supply 30W 12V | 30W | 12V | 2.5A | Indoor | $22.70 | View |
| Mean Well MPM-30-12 Power Supply 30W 12V | 30W | 12V | 2.5A | Indoor | $20.54 | View |
