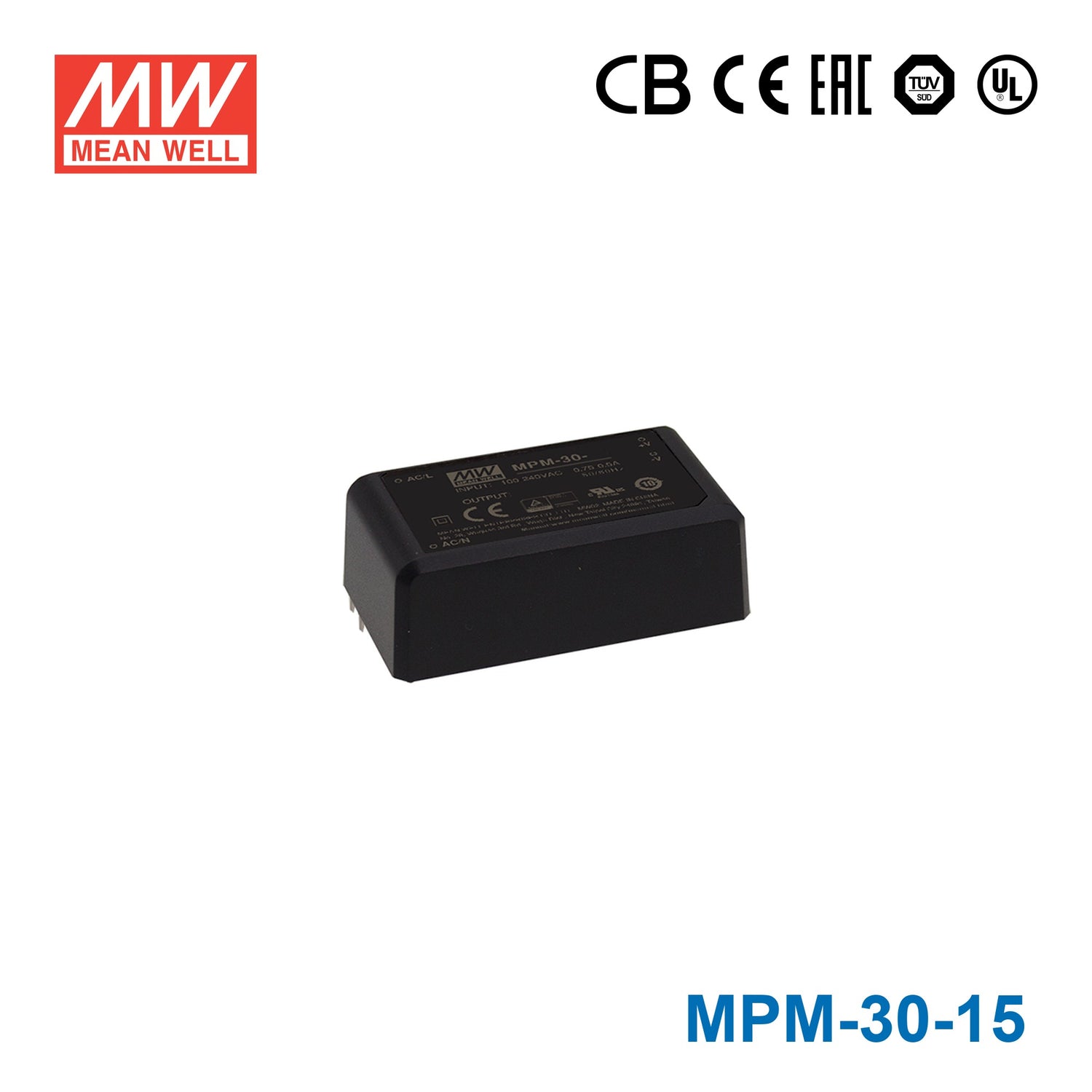

Mean Well MPM-30-15 Power Supply 30W 15V 2A

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current
SKU MPM-30-15
$20.58 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

MPM-30-15 is the 15V output model of this series: rated current 2A, rated power 30W, typical efficiency 89%.

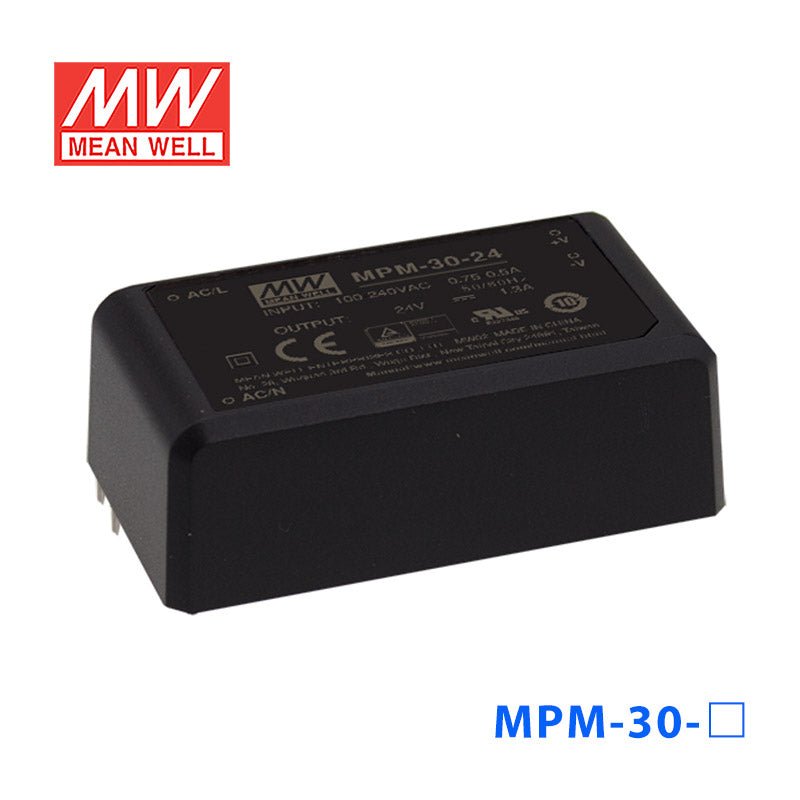

MPM-30 is a 30W high density and small size (69.5x39x24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 91%, Class Ⅱ (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, high EMC performance, 4KVAC isolation, etc. PCB mounting style model(Blank) meet the anti-vibration demand up to 2G and screw terminal style model (ST) meet the anti-vibration demand up to 5G . The design observes IEC / BS EN/ EN60601 - 1 and ANSI/AAMI ES60601 - 1version three with 2xMOPP level and ultra-low leakage current (<80μA). It is very suitable for BF (patient contact) type medical device or relevant equipment. In addition to PCB mounting style,MPM-30 series also offers the screw terminal style model (ST).

Features

  • 2.73"x1.53" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • No load power consumption<0.075W
  • Extremely low leakage current
  • Wide operating temp. range -40 ~ +85℃
  • EMI class B for class Ⅱ configuration
  • Protections: Short circuit / Overload / Over voltage
  • No minimum load required
  • 3 years warranty

Specifications

MPM-30-15Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
2A
CURRENT RANGENote.2
0 ~ 2A
PEAK CURRENT
2.3A
RATED POWER
30W
PEAK LOAD(10sec.)Note.3
34.5W
RIPPLE & NOISE (max.)Note.4
120mVp-p
VOLTAGE TOLERANCENote.5
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
40ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGENote.6
80 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89%
AC CURRENT (Typ.)
0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENT (max.)Note.7
Touch current <80μA/264VAC

PROTECTION

OVERLOAD
115% ~ 165% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
15.8 ~ 20.3V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
SOLDERING TEMPERATURE
Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
VIBRATION
Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.8
PCB mounting: 5000 meters Screw terminal style: 3000 meters

SAFETY & EMC

SAFETY STANDARDS
IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved,Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION

BS EN/EN55035, BS EN/EN60601-1-2

ParameterStandardTest Level
ConductedBS EN/EN55011 (CISPR11)Class B
RadiatedBS EN/EN55011 (CISPR11)Class B
Harmonic CurrentBS EN/EN61000-3-2Class A
Voltage FlickerBS EN/EN61000-3-3
EMC IMMUNITY
ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
6325.8K hrs min. Telcordia SR-332 (Bellcore) ; 778.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB mounting style:69.5*39*24mm (L*W*H) or 2.73″*1.53″*0.94″ inch Screw terminal style:91*39.5*28.5mm (L*W*H) or 3.58″*1.55″*1.12″ inch
PACKING
PCB mounting style:0.102Kg;144pcs/15.7Kg/0.97CUFT Screw terminal style :0.12Kg;120pcs/14.9Kg/0.74CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. No minimum load required.
  3. 3. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  4. 4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  5. 5. Tolerance : includes set up tolerance, line regulation and load regulation.
  6. 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
  7. 7. Touch current was measured from primary input to DC output.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

MPM-30-15 Block Diagram
Block Diagram
MPM-30-15 Mechanical Specification
Mechanical Specification

Typical applications

  • Portable medical device
  • Mobile clinical workstation
  • Medical computer monitor
  • Medical examination instrument

Downloads

FAQ

Can I use the MPM-30-15 to power a 15V industrial sensor or control module?

Yes, if the device requires constant voltage at 15V and its load stays within 2A and 30W. That makes it a fit for industrial control electronics, monitoring modules, or embedded boards designed for a regulated 15V input.

Is this power supply suitable for a small 15V automation or HMI subsystem?

It can be used for a small automation subsystem when the total demand does not exceed 15V, 2A, and 30W. The wide 80-264VAC input also supports use across standard AC input ranges found in industrial panels and equipment.

Can the MPM-30-15 be used in medical or diagnostic equipment?

It is a realistic option for equipment that needs a 15V constant-voltage source up to 2A, because the listed features include medical safety approved and extremely low leakage current. Final suitability still depends on the end device's full compliance requirements and total load staying within 30W.

Is the MPM-30-15 suitable for outdoor or harsh-environment use?

The operating temperature range is -40°C to +85°C, with load derating at higher ambient temperatures per the derating curve. However, no IP rating is listed in the provided specs, so dust and water protection for outdoor exposure is not specified here.

How does the MPM-30-15 compare with other 30W MPM series models?

Within the 30W range, the sibling outputs are MPM-30-12 at 30W, 12V, 2.5A; MPM-30-15ST at 30W, 15V, 2A; MPM-30-24 at 31.2W, 24V, 1.3A; MPM-30-24ST at 31.2W, 24V, 1.3A; MPM-30-3.3 at 19.8W, 3.3V, 6A; MPM-30-3.3ST at 19.8W, 3.3V, 6A; MPM-30-48 at 30.2W, 48V, 0.63A; MPM-30-48ST at 30.2W, 48V, 0.63A; MPM-30-5 at 30W, 5V, 6A; and MPM-30-5ST at 30W, 5V, 6A. The MPM-30-15 sits in the middle of that group with a 15V, 2A constant-voltage output.
