Mean Well

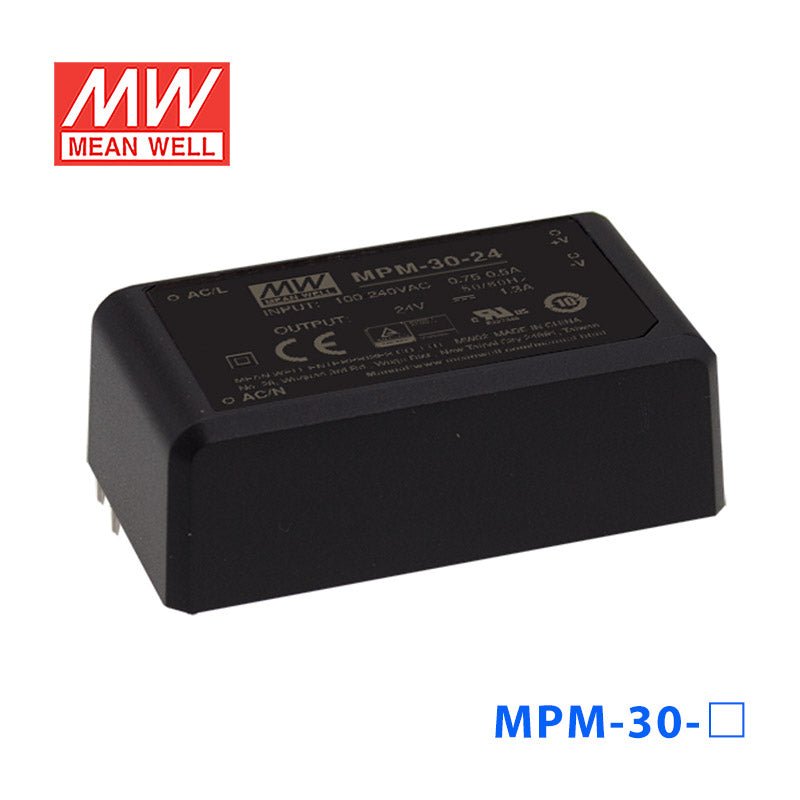

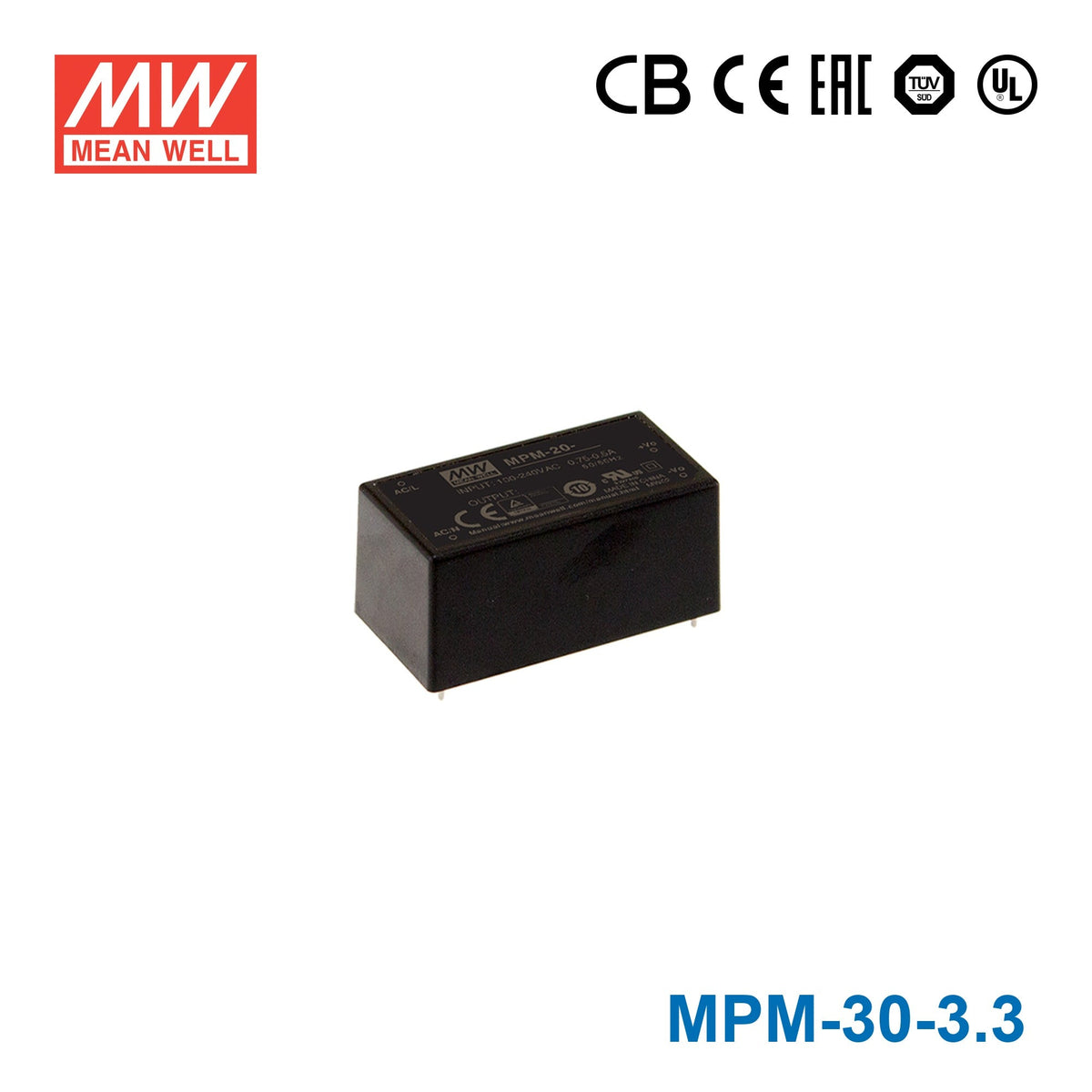

Mean Well MPM-30-3.3 Power Supply 30W 3.3V 6A

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current
SKU MPM-30-3.3
$20.58 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

MPM-30-3.3 is the 3.3V output model of this series: rated current 6A, rated power 19.8W, typical efficiency 82.5%.

MPM-30 is a 30W high density and small size (69.5x39x24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 91%, Class Ⅱ (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, high EMC performance, 4KVAC isolation, etc. PCB mounting style model(Blank) meet the anti-vibration demand up to 2G and screw terminal style model (ST) meet the anti-vibration demand up to 5G . The design observes IEC / BS EN/ EN60601 - 1 and ANSI/AAMI ES60601 - 1version three with 2xMOPP level and ultra-low leakage current (<80μA). It is very suitable for BF (patient contact) type medical device or relevant equipment. In addition to PCB mounting style,MPM-30 series also offers the screw terminal style model (ST).

Features

  • 2.73"x1.53" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • No load power consumption<0.075W
  • Extremely low leakage current
  • Wide operating temp. range -40 ~ +85℃
  • EMI class B for class Ⅱ configuration
  • Protections: Short circuit / Overload / Over voltage
  • No minimum load required
  • 3 years warranty

Specifications

MPM-30-3.3Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
3.3V
RATED CURRENT
6A
CURRENT RANGENote.2
0 ~ 6A
PEAK CURRENT
7.8A
RATED POWER
19.8W
PEAK LOAD(10sec.)Note.3
25.7W
RIPPLE & NOISE (max.)Note.4
80mVp-p
VOLTAGE TOLERANCENote.5
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
40ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGENote.6
80 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
82.5%
AC CURRENT (Typ.)
0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENT (max.)Note.7
Touch current <80μA/264VAC

PROTECTION

OVERLOAD
115% ~ 165% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
3.5 ~ 4.5V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
SOLDERING TEMPERATURE
Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
VIBRATION
Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.8
PCB mounting: 5000 meters Screw terminal style: 3000 meters

SAFETY & EMC

SAFETY STANDARDS
IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved,Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION

BS EN/EN55035, BS EN/EN60601-1-2

ParameterStandardTest Level
ConductedBS EN/EN55011 (CISPR11)Class B
RadiatedBS EN/EN55011 (CISPR11)Class B
Harmonic CurrentBS EN/EN61000-3-2Class A
Voltage FlickerBS EN/EN61000-3-3
EMC IMMUNITY
ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
6325.8K hrs min. Telcordia SR-332 (Bellcore) ; 778.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB mounting style:69.5*39*24mm (L*W*H) or 2.73″*1.53″*0.94″ inch Screw terminal style:91*39.5*28.5mm (L*W*H) or 3.58″*1.55″*1.12″ inch
PACKING
PCB mounting style:0.102Kg;144pcs/15.7Kg/0.97CUFT Screw terminal style :0.12Kg;120pcs/14.9Kg/0.74CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. No minimum load required.
  3. 3. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  4. 4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  5. 5. Tolerance : includes set up tolerance, line regulation and load regulation.
  6. 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
  7. 7. Touch current was measured from primary input to DC output.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

MPM-30-3.3 Block Diagram
Block Diagram
MPM-30-3.3 Mechanical Specification
Mechanical Specification

Typical applications

  • Portable medical device
  • Mobile clinical workstation
  • Medical computer monitor
  • Medical examination instrument

Downloads

FAQ

Can I use the MPM-30-3.3 to power 3.3V embedded boards or logic circuits?

Yes, if the electronics require constant voltage at 3.3V and stay within 6A and 19.8W. That makes it suitable for embedded computing, logic-heavy controller boards, and low-voltage industrial electronics designed around a 3.3V rail.

Is the MPM-30-3.3 appropriate for FPGA, MCU, or processor-based industrial systems?

It can be a fit when the main input rail is 3.3V constant voltage and the total load does not exceed 6A. The 19.8W rating is better aligned with compact processing and control assemblies than with larger mixed-voltage systems.

Can this power supply run 3.3V communications or interface electronics in automation equipment?

Yes, for 3.3V communications, interface, or control boards that need up to 6A. The wide 80-264VAC input also makes it usable in equipment that may be deployed across different standard AC supply ranges.

Is the MPM-30-3.3 suitable for medical or measurement electronics that use 3.3V rails?

It can be considered for 3.3V electronic assemblies that stay within 19.8W, especially where medical safety approved and extremely low leakage current are relevant attributes. Final approval still depends on the complete end-equipment design and compliance scope.

Can the MPM-30-3.3 be used in outdoor or dusty environments?

Its operating temperature range is -40°C to +85°C, with load derating at higher ambient temperatures per the derating curve. However, no IP rating is listed in the provided specifications, so environmental protection against dust ingress or water exposure is not defined here.

How does the MPM-30-3.3 compare with other 3.3V models in the series?

On this sheet the other 3.3V model is MPM-30-3.3ST at 19.8W, 6A in a screw terminal style; the other MPM-30 outputs are 5V/6A, 12V/2.5A, 15V/2A, 24V/1.3A and 48V/0.63A. The MPM-30-3.3 is the PCB-mount 3.3V option, rated 19.8W rather than the 30W or more of the other outputs.
