Mean Well

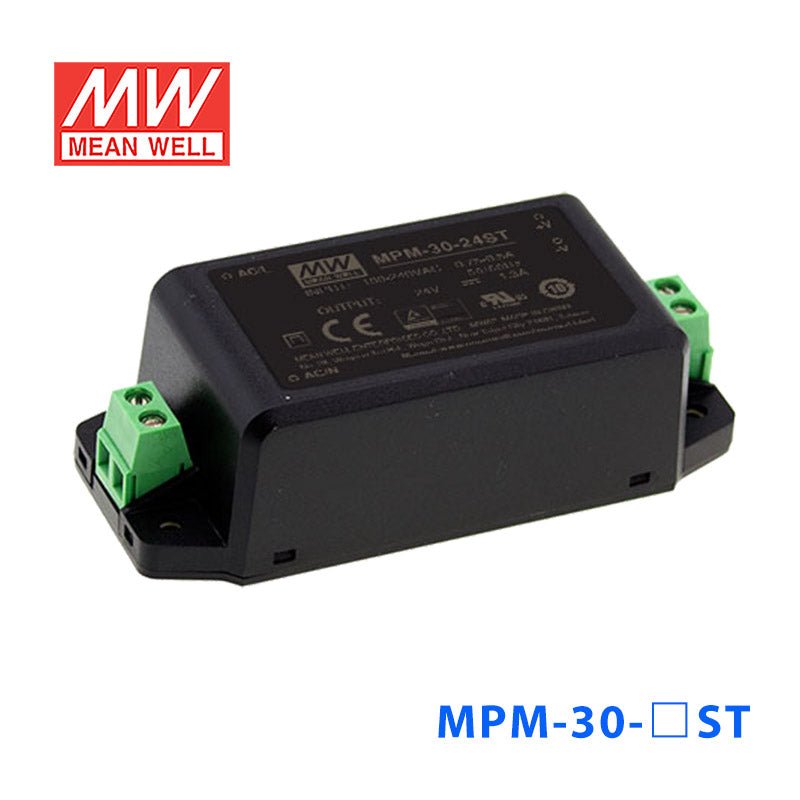

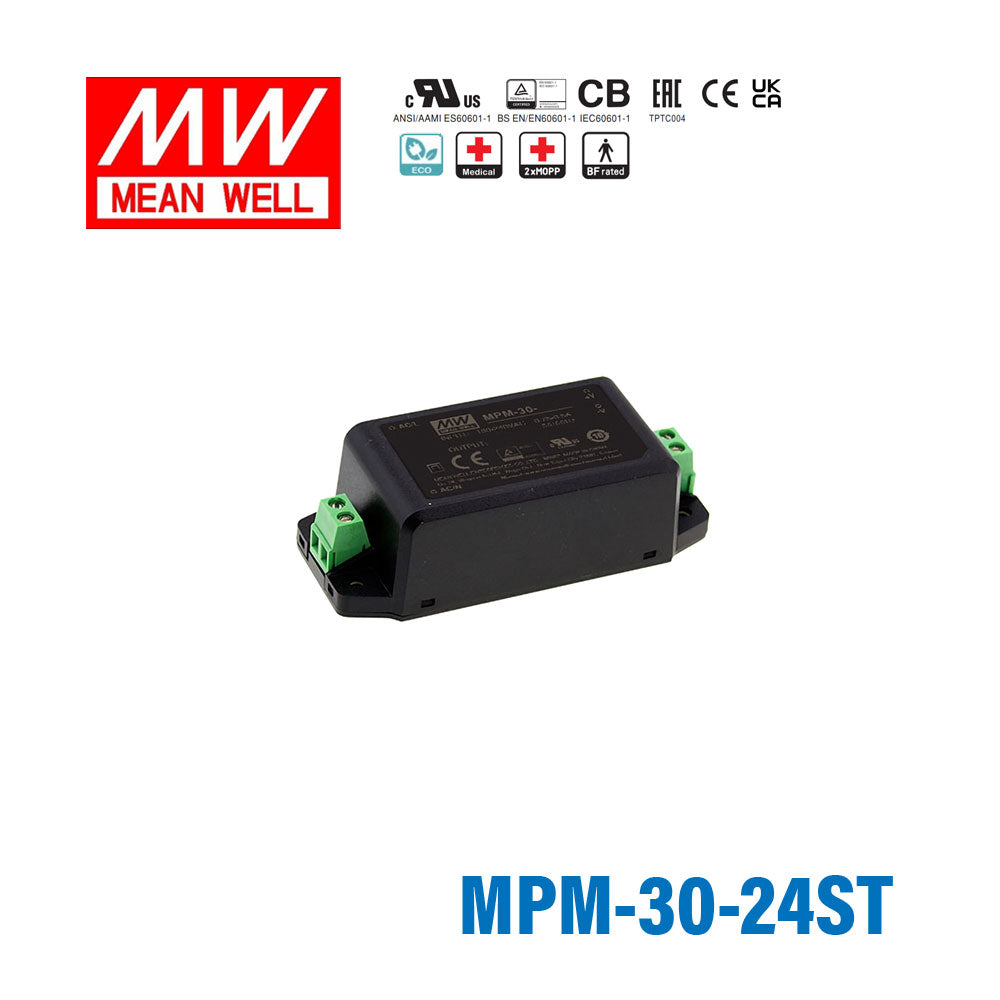

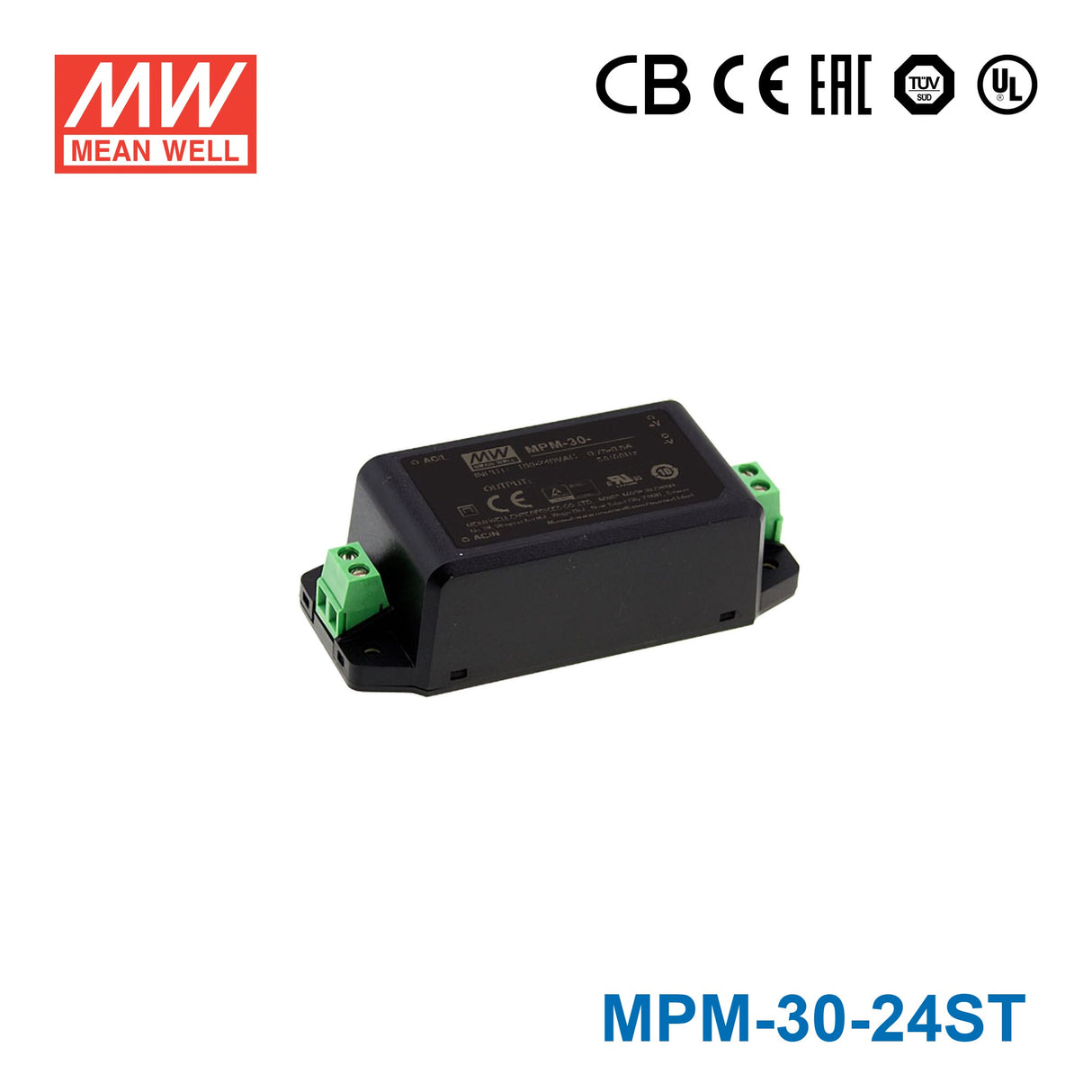

Mean Well MPM-30-24ST Power Supply 30W 24V 1.3A

encapsulatedcompact sizemedical safety approvedno load power consumption < 0.1Wextremely low leakage current
SKU MPM-30-24ST
$22.68 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Overview

MPM-30-24ST is the 24V output model of this series: rated current 1.3A, rated power 31.2W, typical efficiency 90%.

MPM-30 is a 30W high density and small size (69.5x39x24mm) AC/DC module type medical power supply series offered in pin type. It features the operation for 80~264VAC, a low no load power consumption less than 0.075W, a high efficiency up to 91%, Class Ⅱ (no FG) double insulation, outstanding dissipation and high lifespan thanks to the interior potting, high EMC performance, 4KVAC isolation, etc. PCB mounting style model(Blank) meet the anti-vibration demand up to 2G and screw terminal style model (ST) meet the anti-vibration demand up to 5G . The design observes IEC / BS EN/ EN60601 - 1 and ANSI/AAMI ES60601 - 1version three with 2xMOPP level and ultra-low leakage current (<80μA). It is very suitable for BF (patient contact) type medical device or relevant equipment. In addition to PCB mounting style,MPM-30 series also offers the screw terminal style model (ST).

Features

  • 2.73"x1.53" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • No load power consumption<0.075W
  • Extremely low leakage current
  • Wide operating temp. range -40 ~ +85℃
  • EMI class B for class Ⅱ configuration
  • Protections: Short circuit / Overload / Over voltage
  • No minimum load required
  • 3 years warranty

Specifications

MPM-30-24STSpecifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
1.3A
CURRENT RANGENote.2
0 ~ 1.3A
PEAK CURRENT
1.5A
RATED POWER
31.2W
PEAK LOAD(10sec.)Note.3
36W
RIPPLE & NOISE (max.)Note.4
200mVp-p
VOLTAGE TOLERANCENote.5
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
40ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGENote.6
80 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
90%
AC CURRENT (Typ.)
0.75A/115VAC 0.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 25A/115VAC 45A/230VAC
LEAKAGE CURRENT (max.)Note.7
Touch current <80μA/264VAC

PROTECTION

OVERLOAD
115% ~ 165% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
25.2 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
SOLDERING TEMPERATURE
Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max.)
VIBRATION
Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.8
PCB mounting: 5000 meters Screw terminal style: 3000 meters

SAFETY & EMC

SAFETY STANDARDS
IEC 60601-1:2005+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2,ANSI/AAMI ES60601-1:2005+A2, CAN/CSA C22.2 No. 60601-1:2014+A2,EAC TP TC 004 approved,Design refer to BS EN/EN60335-1(by request)
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION

BS EN/EN55035, BS EN/EN60601-1-2

ParameterStandardTest Level
ConductedBS EN/EN55011 (CISPR11)Class B
RadiatedBS EN/EN55011 (CISPR11)Class B
Harmonic CurrentBS EN/EN61000-3-2Class A
Voltage FlickerBS EN/EN61000-3-3
EMC IMMUNITY
ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
6325.8K hrs min. Telcordia SR-332 (Bellcore) ; 778.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
PCB mounting style:69.5*39*24mm (L*W*H) or 2.73″*1.53″*0.94″ inch Screw terminal style:91*39.5*28.5mm (L*W*H) or 3.58″*1.55″*1.12″ inch
PACKING
PCB mounting style:0.102Kg;144pcs/15.7Kg/0.97CUFT Screw terminal style :0.12Kg;120pcs/14.9Kg/0.74CUFT
Test conditions and notes9
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. No minimum load required.
  3. 3. 33% Duty cycle maximum within every 30 seconds. Average output power should not exceed the rated power.
  4. 4. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  5. 5. Tolerance : includes set up tolerance, line regulation and load regulation.
  6. 6. Derating may be needed under low input voltages. Please check the derating curve for more details.
  7. 7. Touch current was measured from primary input to DC output.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

MPM-30-24ST Block Diagram
Block Diagram
MPM-30-24ST Mechanical Specification
Mechanical Specification

Typical applications

  • Portable medical device
  • Mobile clinical workstation
  • Medical computer monitor
  • Medical examination instrument

Downloads

FAQ

Can the MPM-30-24ST power a 24V embedded industrial computer or controller?

Yes, if the equipment needs a constant 24V source and its draw remains within 1.3A and 31.2W. That makes it a fit for compact industrial computing, control, or communications hardware built for 24V DC input.

Is this model suitable for 24V building automation or access control electronics?

It can be used where the electronics require 24V constant voltage and the load is no more than 31.2W. For smaller access, monitoring, or automation assemblies, the 1.3A output can be adequate if total current stays within the stated rating.

Can I use the MPM-30-24ST for low-power 24V industrial networking or communications gear?

It is suitable for low-power 24V communications or interface equipment when the total load stays within 1.3A. The wide 80-264VAC input is useful for equipment that may be installed across different AC mains environments.

Is the MPM-30-24ST appropriate for exposed outdoor locations?

The unit is specified for operation from -40°C to +85°C, with load derating at higher ambient temperatures per the derating curve. The product is encapsulated, but no IP rating is listed, so resistance to rain, washdown, or airborne dust is not specified in the provided data.

What is the factual difference between the MPM-30-24ST and the MPM-30-24?

Electrically they match at 31.2W, 24V, 1.3A with 80-264VAC input, -40°C to +85°C operating range and the same certifications. The difference is the package: MPM-30-24 is PCB mounting style at 69.5 × 39.0 × 24.0 mm and 0.102 kg, while MPM-30-24ST is screw terminal style at 91.0 × 39.5 × 28.5 mm and 0.12 kg.
