Mean Well

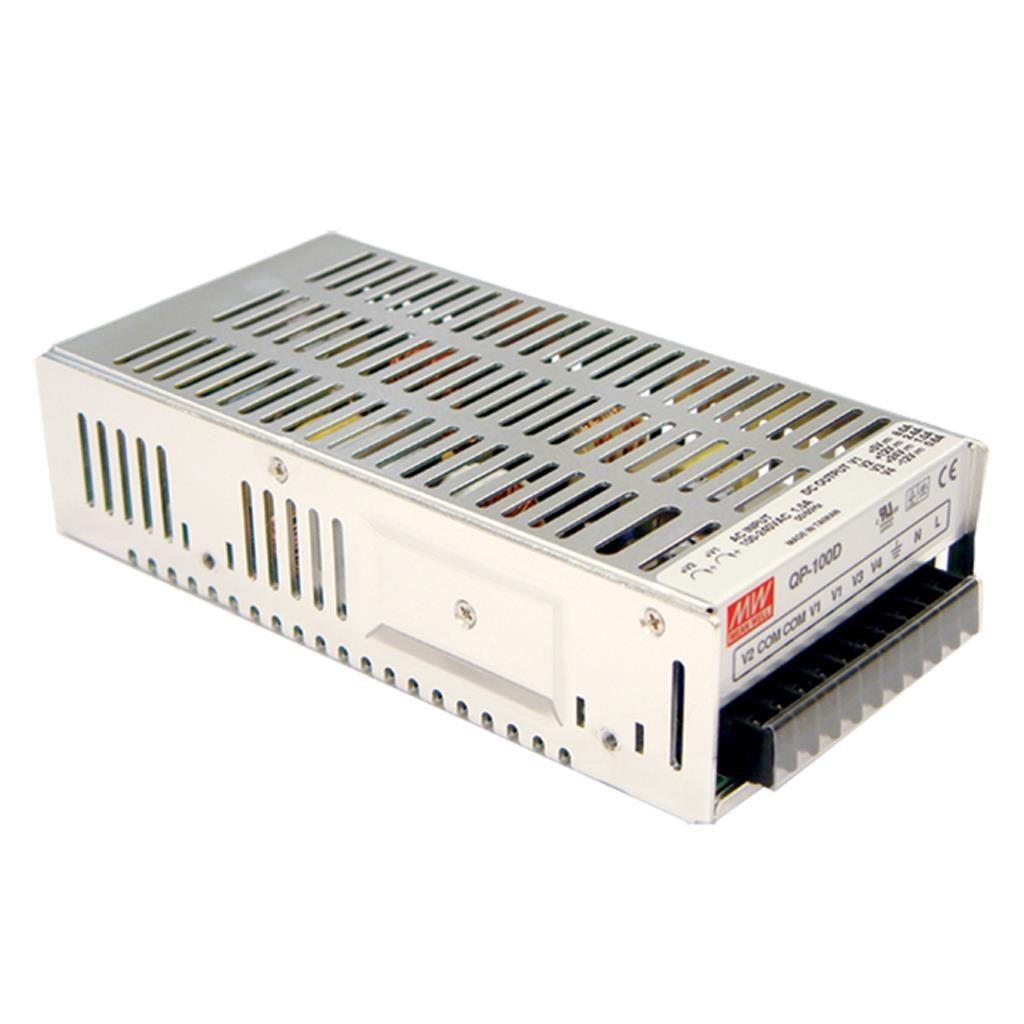

Mean Well QP-100D AC-DC Quad output enclosed power supply 100W

built-in active PFC, PF>0.95, quad output
SKU:
QP-100D
$69.56 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Protections: Short circuit / Overload / Over voltage
Built-in active PFC function, PF>0.95
Universal AC input/Full range
Cooling by free air convection
High operating temperature up to 60°C
CH4: ±Polarity is selectable
Fixed switching frequency at 100KHz
High efficiency, long life and high reliability
3 years warranty


General Specification

AC input voltage range 90~264VAC, 127~373VDC
AC inrush current (max.) 50A at 230VAC
DC adjustment range ±10% by potentiometer for CH1, CH2
Overload protection 110%~150%
Over voltage protection 115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature -10~+60°C
Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Terminal block for input and output
Dimension (LxWxH) 199x 99x 50
Case No. 916A
Packing 20pcs /18.4kg

Specifications
  • Brand
    Mean Well
  • Series
    QP Series
  • Power Rating
    100 Watt
  • Output Voltage
    -12 Volt
  • Rated Current
    0.6 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    4
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    3 Year
  • Length
    7.83 in
  • Width
    3.9 in
  • Height
    1.97 in
  • Weight
    1.92 lb

File Downloads

::specification::
