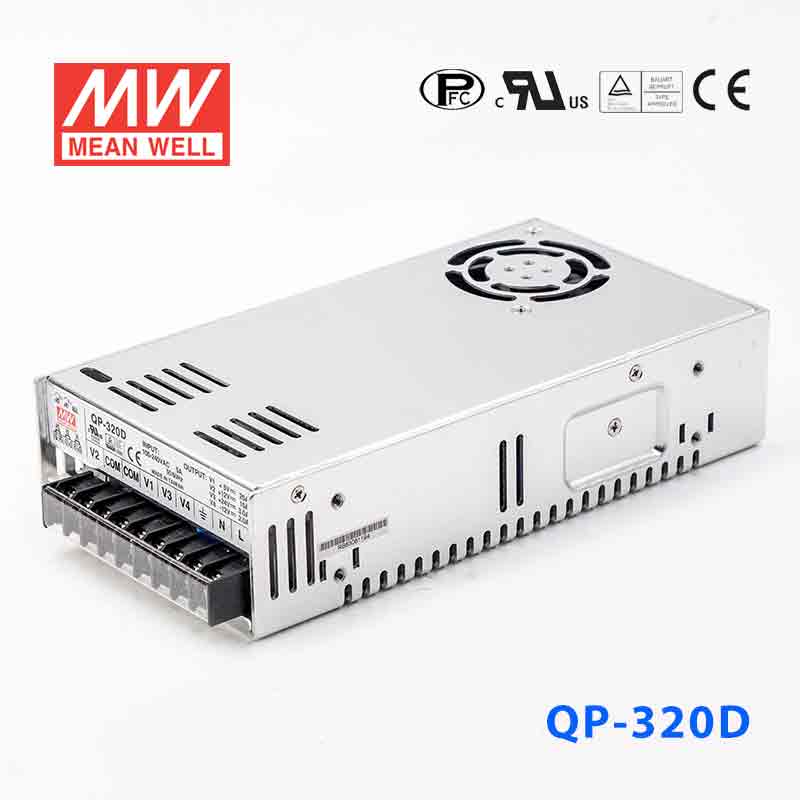

Mean Well QP-320D Power Supply 320W 5V 12V 24V -12V
$139.47 USD
Unit price /
Unavailable
Description
Description
Features
| Protections: Short circuit / Overload / Over voltage |
| Built-in active PFC function, PF>0.95 |
| Universal AC input/Full range |
| Cooling by built-in DC fan |
| High operating temperature up to 60°C |
| Built-in remote sense function for CH1,2 |
| Fixed switching frequency at 100KHz |
| High efficiency, long life and high reliability |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC, 127~373VDC |
| AC inrush current (max.) | 50A at 230VAC |
| DC adjustment range | ±10% by potentiometer for CH1, CH2 |
| Overload protection | 110%~150% |
| Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -10~+60°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 215x 115x 50 |
| Case No. | 912I |
| Packing | 12pcs /15.4kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesQP Series
-
Power Rating316 Watt
-
Output Voltage5 Volt
-
Rated Current20 Ampere
-
Input Voltage90V~264V
-
No of Output4
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.65 lb
