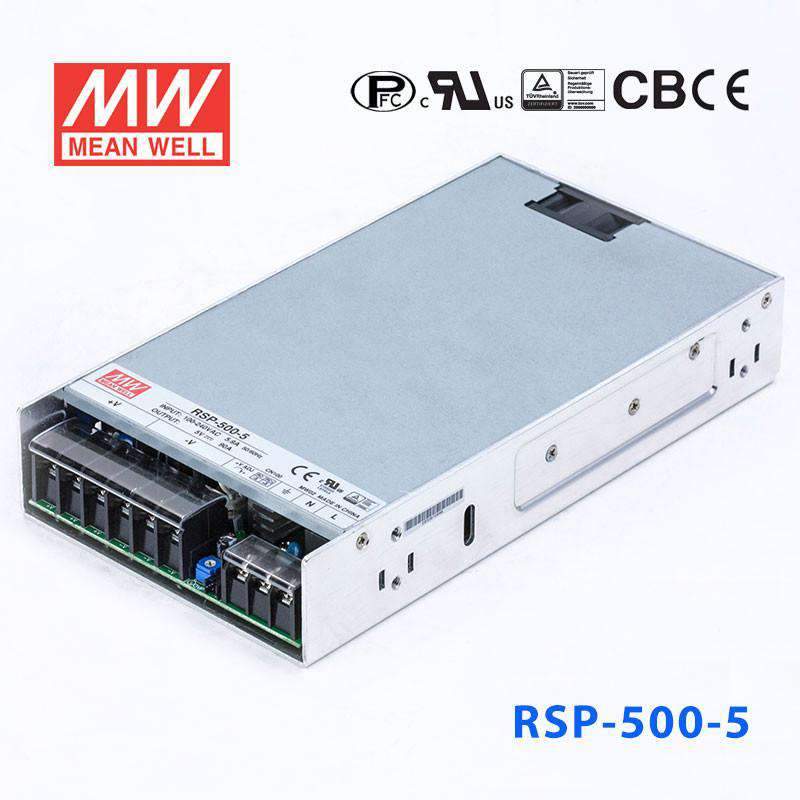

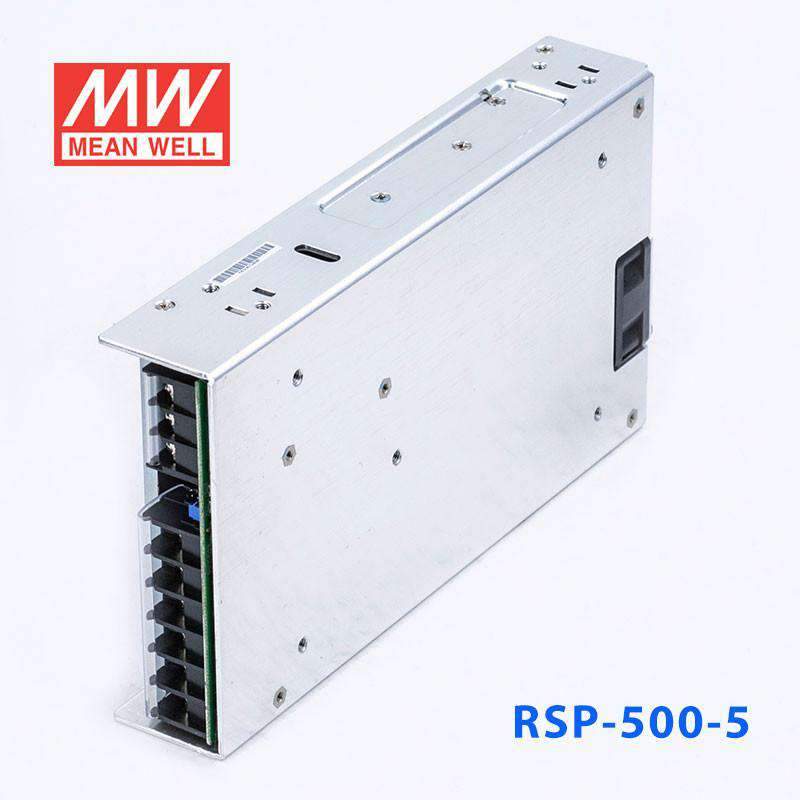

Mean Well RSP-500-5 Power Supply 450W 5V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |

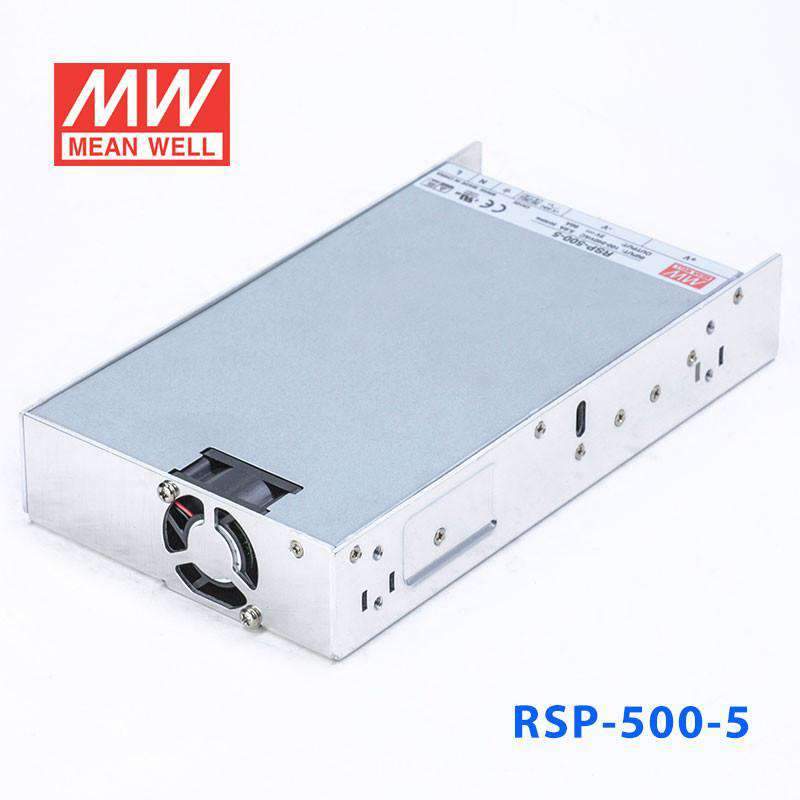

| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| Built-in remote sense and ON/OFF control |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~130% |
| Overload protection Type | Constant current limiting, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1 (TUV / UL pending for RSP-500) |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 |

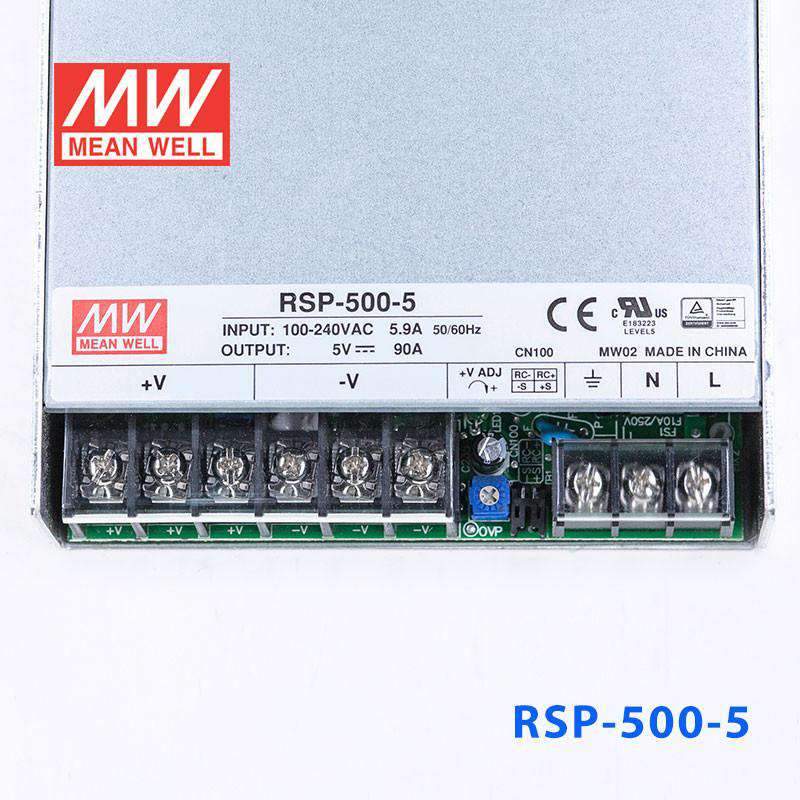

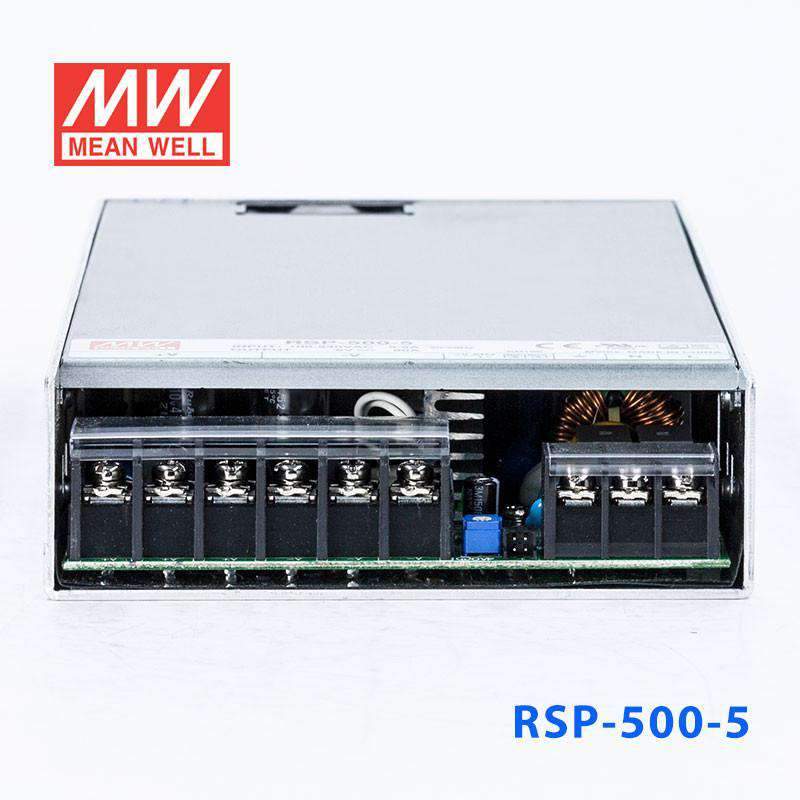

| Connection Input | 3P / 9.5mm pitch terminal block |
| Connection Output | 6P / 11mm pitch terminal block |
| Dimension (LxWxH) | 230x127x40.5 |
| Case No. | 226A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating450 Watt
-
Output Voltage5 Volt
-
Rated Current90 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length9.06 in
-
Width5 in
-
Height1.59 in
-
Weight2.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What loads at 5V can the RSP-500-5 support?
The RSP-500-5 provides 5V at 90A (450W), suitable for high-current 5V bus applications including legacy logic systems, point-of-load distribution in embedded computing racks, and industrial HMI display arrays requiring a stable 5V feed.
What is the temperature range of the RSP-500-5?
The RSP-500-5 is rated for -30°C to +70°C ambient. It carries BSMI, CB, CCC, CE, EAC, c_rcm, TÜV, and UL certifications and is designed for indoor enclosed use.
How does the RSP-500-5 compare to the RSP-500-4 and RSP-500-12 at different voltages?
All RSP-500 units share the 230.0 × 127.0 × 40.5 mm chassis and 85-264VAC input. The RSP-500-4 delivers 360W at 90A, the RSP-500-5 delivers 450W at 90A, and the RSP-500-12 delivers 500.4W at 41.7A. Current is highest on the low-voltage units; the RSP-500-12 provides higher total power at lower current.
What is the actual rated power of the RSP-500-5?
The RSP-500-5 is rated at 450W (5V × 90A). It includes built-in active PFC, weighs 1.3 kg, and includes a 3-year warranty.
