Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

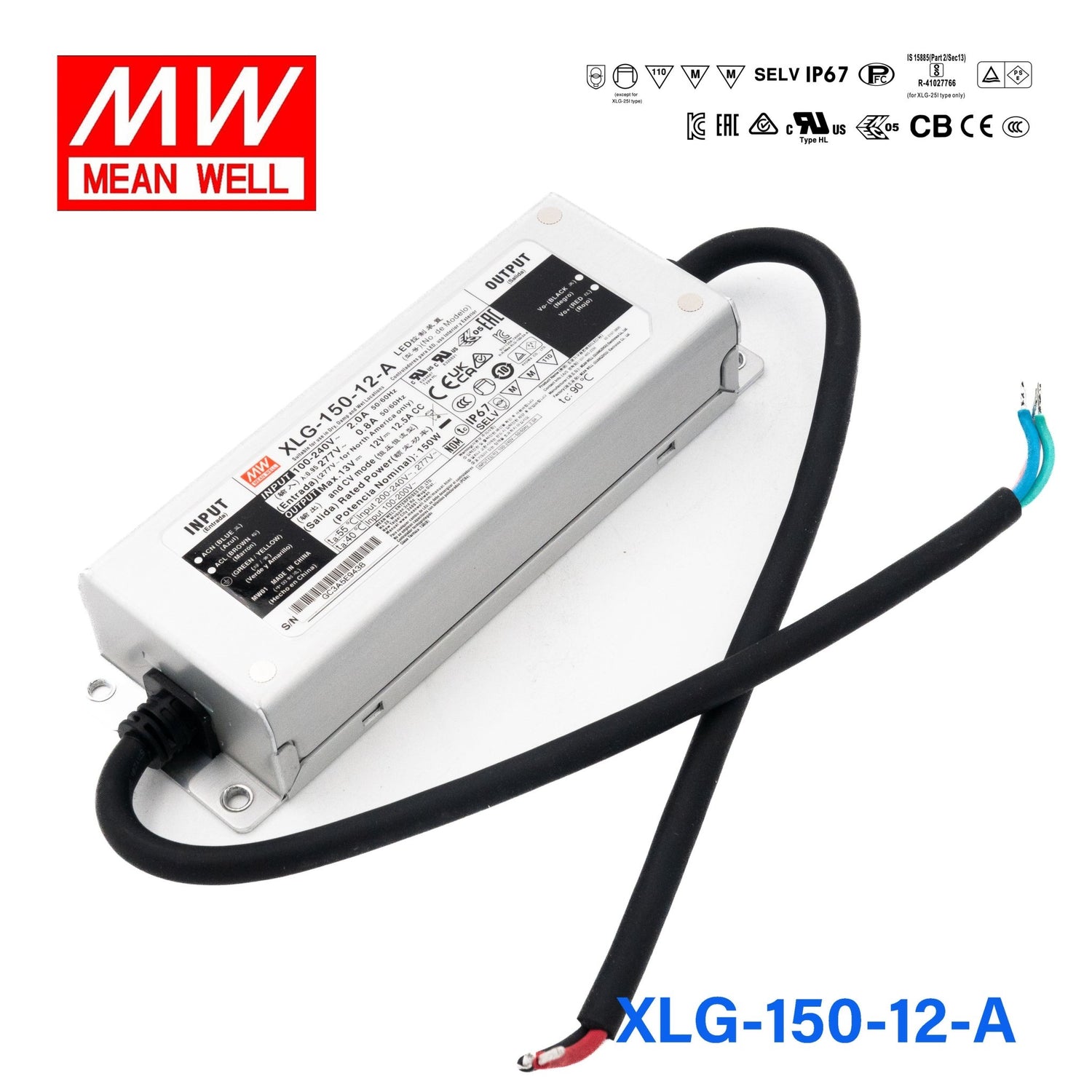

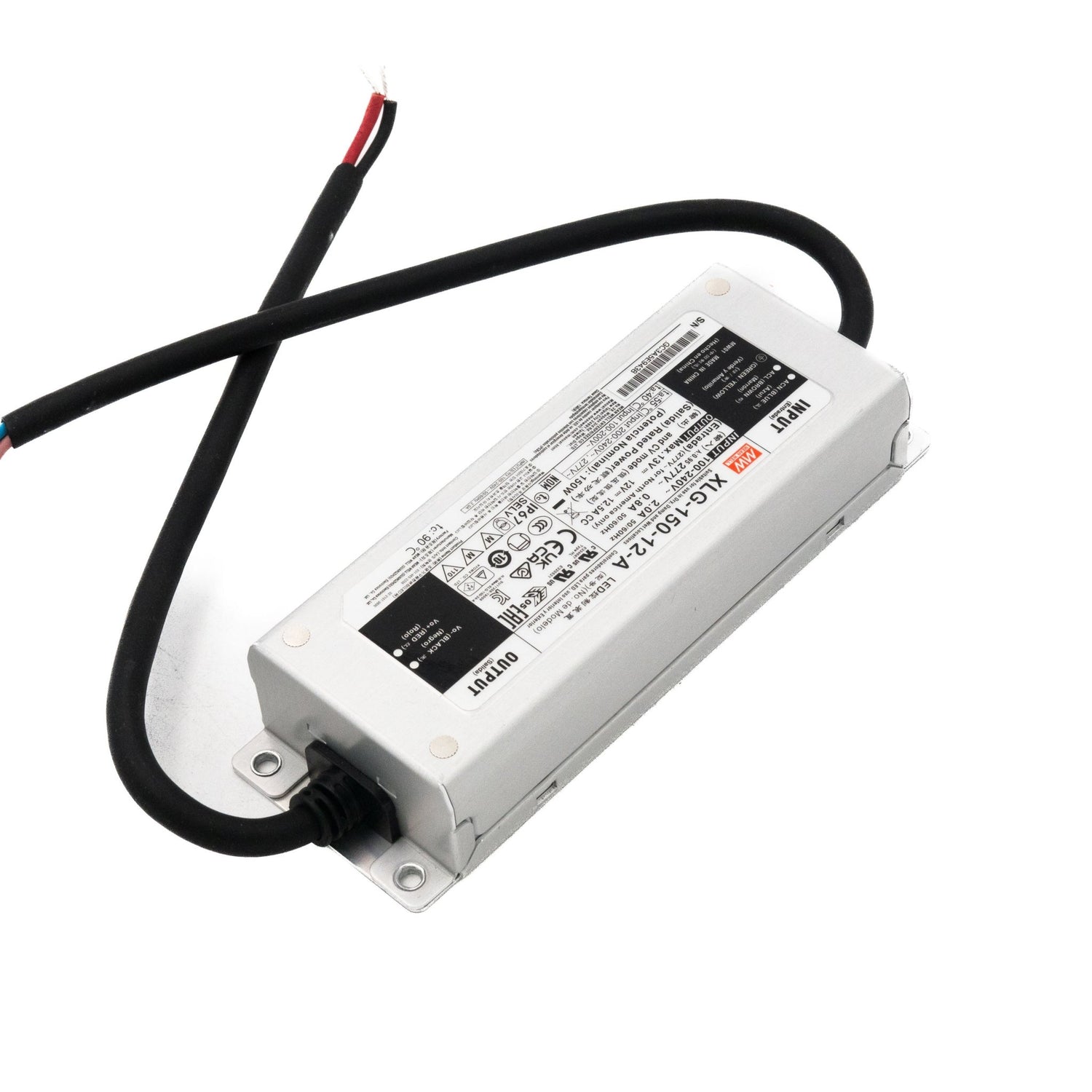

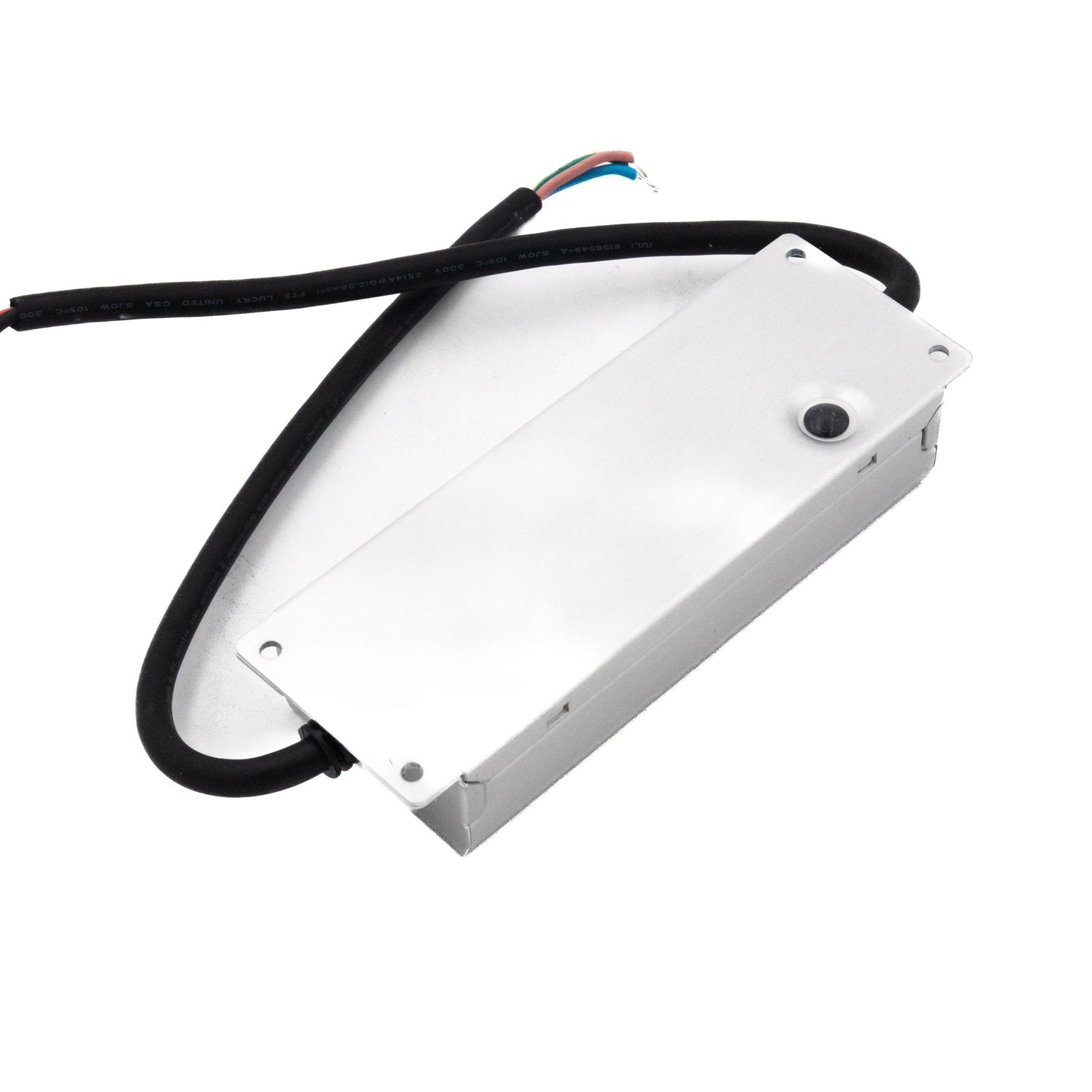

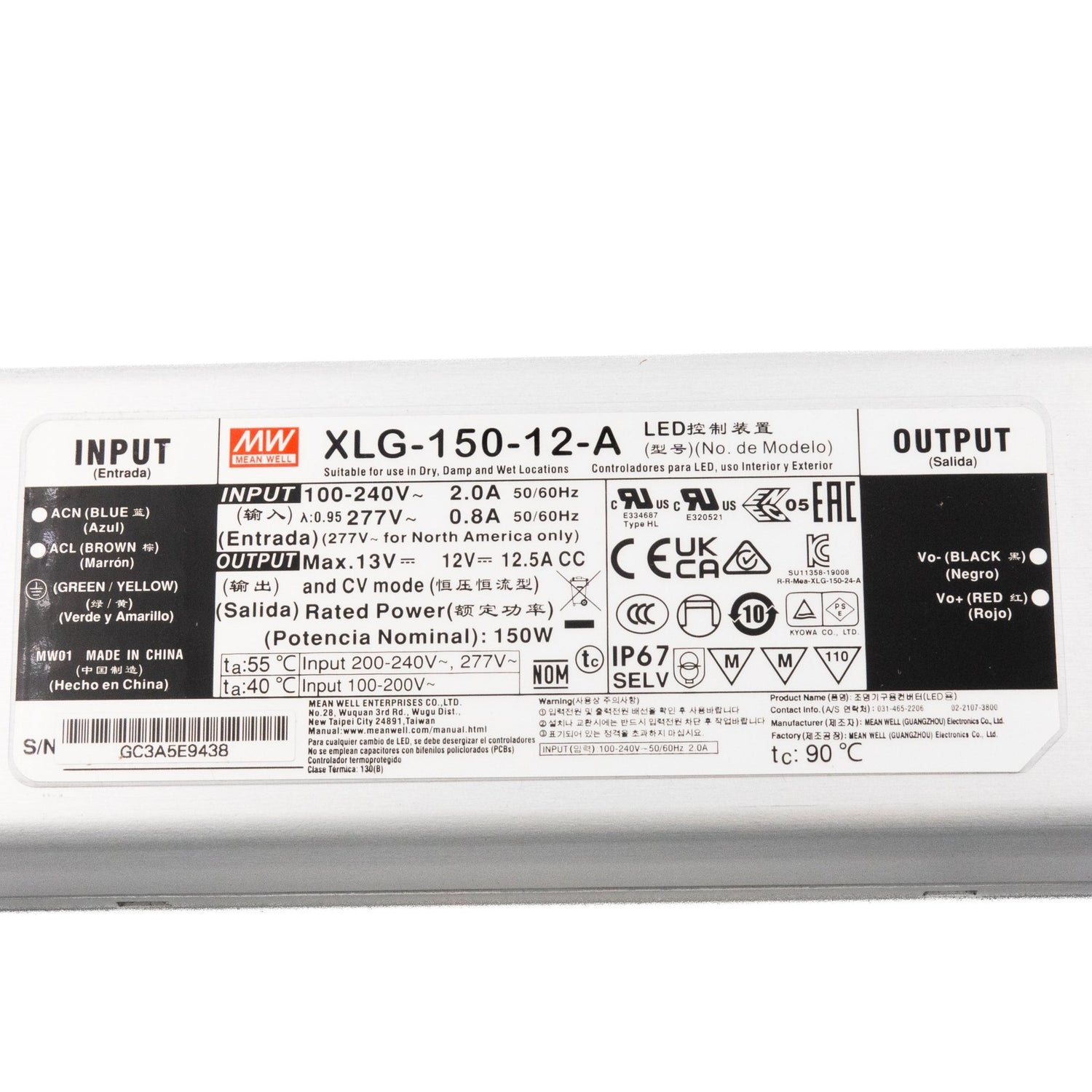

Mean Well XLG-150-12-A Power Supply 150W 12V - Adjustable

metal case, economical, 100~305VAC wide range input, efficiency up to 90%

SKU:

XLG-150-12-A

Model

75W 12V Adjustable

$27.63 USD

SKU: XLG-75-12-A

75W 12V Adjustable and Dimmable

$32.50 USD

SKU: XLG-75-12-AB

100W 12V

$30.99 USD

SKU: XLG-100-12-A

100W 12V Adjustable and Dimmable

$35.71 USD

SKU: XLG-100-12-AB

150W 12V Adjustable

$34.24 USD

SKU: XLG-150-12-A

150W 12V Adjustable and Dimmable

$38.22 USD

SKU: XLG-150-12-AB

192W 12V Adjustable

$40.79 USD

SKU: XLG-200-12-A

192W 12V Adjustable and Dimmable

$45.69 USD

SKU: XLG-200-12-AB

Product variants

$34.24 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 100~305VAC (Class I)

Full power output at 70~100% constant power mode operation

Metal case with IP67, suitable for outdoor application

Surge protection with 6KV/4KV (10KV/6KV optional)

3 in 1 dimming function (Dim to off and isolation design)

India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours

Protection functions: OVP/SCP/OCP/OTP

Lifetime > 50,000 hrs

5 years warranty

General Specification

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 50A at 230VAC
DC adjustment range	±10% rated output voltage
Over-voltage protection	112%~150% rated output voltage
Setup, rise, hold up time	500ms, 100ms, 12ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+90°C
Safety standards	UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	180x63x35.5
Packing	16pcs / 13.4kg

Specifications

Brand

Mean Well
Series

XLG Series
Power Rating

150 Watt
Output Voltage

12 Volt
Rated Current

12.5 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,ENEC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

7.09 in
Width

2.48 in
Height

1.4 in
Weight

1.76 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the XLG-150-12-A for 12V LED strip lighting in display shelving or coves?

Yes, this driver is sized for 12V LED lighting loads up to 150W with 12.5A available output current. It is a fit for 12V strip-based accent lighting as long as the total strip load stays within 150W.

Is this a good choice for 12V illuminated signs or light boxes?

It can be used for 12V sign lighting when the sign load is within the driver's 150W maximum and 12V output. The IP67 housing also suits sign projects where the power supply may be exposed to rain or washdown conditions.

Can I use this power supply for outdoor 12V architectural or landscape lighting?

Yes, for 12V LED lighting loads up to 150W, this model is suitable for outdoor use because it is rated IP67 Waterproof. Its operating temperature range of -40°C to +90°C also supports demanding outdoor environments.

How much 12V LED strip can the XLG-150-12-A run?

The maximum strip load is 150W at 12V. To estimate strip length, use 150W divided by your strip's rated power per meter, and check your strip rated power per meter before final sizing.

Is the XLG-150-12-A suitable for wet or exposed locations?

Yes, its IP67 Waterproof rating means it is intended for environments where water and dust resistance matter more than an indoor-only supply. The metal case and -40°C to +90°C operating range also make it suitable for harsh conditions.

How does the XLG-150-12-A compare with other XLG 150W adjustable models?

Within the 150W adjustable group, XLG-150-12-A and XLG-150-12-AB are both 150W, 12V, 12.5A models. The 24V counterparts are XLG-150-24-A and XLG-150-24-AB at 150W, 24V, 6.25A, while higher-voltage 150W siblings include XLG-150-L-A at 214V and 1.05A and XLG-150-M-A at 120V and 1400A.
