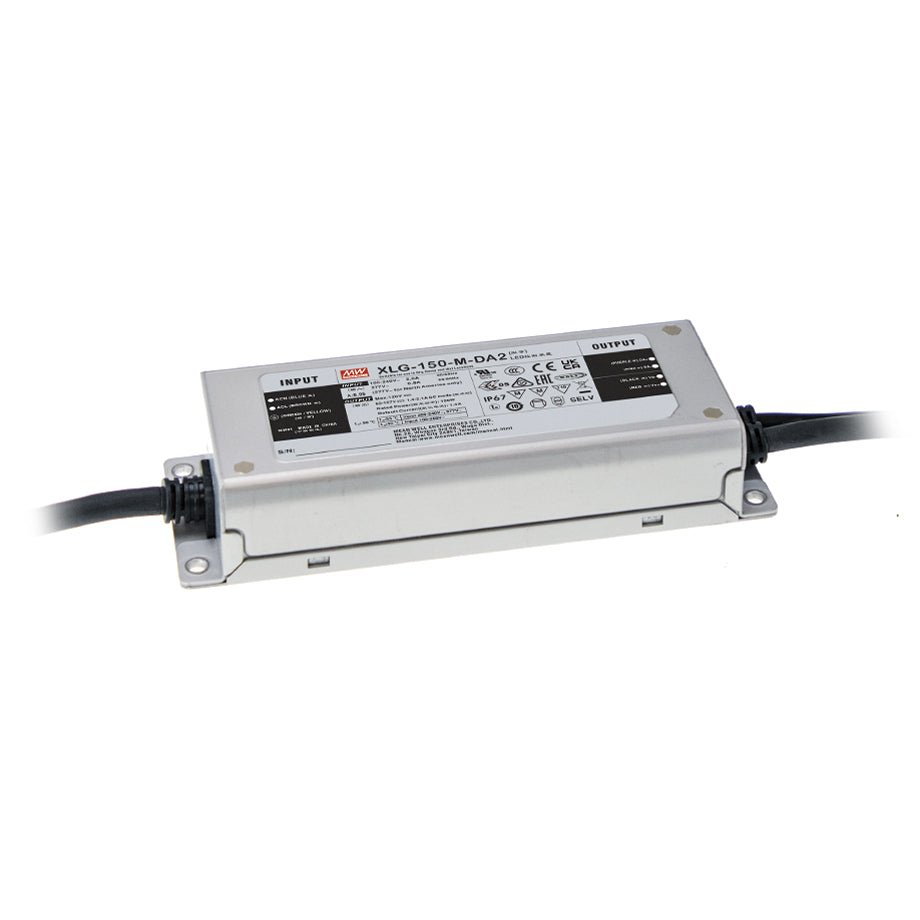

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

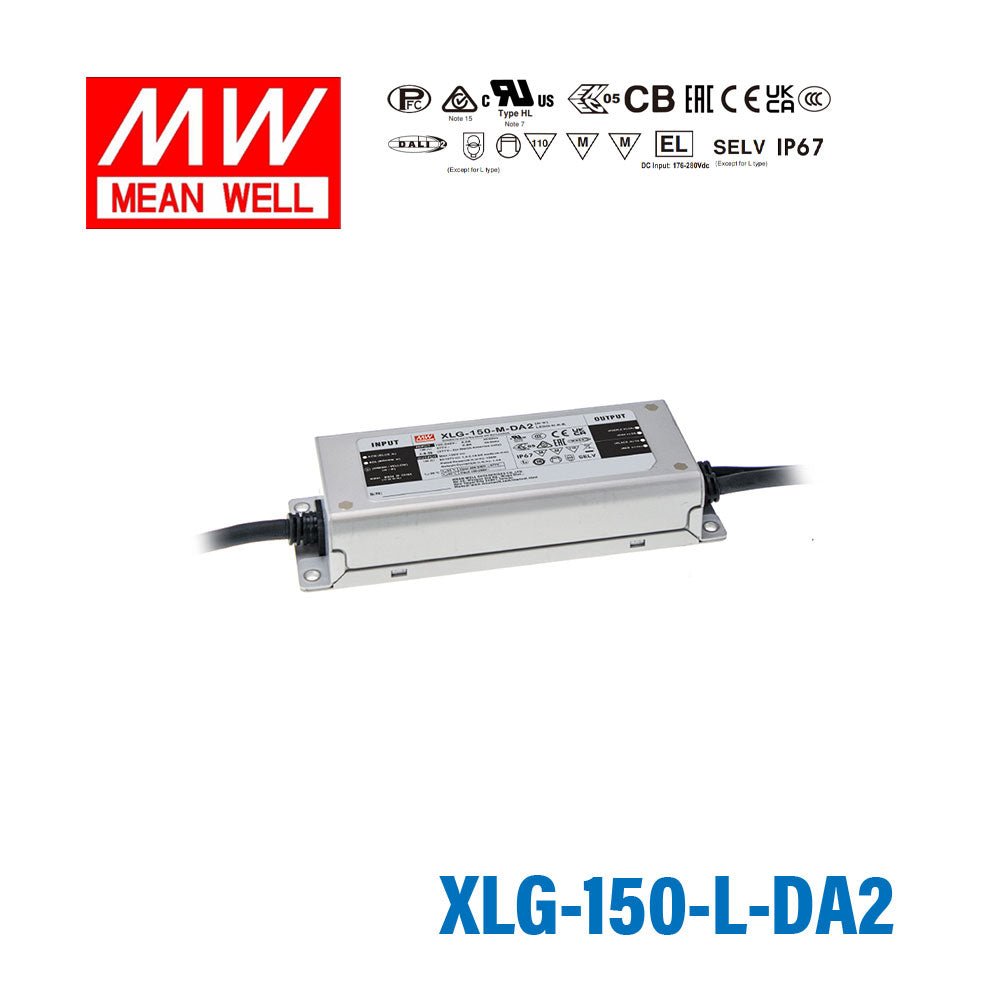

Mean Well XLG-150-L-DA2 Power Supply 150W 700mA - DALI2 Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-150-L-DA2 Power Supply 150W 700mA - DALI2 Dimmable
Key Features
- ✓Wide input range 100~305V AC(Class I)
- ✓Full power output at 70~100% Constant power mode operation
- ✓Metal case with IP67, suitable for outdoor application
- ✓Surge protection with 6KV/4KV
- ✓DALI-2 Dimming with a minimum level 8%
- ✓12V/250mA Auxiliary power available(optional)
- ✓Protection functions: SCP/OTP
- ✓Lifetime >50,000 hrs
- ✓5 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating150 Watt
-
Output Voltage240 Volt
-
Rated Current0.7 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the XLG-150-L-DA2 power a long series string of LED modules in a street or roadway lighting fixture?
Yes. The XLG-150-L-DA2 operates at 700mA constant current across a 120–214V output range, which accommodates long series strings of LED modules used in street and roadway luminaires. The 150W capacity supports moderate to large fixture designs.
Is this driver suitable for high-mast or parking lot LED fixtures in harsh outdoor environments?
Yes. With an IP67 waterproof rating and an operating temperature range of -40°C to +90°C, the XLG-150-L-DA2 is designed to handle the thermal and moisture demands of high-mast and parking lot outdoor installations.
Can the XLG-150-L-DA2 be used to drive LED arrays in large outdoor signage requiring DALI2 dimming?
Yes. The DALI2 interface supports dimming down to 8%, and at 150W with a 120–214V CC range, the driver can support larger LED sign arrays built from higher-voltage module strings that need remote dimming capability.
How is the output current of the XLG-150-L-DA2 adjusted, and what is the adjustment range?
The output current is adjustable from 350mA to 1050mA. Adjustment is made via the built-in trimmer; the nominal operating current is 700mA. The number of LEDs in the string is determined by each LED's forward voltage fitting within the 120–214V CC range.
What distinguishes the XLG-150-L-DA2 from the XLG-150-H-DA2 and XLG-150-M-DA2?
All three are 150W IP67 DALI2 constant current drivers. The XLG-150-H-DA2 outputs 2800mA across 27–56V, the XLG-150-M-DA2 outputs 1400mA across 60–107V, and the XLG-150-L-DA2 outputs 700mA across 120–214V. Select based on your LED string's required voltage and current.
Does the XLG-150-L-DA2 accept the 277VAC single-phase supply common in US commercial buildings?
Yes. The driver's input range of 100–305VAC covers 277VAC, so it is compatible with North American commercial electrical systems without any additional step-down transformer.
