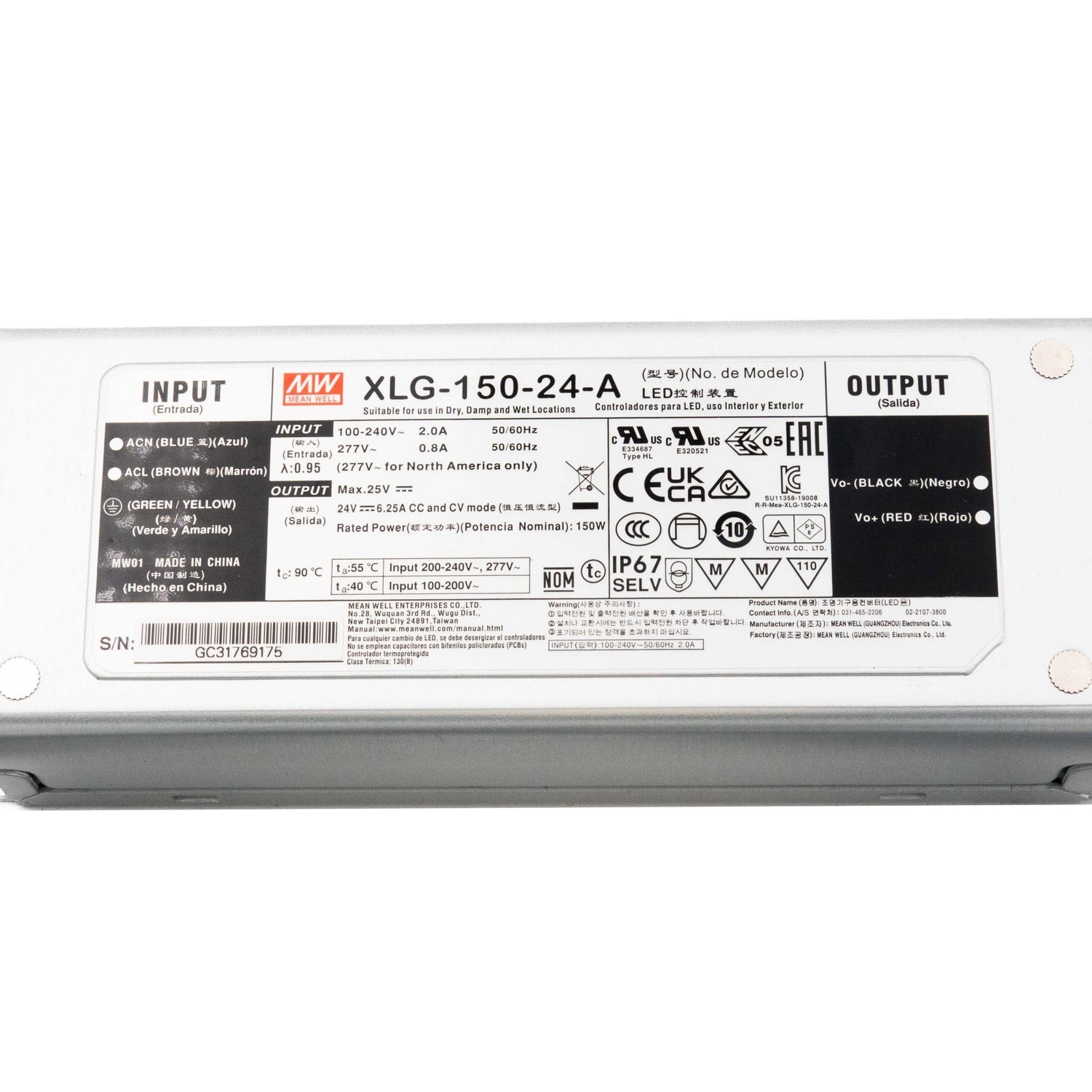

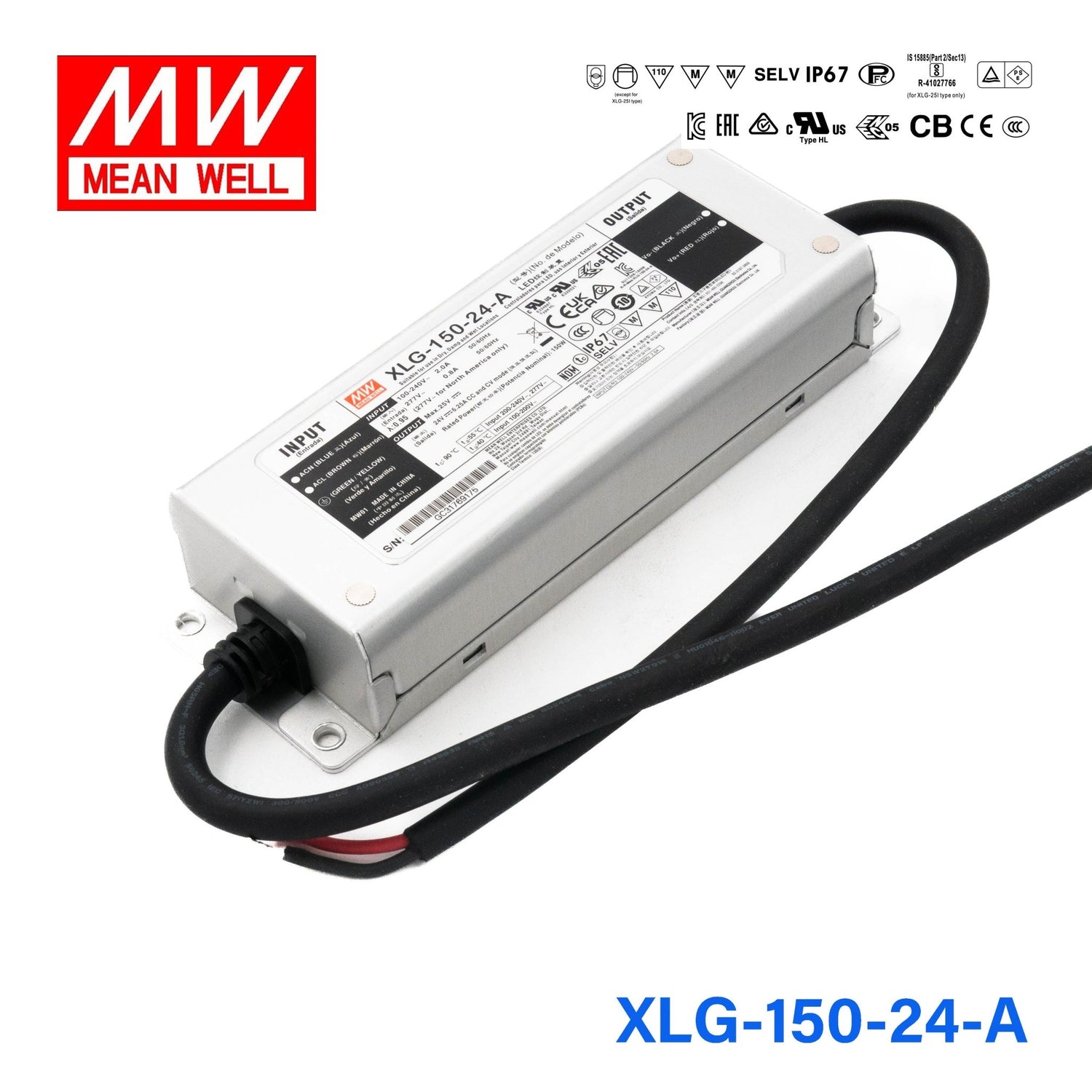

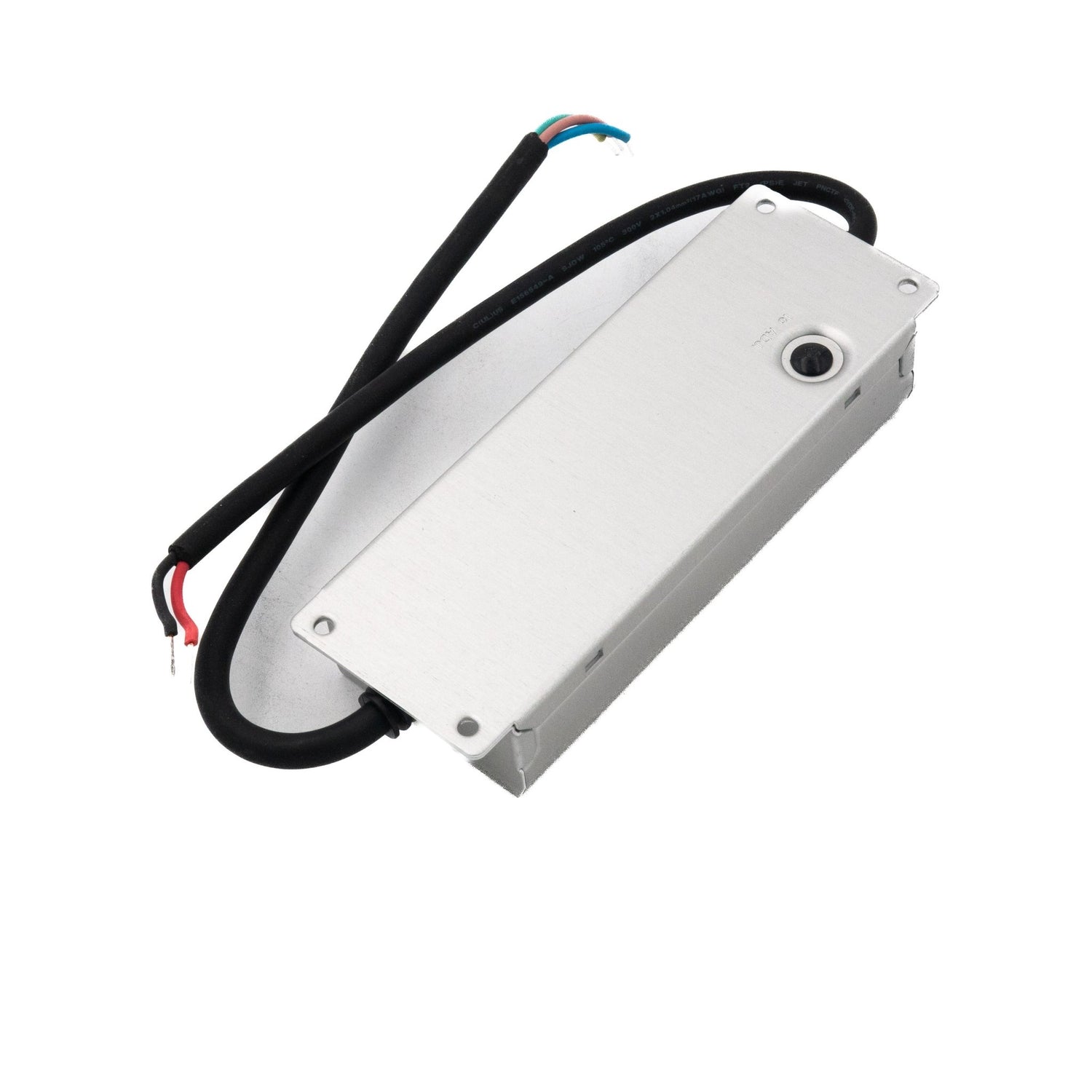

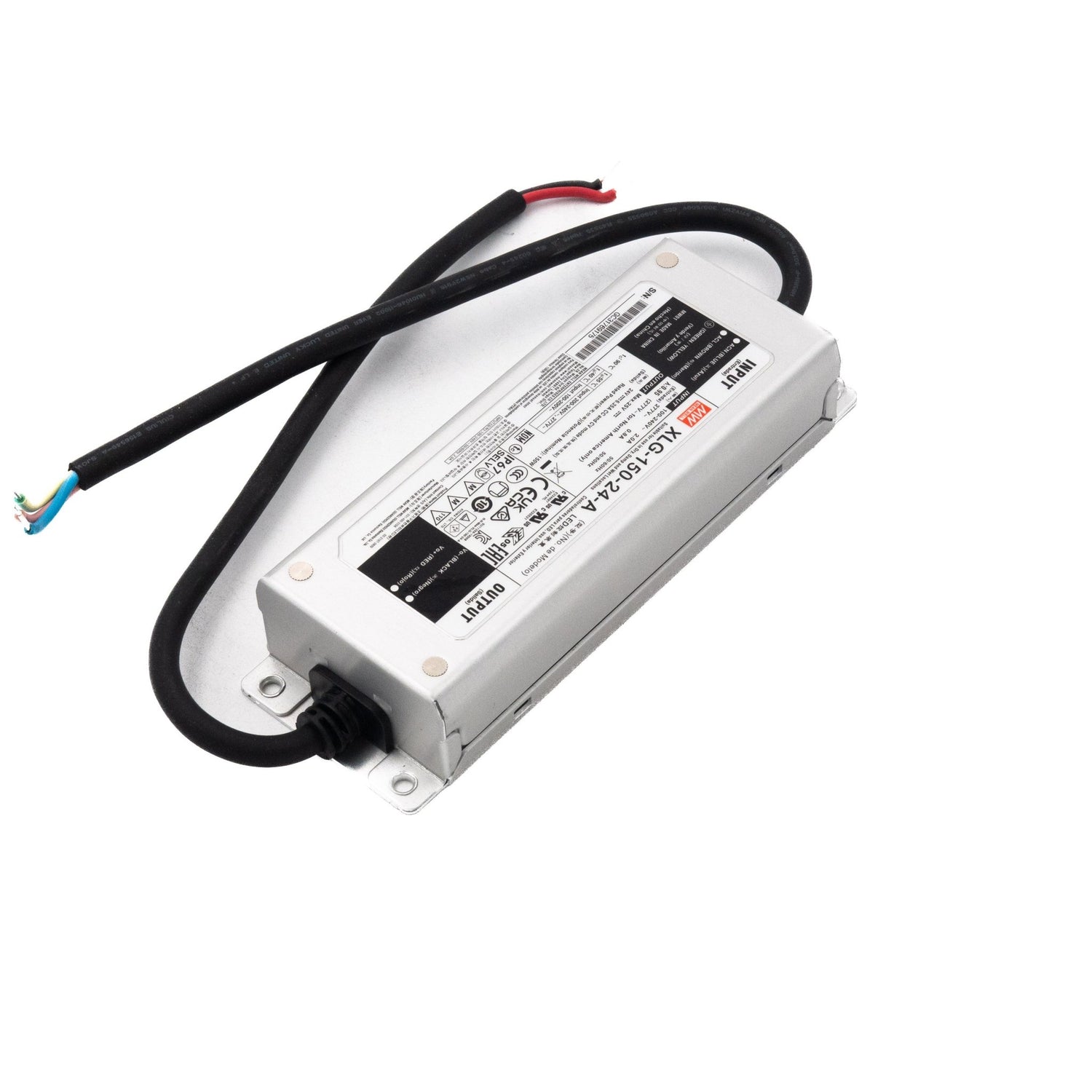

Mean Well XLG-150-24-A Power Supply 150W 24V - Adjustable

metal case, economical, 100~305VAC wide range input, efficiency up to 90%

SKU:

XLG-150-24-A

Model

75W 24V Adjustable

$27.63 USD

SKU: XLG-75-24-A

75W 24V Adjustable and Dimmable

$32.50 USD

SKU: XLG-75-24-AB

100W 24V Adjustable

$28.84 USD

SKU: XLG-100-24-A

100W 24V Adjustable and Dimmable

$35.71 USD

SKU: XLG-100-24-AB

150W 24V Adjustable

$34.24 USD

SKU: XLG-150-24-A

150W 24V Adjustable and Dimmable

$38.22 USD

SKU: XLG-150-24-AB

200W 24V Adjustable

$40.79 USD

SKU: XLG-200-24-A

200W 24V Adjustable and Dimmable

$45.69 USD

SKU: XLG-200-24-AB

Product variants

$34.24 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Wide input range 100~305VAC (Class I)

Full power output at 70~100% constant power mode operation

Metal case with IP67, suitable for outdoor application

Surge protection with 6KV/4KV (10KV/6KV optional)

3 in 1 dimming function (Dim to off and isolation design)

India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours

Protection functions: OVP/SCP/OCP/OTP

Lifetime > 50,000 hrs

5 years warranty

General Specification

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 50A at 230VAC
DC adjustment range	±10% rated output voltage
Over-voltage protection	112%~150% rated output voltage
Setup, rise, hold up time	500ms, 100ms, 12ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+90°C
Safety standards	UL8750 approved; ENEC BS EN/EN61347-1; EAC TP TC 004; NOM-058-SCFI-2017; IP67 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	180x63x35.5
Packing	16pcs / 13.4kg

Specifications

Brand

Mean Well
Series

XLG Series
Power Rating

150 Watt
Output Voltage

24 Volt
Rated Current

6.25 Ampere
Input Voltage

100V~305V
No of Output

1
Dimming Control

Built-in Potentiometer
Standards Met

CB,CCC,CE,EAC,ENEC,RCM,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

7.09 in
Width

2.48 in
Height

1.4 in
Weight

1.76 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the XLG-150-24-A for 24V LED strip lighting in coves or linear runs?

Yes, this driver is intended for 24V LED lighting loads up to 150W with 6.25A available output current. It suits 24V strip lighting projects when the combined strip load does not exceed 150W.

Is this suitable for 24V sign lighting or illuminated cabinets?

It can be used for 24V signage and cabinet lighting as long as the total load stays within 150W at 24V. The IP67 Waterproof rating also makes it appropriate for signs installed in exposed conditions.

Can the XLG-150-24-A power outdoor 24V architectural accent lighting?

Yes, for compatible 24V LED lighting loads up to 150W, this model is suitable for outdoor accent applications. Its IP67 Waterproof rating and -40°C to +90°C operating range support demanding environments.

How do I estimate LED strip length with this 24V 150W driver?

The maximum available strip power is 150W at 24V. To estimate run length, divide 150W by your strip's rated watts per meter, and check your strip rated power per meter before final selection.

Is the XLG-150-24-A okay for wet locations or exposed outdoor enclosures?

Yes, the IP67 Waterproof rating means it is designed for applications where water and dust protection matter. Its metal case and operating temperature range of -40°C to +90°C add suitability for tough outdoor conditions.

How does XLG-150-24-A compare with the other 150W XLG voltage options?

XLG-150-24-A and XLG-150-24-AB are both 150W, 24V, 6.25A models. The 12V versions are XLG-150-12-A and XLG-150-12-AB at 150W, 12V, 12.5A, while higher-voltage 150W siblings include XLG-150-L-A at 214V and 1.05A and XLG-150-M-A at 120V and 1400A.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well XLG-150-12-A Power Supply 150W 12V - Adjustable	150W	12V	12.5A	IP67	$34.24	View
Mean Well XLG-150-M-DA2 Power Supply 150W 1400mA - DALI2 Dimmable	150W	120V	1.4A	IP67	$76.49	View
Mean Well XLG-150-L-DA2 Power Supply 150W 700mA - DALI2 Dimmable	150W	240V	0.7A	IP67	$76.49	View
Mean Well XLG-150-H-DA2 Power Supply 150W 2800mA - DALI2 Dimmable	150W	65V	2.8A	IP67	$76.49	View
Mean Well XLG-150-L-A AC-DC Single output LED driver Constant Power Mode 150W	150W	214V	1.05A	IP67	$34.24	View
Mean Well XLG-150-24-AB Power Supply 150W 24V - Adjustable and Dimmable	150W	24V	6.25A	IP67	$38.22	View
Mean Well XLG-150-12-AB Power Supply 150W 12V - Adjustable and Dimmable	150W	12V	12.5A	IP67	$38.22	View
