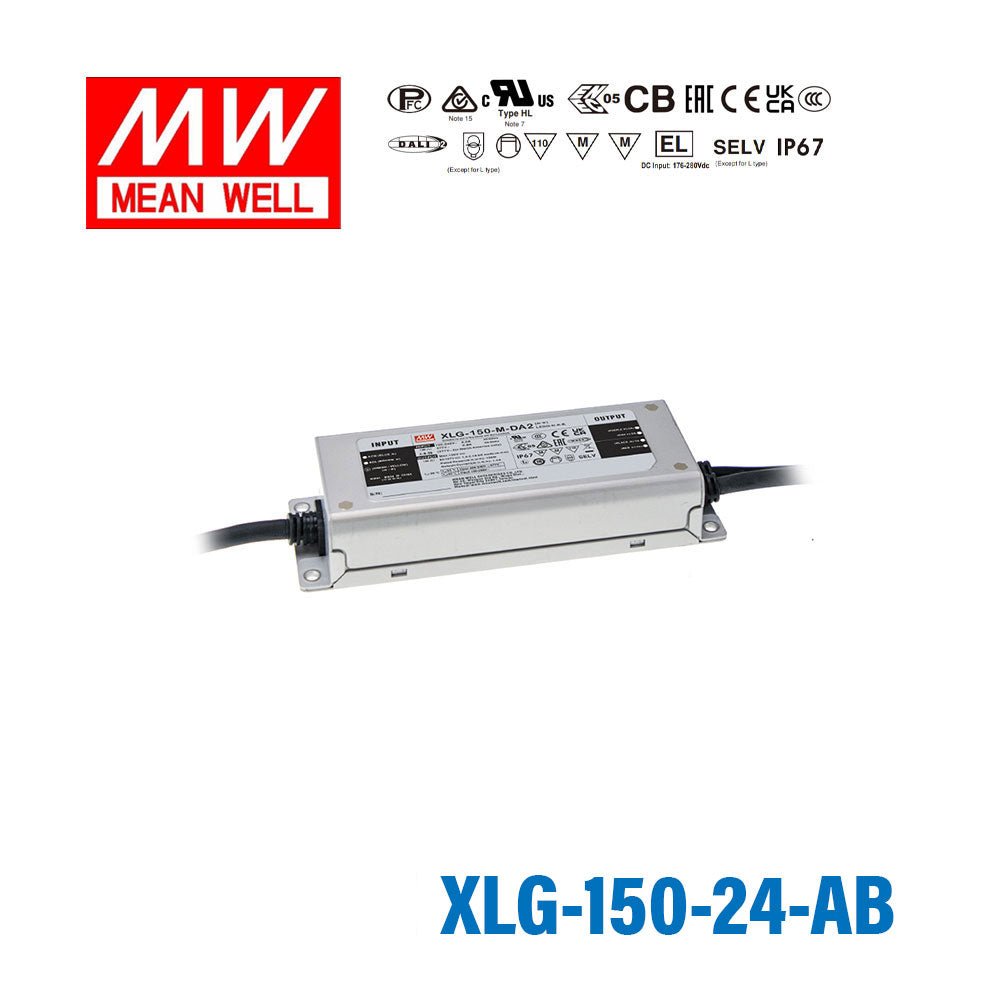

Mean Well XLG-150-24-AB Power Supply 150W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-150-24-AB Power Supply 150W 24V - Adjustable and Dimm...
The XLG-150-24 is a 150W Mean Well power converter (input range: 100~305VAC, operating temperature: -40~+90℃).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 4.2KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the XLG-150-24-AB power 24V LED strip lighting in an outdoor enclosure?
Yes. The XLG-150-24-AB carries an IP67 waterproof rating, making it fully sealed against dust and temporary water immersion. It can be mounted directly inside outdoor enclosures, sign cabinets, or junction boxes exposed to rain and condensation without additional weatherproofing.
Is the XLG-150-24-AB suitable for large-format 24V LED signage installations?
Yes. With 150W at 24V, this driver supports high-density LED signage such as backlit displays, illuminated fascias, and retail lightboxes. Its constant-current output with a 16–24V CC voltage range ensures stable brightness across the sign face even under varying load.
Can I use the XLG-150-24-AB to drive 24V LED strips in a cold-storage or refrigerated environment?
Yes. The operating temperature range of -40°C to +90°C means this driver functions reliably in cold-storage rooms or refrigerated display cases. The IP67 metal enclosure also tolerates condensation that forms when warm air contacts cold surfaces.
How many meters of 24V LED strip can the XLG-150-24-AB support?
The XLG-150-24-AB delivers 150W at 24V. For a 10 W/m strip that is up to 15 meters (150 ÷ 10); for a 20 W/m strip, up to 7.5 meters (150 ÷ 20). Always check your strip's rated power per meter and apply a 20% derating margin for thermal safety.
Does the XLG-150-24-AB support dimming for lighting control integration?
Yes. The AB suffix indicates this model includes both adjustable output and dimming capability. This allows integration with compatible dimming controllers for scenes or automation in retail, hospitality, or architectural lighting systems.
How does the XLG-150-24-AB compare to the XLG-150-24-A?
Both models output 150W at 24V with 6.25A, share the same IP67 rating, 180 × 63 × 35.5 mm form factor, and 100–305VAC input range. The XLG-150-24-AB adds dimming capability over the XLG-150-24-A, which is adjustable only. All other specs and certifications are identical.
Is the XLG-150-24-AB appropriate for outdoor architectural facade lighting in extreme climates?
Yes. The combination of IP67 ingress protection and a -40°C to +90°C operating temperature range makes this driver well suited for facade or landscape lighting in regions with harsh winters or high summer temperatures. The metal housing also provides robust mechanical protection.
