Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

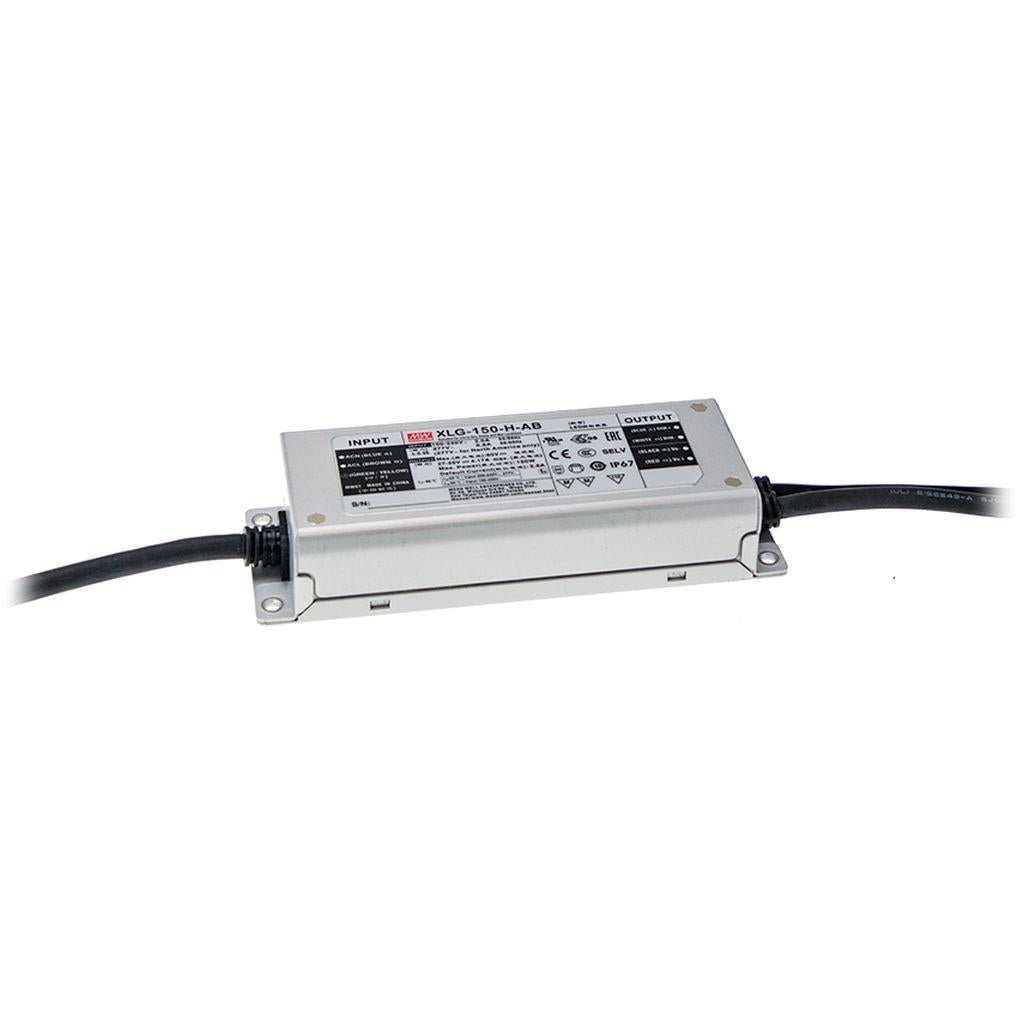

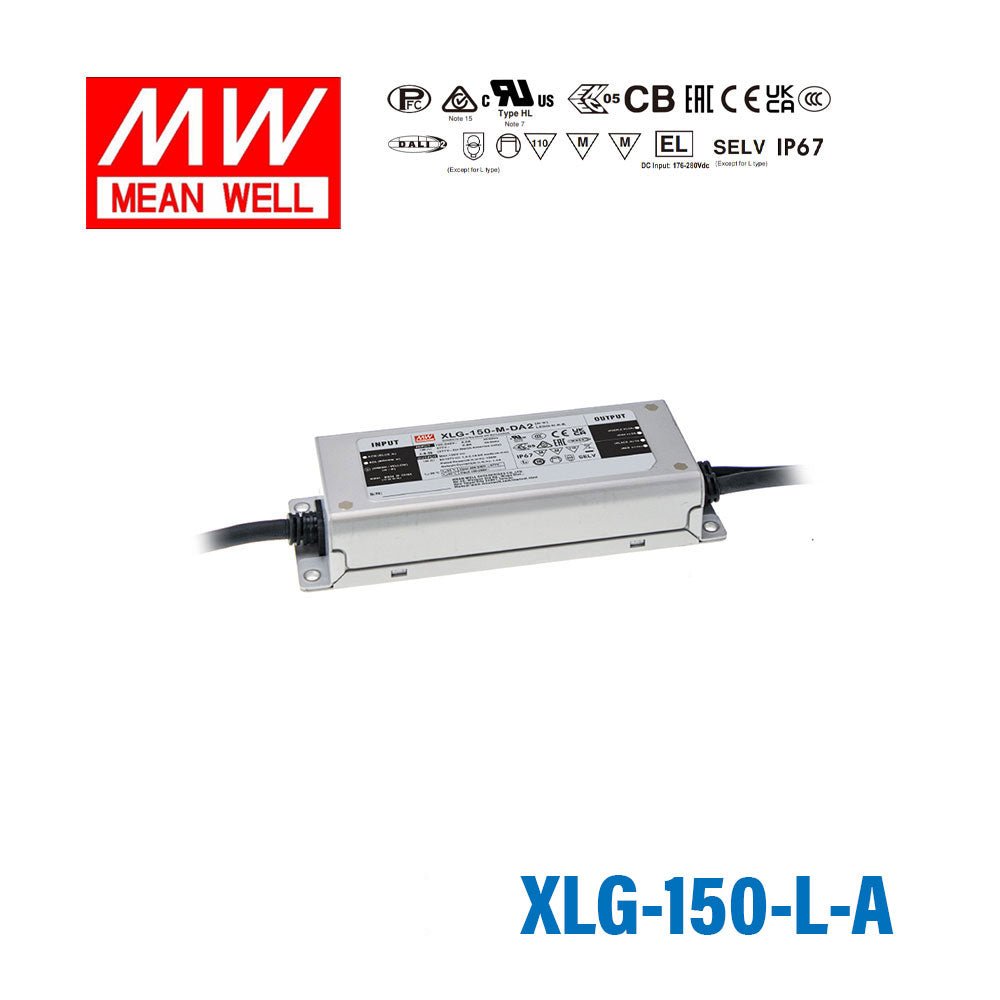

Mean Well XLG-150-L-A AC-DC Single output LED driver Constant Power Mode 150W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-150-L-A AC-DC Single output LED driver Constant Power...
The XLG-150-L is a 150W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating150 Watt
-
Output Voltage214 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length1.4 in
-
Width2.48 in
-
Height2.48 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
What type of LED lighting is the XLG-150-L-A designed to power?
The XLG-150-L-A is a high-voltage constant-current driver rated at 150W with a 214V output and 1.05A current. It is intended for long LED module strings or high-voltage LED arrays such as streetlight modules and large luminaires that operate in the 100–214V range rather than low-voltage LED strips.
Can the XLG-150-L-A be installed in outdoor luminaires exposed to weather?
Yes. The XLG-150-L-A is rated IP67, meaning it is sealed against dust and can withstand temporary water immersion. This makes it suitable for installation inside outdoor streetlight housings, area light enclosures, and other weatherproof luminaire bodies.
Is the XLG-150-L-A suitable for powering LED street lights or roadway luminaires?
Yes. Its 150W constant-current output at 1.05A and high output voltage range up to 214V matches the electrical requirements of many LED streetlight modules. The IP67 enclosure, -40°C to +90°C operating range, and wide 100–305VAC input make it a practical fit for roadway lighting applications.
Can the XLG-150-L-A be used in industrial high-bay LED fixtures?
Yes. High-bay luminaires that use series-connected LED arrays in the 100–214V range are compatible with the XLG-150-L-A's output. The driver's 150W capacity and IP67 rating support both the high ambient temperatures and any moisture exposure common in industrial environments.
What is the difference between the XLG-150-L-A and the XLG-150-24-A?
The XLG-150-L-A outputs 150W at 214V / 1.05A and is designed for high-voltage LED arrays. The XLG-150-24-A outputs 150W at 24V / 6.25A and is designed for low-voltage LED strips and signage. Both share IP67 protection and the same 100–305VAC input range, but they serve fundamentally different LED load types.
Does the XLG-150-L-A operate across both 120V and 277V supply voltages?
Yes. The 100–305VAC wide-range input covers both 120V and 277V systems commonly found in North American commercial and industrial buildings, as well as 230V supplies used internationally. No manual voltage switching is required.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XLG-150 Models
7 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLG-150-24-A Power Supply 150W 24V - Adjustable | 150W | 24V | 6.25A | IP67 | $34.24 | View |
| Mean Well XLG-150-12-A Power Supply 150W 12V - Adjustable | 150W | 12V | 12.5A | IP67 | $34.24 | View |
| Mean Well XLG-150-M-DA2 Power Supply 150W 1400mA - DALI2 Dimmable | 150W | 120V | 1.4A | IP67 | $76.49 | View |
| Mean Well XLG-150-L-DA2 Power Supply 150W 700mA - DALI2 Dimmable | 150W | 240V | 0.7A | IP67 | $76.49 | View |
| Mean Well XLG-150-H-DA2 Power Supply 150W 2800mA - DALI2 Dimmable | 150W | 65V | 2.8A | IP67 | $76.49 | View |
| Mean Well XLG-150-24-AB Power Supply 150W 24V - Adjustable and Dimmable | 150W | 24V | 6.25A | IP67 | $38.22 | View |
| Mean Well XLG-150-12-AB Power Supply 150W 12V - Adjustable and Dimmable | 150W | 12V | 12.5A | IP67 | $38.22 | View |
