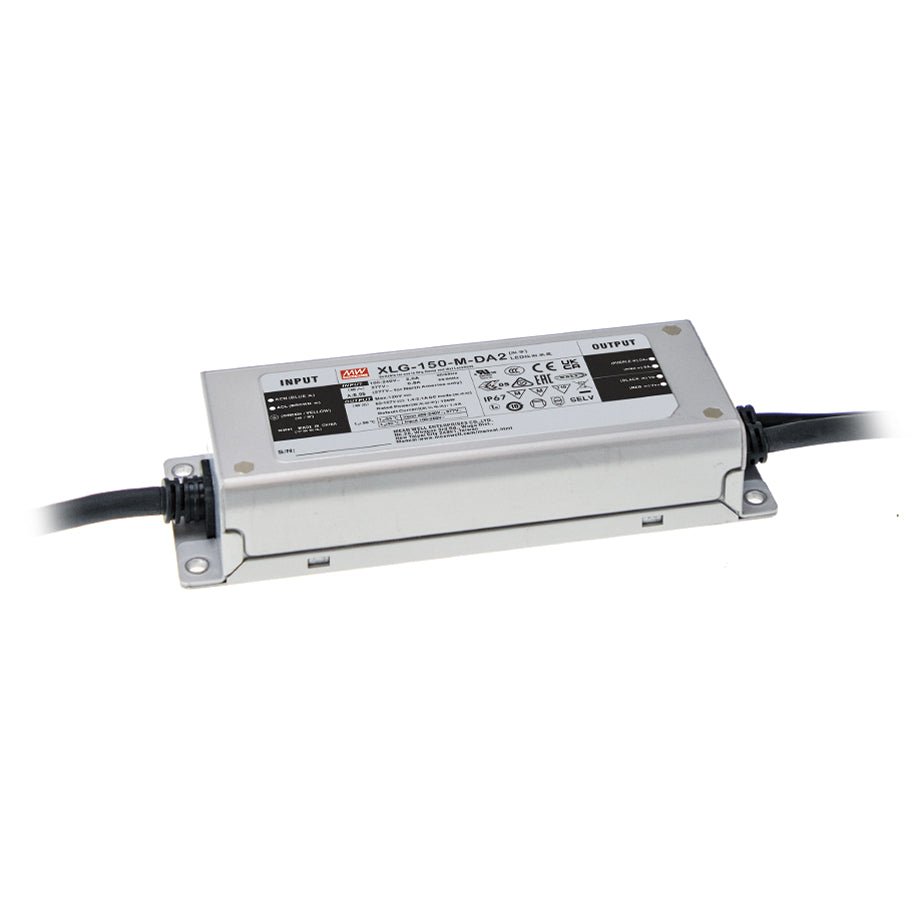

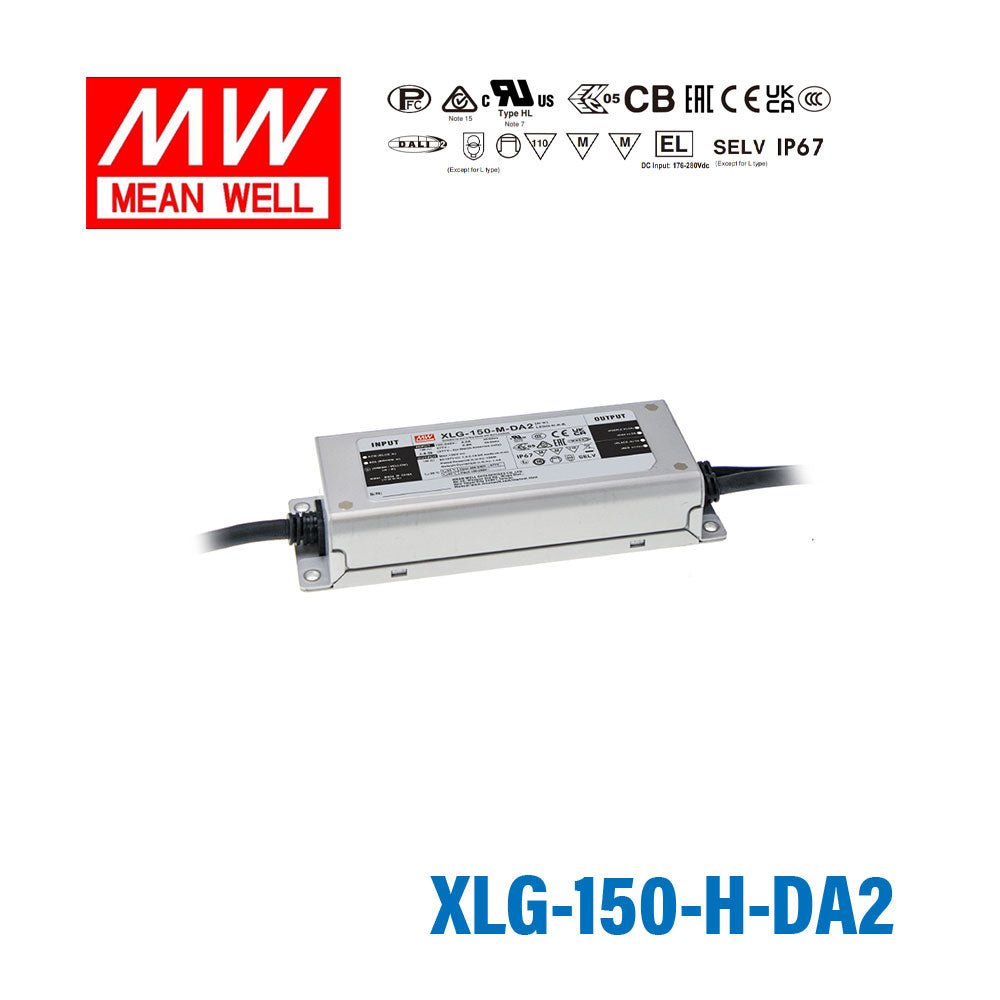

Mean Well XLG-150-H-DA2 Power Supply 150W 2800mA - DALI2 Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-150-H-DA2 Power Supply 150W 2800mA - DALI2 Dimmable
Key Features
- ✓Wide input range 100~305V AC(Class I)
- ✓Full power output at 70~100% Constant power mode operation
- ✓Metal case with IP67, suitable for outdoor application
- ✓Surge protection with 6KV/4KV
- ✓DALI-2 Dimming with a minimum level 8%
- ✓12V/250mA Auxiliary power available(optional)
- ✓Protection functions: SCP/OTP
- ✓Lifetime >50,000 hrs
- ✓5 years warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating150 Watt
-
Output Voltage65 Volt
-
Rated Current2.8 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.09 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can the XLG-150-H-DA2 power LED downlights in a large commercial space with a DALI2 building management system?
Yes. At 150W and 2800mA with full DALI2 dimming support and a minimum dimming level of 8%, the XLG-150-H-DA2 is suitable for driving LED downlight arrays integrated into DALI2-based building automation systems. Its IP67 rating also accommodates damp ceiling or plenum installations.
Is the XLG-150-H-DA2 suitable for powering high-wattage outdoor LED flood or area lighting?
Yes. The driver is IP67 waterproof and rated for -40°C to +90°C operation, making it appropriate for outdoor flood or area lighting fixtures. It delivers 150W at 2800mA constant current within a 27–56V output range.
Can I use the XLG-150-H-DA2 for theatrical or architectural LED lighting where fine dimming control is needed?
Yes. The DALI2 interface provides smooth dimming down to 8% minimum, and the output current is adjustable from 1400mA to 4170mA, giving flexibility for architectural or theatrical LED installations requiring precise light level control.
What LED string voltage range does the XLG-150-H-DA2 support, and how does that determine LED count?
The constant current operating region is 27–56V. The number of LEDs you can place in series depends on each LED's individual forward voltage — the total string voltage must fall within that 27–56V window.
How does the XLG-150-H-DA2 compare to the XLG-100-H-DA2 and XLG-200-H-DA2?
The XLG-100-H-DA2 is rated 100W at 2100mA, the XLG-150-H-DA2 at 150W at 2800mA, and the XLG-200-H-DA2 at 200W at 3500mA. All three share the same H-series constant current region and DALI2 interface; the differences are wattage and maximum output current.
Can the XLG-150-H-DA2 be installed in a wet or wash-down environment?
The XLG-150-H-DA2 carries an IP67 rating, meaning it is protected against dust ingress and temporary immersion in water up to 1 meter. It is suitable for damp or splash-prone installations but should not be permanently submerged.
