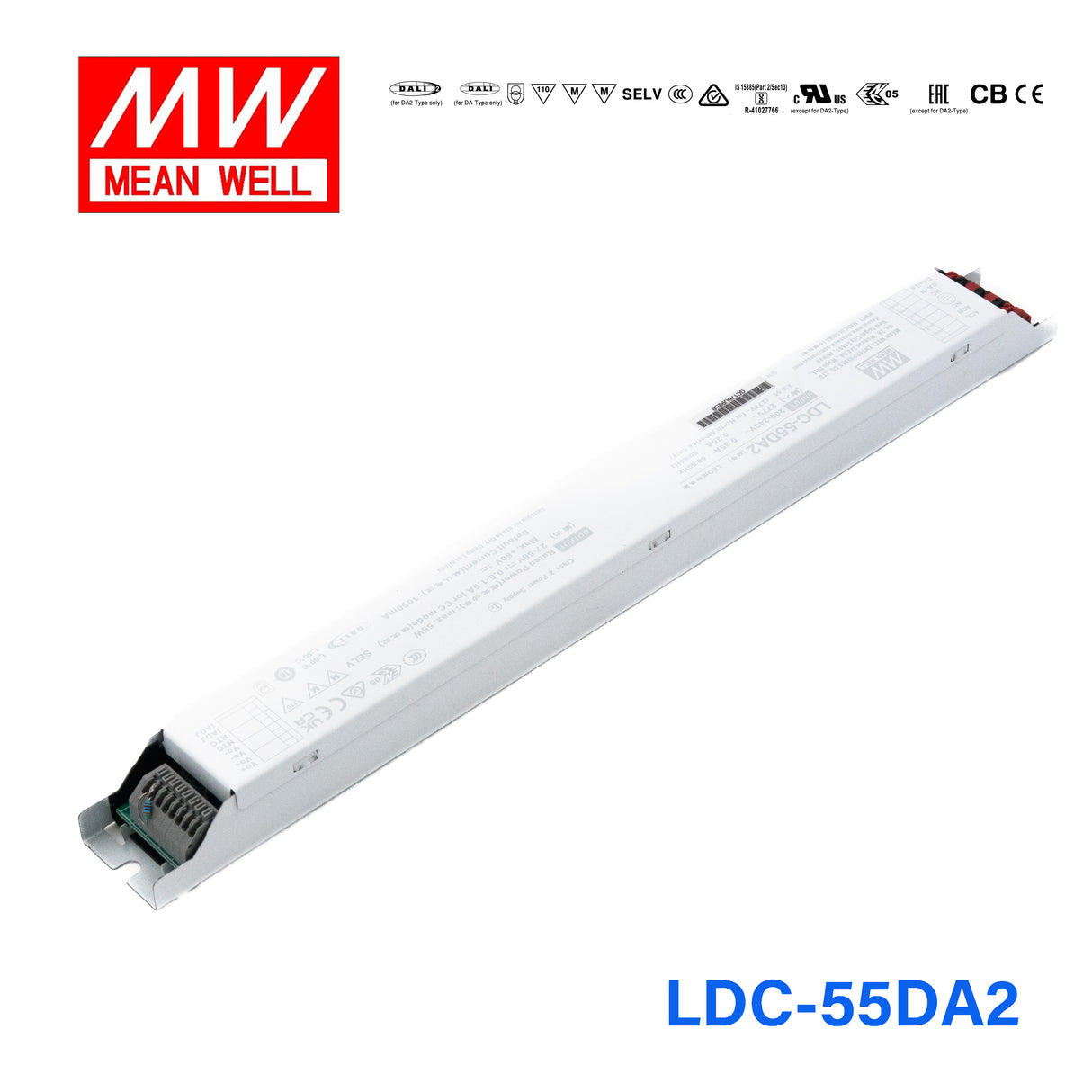

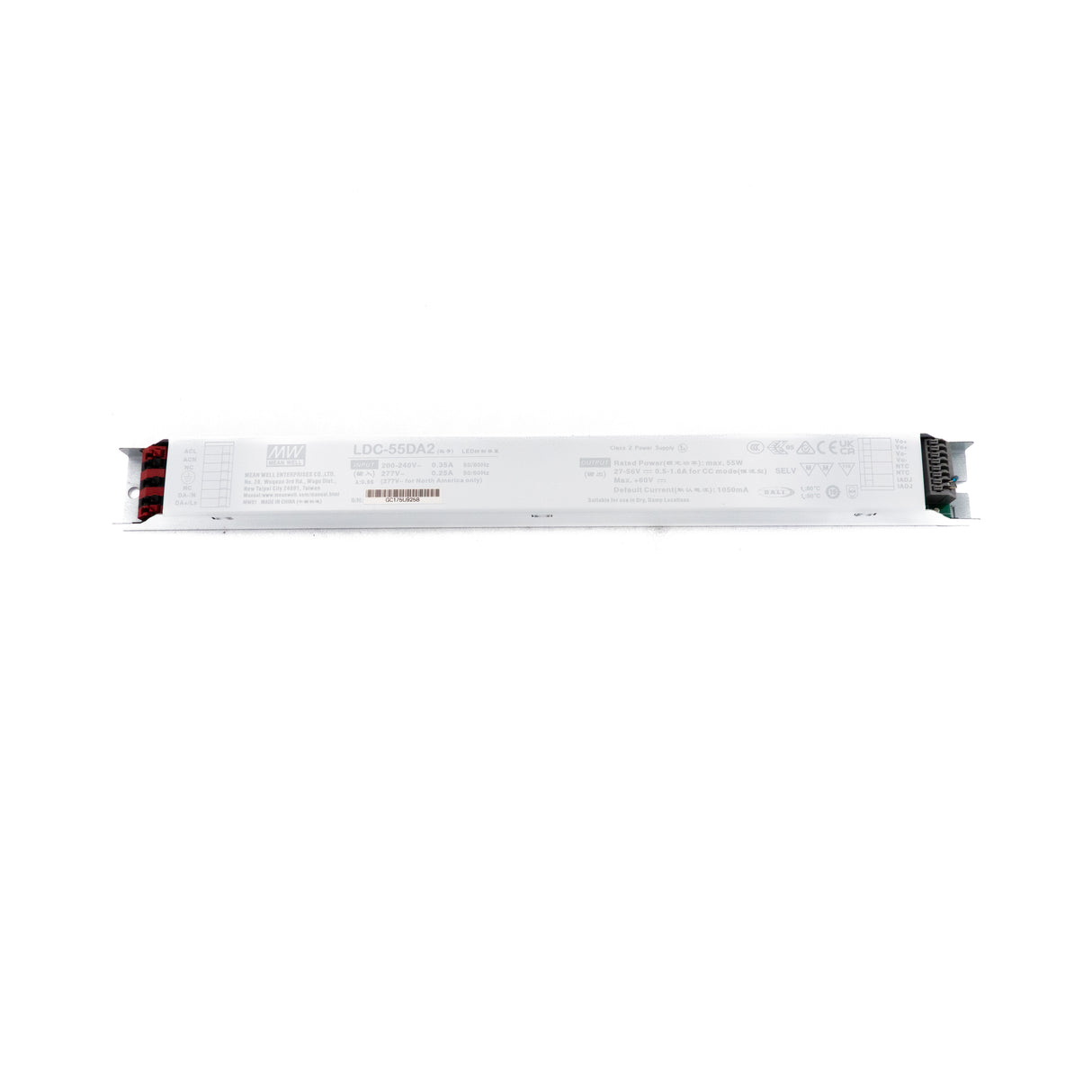

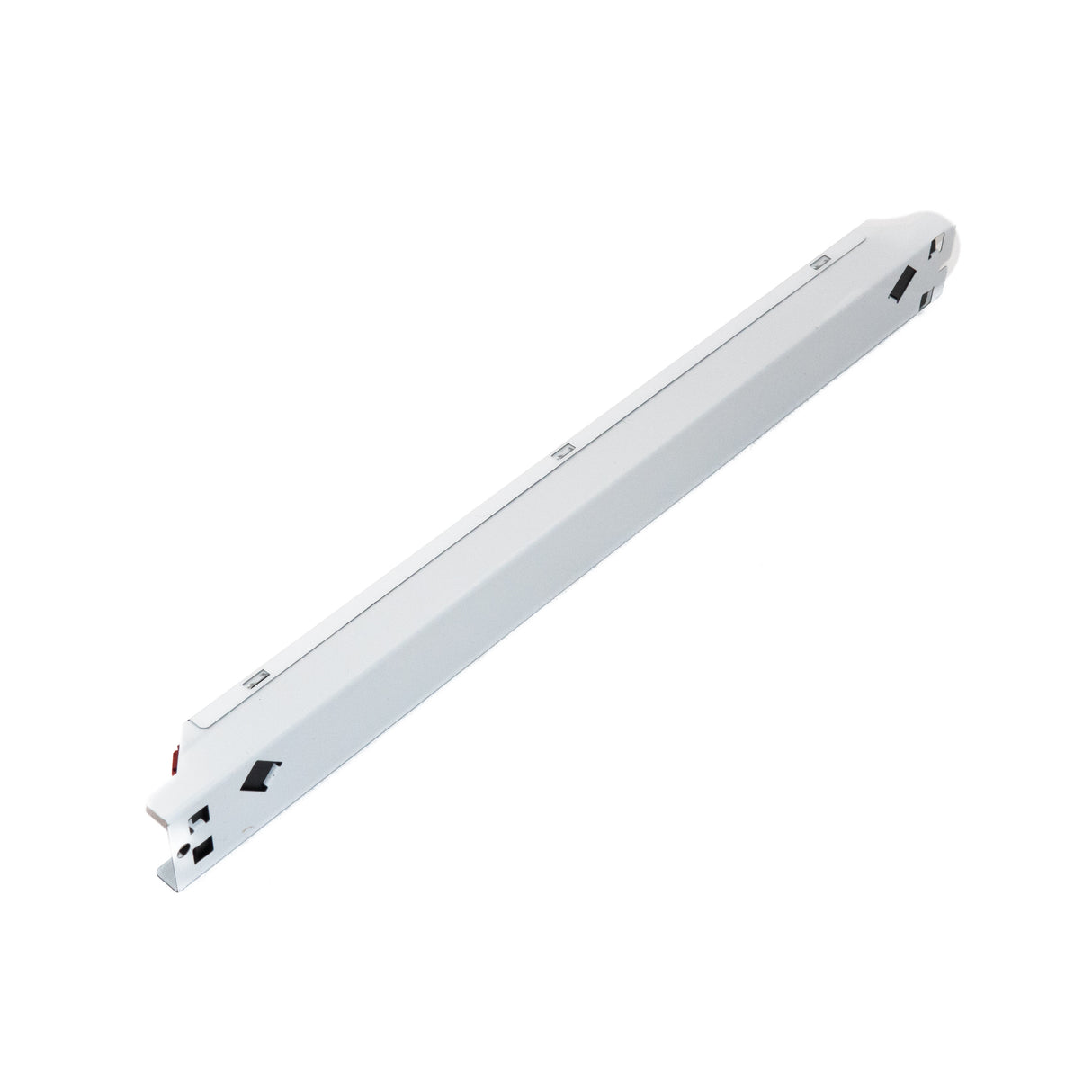

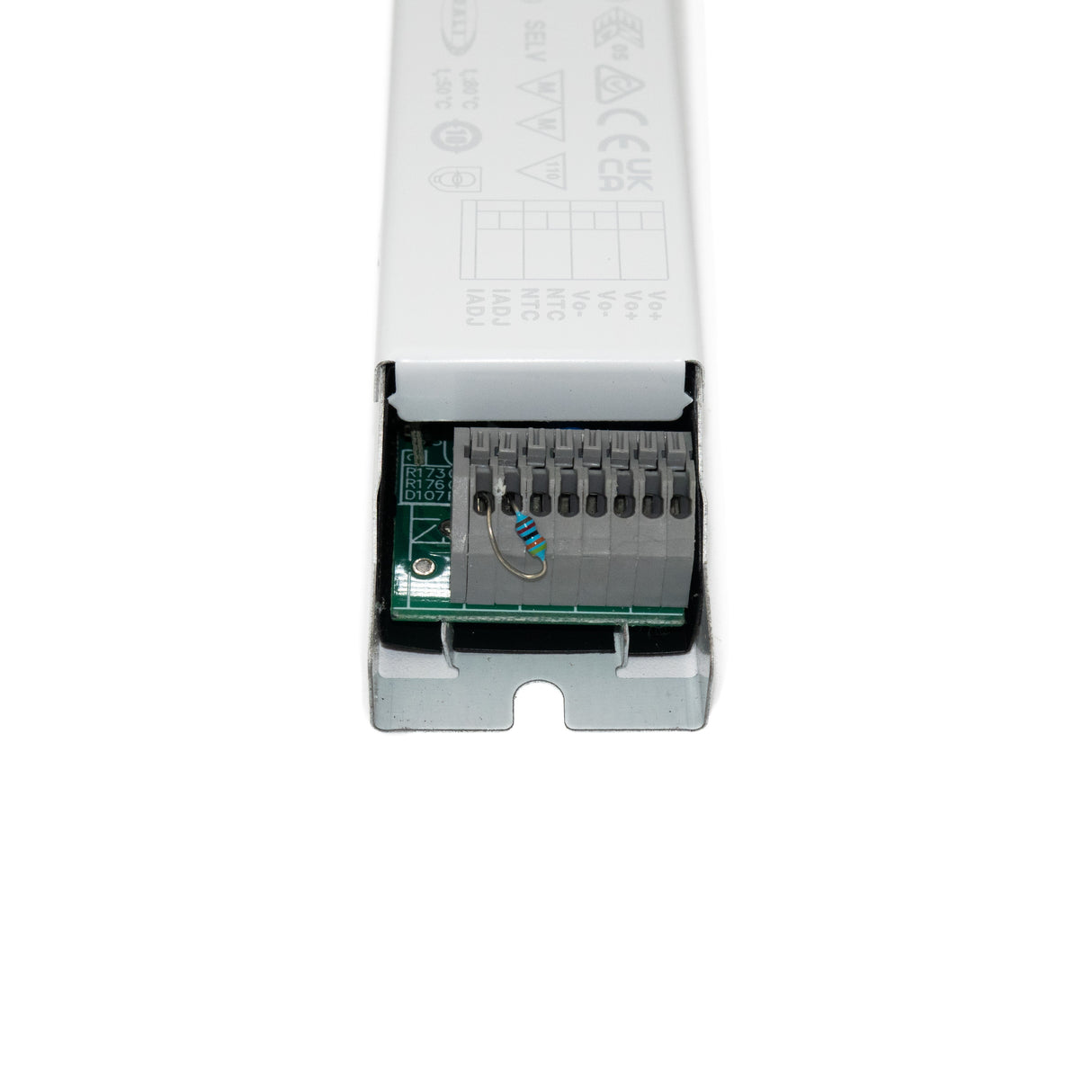

Mean Well LDC-55DA2 Linear LED Driver 55W 500~1600mA Adjustable Output - DALI2
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LDC-55DA2 Linear LED Driver 55W 500~1600mA Adjustable Out...
The LDC-55 is a 55W Mean Well AC-DC constant current LED driver (input: 180~295VAC, output: 60V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 180~295VAC
- ✓ Output voltage (max): 60V
- ✓ Rated output current: 1050mA
- ✓ Flicker-free output
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: BIS, CB, CCC, CE, EAC, ENEC, RCM, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesLDC Series
-
Power Rating55 Watt
-
Output Voltage60 Volt
-
Rated Current1.05 Ampere
-
Input Voltage180V~295V
-
No of Output1
-
Dimming ControlDALI,Push Dimming
-
Standards MetBIS,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length12.6 in
-
Width1.18 in
-
Height0.83 in
-
Weight0.56 lb
::specification::
Frequently Asked Questions
Can I use the LDC-55DA2 for higher-current LED downlight modules?
Yes, when the downlight uses a constant current LED engine that operates within the 27-56V range and is suited to this model's 1050mA nominal output. With 55W capacity, it is aimed at higher-current constant current loads rather than low-current constant voltage lighting products.
Is the LDC-55DA2 a good choice for small high-brightness LED arrays?
It can be, provided the array is a constant current load and its total forward voltage stays inside the 27-56V CC range. Because this version is rated at 1050mA nominal output, it fits higher-current LED arrays better than the 500mA LDC-55DA version.
Can this model be used in signage lighting that uses constant current LED modules?
Yes, if the signage module is a constant current design within the 27-56V range and up to 55W. It is not intended for constant voltage signage systems, so it should only be used where the LED module is specified for constant current operation.
How should I size an LED load for the LDC-55DA2?
Use LED modules that require a constant current source and whose combined forward voltage falls within 27-56V. The number of LEDs depends on each LED's forward voltage, so the correct check is total LED forward voltage at the required current, not a preset LED quantity.
Is the LDC-55DA2 suitable for cold or hot operating environments?
This driver is rated for operation from -40°C to +80°C, which supports a wide ambient temperature range. No IP rating is listed in the provided specs, so environmental suitability still depends on the final enclosure or fixture design.
