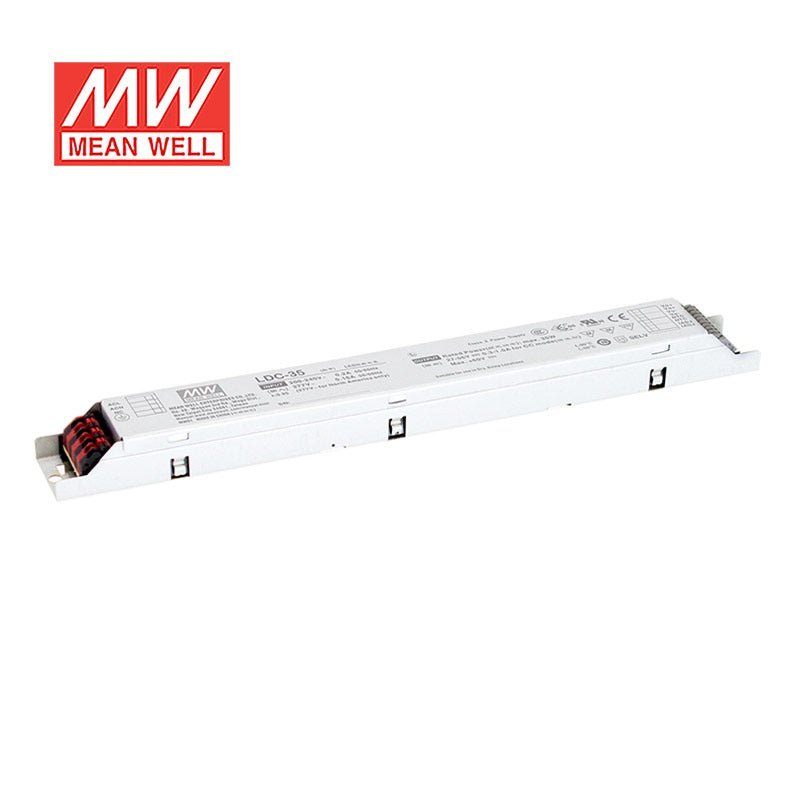

Mean Well LDC-35DA2 Linear LED Driver 35W 300~1000mA Adjustable Output - DALI2

Name: Mean Well LDC-35DA2 Linear LED Driver 35W 300~1000mA Adjustable Output - DALI2
Brand: Mean Well
SKU: LDC-35DA2
Price: 36.6 USD
Availability: InStock

constant power, flicker free, ultra slim design, 30mm width

$36.60 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant Power mode output

Metal housing design

Full power at 70~100% max current

Built-in active PFC function

Flicker-free design

No load/standby power consumption<0.5W

Output current level pre-settable

Function options: 3 in 1 dimming(dim-to-off); DALI interface, push dimming

Typical lifetime>50000 hours

SELV and isolated

Class 2 power supply

5 years warranty

General Specification

AC input voltage range	180~295VAC
AC inrush current (Typ.)	COLD START 30A(twidth=250μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Hiccup mode or constant current limiting recovers automatically after the fault condition is removed
Over temperature protection	Shut down o/p voltage, with auto-recovery
Setup time	500ms / 230VAC
Withstand voltage	I/P-O/P:3.75KVAC, I/P-FG:2.0KVAC, O/P-FG:1.5KVAC
Working temperature	Tcase=-25 ~ +80℃
Safety standards	UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	280x30x21mm
Packing	54pcs/12.88Kg

Specifications

Brand

Mean Well
Series

LDC Series
Power Rating

35 Watt
Output Voltage

60 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~295V
No of Output

1
Dimming Control

DALI,Push Dimming
Standards Met

BIS,CB,CCC,CE,EAC,ENEC,RCM,UL
Operation Mode

Constant Current
Operating Temperature

-25°C~80°C
Warranty

5 Year
Length

11.02 in
Width

1.18 in
Height

0.83 in
Weight

0.49 lb

File Downloads
