What kinds of equipment can the RSP-320-12 power at 12V?

The RSP-320-12 provides 320.4W at 12V with 26.7A output, suitable for powering networking switches, embedded computing modules, and light industrial control panels. Its 1U low-profile form factor (215.0 × 115.0 × 30.0 mm) allows it to fit within standard rack-mount enclosures.

What is the operating temperature range of the RSP-320-12?

The RSP-320-12 operates from -30°C to +70°C ambient. It carries certifications including UL, CE, TÜV, CB, CCC, BSMI, and EAC and is designed for indoor enclosed installations.

How does the RSP-320-12 compare to other voltage options in the RSP-320 line?

The RSP-320 series shares the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input across voltage variants. The RSP-320-12 delivers 320.4W at 26.7A, while the RSP-320-24 provides 320W at 13.4A and the RSP-320-48 provides 320W at 6.7A. Lower voltage variants offer higher current ratings within the same power envelope.

Does the RSP-320-12 accept universal AC input?

Yes. The RSP-320-12 accepts 88-264VAC, covering both 100V and 200V-class single-phase AC systems worldwide. This makes it suitable for global deployment without requiring voltage selection switches.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

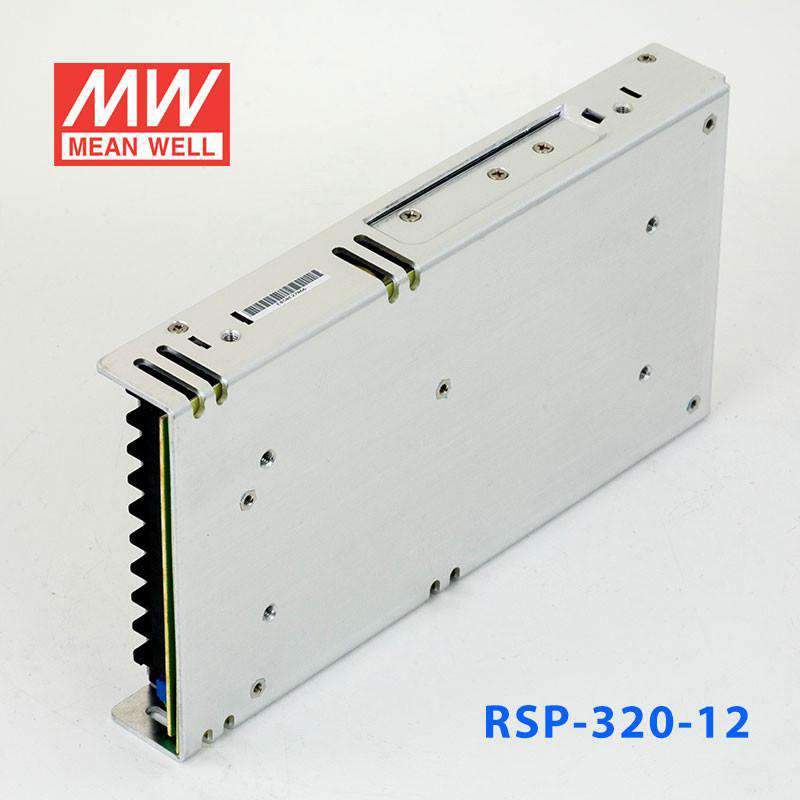

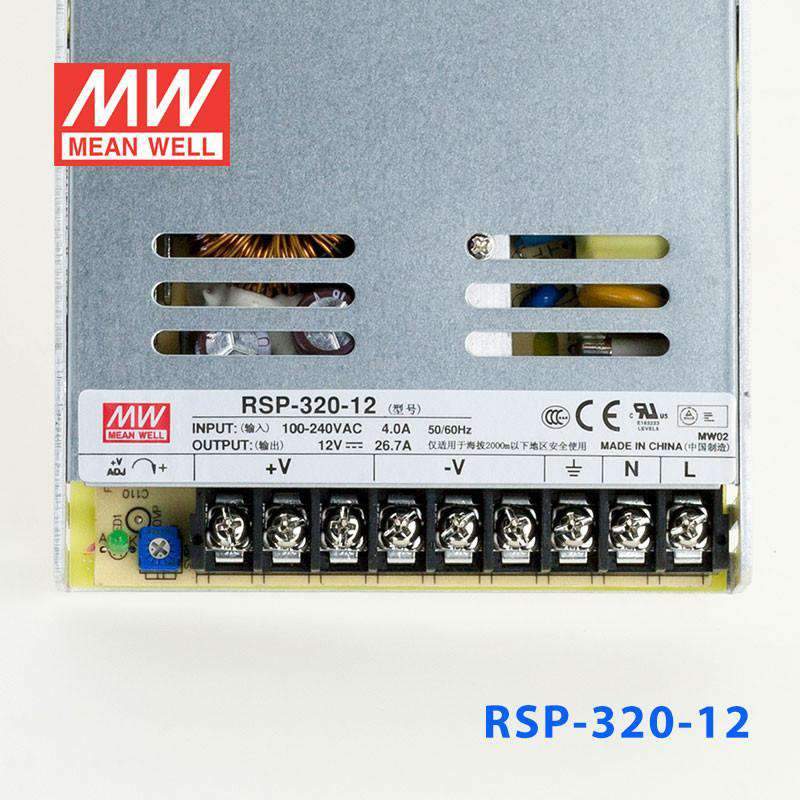

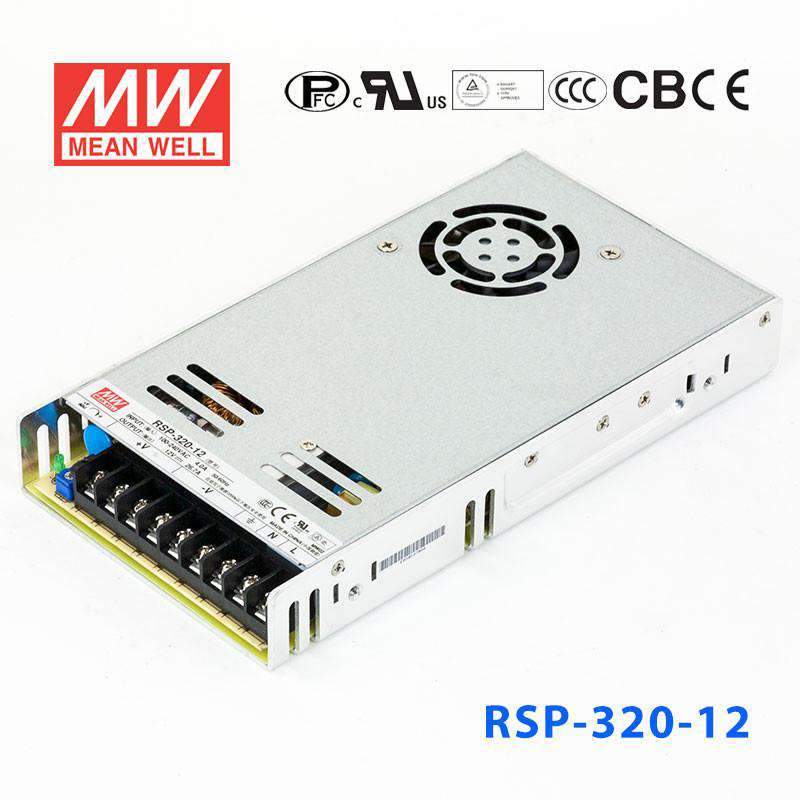

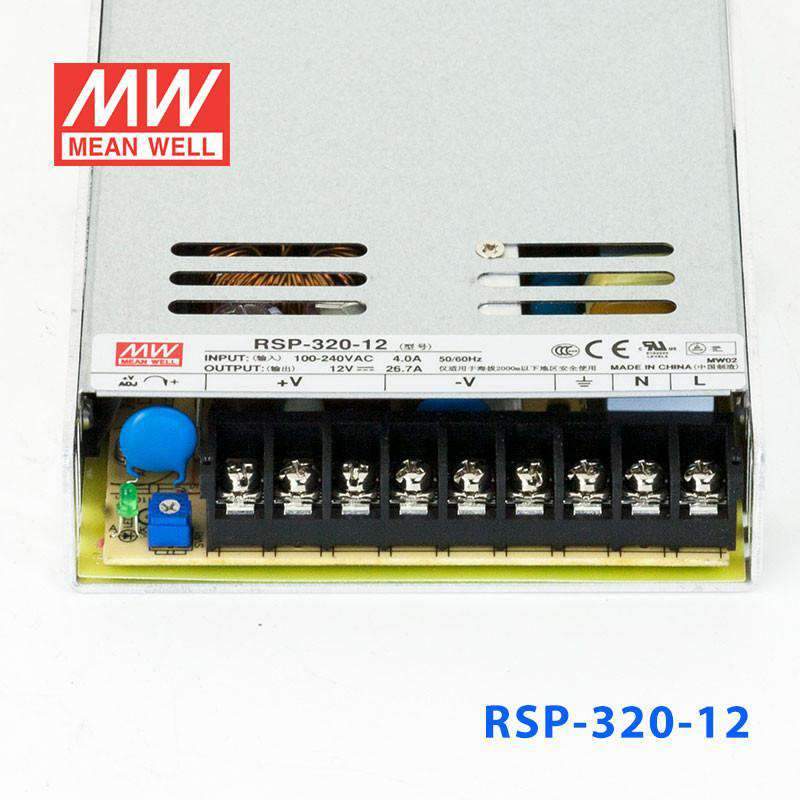

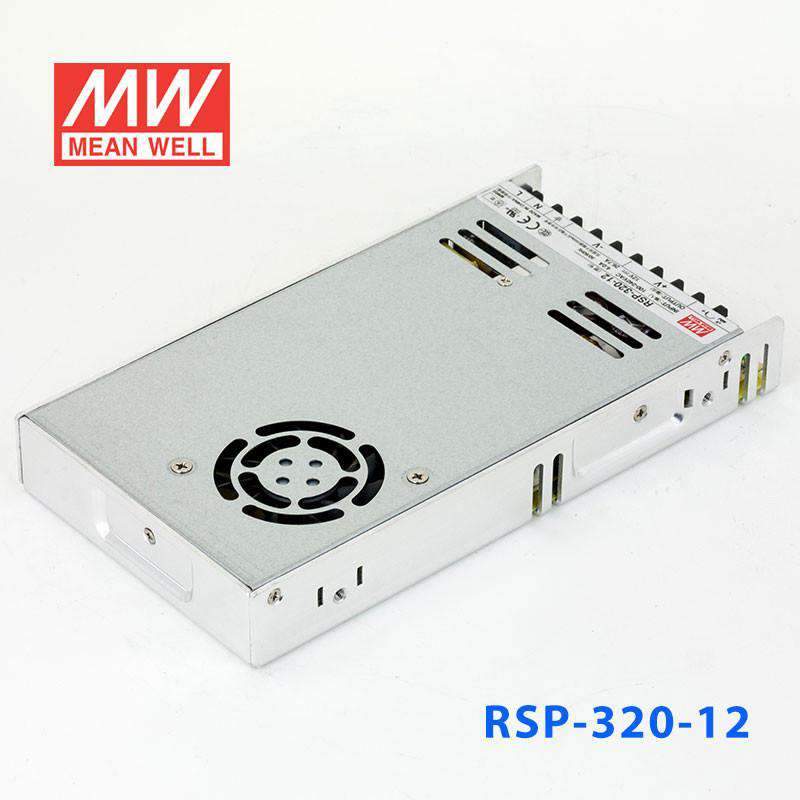

Mean Well RSP-320-12 Power Supply 320W 12V 26.7A

Name: Mean Well RSP-320-12 Power Supply 320W 12V 26.7A
Brand: Mean Well
SKU: RSP-320-12
Price: 59.04 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU:

RSP-320-12

$59.04 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty

Brand

Mean Well
Series

RSP Series
Power Rating

320.4 Watt
Output Voltage

12 Volt
Rated Current

26.7 Ampere
Input Voltage

88V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

8.46 in
Width

4.53 in
Height

1.18 in
Weight

1.98 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well RSP-320-48 Power Supply 320W 48V 6.7A	320W	48V	6.7A	Indoor	$55.98	View
Mean Well RSP-320-5 Power Supply 300W 5V 60A	300W	5V	60A	Indoor	$48.99	View
Mean Well RSP-320-15 Power Supply 320W 15V 21.4A	320W	15V	21.4A	Indoor	$59.04	View
Mean Well RSP-320-27 Power Supply 320W 27V 11.9A	320W	27V	11.9A	Indoor	$59.04	View
Mean Well RSP-320-24 Power Supply 320W 24V 13.4A	320W	24V	13.4A	Indoor	$55.16	View
Mean Well RSP-320-13.5 Power Supply 320W 13.5V 23.8A	320W	13.5V	23.8A	Indoor	$59.04	View
