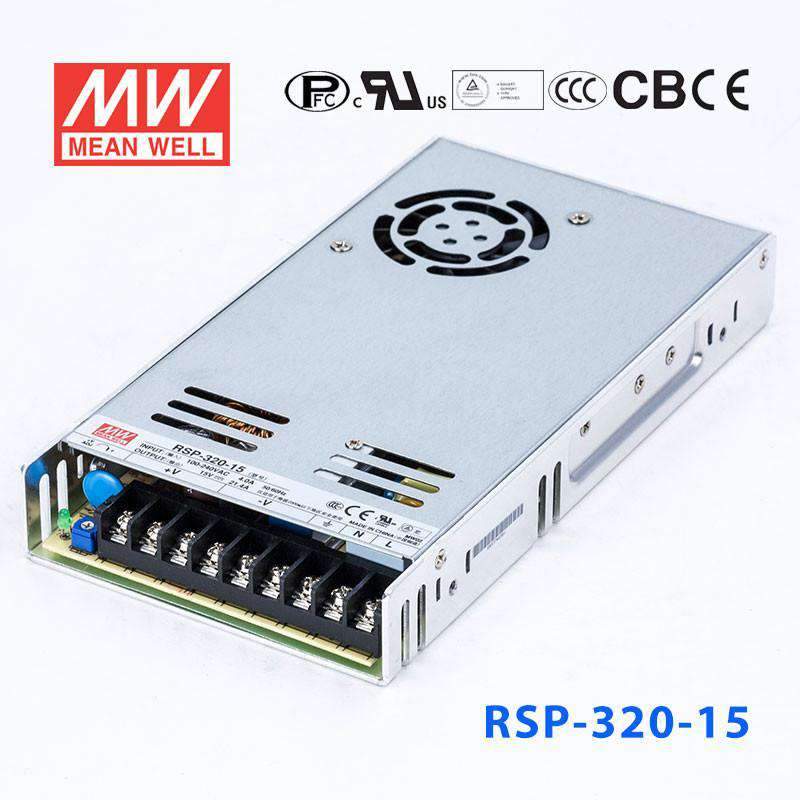

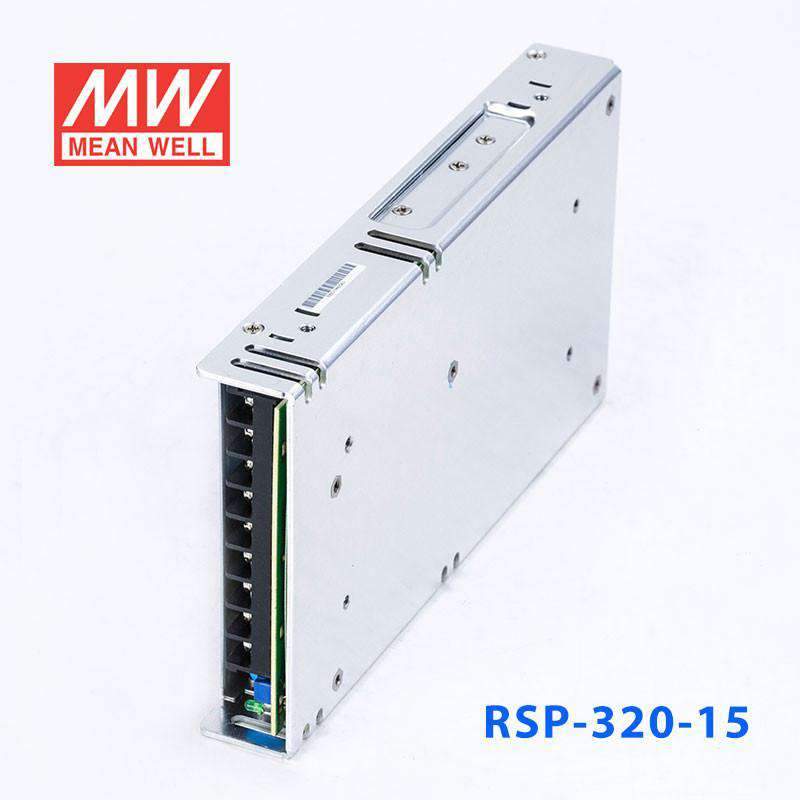

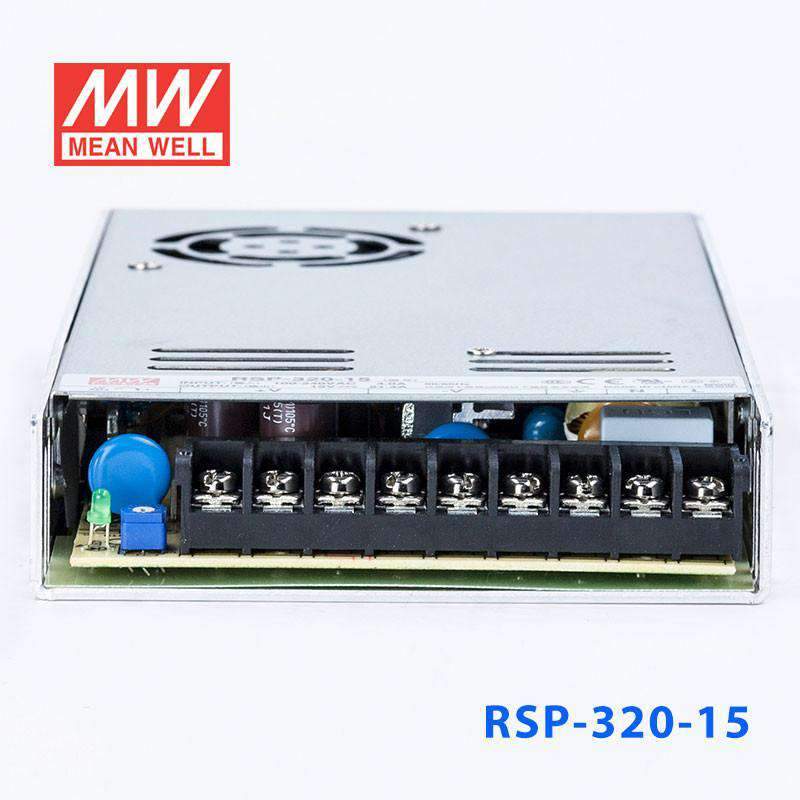

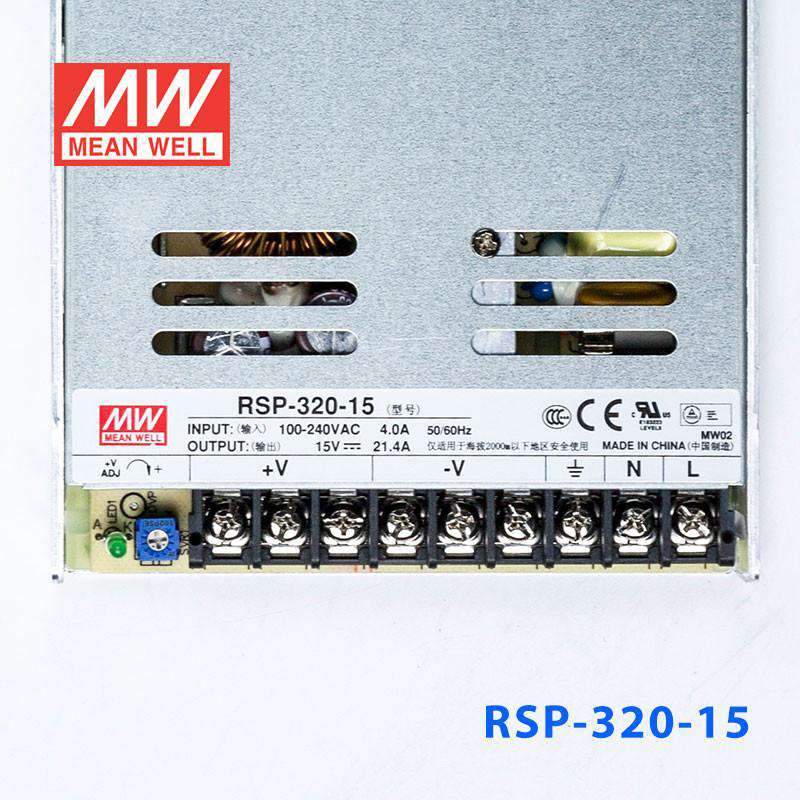

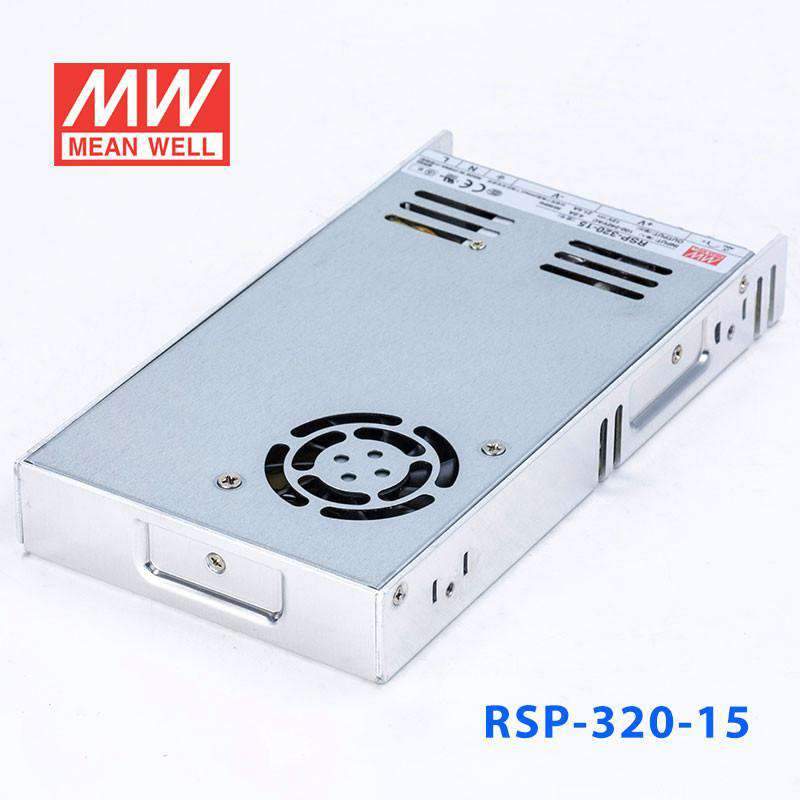

Mean Well RSP-320-15 Power Supply 320W 15V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |
| Connection Input | 9P / 9.5mm pitch terminal block |
| Connection Output | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
| Case No. | 207A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating320 Watt
-
Output Voltage15 Volt
-
Rated Current21.4 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What equipment runs on 15V that the RSP-320-15 can power?
The RSP-320-15 delivers 320W at 15V with 21.4A output. Typical loads include certain industrial sensor arrays, point-of-load converters in rack-mount systems, and equipment designed to operate from a 15V regulated bus.
Is the RSP-320-15 suitable for installations in cold warehouses or outdoor shelters?
The RSP-320-15 operates from -30°C to +70°C and is rated for indoor enclosed use. It does not carry an IP rating for direct outdoor or wet-area installation.
How does the RSP-320-15 compare to the RSP-320-13.5 and RSP-320-24?
Within the RSP-320 series, all units share the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-13.5 provides 320W at 23.8A, the RSP-320-15 provides 320W at 21.4A, and the RSP-320-24 provides 320W at 13.4A. Power remains similar; current ratings decrease as voltage increases.
What is the input voltage range of the RSP-320-15?
The RSP-320-15 accepts 88-264VAC, supporting both 100V-class and 200V-class single-phase AC systems. This universal input range allows worldwide use without manual voltage selection.
Other RSP-320 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-320-48 Power Supply 320W 48V | 320W | 48V | 6.7A | Indoor | $57.13 | View |
| Mean Well RSP-320-5 Power Supply 300W 5V | 300W | 5V | 60A | Indoor | $40.04 | View |
| Mean Well RSP-320-12 Power Supply 320W 12V | 320.4W | 12V | 26.7A | Indoor | $58.48 | View |
| Mean Well RSP-320-27 Power Supply 320W 27V | 320W | 27V | 11.9A | Indoor | $57.49 | View |
| Mean Well RSP-320-24 Power Supply 320W 24V | 320W | 24V | 13.4A | Indoor | $56.52 | View |
