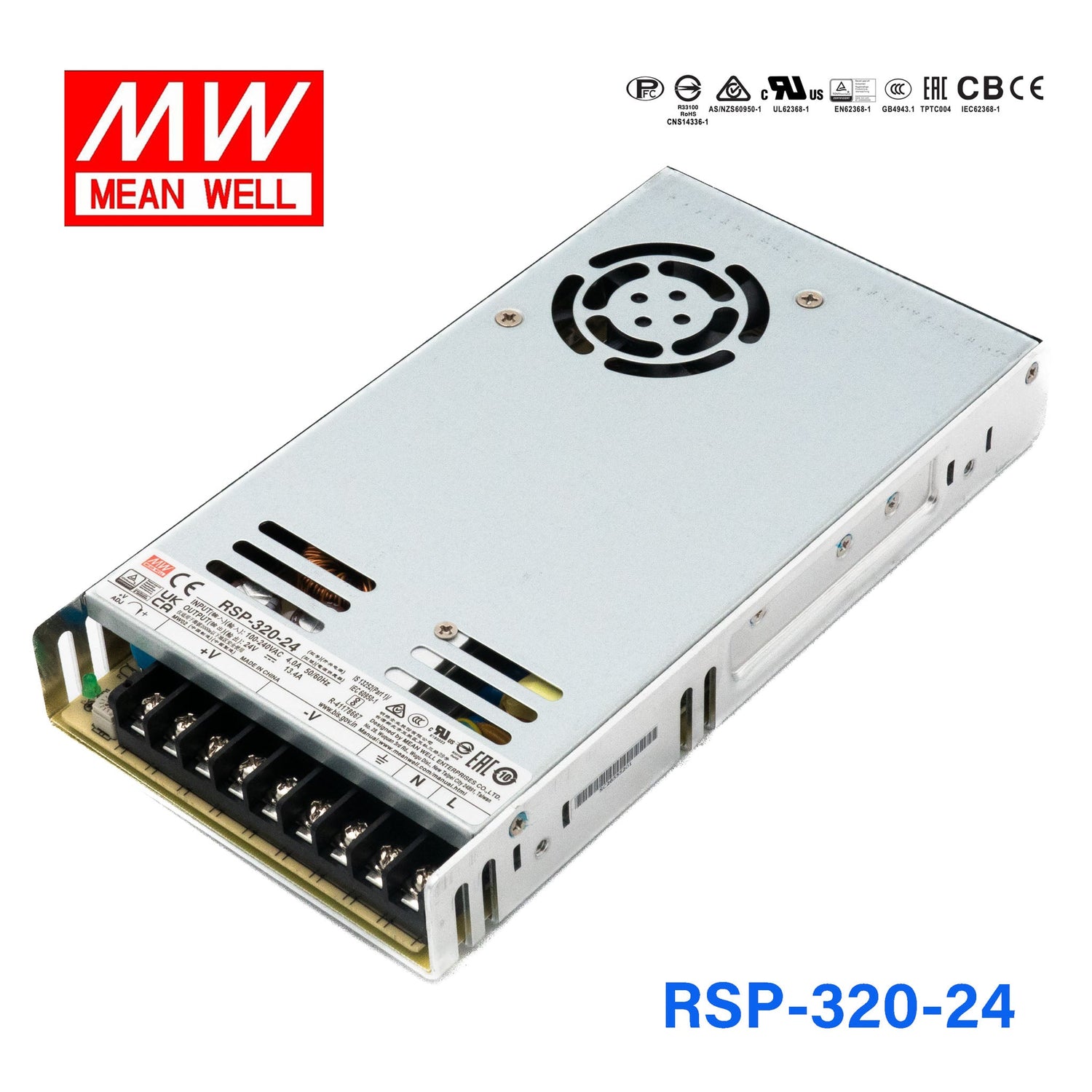

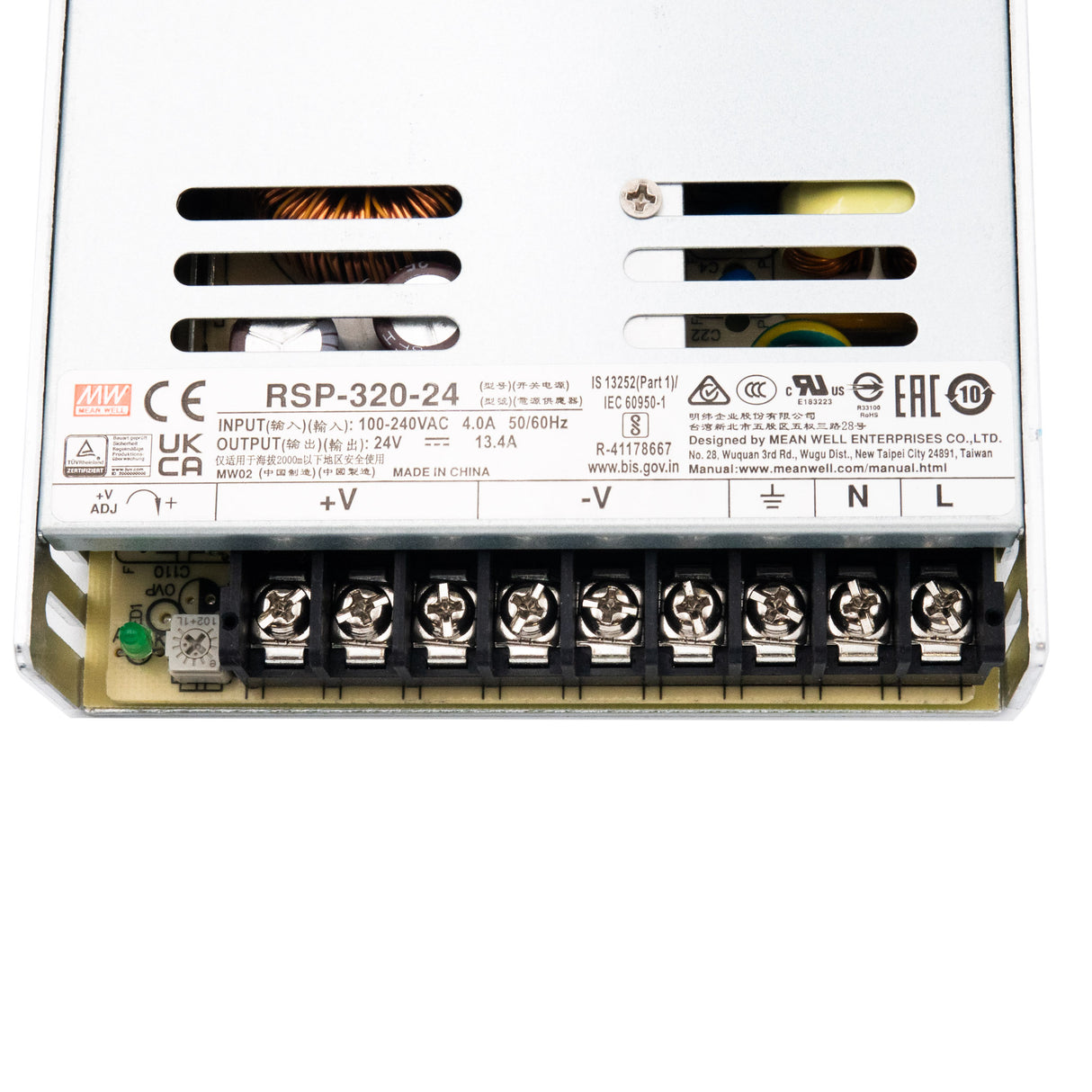

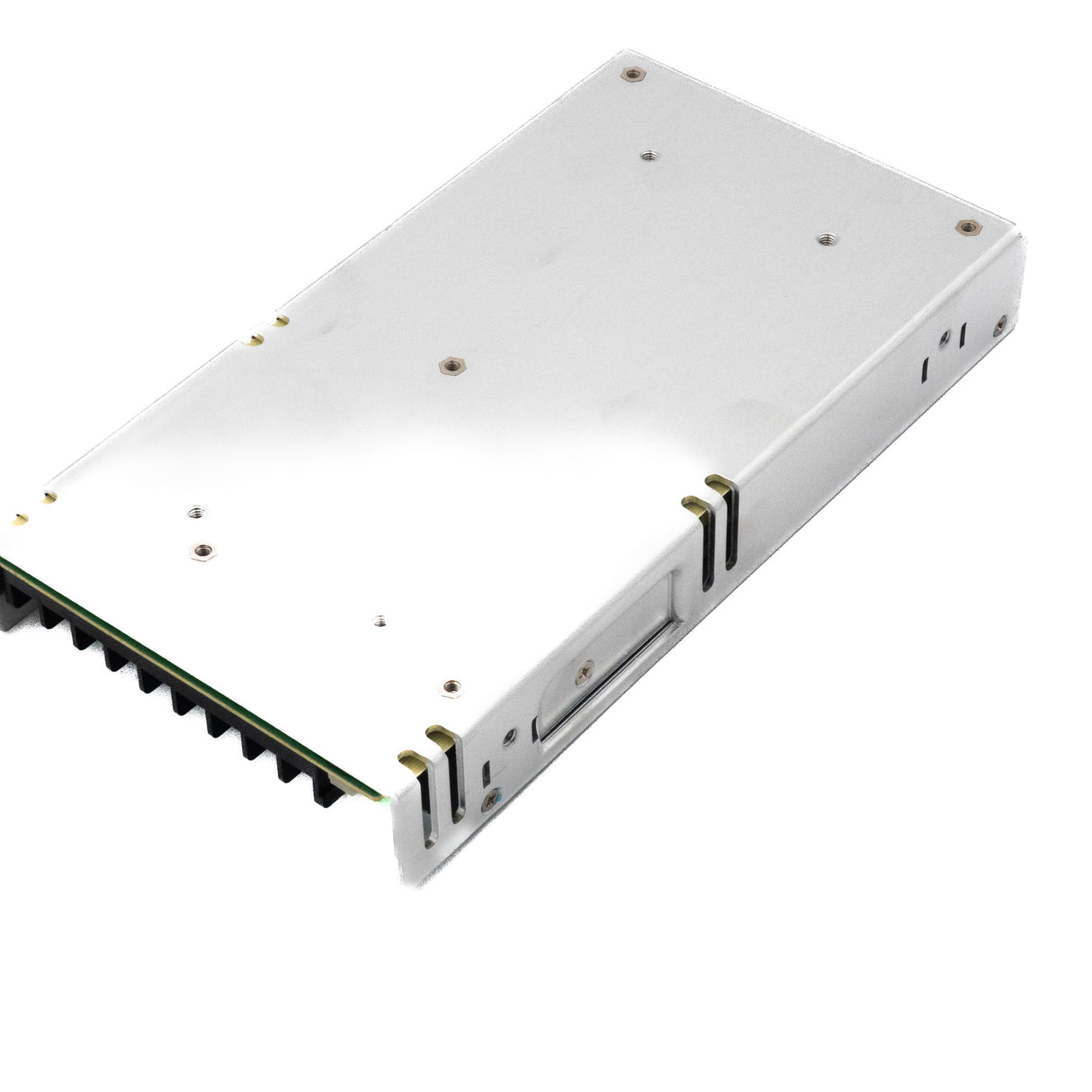

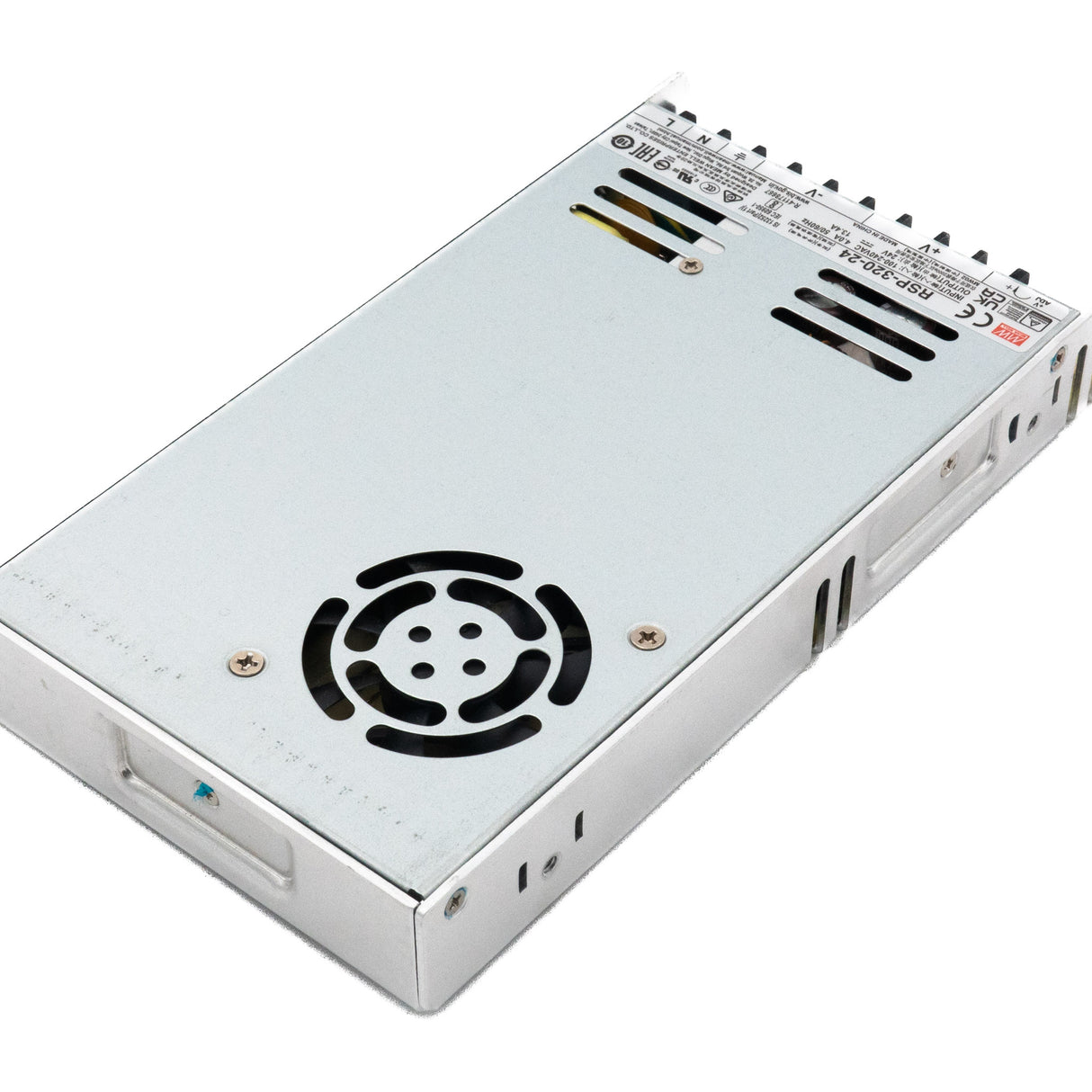

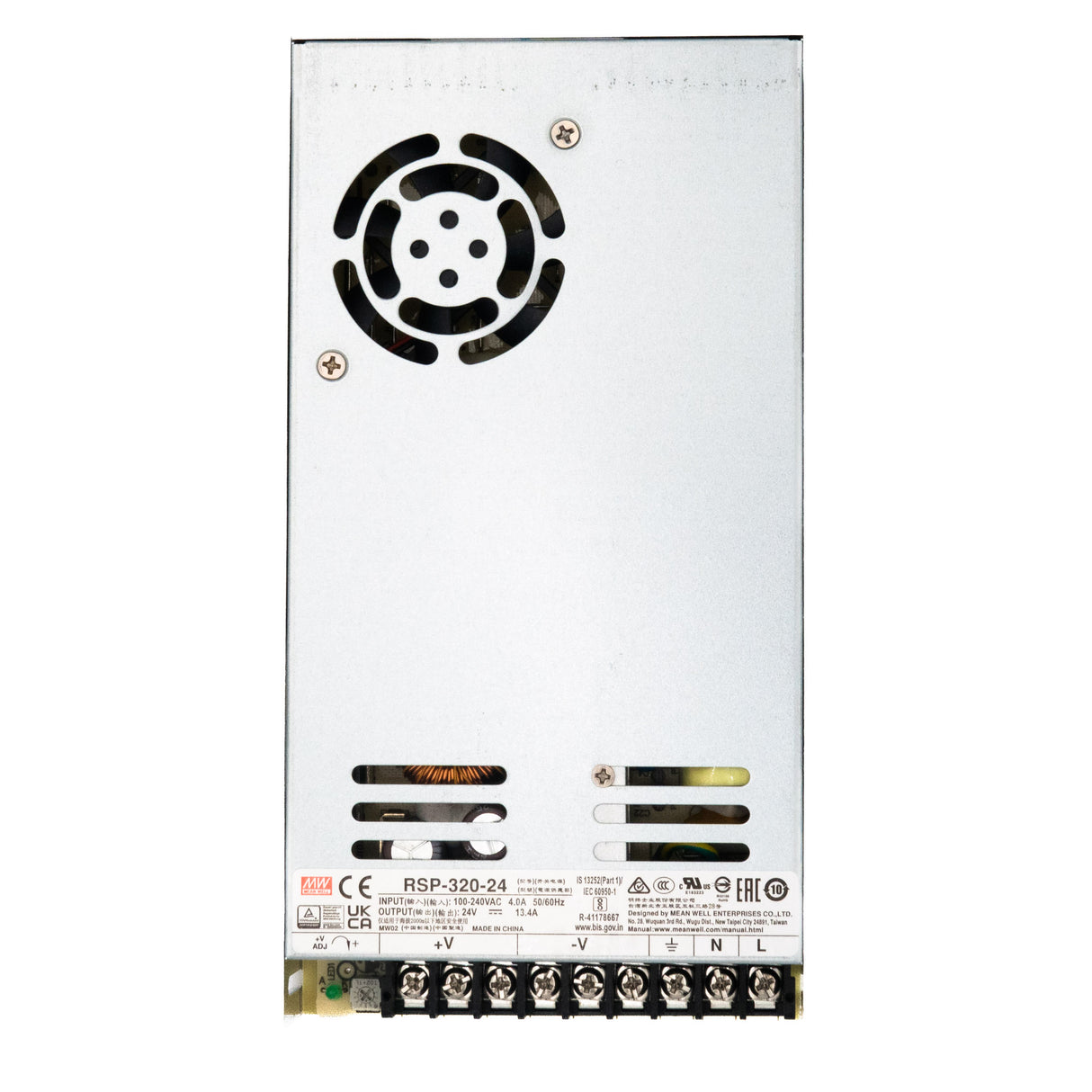

Mean Well RSP-320-24 Power Supply 320W 24V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |
| Connection Input | 9P / 9.5mm pitch terminal block |
| Connection Output | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
| Case No. | 207A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating320 Watt
-
Output Voltage24 Volt
-
Rated Current13.4 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What industrial control systems commonly use the RSP-320-24?
The RSP-320-24 delivers 24V at 13.4A (320W), the standard DC bus voltage for a wide range of PLCs, HMI panels, and industrial sensors. Its compact 1U footprint (215.0 × 115.0 × 30.0 mm) fits standard DIN-rail or rack enclosures.
What is the temperature operating range for the RSP-320-24?
The RSP-320-24 is rated for -30°C to +70°C, suitable for cold-climate indoor installations. It carries UL, CE, TÜV, CB, CCC, BSMI, and EAC certifications with a 3-year warranty.
How does the RSP-320-24 compare to the RSP-320-27 and RSP-320-36 at higher voltages?
All three share the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-24 outputs 320W at 13.4A, the RSP-320-27 provides 320W at 11.9A, and the RSP-320-36 provides 320W at 8.9A. Current decreases as voltage increases while wattage stays consistent.
Does the RSP-320-24 include power factor correction?
Yes. The RSP-320-24 includes built-in active PFC, which reduces reactive power draw and meets common power quality requirements in commercial and industrial installations.
