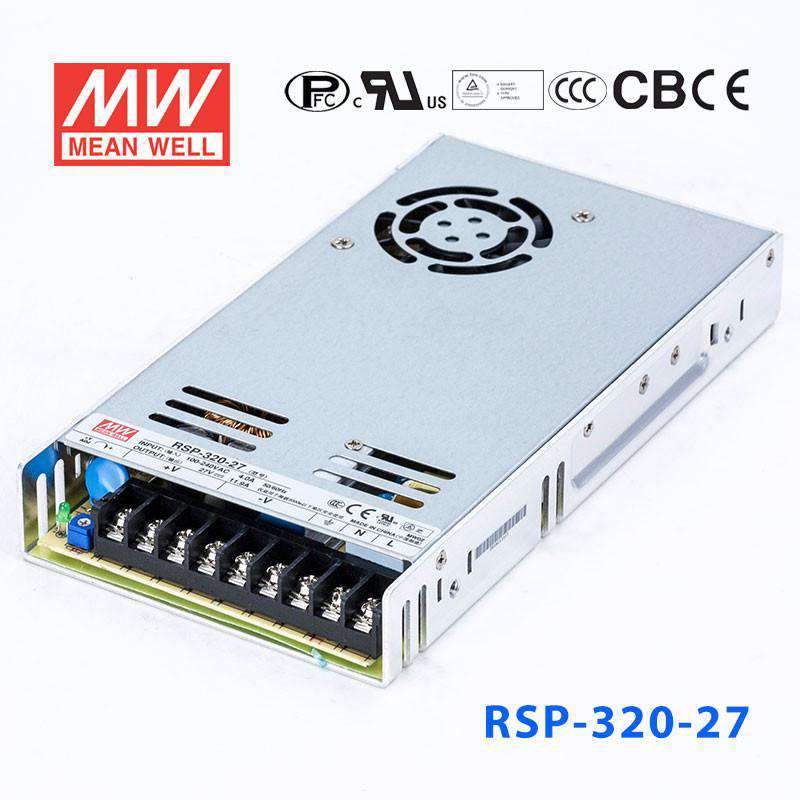

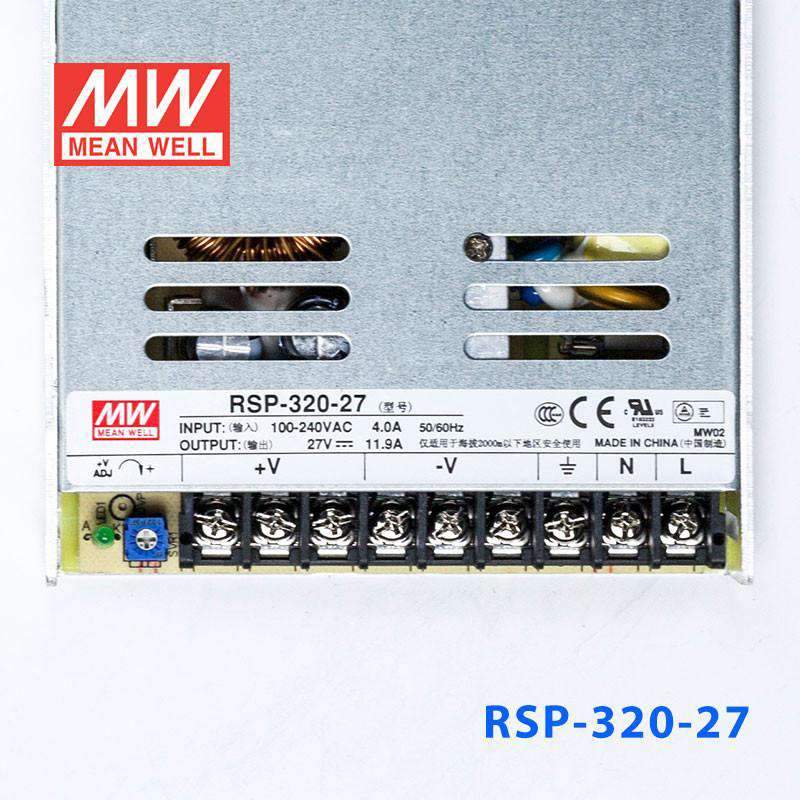

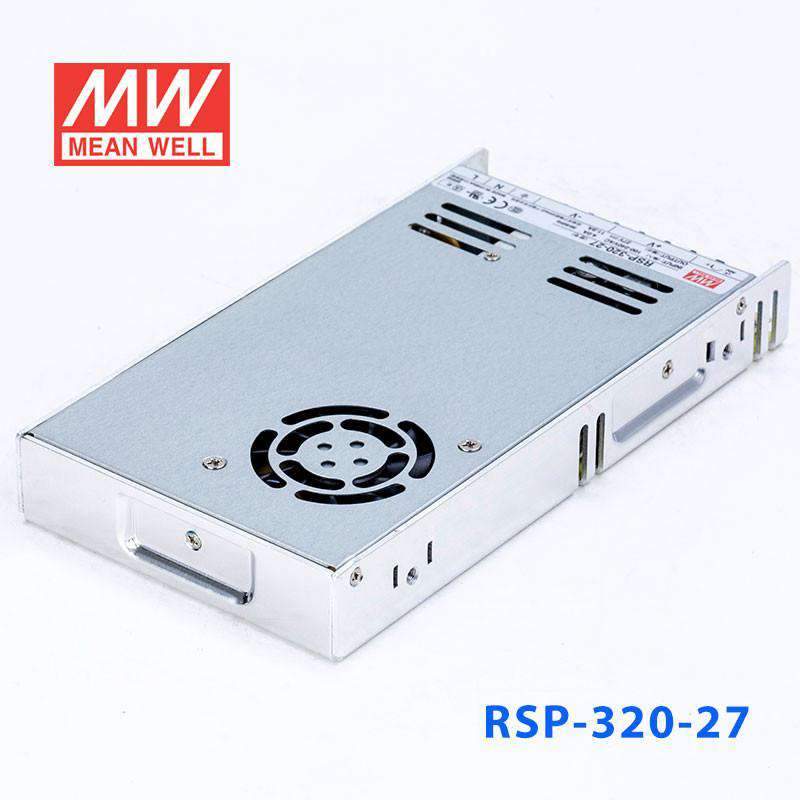

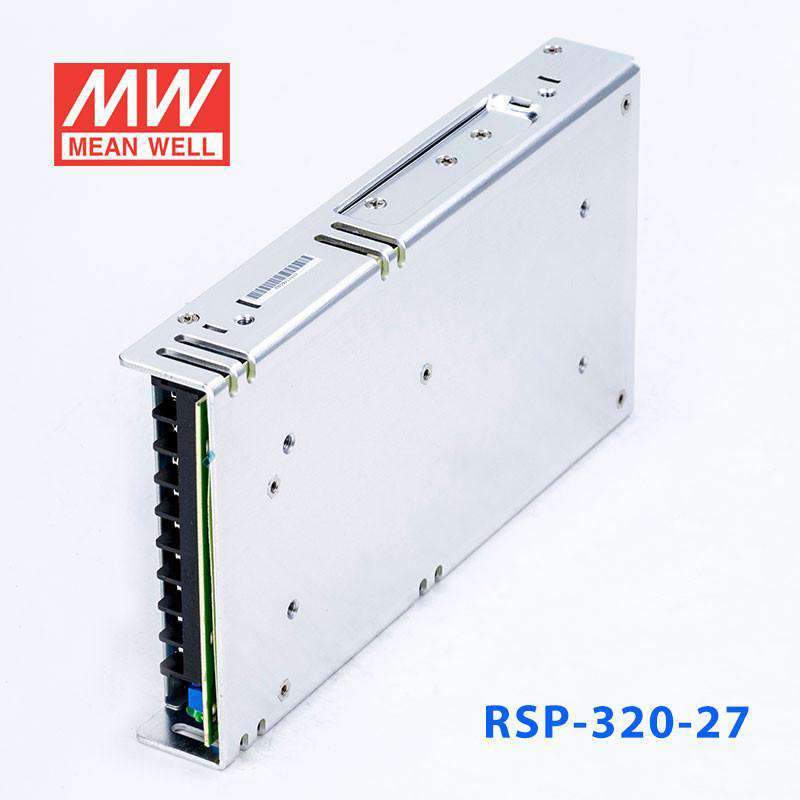

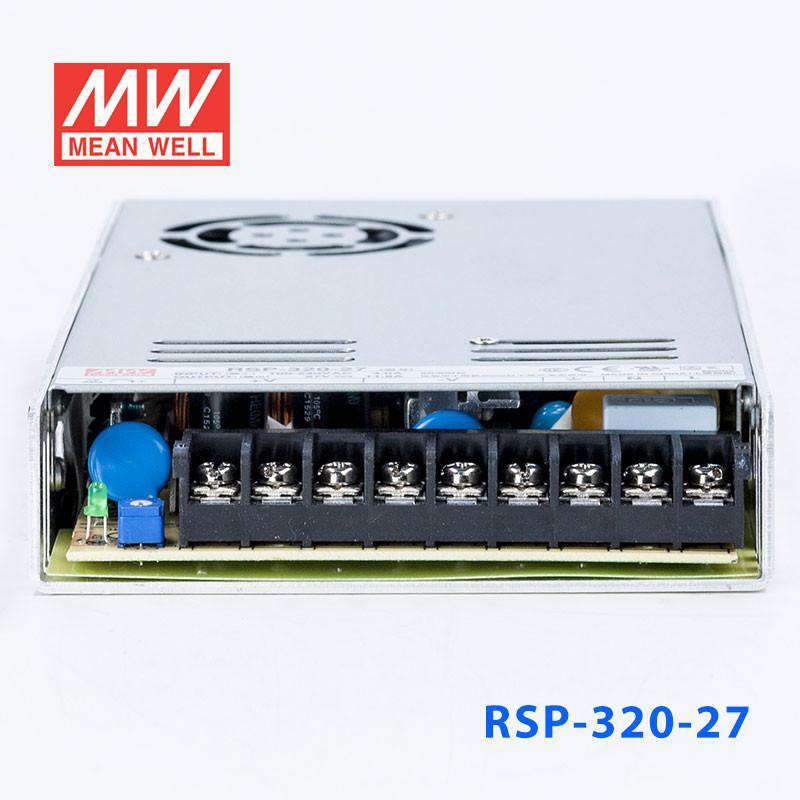

Mean Well RSP-320-27 Power Supply 320W 27V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |
| Connection Input | 9P / 9.5mm pitch terminal block |
| Connection Output | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
| Case No. | 207A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating320 Watt
-
Output Voltage27 Volt
-
Rated Current11.9 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the RSP-320-27 used for in automation or embedded systems?
The RSP-320-27 delivers 27V at 11.9A (320W), a voltage used by certain stepper motor drives, specialized industrial sensors, and embedded systems designed for a 24-28V nominal bus. Its 1U form factor fits standard panel and rack installations.
Can the RSP-320-27 operate in cold storage facilities?
The RSP-320-27 is rated for -30°C to +70°C ambient operation, making it suitable for indoor cold-storage environments. It is not rated for outdoor or wet-location use.
How does the RSP-320-27 compare to the RSP-320-24 and RSP-320-36?
All three are 1U units with the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-24 provides 320W at 13.4A, the RSP-320-27 provides 320W at 11.9A, and the RSP-320-36 provides 320W at 8.9A. All maintain approximately 320W output; current rating decreases as output voltage increases.
What certifications does the RSP-320-27 hold?
The RSP-320-27 carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and includes a 3-year warranty. The unit weighs 0.9 kg.
