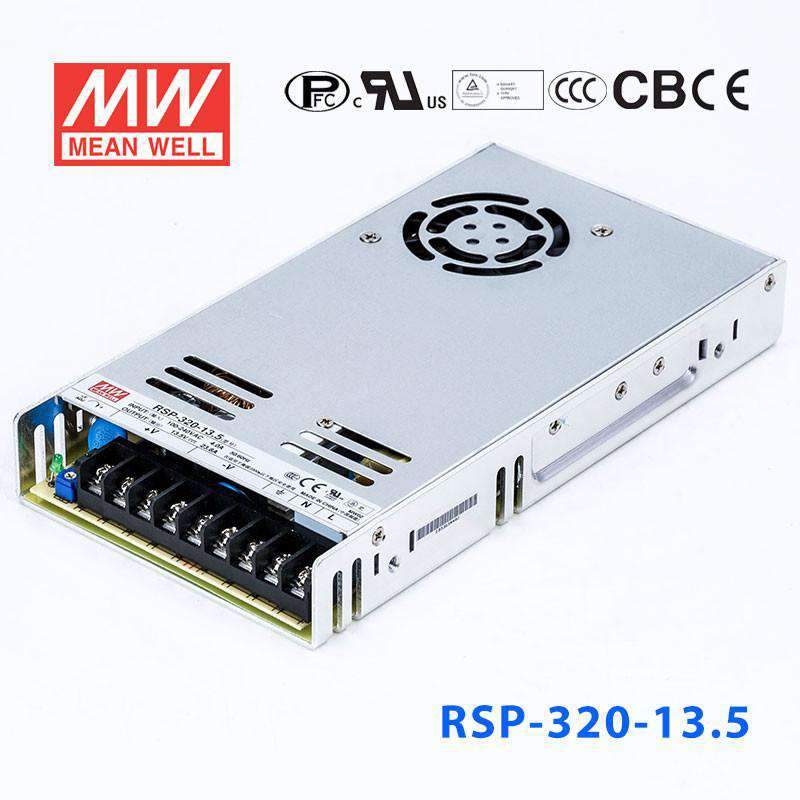

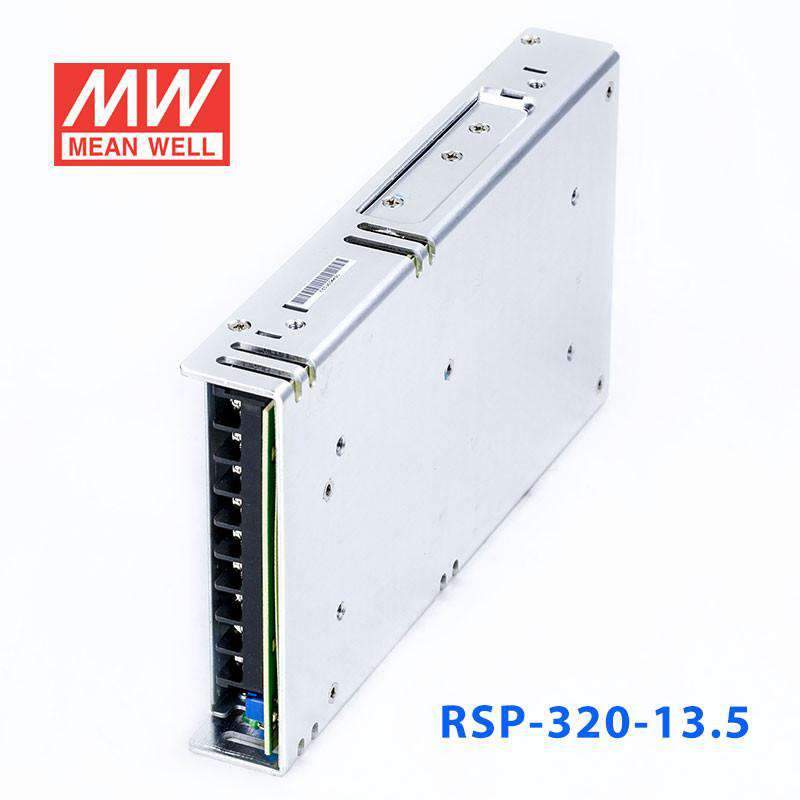

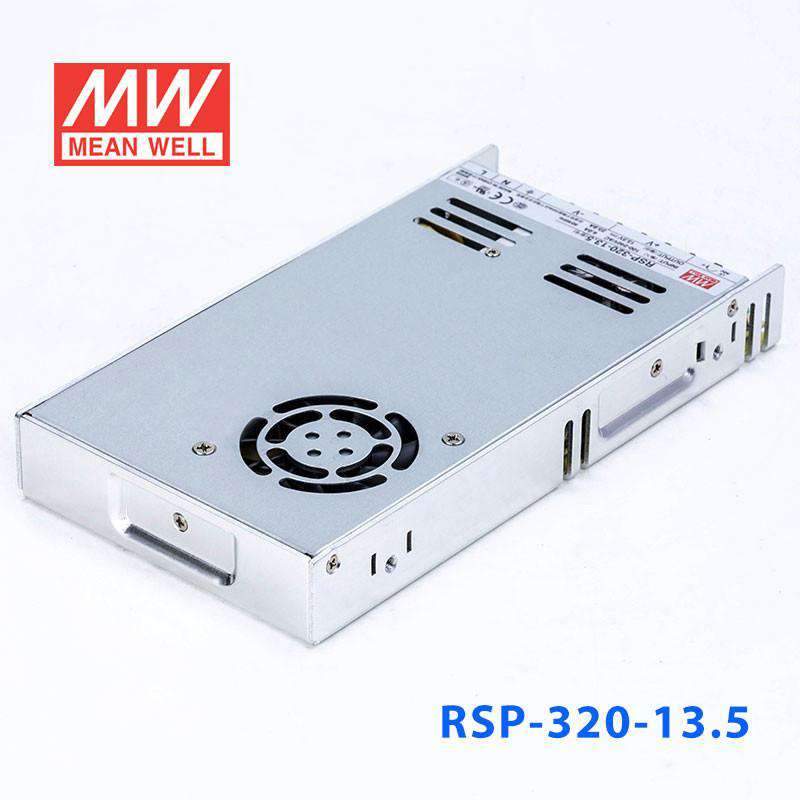

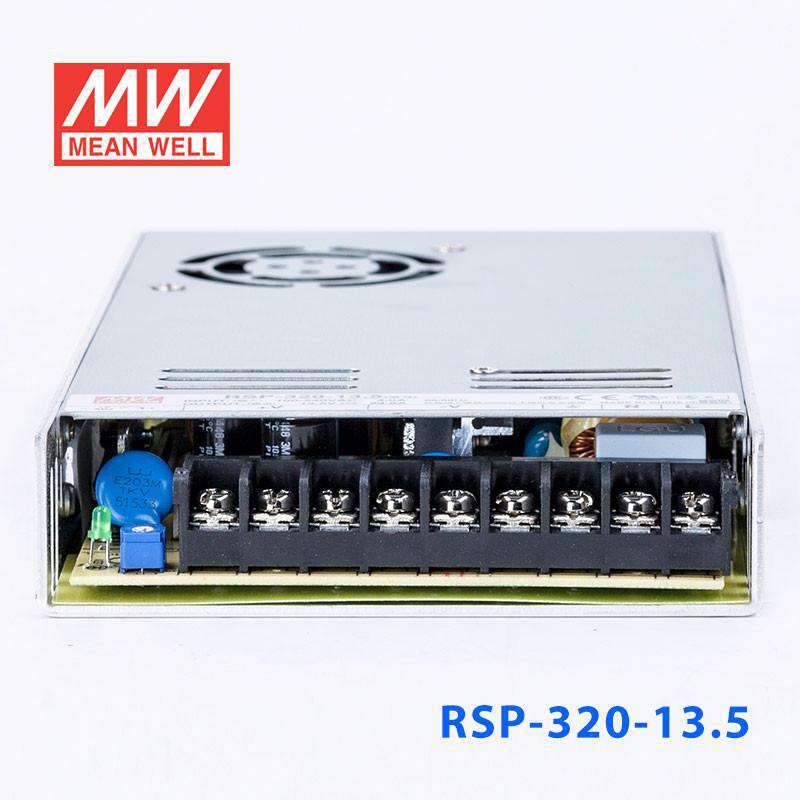

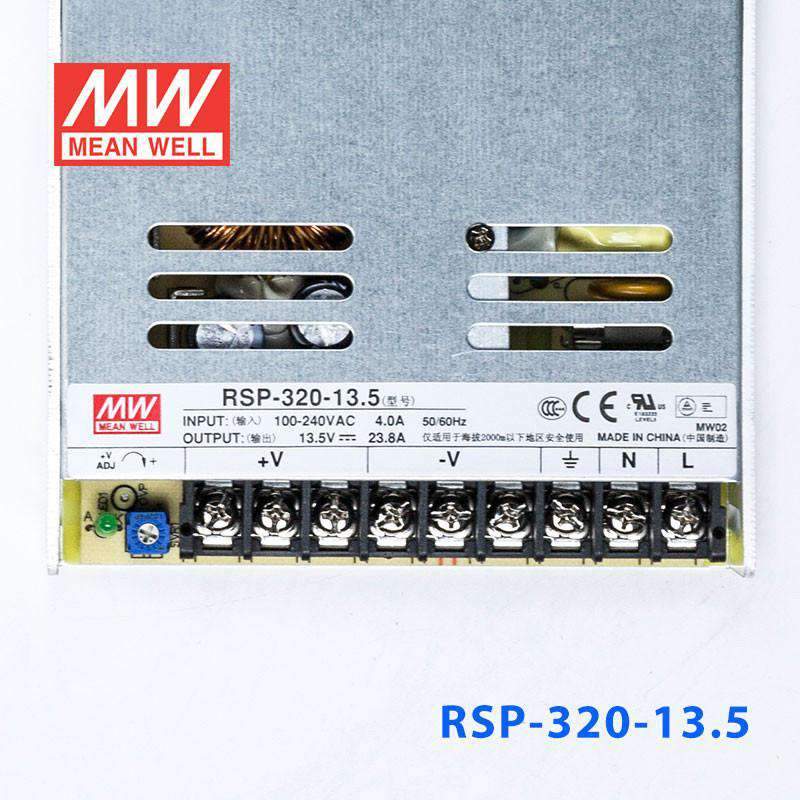

Mean Well RSP-320-13.5 Power Supply 320W 13.5V
Description
Description
The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: AS/NZS 60950.1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating320 Watt
-
Output Voltage13.5 Volt
-
Rated Current23.8 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the RSP-320-13.5 typically used for?
The RSP-320-13.5 outputs 13.5V at 23.8A (320W), a voltage commonly used to float-charge 12V lead-acid battery systems and power certain automotive-grade embedded controllers. Its compact 1U profile (215.0 × 115.0 × 30.0 mm, 0.9 kg) suits panel-mount or rack applications.
What is the cold-temperature limit for the RSP-320-13.5?
The RSP-320-13.5 operates down to -30°C ambient, making it one of the more cold-tolerant units in the RSP-320 size class. Its upper operating limit is +70°C.
How does the RSP-320-13.5 compare to the RSP-320-12 and RSP-320-15 at similar voltages?
All three units share the same 215.0 × 115.0 × 30.0 mm form factor and 88-264VAC input. The RSP-320-12 delivers 320.4W at 26.7A, the RSP-320-13.5 provides 320W at 23.8A, and the RSP-320-15 provides 320W at 21.4A. The current output decreases as voltage increases across these models.
What certifications does the RSP-320-13.5 carry?
The RSP-320-13.5 is certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL standards, covering major global markets. It includes a 3-year warranty.
Other RSP-320 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSP-320-48 Power Supply 320W 48V | 320W | 48V | 6.7A | Indoor | $53.19 | View |
| Mean Well RSP-320-5 Power Supply 300W 5V | 300W | 5V | 60A | Indoor | $53.58 | View |
| Mean Well RSP-320-12 Power Supply 320W 12V | 320.4W | 12V | 26.7A | Indoor | $59.04 | View |
| Mean Well RSP-320-15 Power Supply 320W 15V | 320W | 15V | 21.4A | Indoor | $59.04 | View |
| Mean Well RSP-320-27 Power Supply 320W 27V | 320W | 27V | 11.9A | Indoor | $56.55 | View |
| Mean Well RSP-320-24 Power Supply 320W 24V | 320W | 24V | 13.4A | Indoor | $58.17 | View |
