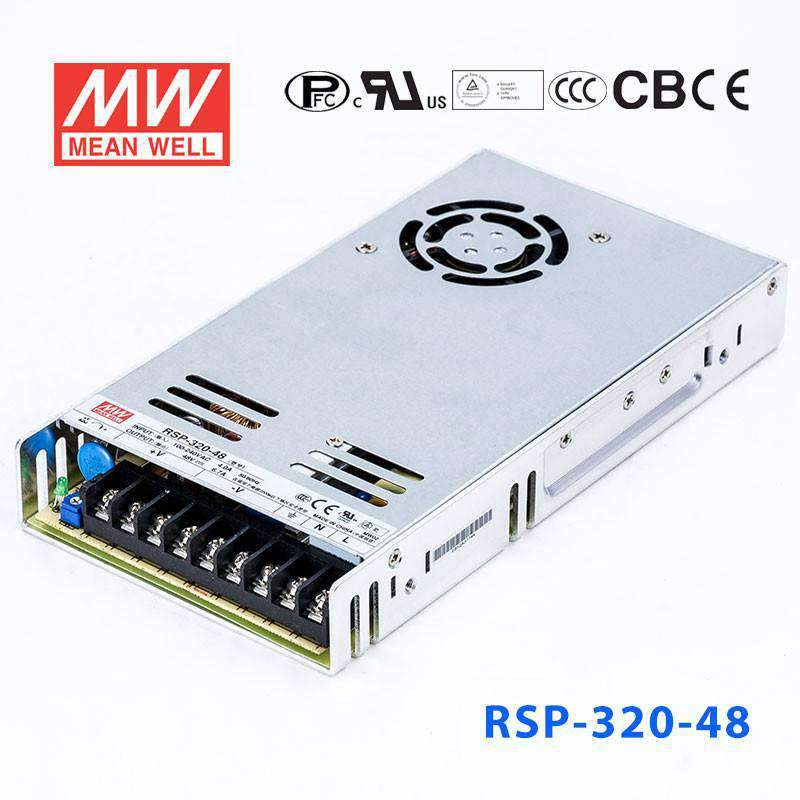

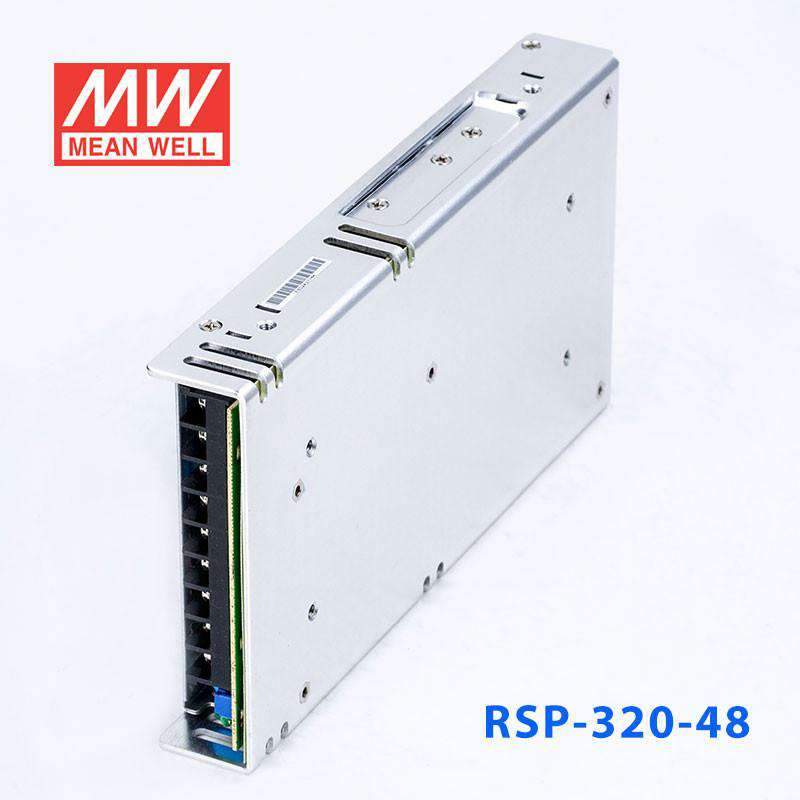

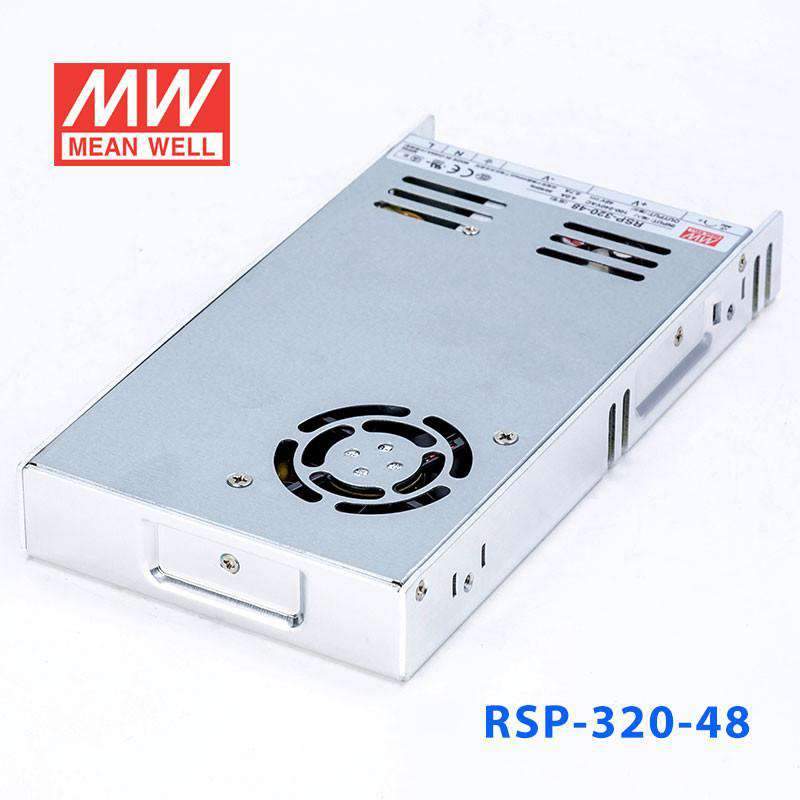

Mean Well RSP-320-48 Power Supply 320W 48V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |

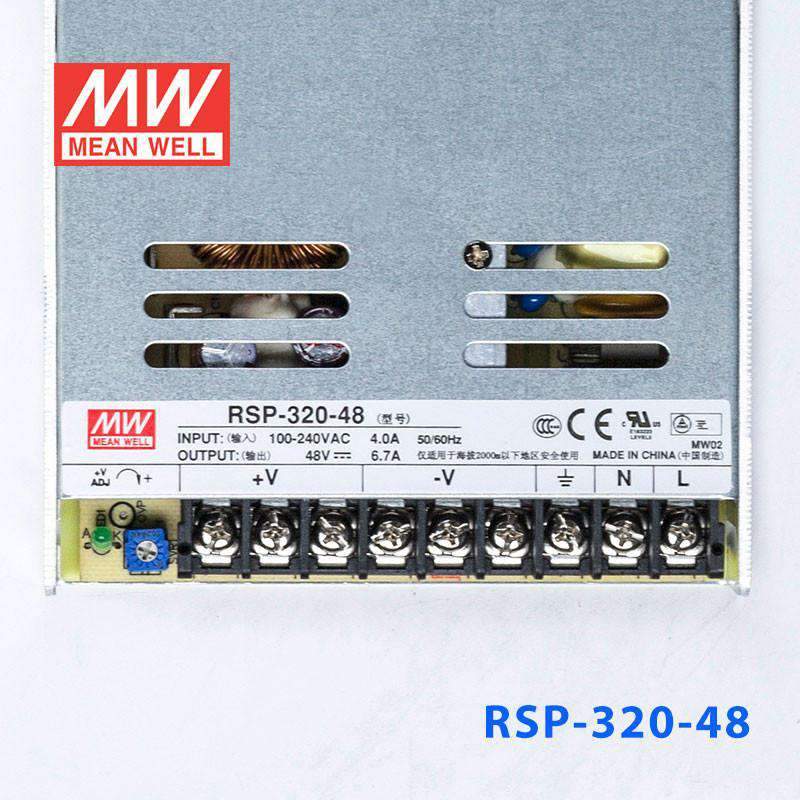

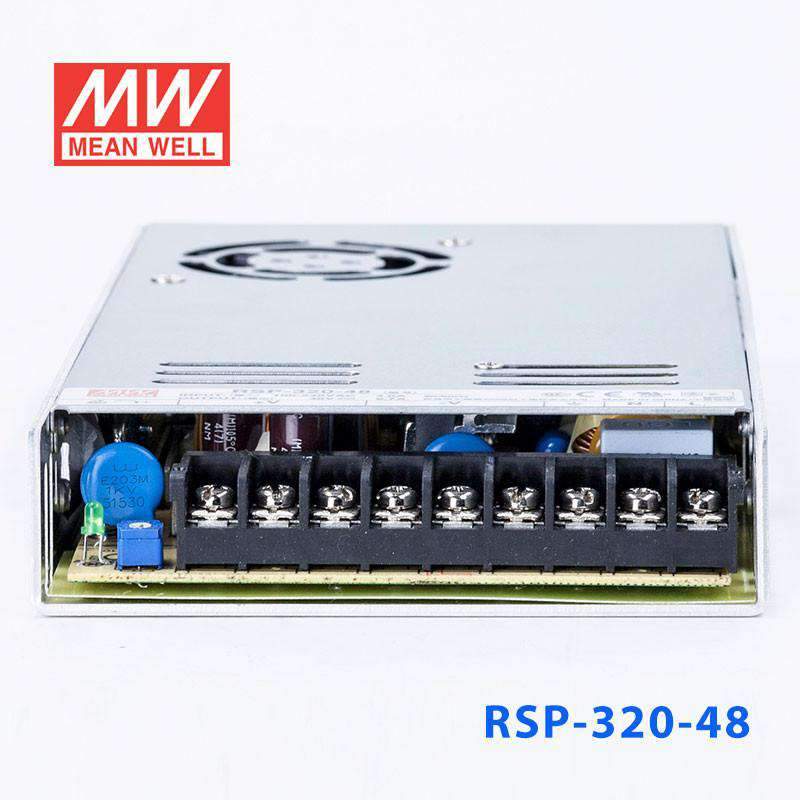

| Connection Input | 9P / 9.5mm pitch terminal block |
| Connection Output | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
| Case No. | 207A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating320 Watt
-
Output Voltage48 Volt
-
Rated Current6.7 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the RSP-320-48 well-suited for in a 48V system?
The RSP-320-48 delivers 48V at 6.7A (320W), appropriate for powering PoE switches, small telecom equipment, and 48V DC bus subsystems in compact enclosures. Its 1U low-profile form factor (215.0 × 115.0 × 30.0 mm) supports tight rack or panel installations.
Does the RSP-320-48 operate in cold environments?
The RSP-320-48 is rated for -30°C to +70°C ambient, suitable for cold-climate indoor enclosures. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is not rated for outdoor use.
How does the RSP-320-48 compare to other RSP-320 high-voltage variants?
Within the RSP-320 series, the RSP-320-36 provides 320W at 8.9A and the RSP-320-48 provides 320W at 6.7A, both sharing the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-48 is the highest-voltage and lowest-current option in the RSP-320 line.
Does the RSP-320-48 accept universal AC input?
Yes. The RSP-320-48 accepts 88-264VAC, covering worldwide single-phase AC systems without manual switching. It includes built-in active PFC.
