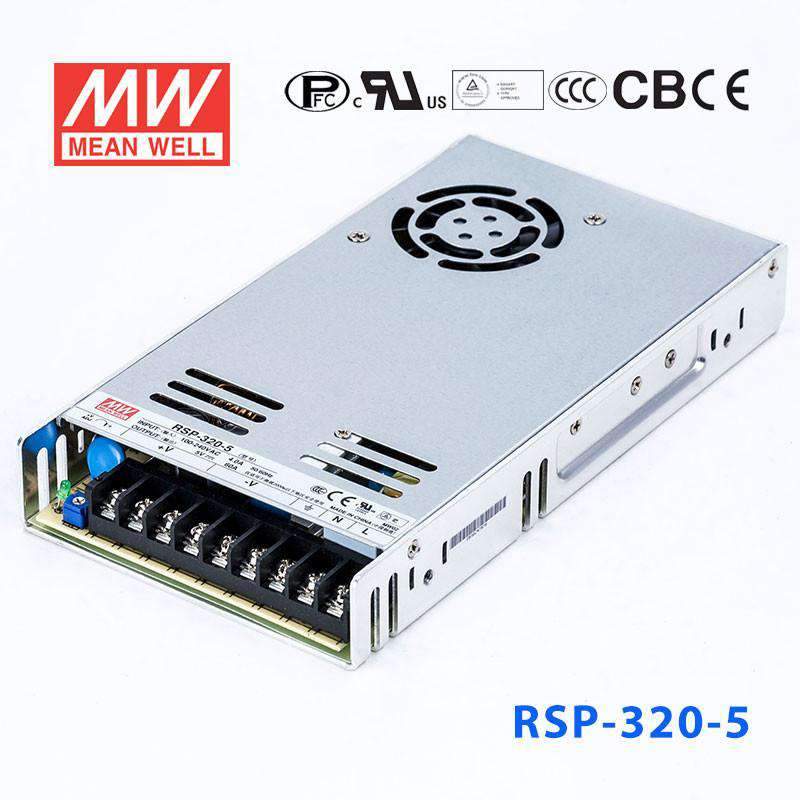

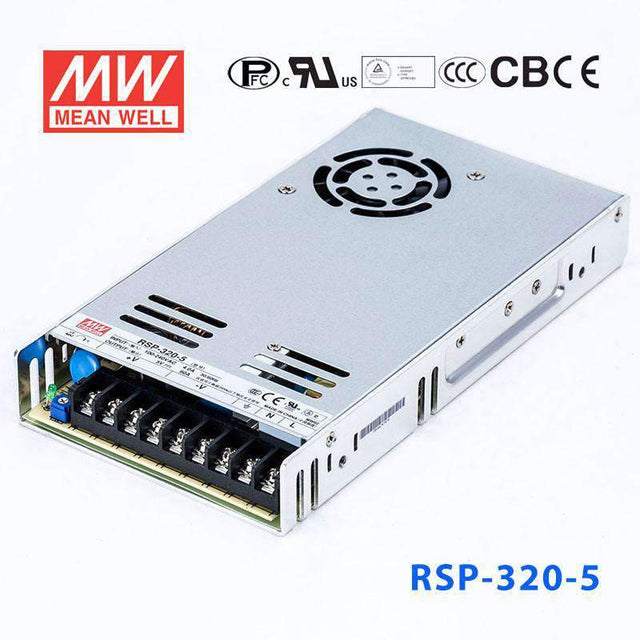

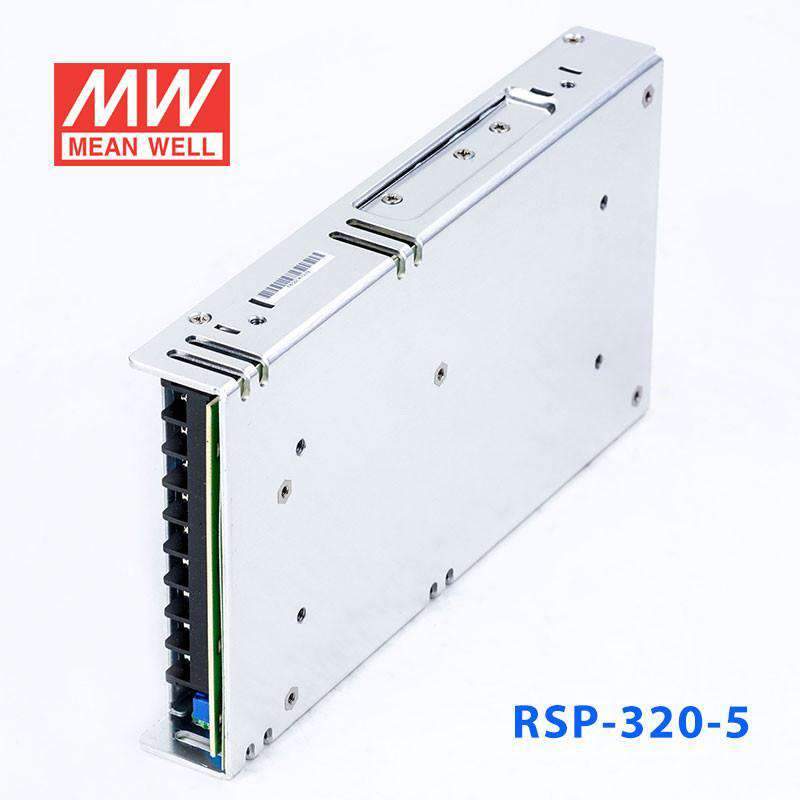

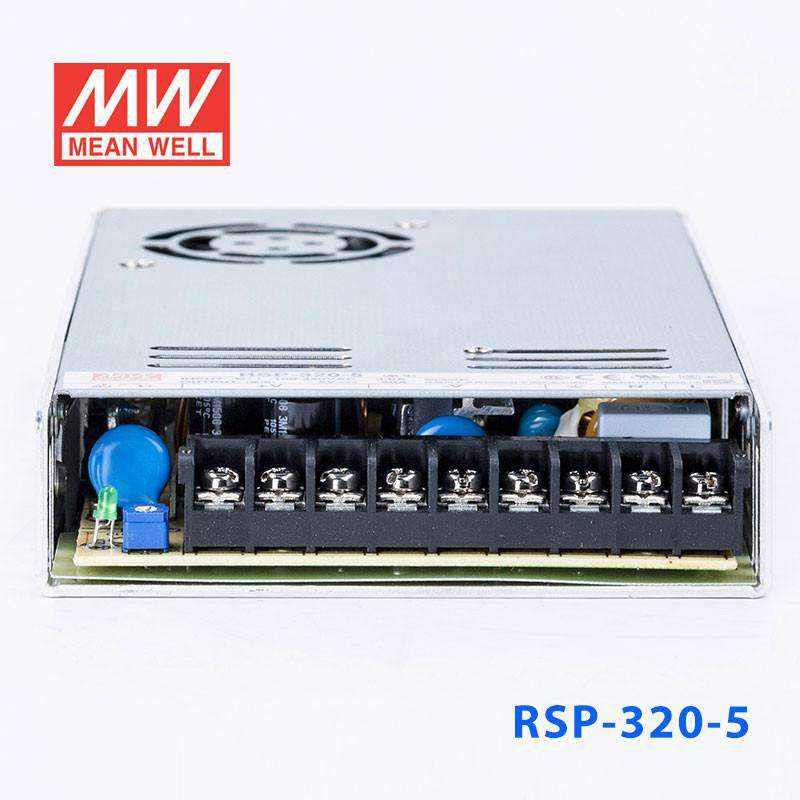

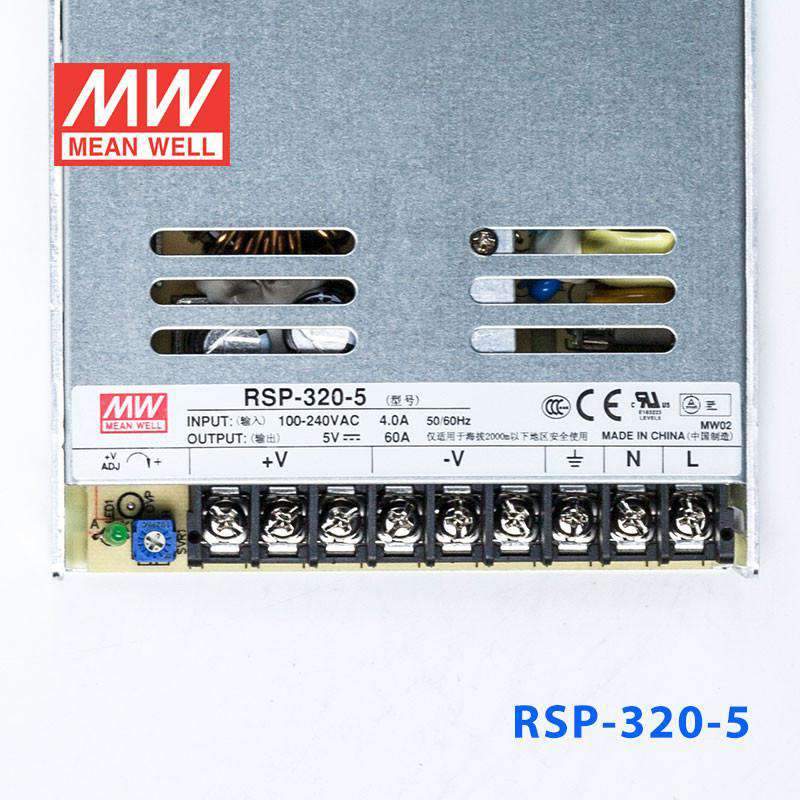

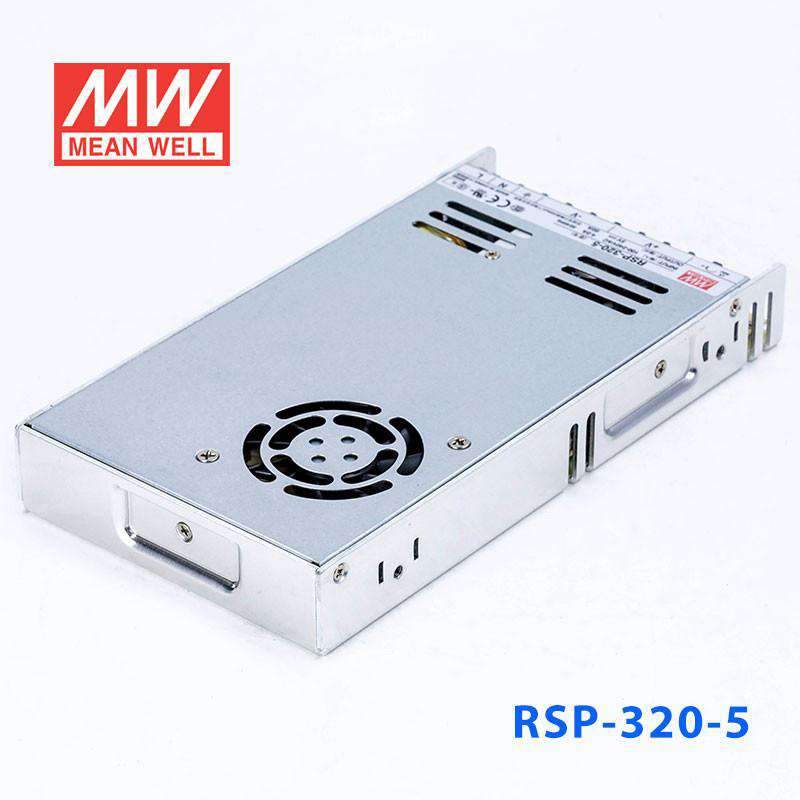

Mean Well RSP-320-5 Power Supply 300W 5V
Description
Description
Features
| 1U low profile |
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Forced air cooling by built-in DC fan |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 88~264VAC; 124~370VDC |
| AC inrush current (max.) | Cold start, 40A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection Range | 105%~135% |
| Overload protection Type | Hiccup mode, auto-recovery |
| Over voltage protection Range | 115%~145% |
| Over voltage protection Type | Shut down O/P voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254 |
| Connection Input | 9P / 9.5mm pitch terminal block |
| Connection Output | 9P / 9.5mm pitch terminal block |
| Dimension (LxWxH) | 215x115x30 |
| Case No. | 207A |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating300 Watt
-
Output Voltage5 Volt
-
Rated Current60 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.18 in
-
Weight1.98 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What can the RSP-320-5 power at 5V in an industrial context?
The RSP-320-5 delivers 5V at 60A (300W), making it suitable for legacy TTL logic systems, single-board computer clusters, and industrial HMI displays requiring a high-current 5V supply. Its 1U form factor (215.0 × 115.0 × 30.0 mm) supports rack-mount deployments.
What ambient temperature range does the RSP-320-5 support?
The RSP-320-5 operates from -30°C to +70°C. It is designed for indoor enclosed use and certified to BSMI, CB, CCC, CE, EAC, TÜV, and UL.
How does the RSP-320-5 compare to the RSP-320-4 and RSP-320-7.5?
All three share the 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-4 provides 240W at 60A, the RSP-320-5 provides 300W at 60A, and the RSP-320-7.5 provides 300W at 40A. The RSP-320-5 and RSP-320-7.5 share the same total wattage but differ in output voltage and current.
What is the actual rated power of the RSP-320-5?
The RSP-320-5 is rated at 300W (5V × 60A). It includes built-in active PFC and weighs 0.9 kg.
