What is the RSP-320-48 well-suited for in a 48V system?

The RSP-320-48 delivers 48V at 6.7A (320W), appropriate for powering PoE switches, small telecom equipment, and 48V DC bus subsystems in compact enclosures. Its 1U low-profile form factor (215.0 × 115.0 × 30.0 mm) supports tight rack or panel installations.

Does the RSP-320-48 operate in cold environments?

The RSP-320-48 is rated for -30°C to +70°C ambient, suitable for cold-climate indoor enclosures. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is not rated for outdoor use.

How does the RSP-320-48 compare to other RSP-320 high-voltage variants?

Within the RSP-320 series, the RSP-320-36 provides 320W at 8.9A and the RSP-320-48 provides 320W at 6.7A, both sharing the same 215.0 × 115.0 × 30.0 mm chassis and 88-264VAC input. The RSP-320-48 is the highest-voltage and lowest-current option in the RSP-320 line.

Does the RSP-320-48 accept universal AC input?

Yes. The RSP-320-48 accepts 88-264VAC, covering worldwide single-phase AC systems without manual switching. It includes built-in active PFC.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

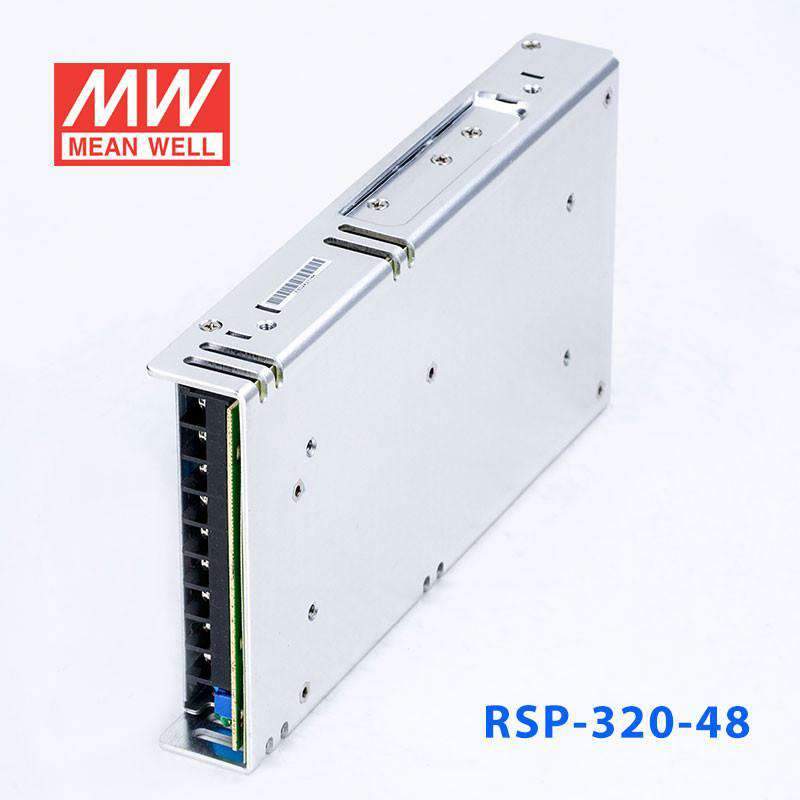

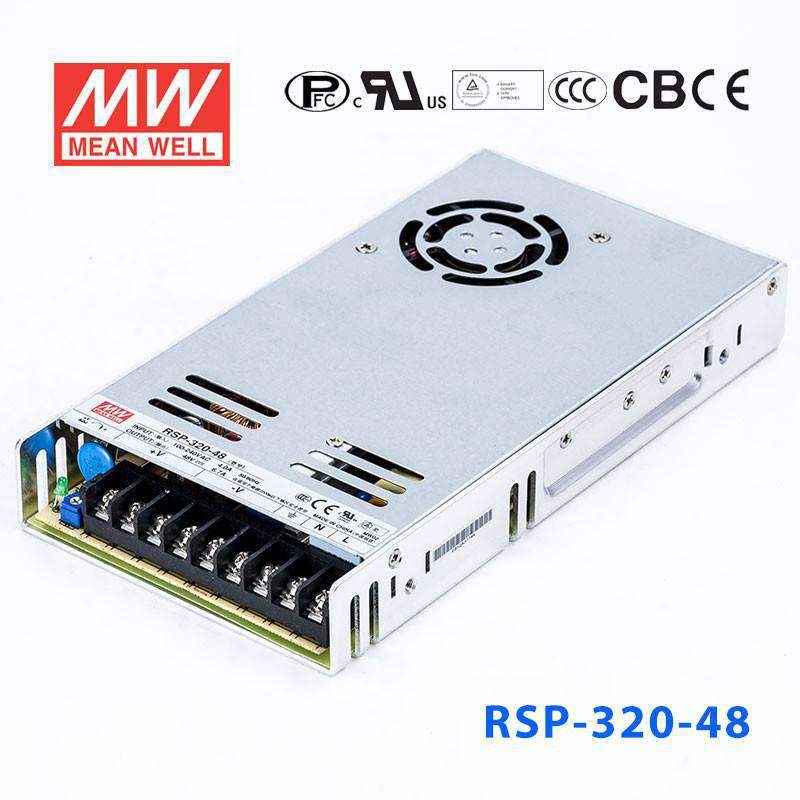

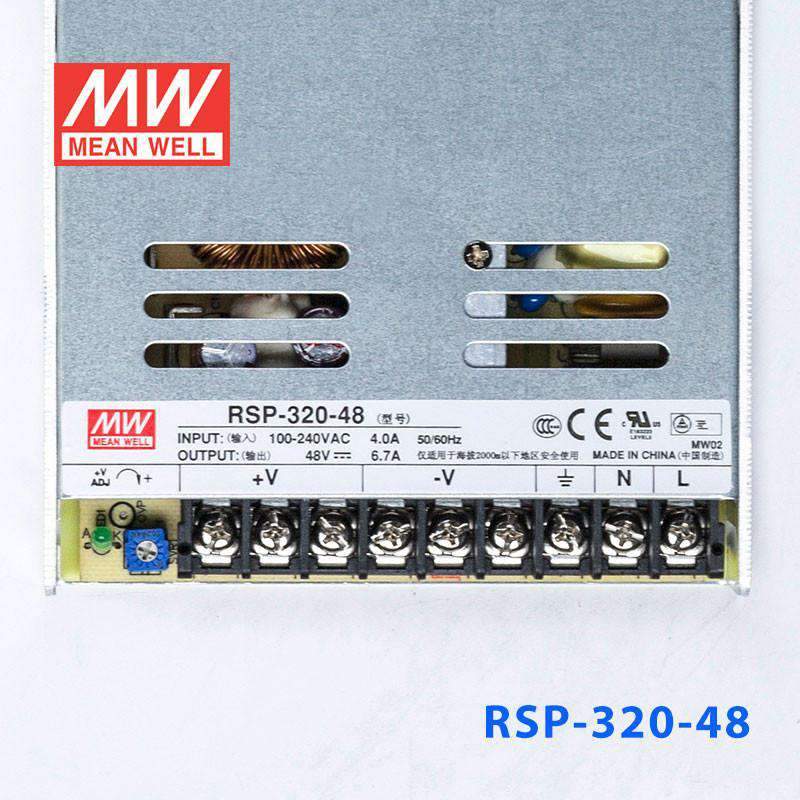

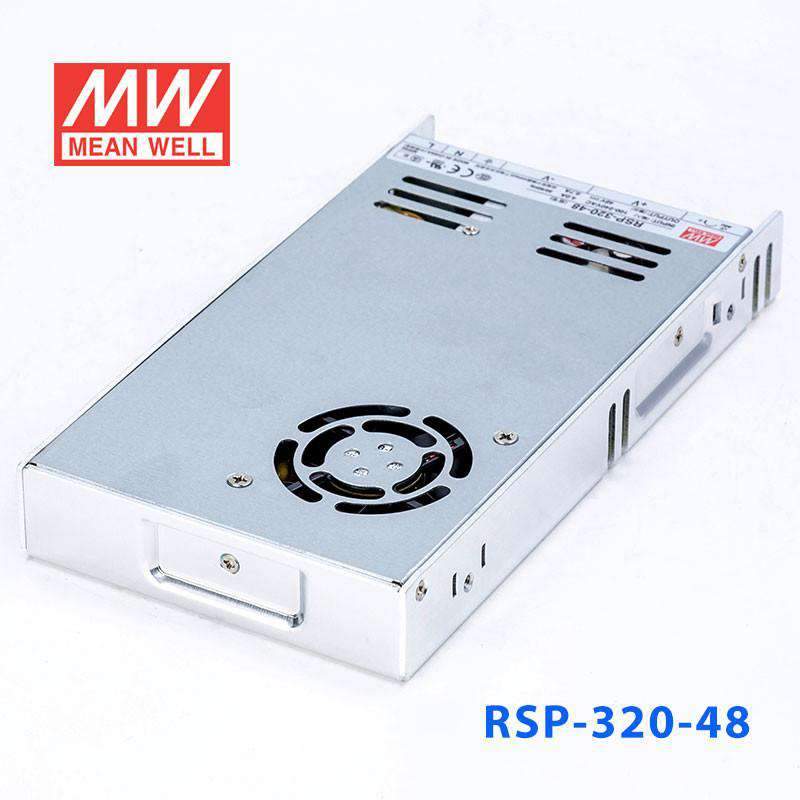

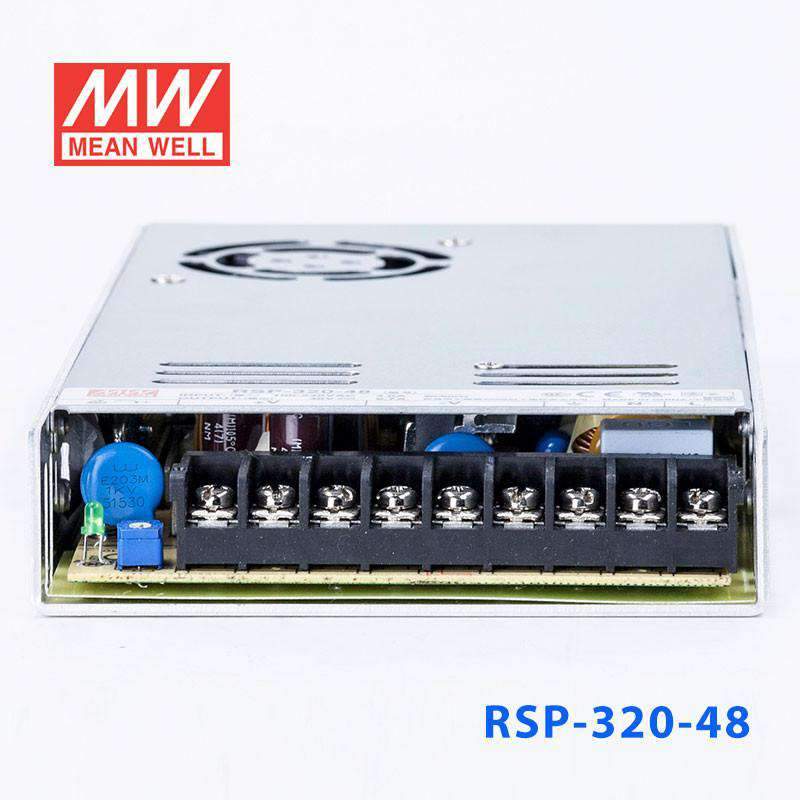

Mean Well RSP-320-48 Power Supply 320W 48V 6.7A

Name: Mean Well RSP-320-48 Power Supply 320W 48V 6.7A
Brand: Mean Well
SKU: RSP-320-48
Price: 55.98 USD
Availability: InStock

1U low profile with active PFChigh efficiency

SKU:

RSP-320-48

$55.98 USD ~~$59.04~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The RSP-320 is a 320W Mean Well power converter (input range: 88~264VAC).

Key Features

✓ Input voltage range: 88~264VAC
✓ DC output voltage adjustable ±10%
✓ 3KVAC reinforced I/O isolation
✓ Protections: Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: AS/NZS 60950.1
✓ 3 years warranty

Brand

Mean Well
Series

RSP Series
Power Rating

320 Watt
Output Voltage

48 Volt
Rated Current

6.7 Ampere
Input Voltage

88V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

8.46 in
Width

4.53 in
Height

1.18 in
Weight

1.98 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well RSP-320-5 Power Supply 300W 5V 60A	300W	5V	60A	Indoor	$48.99	View
Mean Well RSP-320-12 Power Supply 320W 12V 26.7A	320.4W	12V	26.7A	Indoor	$59.04	View
Mean Well RSP-320-15 Power Supply 320W 15V 21.4A	320W	15V	21.4A	Indoor	$59.04	View
Mean Well RSP-320-27 Power Supply 320W 27V 11.9A	320W	27V	11.9A	Indoor	$59.04	View
Mean Well RSP-320-24 Power Supply 320W 24V 13.4A	320W	24V	13.4A	Indoor	$56.05	View
Mean Well RSP-320-13.5 Power Supply 320W 13.5V 23.8A	320W	13.5V	23.8A	Indoor	$59.04	View
