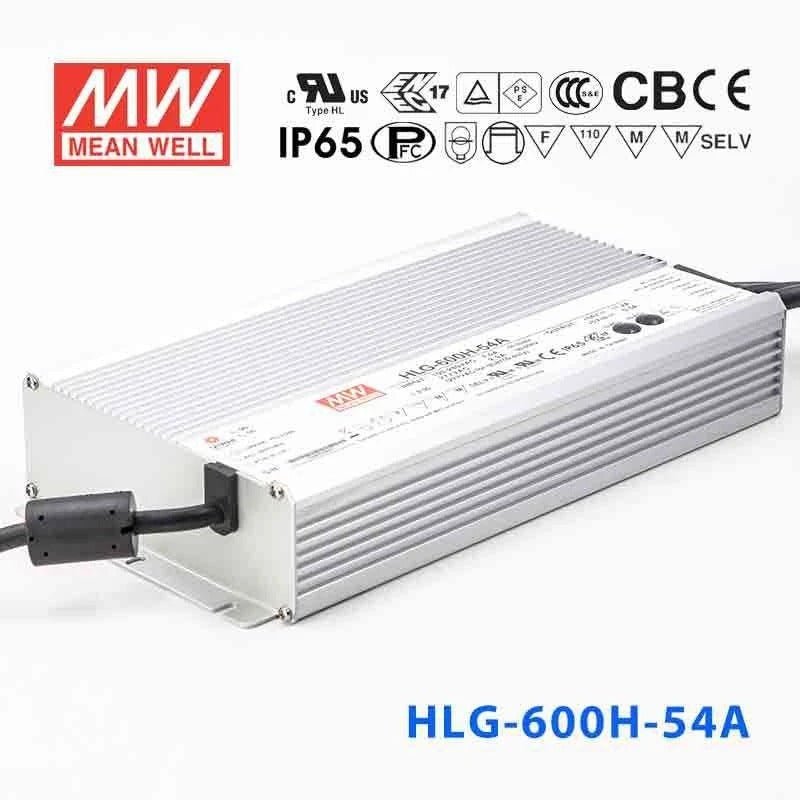

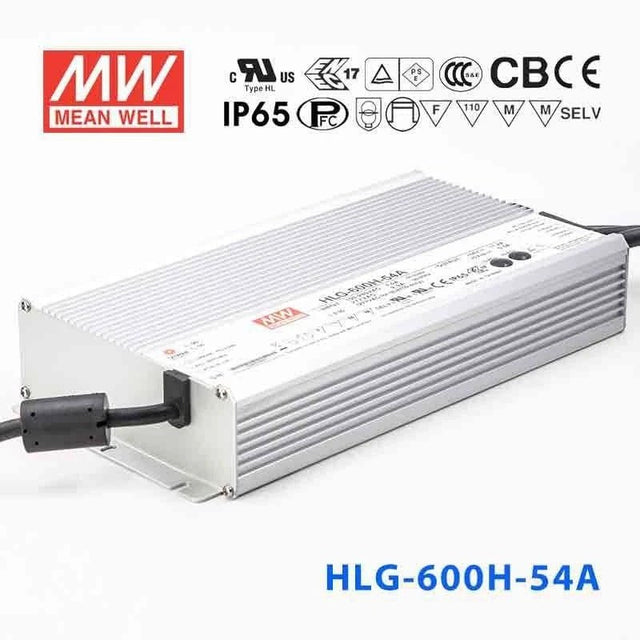

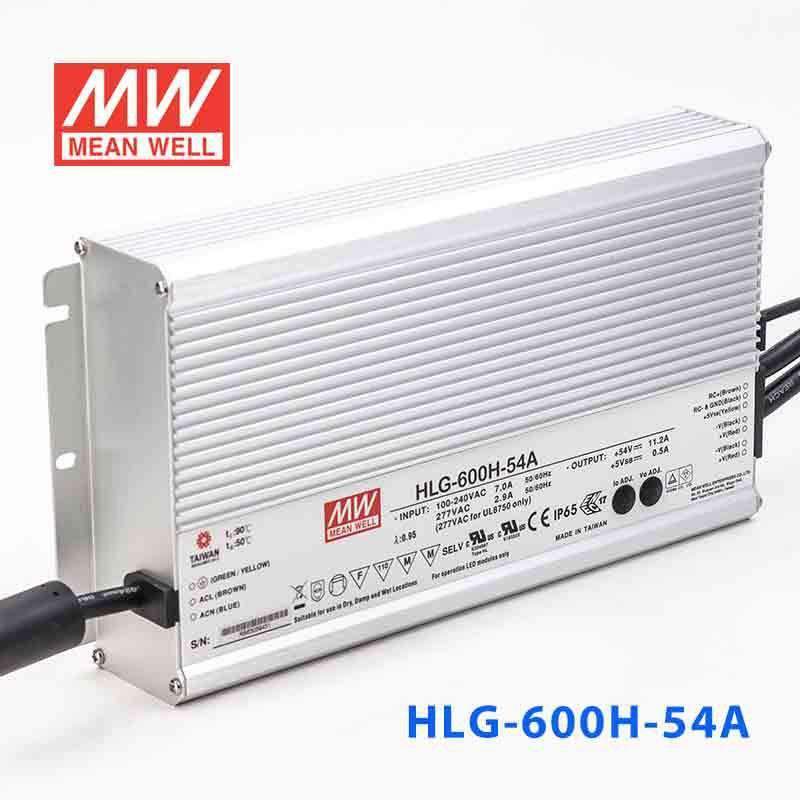

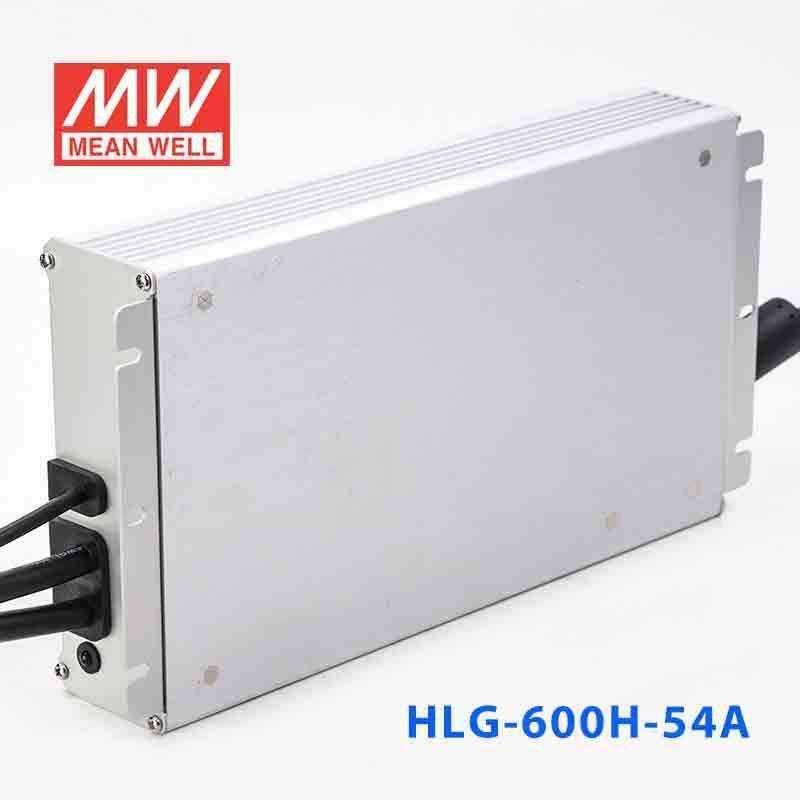

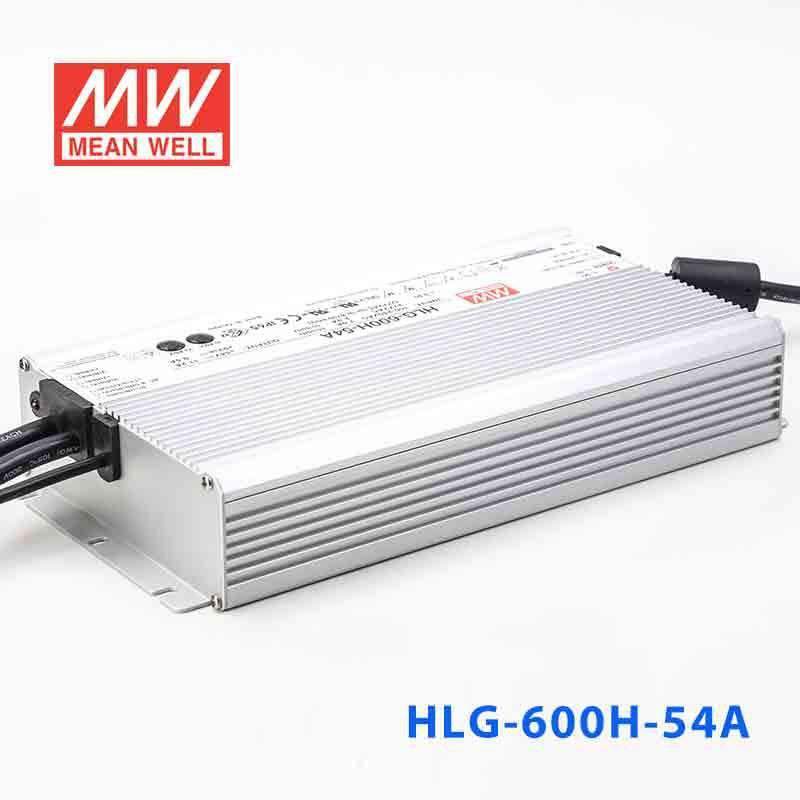

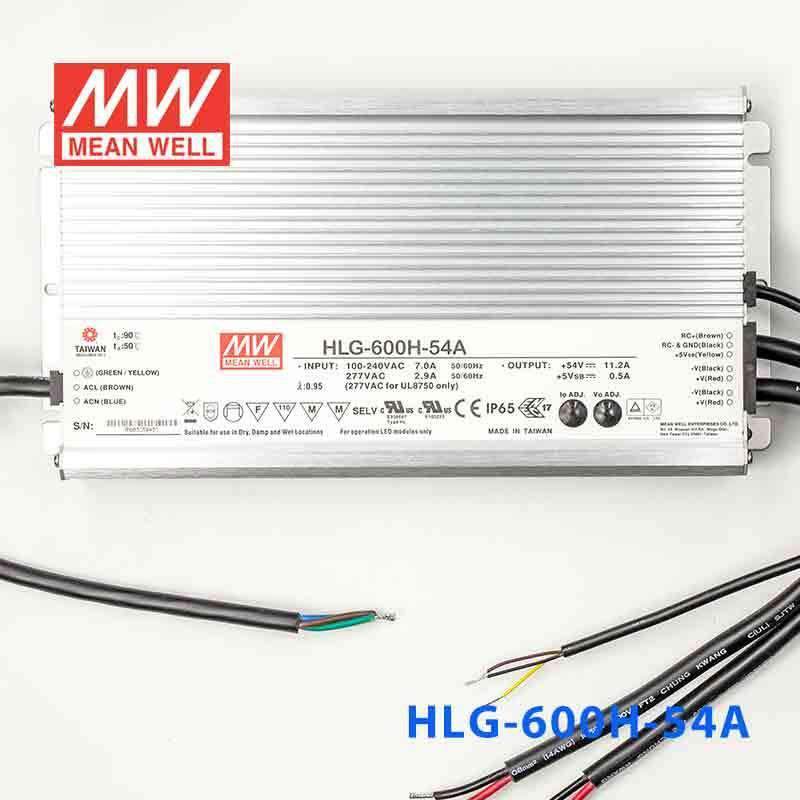

Mean Well HLG-600H-54A Power Supply 600W 54V - Adjustable
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating600 Watt
-
Output Voltage54 Volt
-
Rated Current11.2 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-54A to fine-tune the voltage for my 54V LED fixtures?
Yes. The A suffix means it includes a built-in potentiometer for adjusting output voltage and current. This lets you trim the output to precisely match your 54V LED fixture requirements within the CC voltage range of 27-54V, which is useful when your LEDs have a slightly different forward voltage than the nominal 54V.
Is the HLG-600H-54A suitable for powering 54V LED panel lights in a commercial office?
Yes. At 600W and 54V, it can drive multiple 54V LED panel lights for office or retail spaces. The adjustable output lets you set the exact voltage during commissioning to optimize brightness and efficiency. Its IP65 rating is well suited for clean indoor commercial environments.
Can the HLG-600H-54A power a large 54V LED strip installation for retail display lighting?
Yes. With 600W of output at 54V and 11.2A, it can handle substantial 54V LED strip loads for retail shelving, accent lighting, or perimeter cove lighting. The voltage adjustment potentiometer helps match the driver precisely to the strip's optimal operating point.
Is the HLG-600H-54A a good fit for 54V LED floodlights at a sports facility?
It can work for 54V LED floodlights as long as total load stays within 600W. The adjustable output is helpful for matching different floodlight models. However, note that it is IP65 (water-resistant) not IP67, so it should be mounted in a sheltered location rather than fully exposed to heavy rain.
How many meters of 54V LED strip can the HLG-600H-54A support?
That depends on the strip's power consumption per meter. At 600W and 54V, a strip rated at 15W/m allows up to 40 meters (600W / 15W per meter = 40m). A strip at 24W/m allows 25 meters. Always check your strip's rated power per meter and keep total load at or below 600W.
Is the HLG-600H-54A protected enough for a semi-outdoor covered installation?
Yes. Its IP65 water-resistant rating protects against dust ingress and low-pressure water jets, making it suitable for covered walkways, canopies, parking structures, and similar semi-exposed locations. For fully exposed outdoor installations with direct rain or standing water, consider the IP67-rated HLG-600H-54 or 54B.
