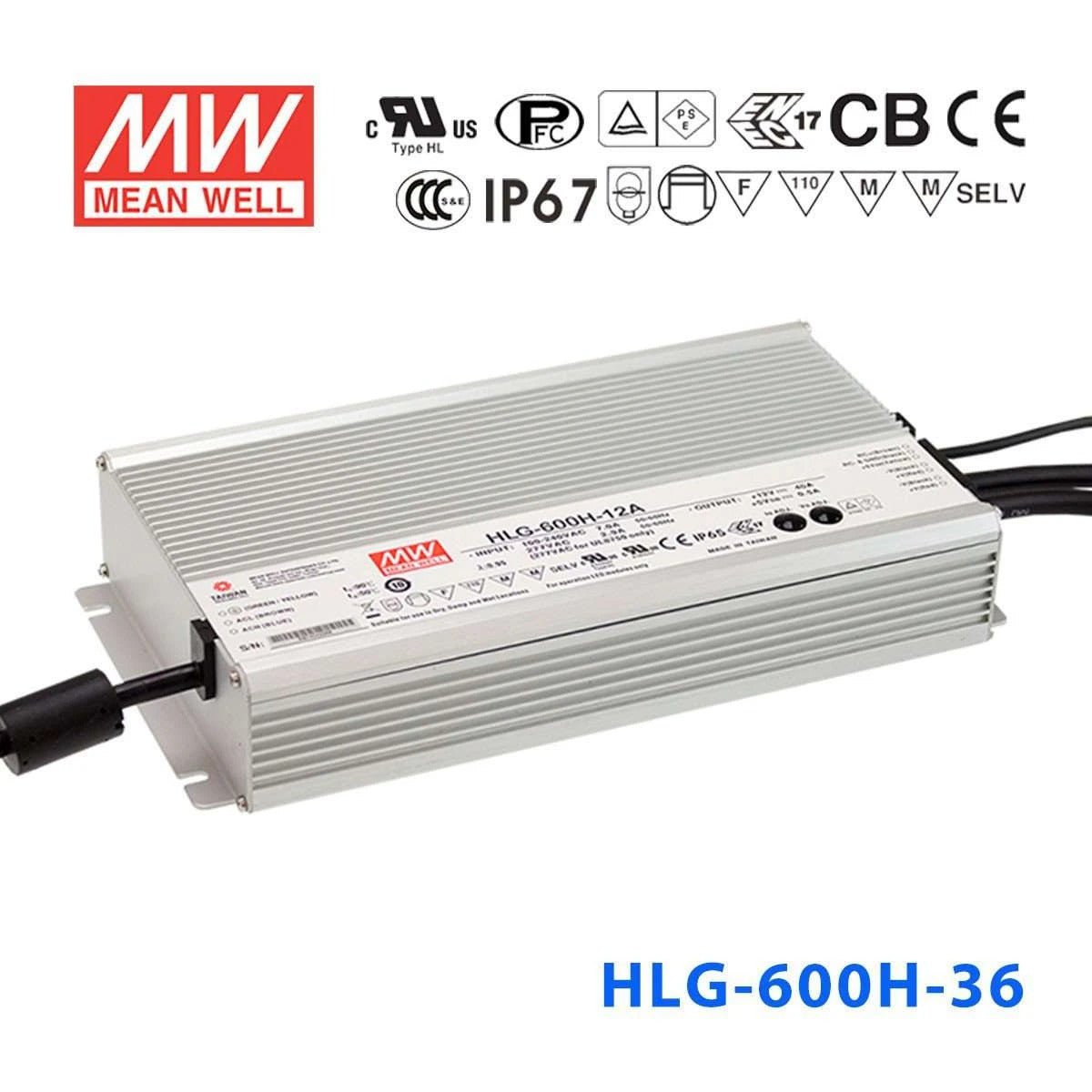

Mean Well HLG-600H-36 Power Supply 600W 36V

Q: Can I use the HLG-600H-36 for large-scale 36V LED strip installations?

Yes. The HLG-600H-36 delivers 600W at 36V with up to 16.7A of output, which is enough to drive long runs of high-power 36V LED strips for commercial, retail, or architectural lighting. Its IP67 waterproof rating also allows outdoor placement without an additional enclosure.

Q: Is the HLG-600H-36 suitable for powering 36V LED high-bay or warehouse lighting?

Yes. With 600W at 36V, it can drive multiple 36V LED high-bay fixtures wired in parallel, provided their combined load stays within 600W. The wide 90-305VAC input accommodates the varying mains voltages often found in industrial and warehouse facilities.

Q: Can I power 36V LED grow lights with the HLG-600H-36?

Yes. The HLG-600H-36 provides 600W at 36V in constant-current mode with a CC voltage range of 18-36V, making it compatible with many 36V horticulture LED panels. Its high efficiency and aluminium casing help manage heat, which is important in enclosed growing environments.

Q: How many meters of 36V LED strip can the HLG-600H-36 power?

Divide 600W by your strip's wattage per meter. For example, a 36V strip rated at 12W/m would allow up to 50 meters (600W / 12W per meter = 50m). Check your strip's rated power per meter and keep the total load at or below 600W.

Q: Can the HLG-600H-36 be mounted outdoors in direct weather exposure?

Yes. Its IP67 waterproof rating protects against dust ingress and temporary water immersion up to 1 meter. Combined with a -40°C to +90°C operating temperature range, it is designed for fully exposed outdoor installations including rooftops, building exteriors, and landscape applications.

Q: What are the differences between the HLG-600H-36, 36A, 36AB, and 36B variants?

All four deliver 600W at 36V / 16.7A. The base HLG-600H-36 has fixed output and IP67 waterproof protection. The -36A adds a built-in potentiometer for output voltage and current adjustment (IP65). The -36AB adds both adjustment and 1-10V/PWM dimming (IP65). The -36B provides dimming input only while retaining IP67 waterproof rating.

Description

Features

Universal AC input (up to 305VAC) / Full range

Protections: Short circuit / Over current / Over voltage / Over temp.

Built-in active PFC function

High efficiency up to 96%

IP67 / IP65 design for indoor or outdoor installations (except for HLG-320H C-Type)

Output current adjustable through output cable or internal potentiometer

Cooling by free air convection

Suitable for LED lighting and street lighting applications

Meet 4kV surge immunity level (IEC61000-4-5)

No load power consumption <0.5W at remote off (HLG-600H)

Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires

LED indicator for power on (HLG-600H A-Type only)

Multiple models for choice:
A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer
B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance)
C-Type: Terminal block for I/O connection (HLG-320H only)
Blank-Type: IP67 rated. Cable for I/O connection (HLG-320H only)
D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (HLG-320H only)

7 years warranty

General Specification

AC input voltage range	90~305VAC ; 127~431VDC
AC inrush current (max.)	Cold start, 70A at 230VAC
DC adjustment range	-15%~+5% rated output voltage (A-Type only)
Over voltage protection	110%~140% rated output voltage
Over current protection	95%~108% constant current limiting, auto- recovery
Current adjustment range	50%~100% rated output current adjustable by internal potentiometer (for A-Type & HLG-320H C-Type)
Setup, rise, hold up time	500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	UL60950-1, UL8750, ENEC EN61347-1/2-13, EN62384 approved
EMC standards	EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11,EN61547
Connection Input	UL rated, SJTW 18AWGx3C (30cm)
Connection Output	A-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm) B-Type: SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm) + UL2517 22AWGx3C(30cm)+ UL2517 18AWGx2C (30cm)
Dimension (LxWxH) (mm)	280x 144x 48.5

Specifications

Brand

Mean Well
Series

HLG Series
Power Rating

600 Watt
Output Voltage

36 Volt
Rated Current

16.7 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

None
Standards Met

CB,CCC,CE,EAC,PSE,RCM,TUV,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~90°C
Warranty

7 Year
Length

11.02 in
Width

5.67 in
Height

1.91 in
Weight

8.6 lb

File Downloads

::specification::
