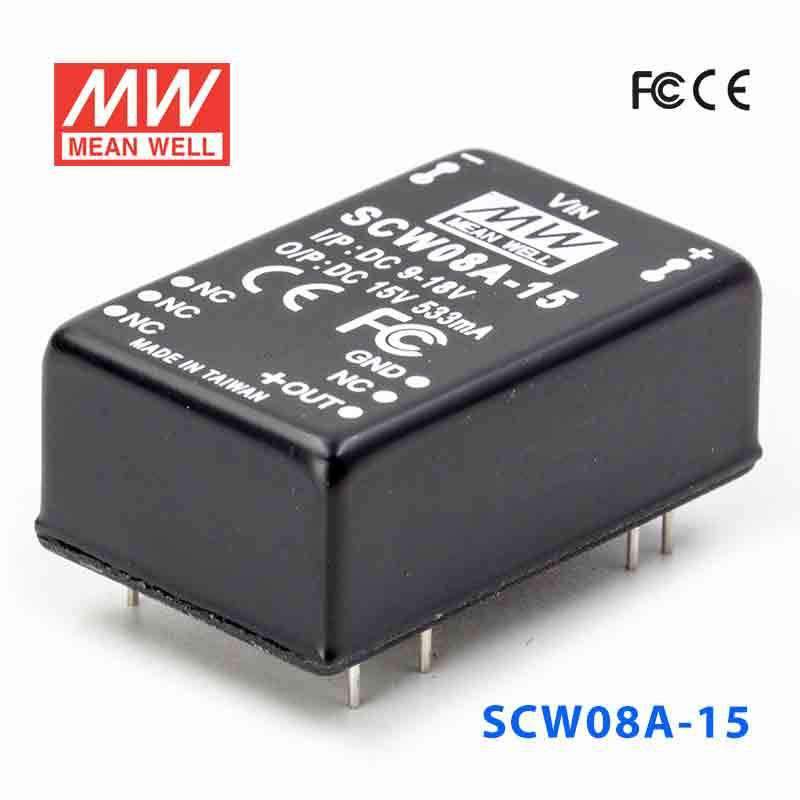

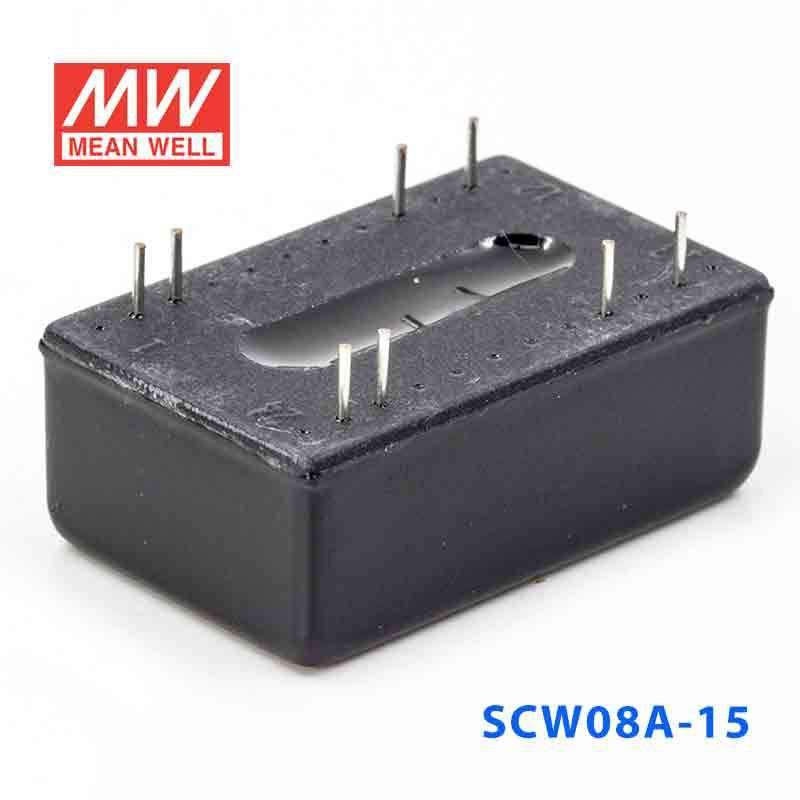

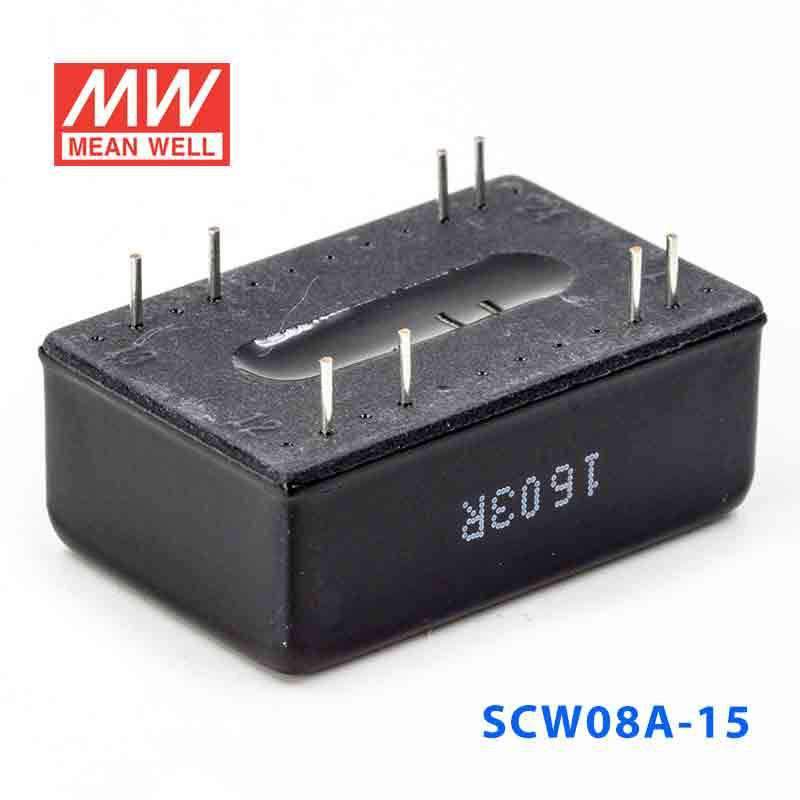

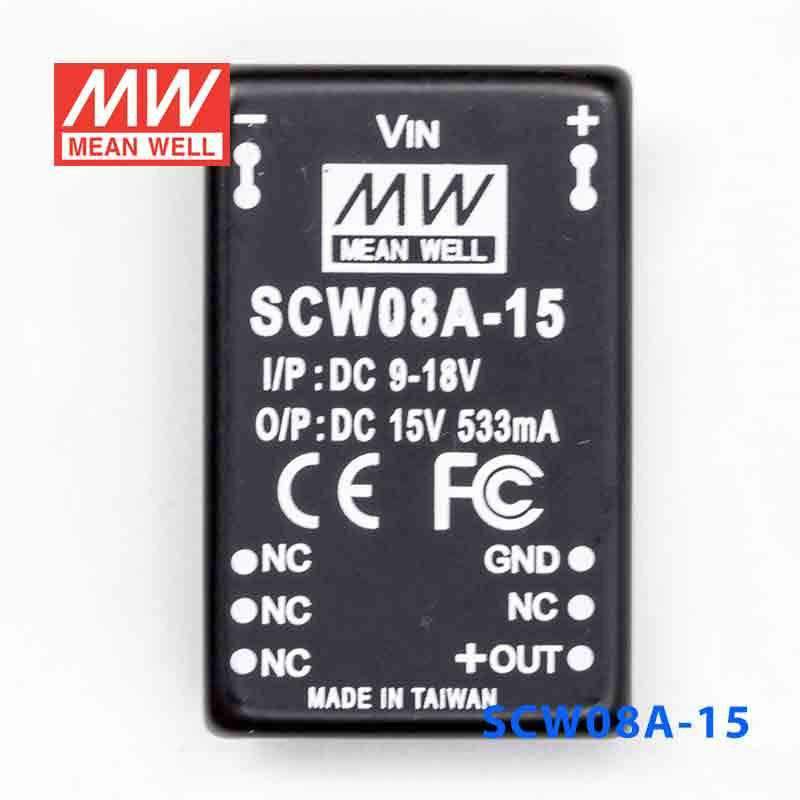

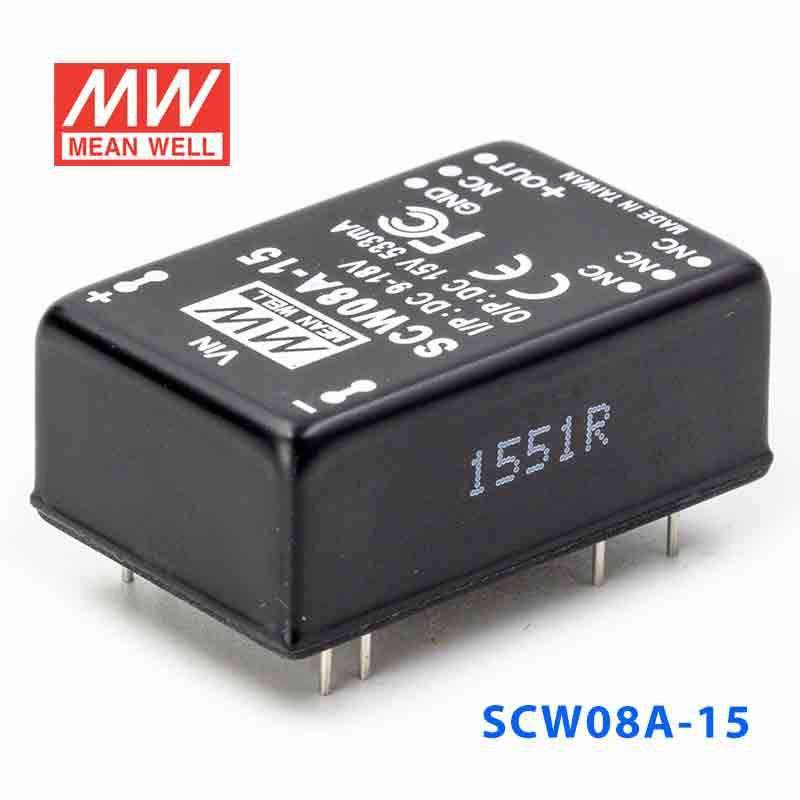

Mean Well SCW08A-15 DC-DC Converter - 8W 9~18V DC in 15V out 533mA
The SCW08A-15 is a 8W Mean Well DC-DC converter (input: 9~18VDC, operating temperature: -40~+71°C).
Key Features
- ✓ Input voltage: 9~18VDC
- ✓ Output voltage (max): 15V
- ✓ Rated output current: 0.533A
- ✓ I/O isolation: 1000V
- ✓ Operating temperature: -40~+71°C
- ✓ Safety certifications: EAC
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating8 Watt
-
Output Voltage15 Volt
-
Rated Current0.53 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
Can I use the SCW08A-15 for a 15V analog or instrumentation circuit?
Yes, it is intended for constant-voltage 15V loads when the available input is within 9-18VAC. It provides up to 0.53A with an 8W rating, which suits lower-power analog and instrumentation circuits that match those limits.
Is the SCW08A-15 suitable for 15V control electronics in industrial systems?
It can be used for 15V control electronics that need regulated constant-voltage output and draw no more than 0.53A. The converter is rated at 8W and accepts 9-18VAC input, so it is better matched to light control loads than higher-power 15V devices.
Can this model power a small 15V interface board where board space is limited?
Yes, provided the board requires 15V and stays within 0.53A and 8W. Its 31.75 × 20.32 × 12.19 mm body and 0.015 kg weight are useful where enclosure space is constrained.
How does the SCW08A-15 compare with the SCW08A-05 and SCW08A-12?
All three SCW08A models use 9-18VAC input, carry an 8W rating, and share the same 31.75 × 20.32 × 12.19 mm package. The output options are 5V at 1.6A for SCW08A-05, 12V at 0.67A for SCW08A-12, and 15V at 0.53A for SCW08A-15.
Is the SCW08A-15 rated for outdoor use or wide temperatures?
The operating temperature range is specified as -40°C to +71°C, so the unit is rated across a wide temperature span. No IP rating appears in the provided specs, so outdoor exposure suitability is not defined here.
