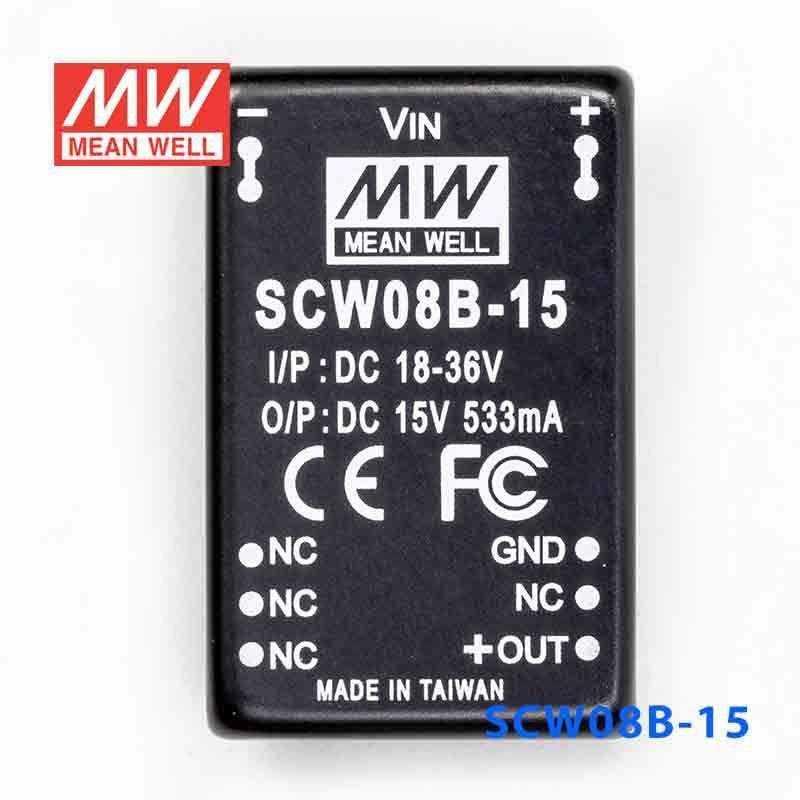

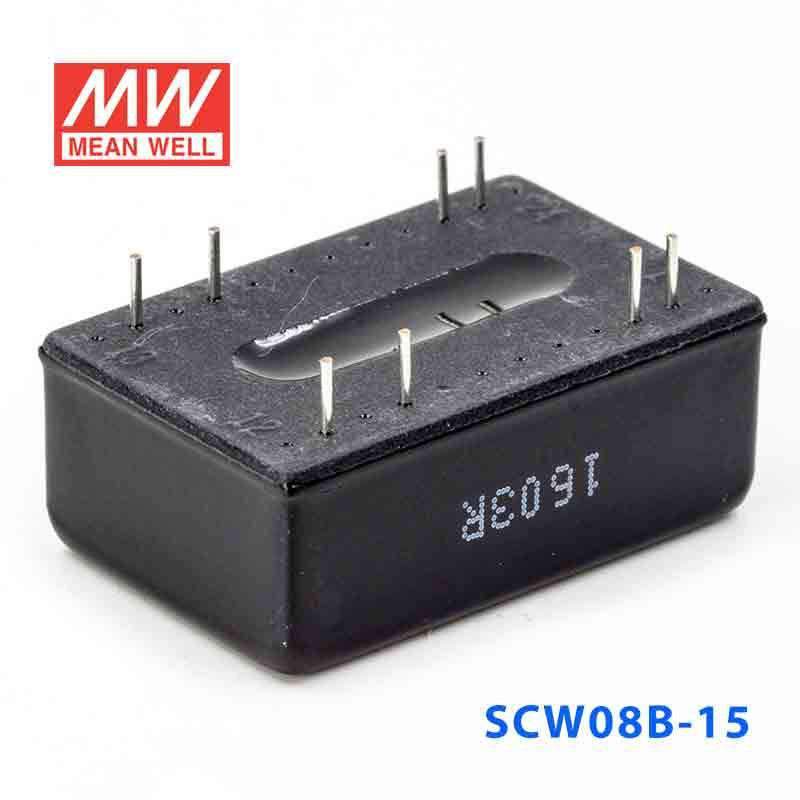

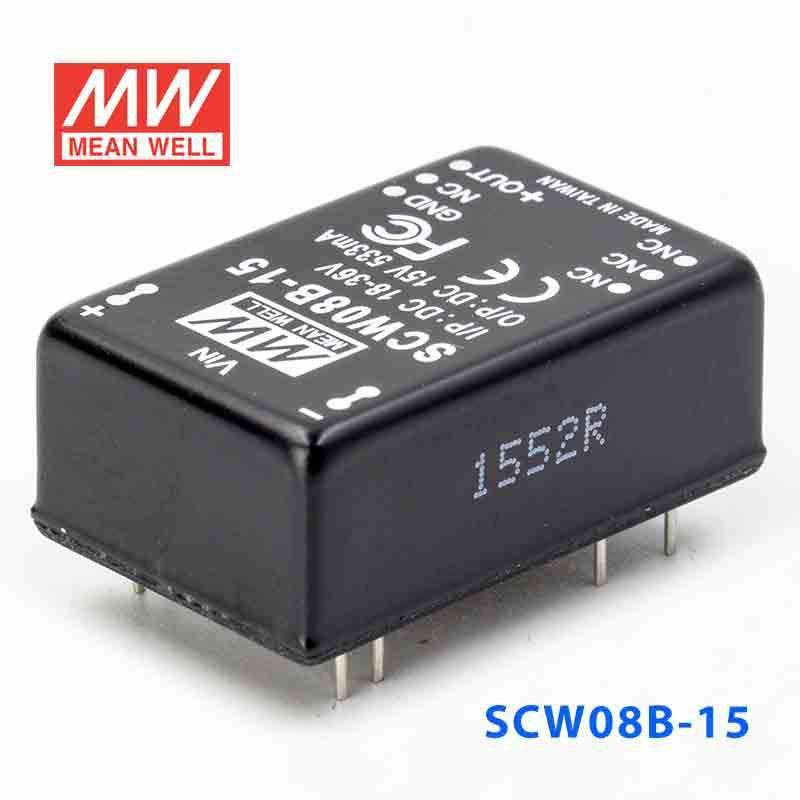

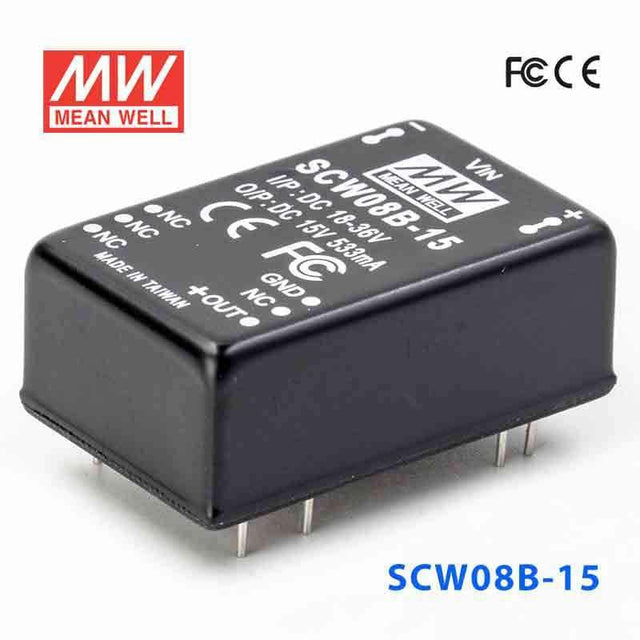

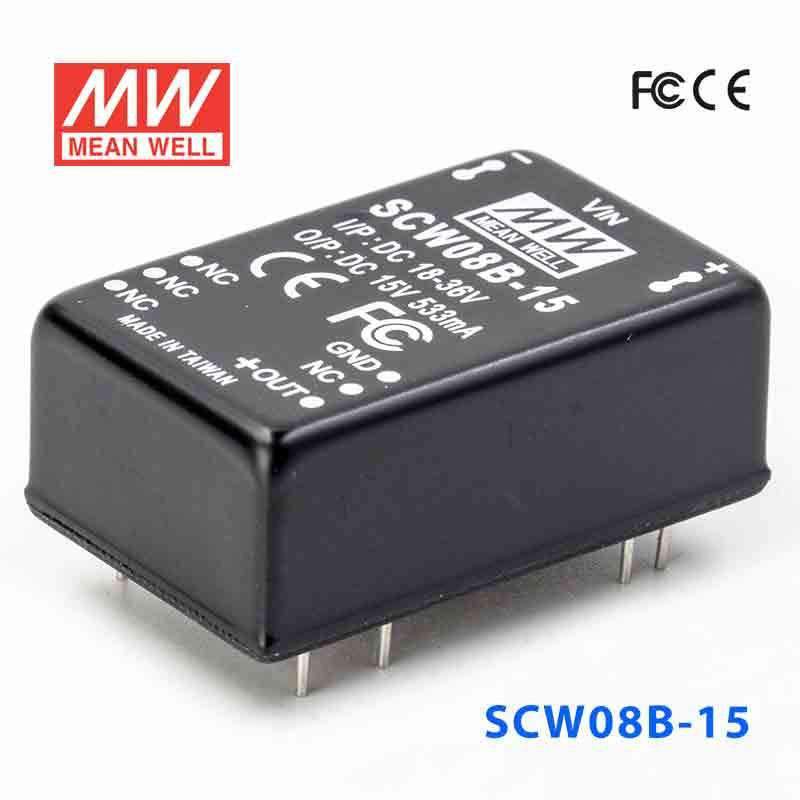

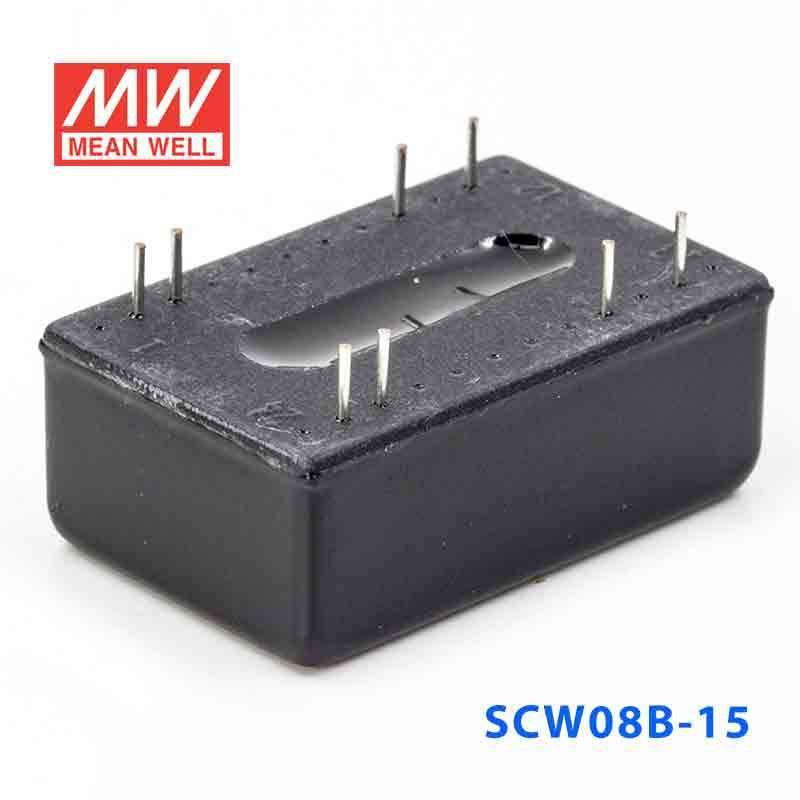

Mean Well SCW08B-15 DC-DC Converter - 8W 18~36V DC in 15V out
The SCW08B is a 8W Mean Well power converter.
Key Features
- ✓ 1KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating8 Watt
-
Output Voltage15 Volt
-
Rated Current0.53 Ampere
-
Input Voltage18V~36V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.03 lb
::specification::
Frequently Asked Questions
Can I use the SCW08B-15 for a low-power 15V automation or instrumentation circuit?
Yes, it delivers constant 15V output and is intended for low-power loads up to 8W. The maximum output current is 0.53A, so it fits smaller 15V automation or instrumentation electronics rather than heavier 15V devices.
Is the SCW08B-15 a fit for embedded systems that need 15V from an 18-36VAC source?
It is built for a 18-36VAC input range and converts that to a constant 15V output. With its 31.75 × 20.32 × 12.19 mm size and 0.015 kg weight, it suits compact embedded equipment where the 15V load stays within 0.53A.
Can this model power a small 15V control board inside industrial equipment?
It can power a small 15V control board if the board's demand stays within the converter's 8W and 0.53A limits. The constant voltage output is appropriate for electronics that require a stable 15V supply.
What is the difference between SCW08B-05, SCW08B-12, and SCW08B-15?
They share the same 8W series rating but have different outputs. SCW08B-05 is 5V at 1.6A, SCW08B-12 is 12V at 0.67A, and SCW08B-15 is 15V at 0.53A.
Can the SCW08B-15 be used in cold or hot environments?
Its specified operating range is -40°C to +71°C, which covers a wide temperature span. No IP rating is provided, so the specs do not confirm weather exposure or other outdoor enclosure protection.
