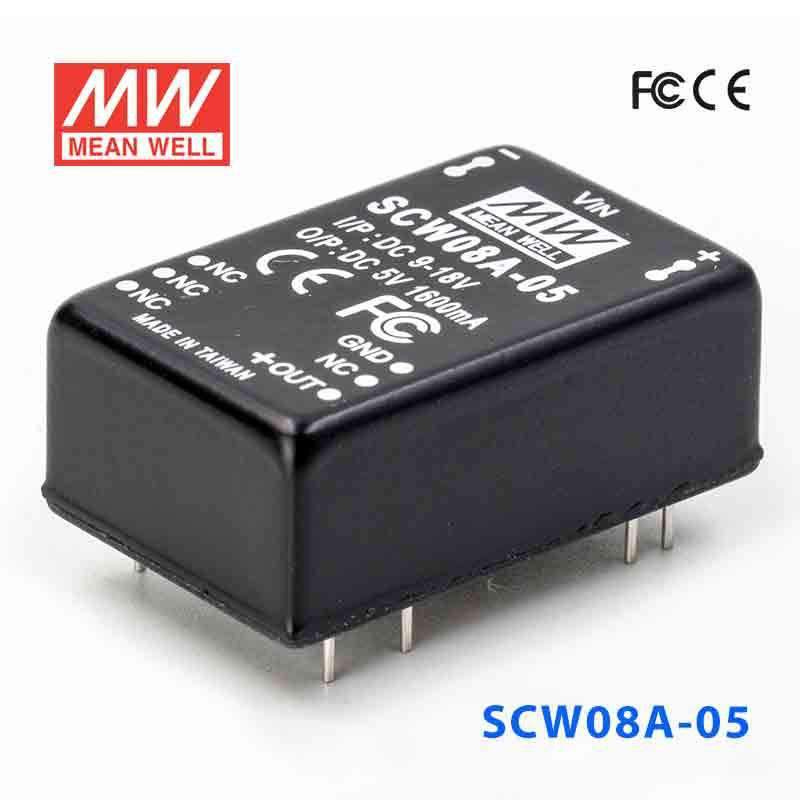

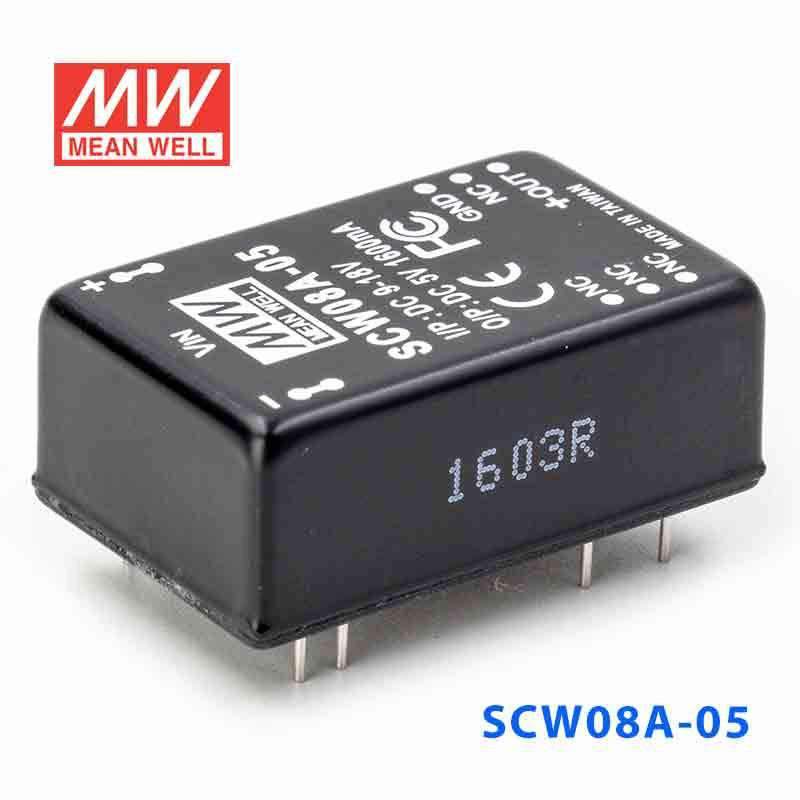

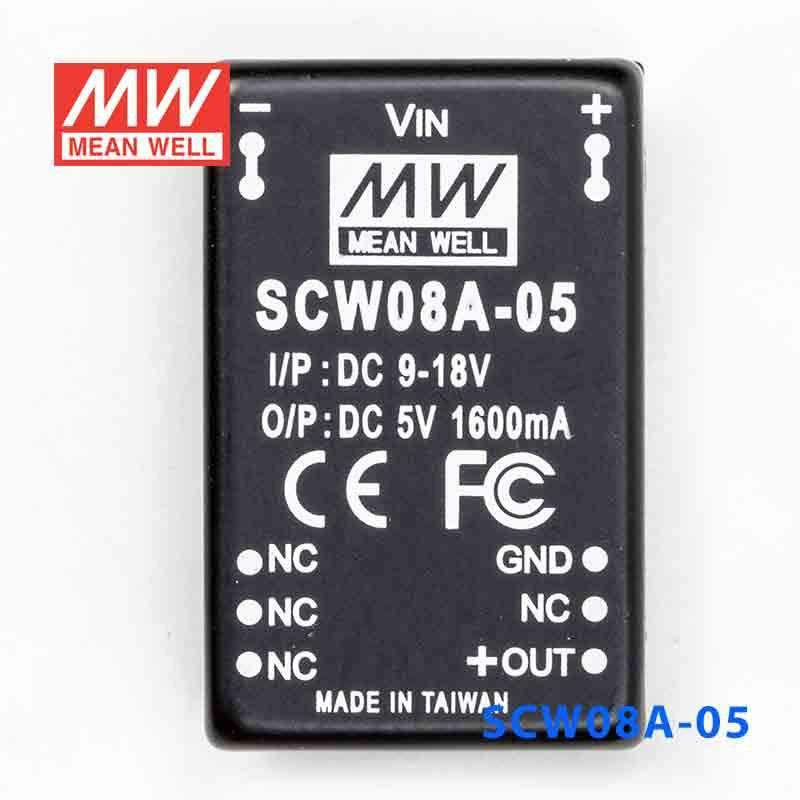

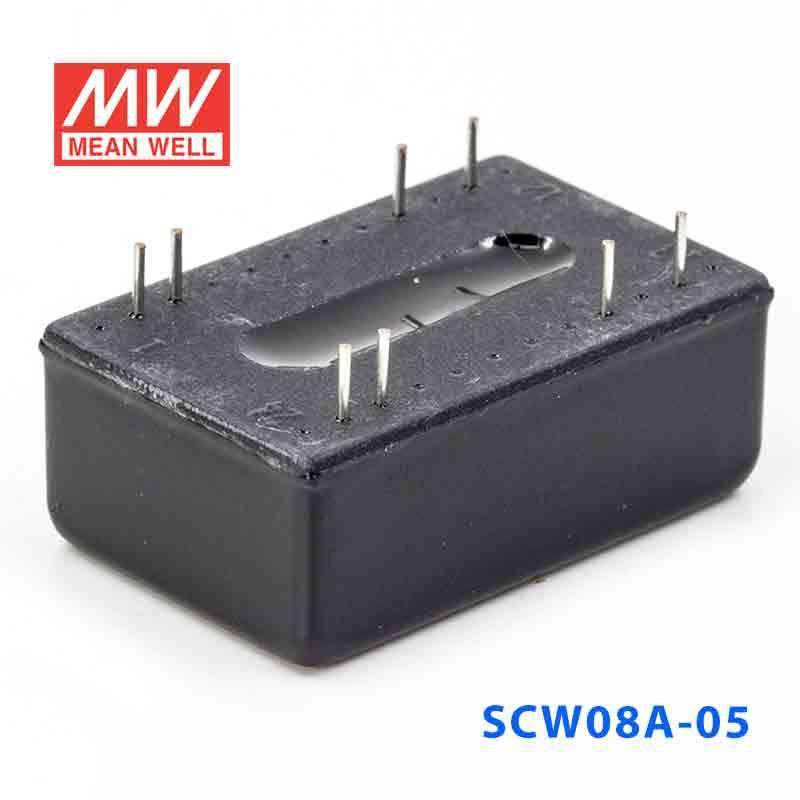

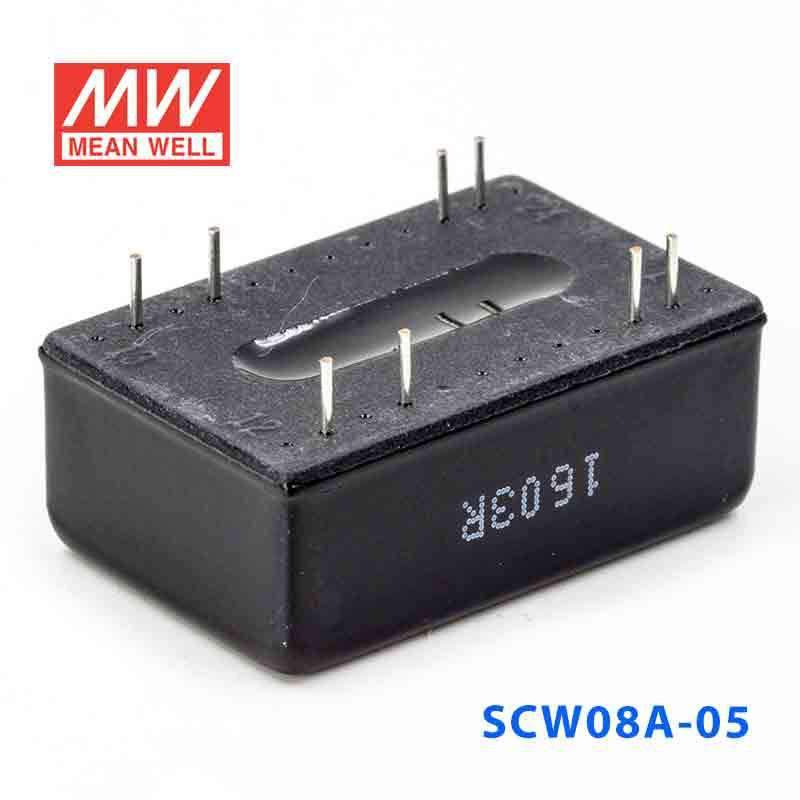

Mean Well SCW08A-05 DC-DC Converter - 8W 9~18V DC in 5V out
Description
Description
Features
| 2: 1 wide input range |
| 1000VDC I / O isolation |
| Built-in EMI filter |
| Protection: Short circuit / Overload |
| Cooling by free air convection |
| Five-sided shield metal case |
| 100% full load burn-in test |
| Low cost, high reliability |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ± 2% (max.) |
| Line regulation | ± 0.5% (max.) |
| Load regulation | ± 0.5% (max.) @ 10 ~ 100% load |
| Overload protection | 110% ~ 250%, auto-recovery |
| Efficiency | 82% (typical) |
| Short circuit protection | Continuous, auto-recovery |
| I / O isolation voltage | 1000VDC (min.) |
| I / O isolation resistance | 100MQ(min.)@500VDC |
| Working temperature | -40 ~ + 71 ° C (refer to output derating curve) |
| Storage temperature | -40 ° C to + 105 ° C |
| EMC | Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B |
| Temp. Coefficient | ± 0.03% / ° C (max.) |
| Dimension (LxWxH) (mm) | 1.25 ""x 0.8"" x 0.48 "" |
| Case material | Five-sided shield metal case |
| Isolation capacitance | 250pF (max.) |
Specifications
Specifications
-
BrandMean Well
-
SeriesSCW Series
-
Power Rating8 Watt
-
Output Voltage5 Volt
-
Rated Current1.6 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SCW08A-05 to power a 5V embedded controller inside industrial equipment?
Yes, this model is intended for constant-voltage 5V loads when the source feeding it is within 9-18VAC. It can supply up to 1.6A with an 8W rating, so it fits low-power embedded control boards that stay within those limits.
Is the SCW08A-05 suitable for 5V logic or interface boards in automation panels?
It is a fit for 5V automation electronics that need regulated constant-voltage output and draw no more than 1.6A. The converter is rated at 8W and accepts 9-18VAC input, which suits low-power panel subsystems rather than higher-load equipment.
Can this converter run a 5V monitoring or communications module in a compact industrial enclosure?
It can work for a 5V monitoring or communications module if the module stays within 1.6A and 8W. Its compact 31.75 × 20.32 × 12.19 mm size and 0.015 kg weight make it practical where space is limited.
How does the SCW08A-05 compare with the other SCW08A models?
All SCW08A versions in this group are 8W converters with 9-18VAC input and the same 31.75 × 20.32 × 12.19 mm size. The SCW08A-05 outputs 5V at 1.6A, the SCW08A-12 outputs 12V at 0.67A, and the SCW08A-15 outputs 15V at 0.53A.
Is the SCW08A-05 suitable for outdoor or harsh-temperature locations?
Its operating temperature range is -40°C to +71°C, so it is specified for a wide temperature range. No IP rating is listed in the provided specs, so outdoor or washdown suitability is not stated here.
