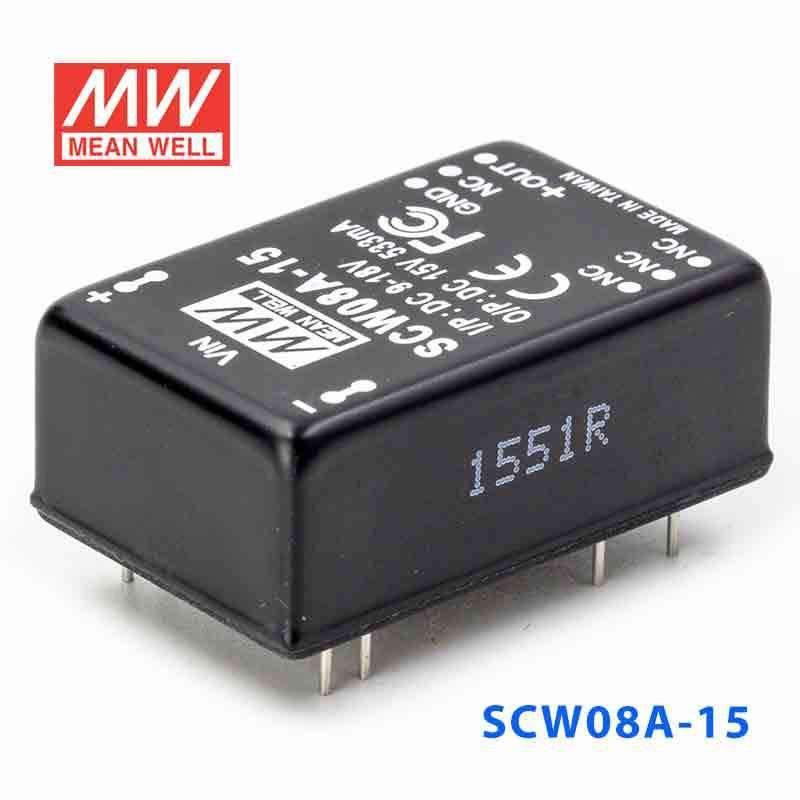

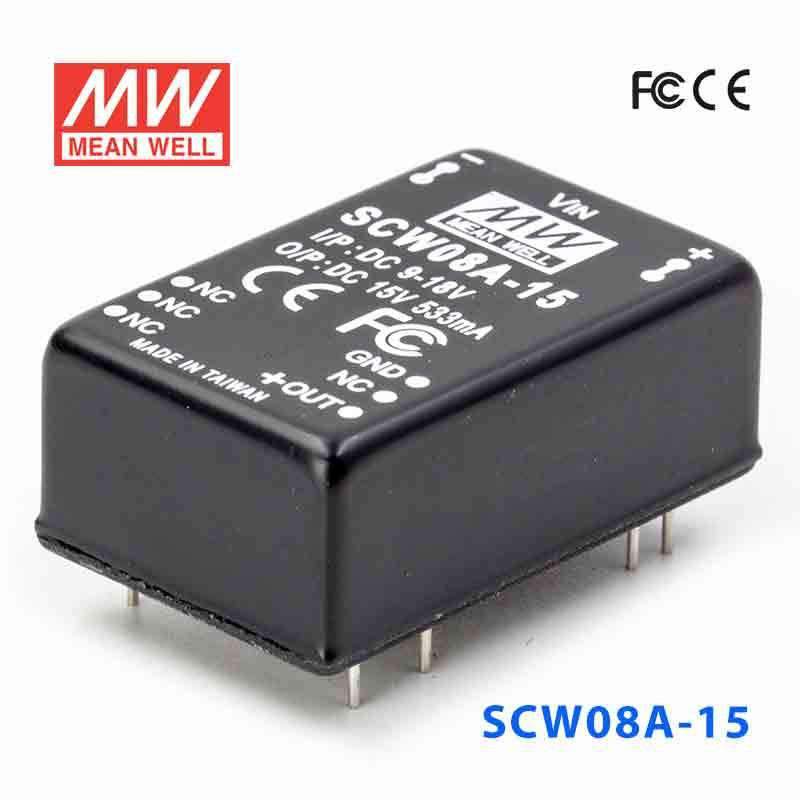

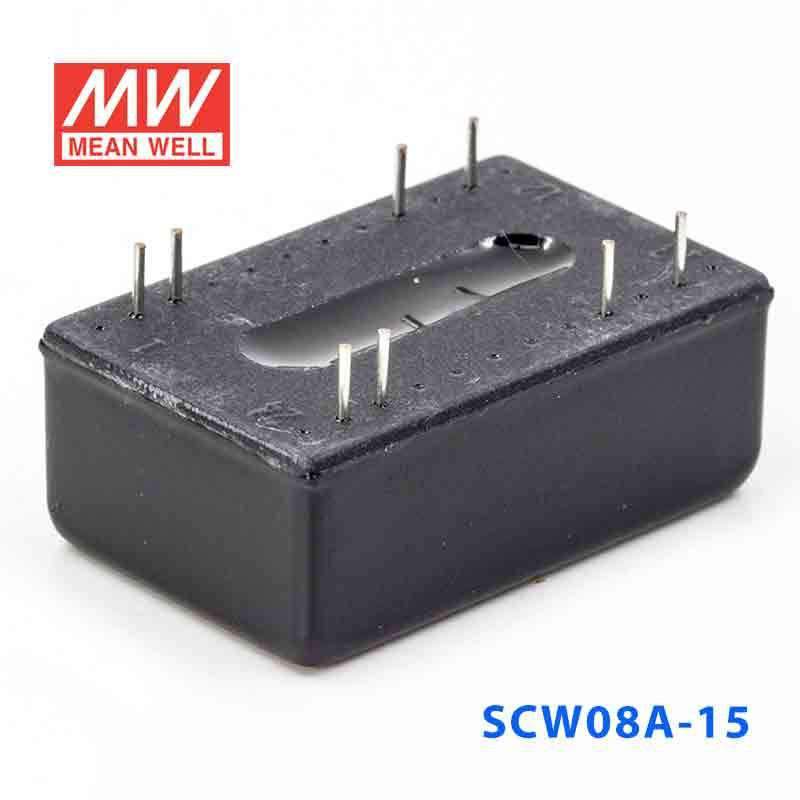

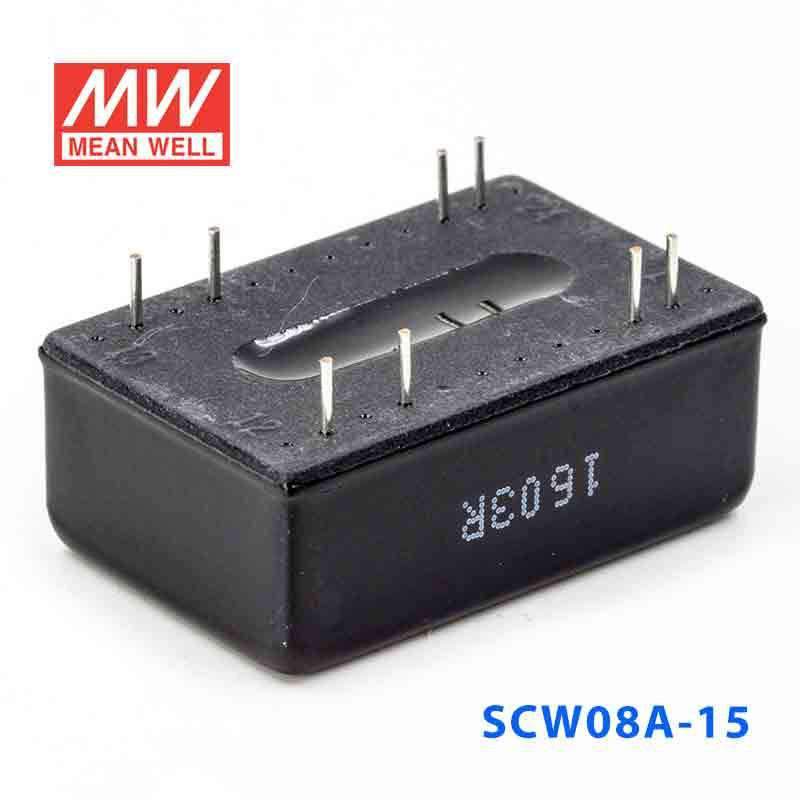

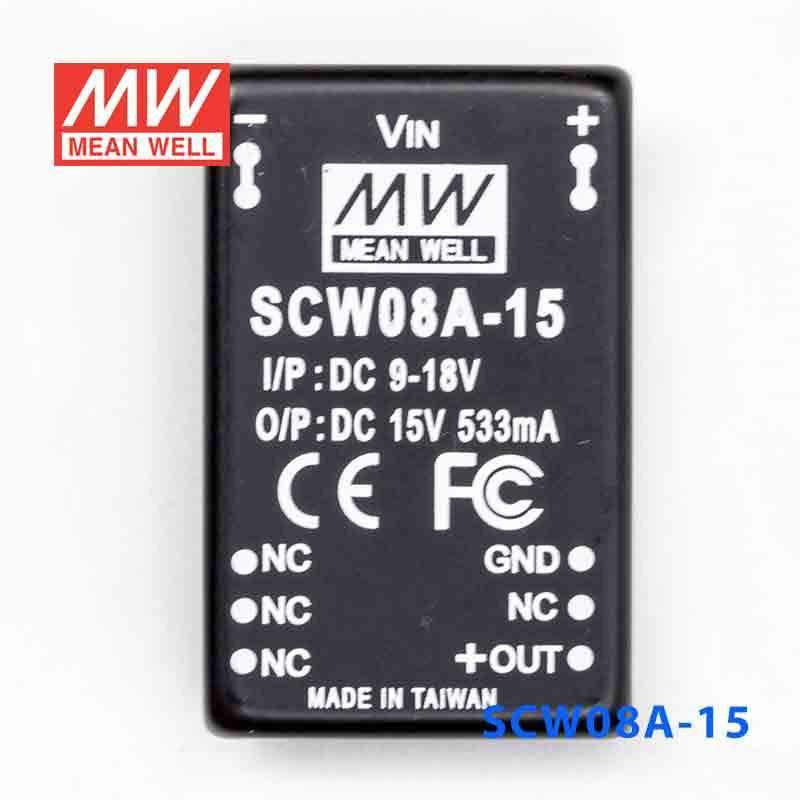

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well SCW08A-15 DC-DC Converter - 8W 9~18V DC in 15V out

SKU:

SCW08A-15

$16.58 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range

1000VDC I / O isolation

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	110% ~ 250%, auto-recovery
Efficiency	82% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40 ~ + 71 ° C (refer to output derating curve)
Storage temperature	-40 ° C to + 105 ° C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	1.25 ""x 0.8"" x 0.48 ""
Case material	Five-sided shield metal case
Isolation capacitance	250pF (max.)

Specifications

Brand

Mean Well
Series

SCW Series
Power Rating

8 Watt
Output Voltage

15 Volt
Rated Current

0.53 Ampere
Input Voltage

9V~18V
No of Output

1
Dimming Control

None
Standards Met

EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

1.25 in
Width

0.8 in
Height

0.48 in
Weight

0.03 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SCW08A-15 for a 15V analog or instrumentation circuit?

Yes, it is intended for constant-voltage 15V loads when the available input is within 9-18VAC. It provides up to 0.53A with an 8W rating, which suits lower-power analog and instrumentation circuits that match those limits.

Is the SCW08A-15 suitable for 15V control electronics in industrial systems?

It can be used for 15V control electronics that need regulated constant-voltage output and draw no more than 0.53A. The converter is rated at 8W and accepts 9-18VAC input, so it is better matched to light control loads than higher-power 15V devices.

Can this model power a small 15V interface board where board space is limited?

Yes, provided the board requires 15V and stays within 0.53A and 8W. Its 31.75 × 20.32 × 12.19 mm body and 0.015 kg weight are useful where enclosure space is constrained.

How does the SCW08A-15 compare with the SCW08A-05 and SCW08A-12?

All three SCW08A models use 9-18VAC input, carry an 8W rating, and share the same 31.75 × 20.32 × 12.19 mm package. The output options are 5V at 1.6A for SCW08A-05, 12V at 0.67A for SCW08A-12, and 15V at 0.53A for SCW08A-15.

Is the SCW08A-15 rated for outdoor use or wide temperatures?

The operating temperature range is specified as -40°C to +71°C, so the unit is rated across a wide temperature span. No IP rating appears in the provided specs, so outdoor exposure suitability is not defined here.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well SCW08C-15 DC-DC Converter - 8W 36~72V DC in 15V out	8W	15V	0.53A	Indoor	$16.58	View
Mean Well SCW08C-12 DC-DC Converter - 8W 36~72V DC in 12V out	8W	12V	0.67A	Indoor	$16.58	View
Mean Well SCW08C-05 DC-DC Converter - 8W 36~72V DC in 5V out	8W	5V	1.6A	Indoor	$16.58	View
Mean Well SCW08B-15 DC-DC Converter - 8W 18~36V DC in 15V out	8W	15V	0.53A	Indoor	$16.58	View
Mean Well SCW08B-12 DC-DC Converter - 8W 18~36V DC in 12V out	8W	12V	0.67A	Indoor	$14.79	View
Mean Well SCW08B-05 DC-DC Converter - 8W 18~36V DC in 5V out	8W	5V	1.6A	Indoor	$16.58	View
Mean Well SCW08A-12 DC-DC Converter - 8W 9~18V DC in 12V out	8W	12V	0.67A	Indoor	$16.58	View
Mean Well SCW08A-05 DC-DC Converter - 8W 9~18V DC in 5V out	8W	5V	1.6A	Indoor	$16.58	View
