Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

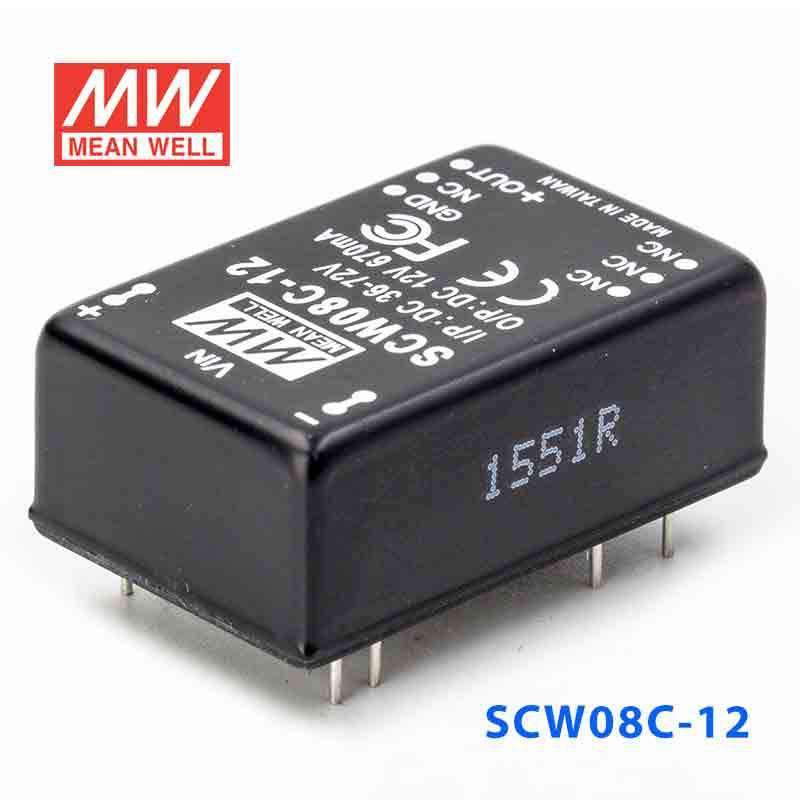

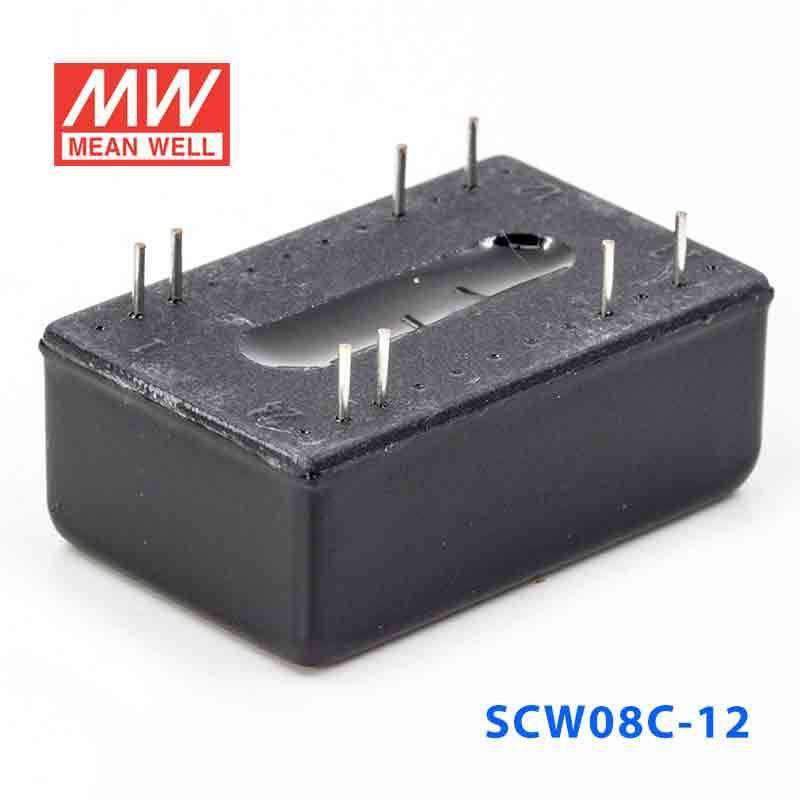

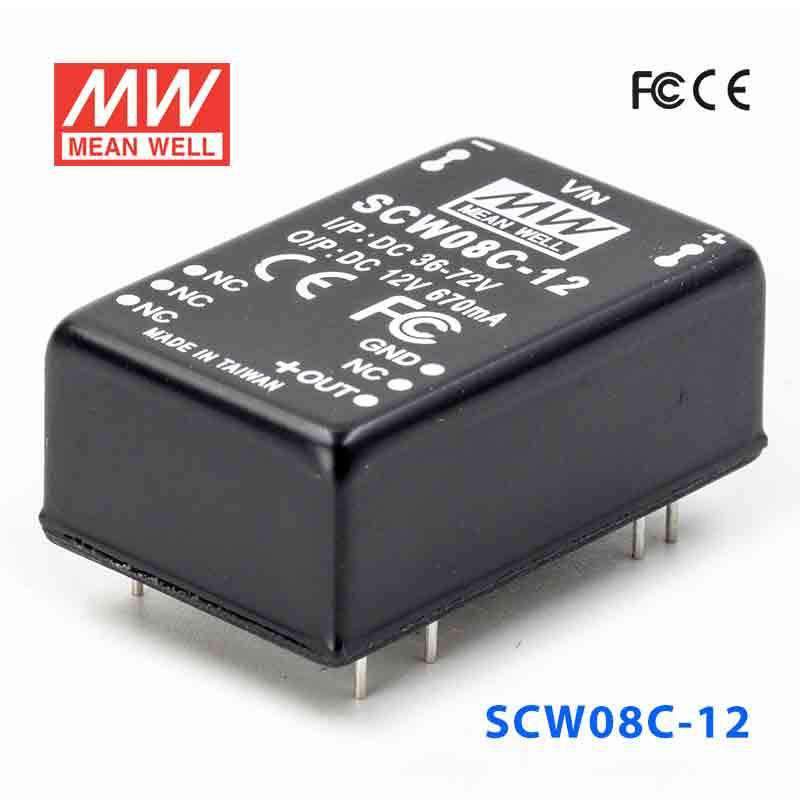

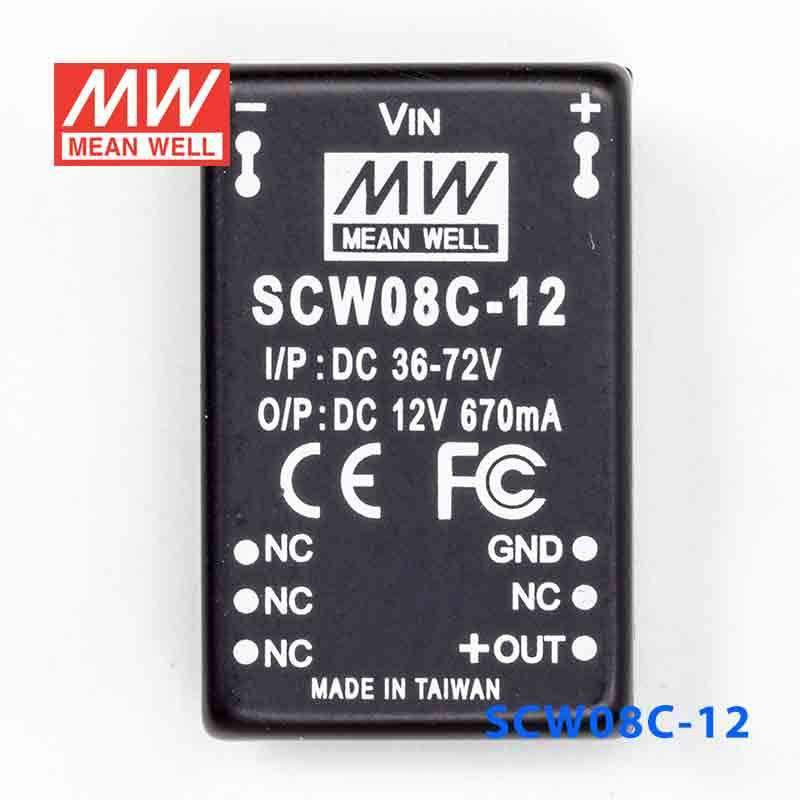

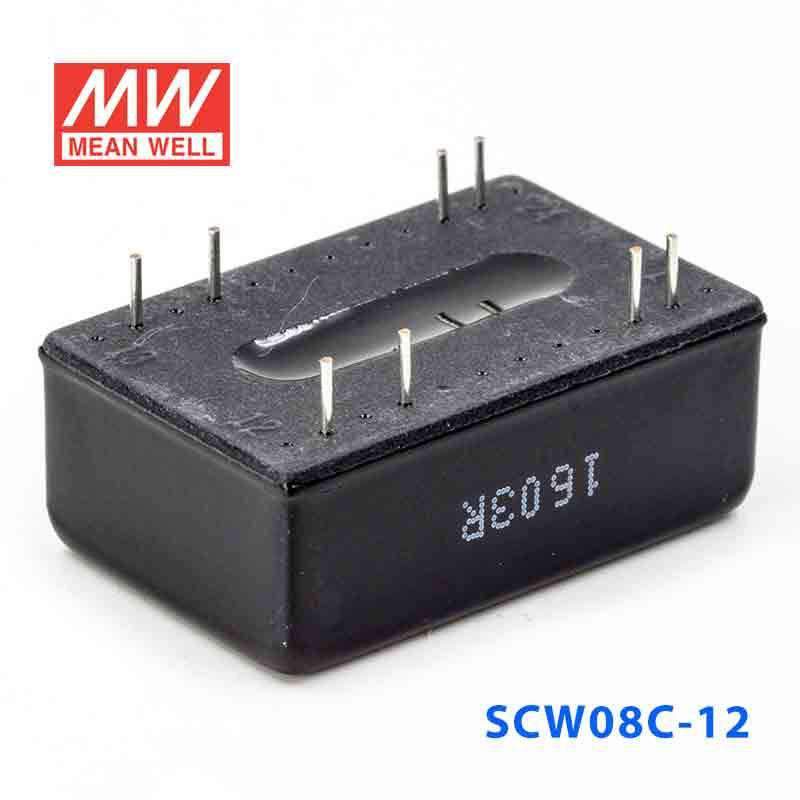

Mean Well SCW08C-12 DC-DC Converter - 8W 36~72V DC in 12V out

SKU:

SCW08C-12

$16.58 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range

1000VDC I / O isolation

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	110% ~ 250%, auto-recovery
Efficiency	82% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40 ~ + 71 ° C (refer to output derating curve)
Storage temperature	-40 ° C to + 105 ° C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	1.25 ""x 0.8"" x 0.48 ""
Case material	Five-sided shield metal case
Isolation capacitance	250pF (max.)

Specifications

Brand

Mean Well
Series

SCW Series
Power Rating

8 Watt
Output Voltage

12 Volt
Rated Current

0.67 Ampere
Input Voltage

36V~72V
No of Output

1
Dimming Control

None
Standards Met

EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

1.25 in
Width

0.8 in
Height

0.48 in
Weight

0.03 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SCW08C-12 to power a 12V control circuit from a 36-72VAC source?

Yes, it is intended for a 36-72VAC input range and provides constant 12V output. With 8W total power and 0.67A output current, it fits low-power 12V control electronics rather than higher-current 12V loads.

Is the SCW08C-12 suitable for embedded 12V electronics in compact industrial equipment?

It can be a good match for compact equipment because the body size is 31.75 × 20.32 × 12.19 mm and the weight is 0.015 kg. The output is regulated 12V at up to 0.67A, which suits smaller embedded 12V sections within the 8W limit.

Can this model support 12V sensors, relays, or interface electronics on a higher-voltage input system?

It is appropriate for low-power 12V electronics that require constant voltage and operate within the 0.67A output rating. The 36-72VAC input range makes it relevant where the source side is higher than the 12V load side.

What are the output differences across the SCW08C series?

The SCW08C-05, SCW08C-12, and SCW08C-15 are all 8W models. Their outputs are 5V at 1.6A, 12V at 0.67A, and 15V at 0.53A respectively.

Can the SCW08C-12 be used in outdoor or temperature-variable environments?

Its operating temperature range is -40°C to +71°C, so it is specified for broad thermal conditions. No IP rating is shown, so the provided specs do not confirm outdoor or exposed-environment suitability.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well SCW08C-15 DC-DC Converter - 8W 36~72V DC in 15V out	8W	15V	0.53A	Indoor	$16.58	View
Mean Well SCW08C-05 DC-DC Converter - 8W 36~72V DC in 5V out	8W	5V	1.6A	Indoor	$16.58	View
Mean Well SCW08B-15 DC-DC Converter - 8W 18~36V DC in 15V out	8W	15V	0.53A	Indoor	$16.58	View
Mean Well SCW08B-12 DC-DC Converter - 8W 18~36V DC in 12V out	8W	12V	0.67A	Indoor	$14.79	View
Mean Well SCW08B-05 DC-DC Converter - 8W 18~36V DC in 5V out	8W	5V	1.6A	Indoor	$16.58	View
Mean Well SCW08A-15 DC-DC Converter - 8W 9~18V DC in 15V out	8W	15V	0.53A	Indoor	$16.58	View
Mean Well SCW08A-12 DC-DC Converter - 8W 9~18V DC in 12V out	8W	12V	0.67A	Indoor	$16.58	View
Mean Well SCW08A-05 DC-DC Converter - 8W 9~18V DC in 5V out	8W	5V	1.6A	Indoor	$16.58	View
