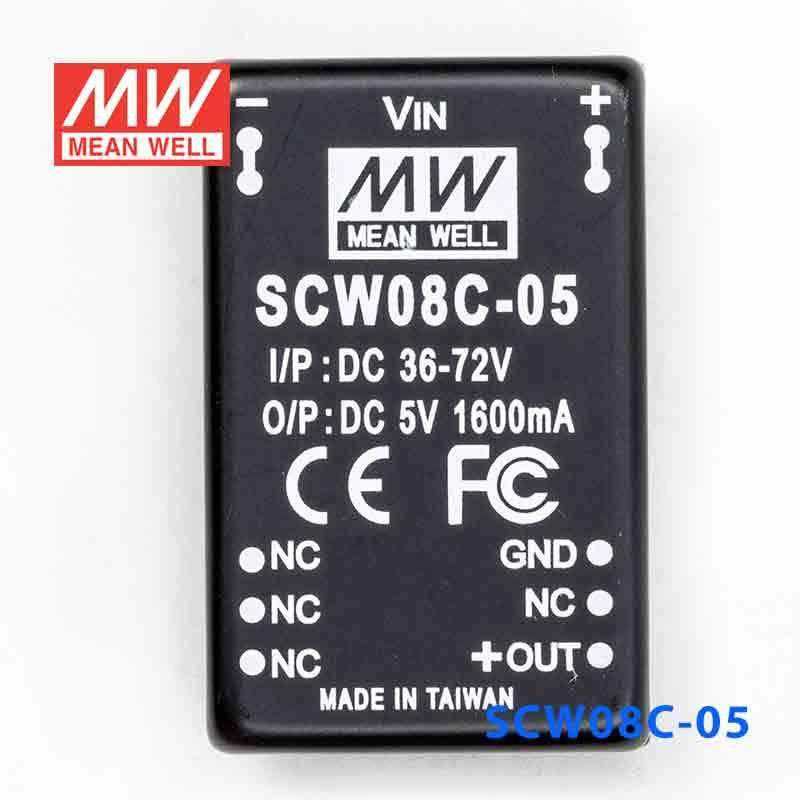

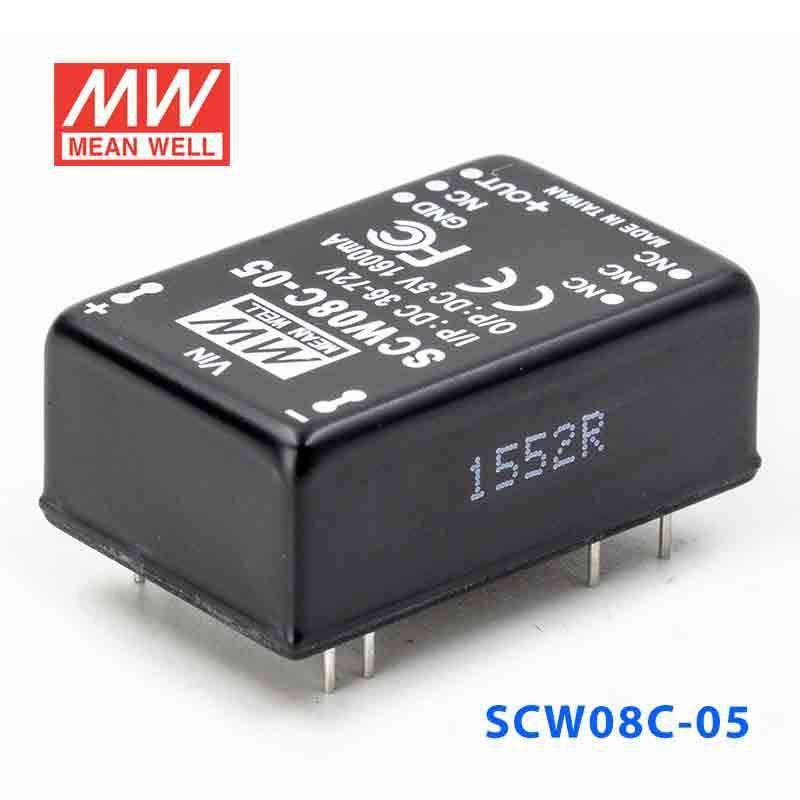

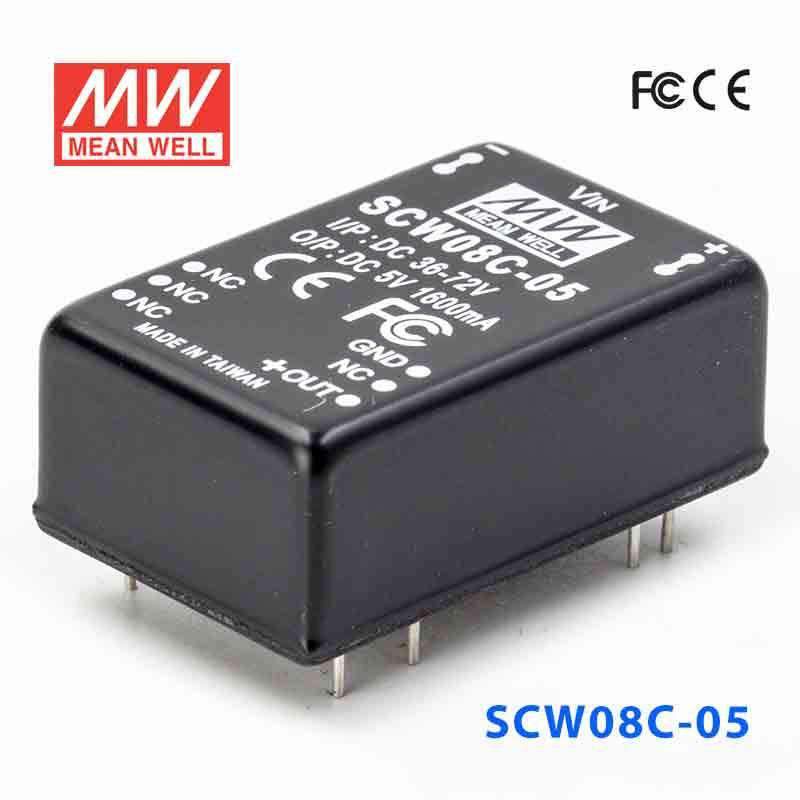

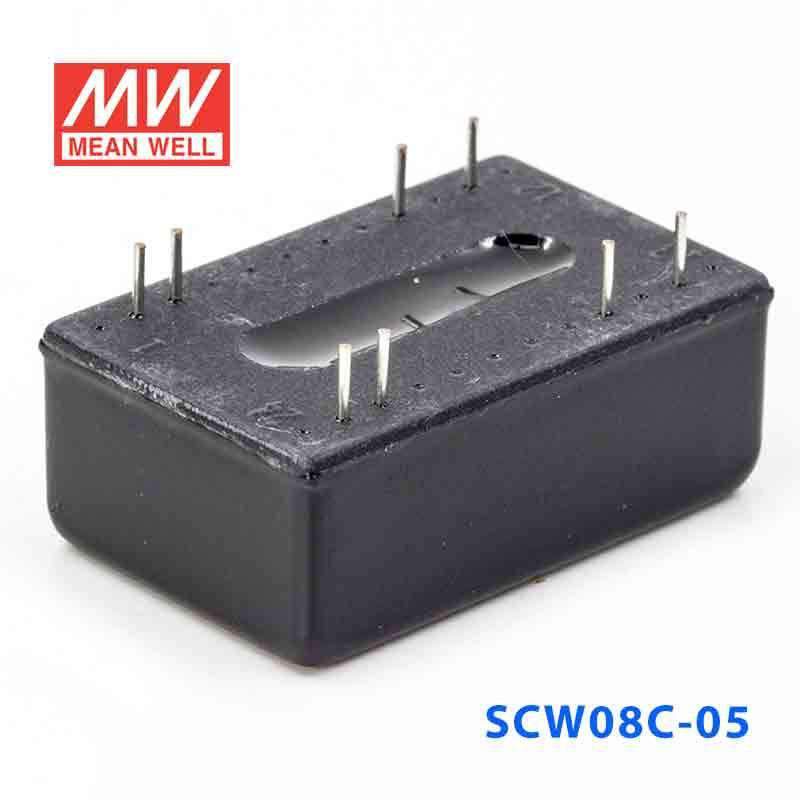

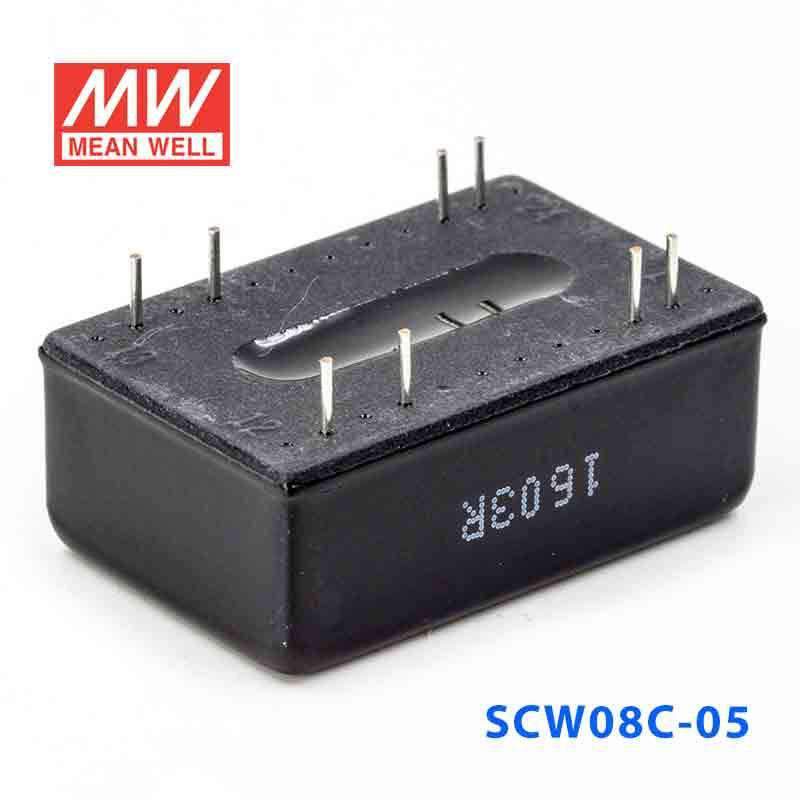

Mean Well SCW08C-05 DC-DC Converter - 8W 36~72V DC in 5V out

SKU:

SCW08C-05

$16.58 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range

1000VDC I / O isolation

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	110% ~ 250%, auto-recovery
Efficiency	82% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40 ~ + 71 ° C (refer to output derating curve)
Storage temperature	-40 ° C to + 105 ° C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	1.25 ""x 0.8"" x 0.48 ""
Case material	Five-sided shield metal case
Isolation capacitance	250pF (max.)

Specifications

Brand

Mean Well
Series

SCW Series
Power Rating

8 Watt
Output Voltage

5 Volt
Rated Current

1.6 Ampere
Input Voltage

36V~72V
No of Output

1
Dimming Control

None
Standards Met

EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

1.25 in
Width

0.8 in
Height

0.48 in
Weight

0.03 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SCW08C-05 to supply 5V logic or embedded electronics from a 36-72VAC source?

Yes, this model is designed for a 36-72VAC input range and provides a constant 5V output. Its 8W rating and 1.6A output current make it suitable for low-power 5V logic, control, or embedded circuits within that limit.

Is the SCW08C-05 suitable for small industrial controllers that run on 5V?

It can fit small 5V industrial control electronics that need constant voltage and stay within 1.6A output current. Since the total output is 8W, it is intended for lighter 5V loads rather than larger assemblies.

Can this converter be used in compact telecom or automation equipment with a higher-voltage input bus?

It is a practical choice where the available input falls within 36-72VAC and the electronics require 5V constant voltage. The compact 31.75 × 20.32 × 12.19 mm package also helps in dense equipment layouts.

How does the SCW08C-05 compare with the other SCW08C versions?

All SCW08C models are rated at 8W and share the same 36-72VAC input family. The SCW08C-05 outputs 5V at 1.6A, the SCW08C-12 outputs 12V at 0.67A, and the SCW08C-15 outputs 15V at 0.53A.

Is the SCW08C-05 rated for outdoor installations or wide temperature swings?

The converter is specified for -40°C to +71°C operation, so it supports a wide temperature range. There is no IP rating in the listed specs, so outdoor exposure resistance is not defined here.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well SCW08C-15 DC-DC Converter - 8W 36~72V DC in 15V out	8W	15V	0.53A	Indoor	$16.58	View
Mean Well SCW08C-12 DC-DC Converter - 8W 36~72V DC in 12V out	8W	12V	0.67A	Indoor	$16.58	View
Mean Well SCW08B-15 DC-DC Converter - 8W 18~36V DC in 15V out	8W	15V	0.53A	Indoor	$16.58	View
Mean Well SCW08B-12 DC-DC Converter - 8W 18~36V DC in 12V out	8W	12V	0.67A	Indoor	$14.79	View
Mean Well SCW08B-05 DC-DC Converter - 8W 18~36V DC in 5V out	8W	5V	1.6A	Indoor	$16.58	View
Mean Well SCW08A-15 DC-DC Converter - 8W 9~18V DC in 15V out	8W	15V	0.53A	Indoor	$16.58	View
Mean Well SCW08A-12 DC-DC Converter - 8W 9~18V DC in 12V out	8W	12V	0.67A	Indoor	$16.58	View
Mean Well SCW08A-05 DC-DC Converter - 8W 9~18V DC in 5V out	8W	5V	1.6A	Indoor	$16.58	View
