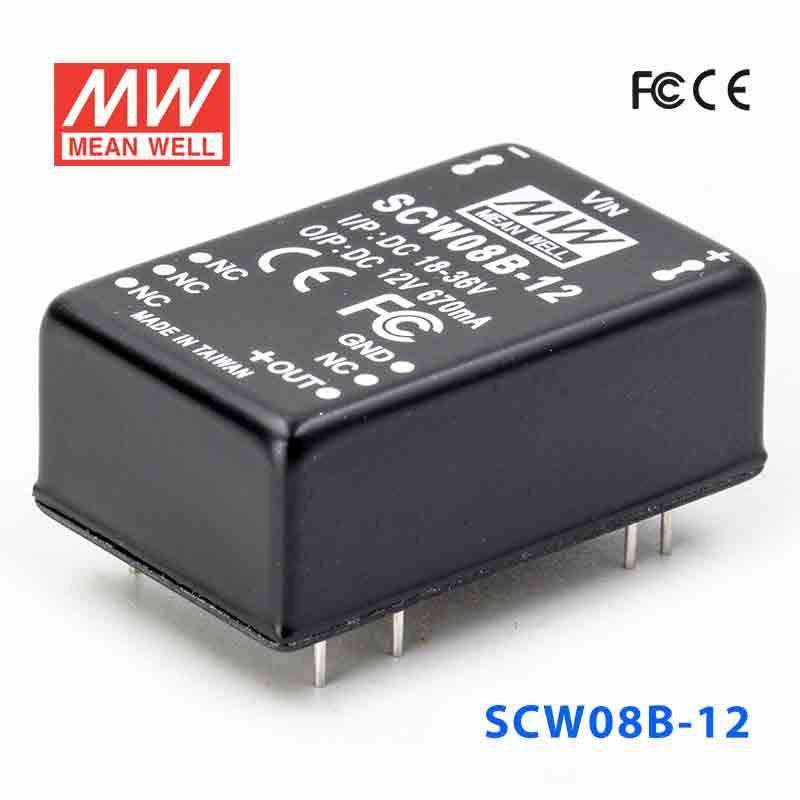

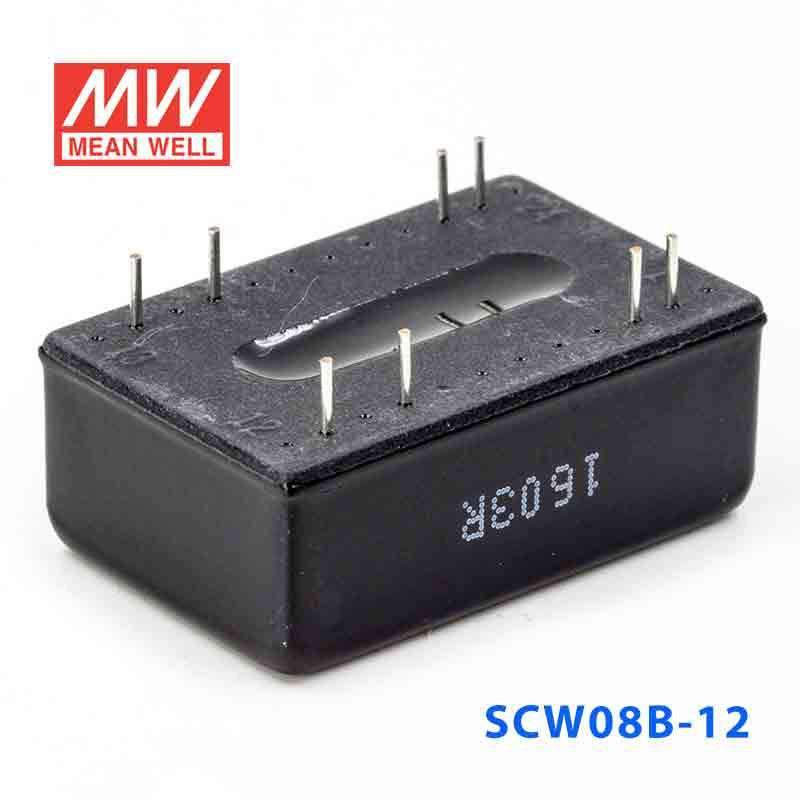

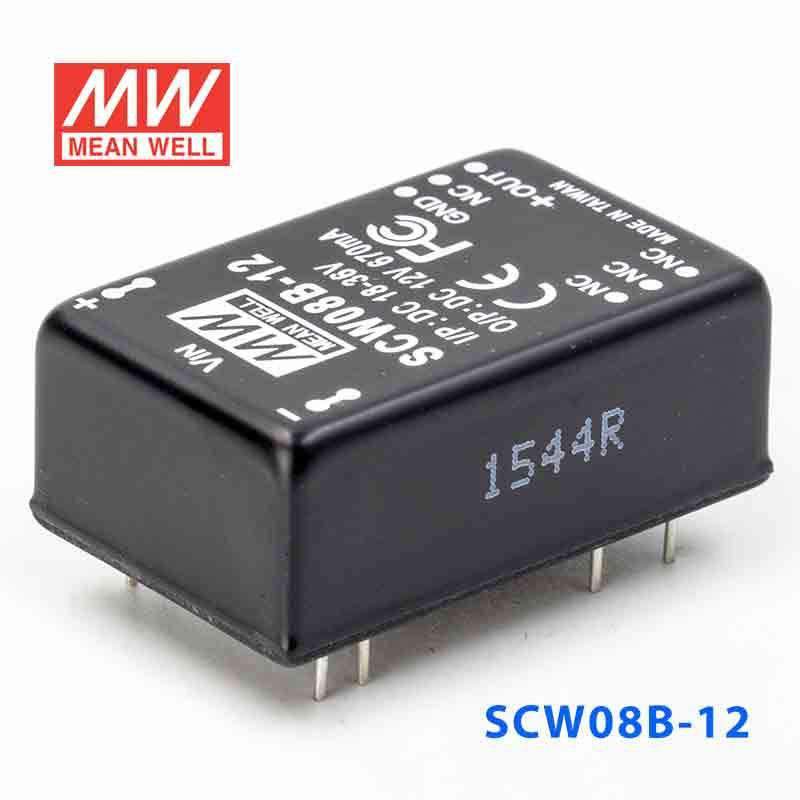

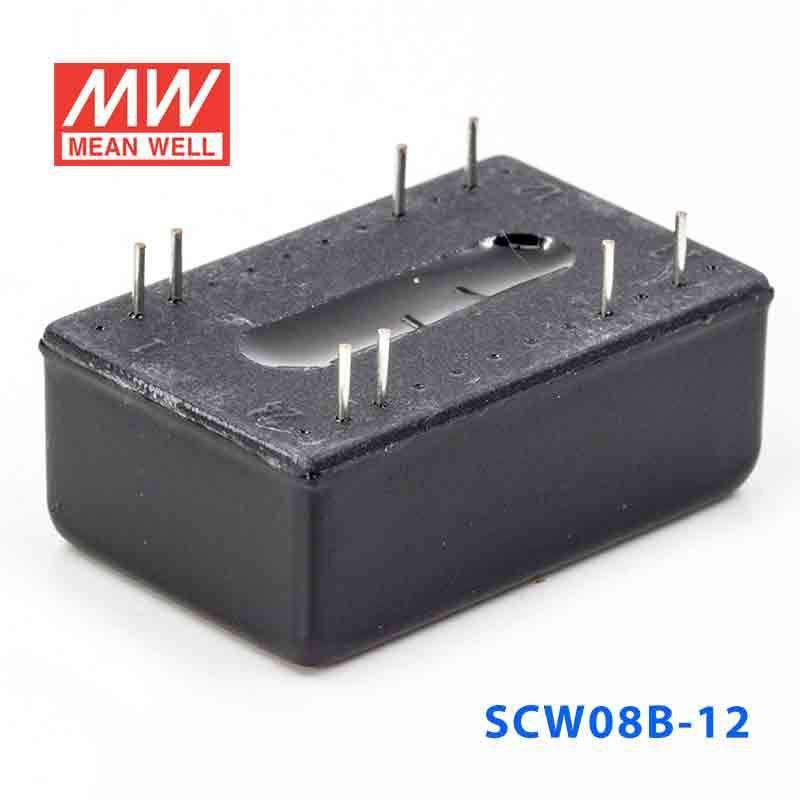

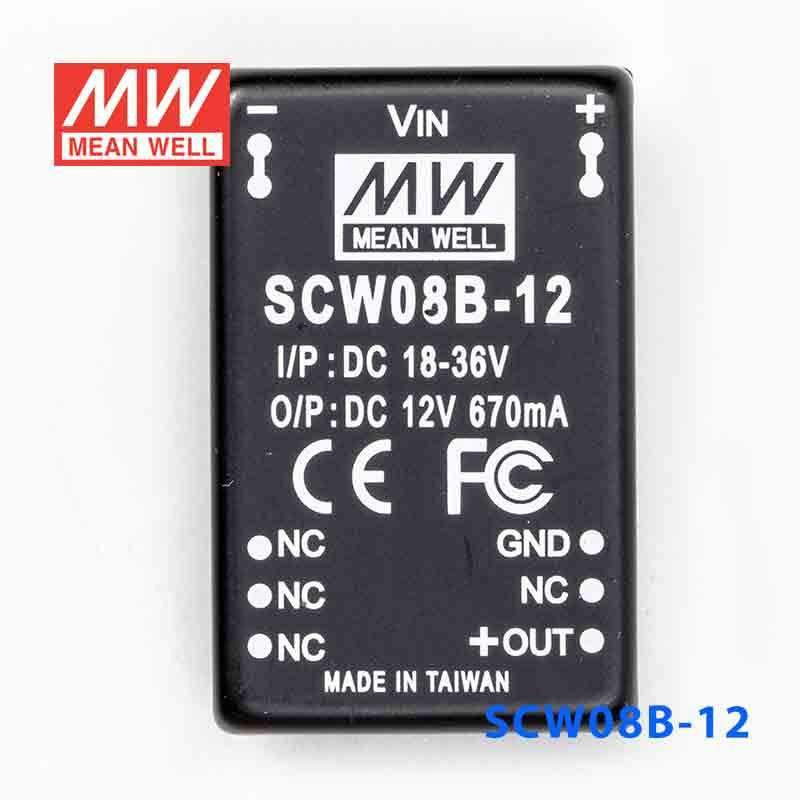

Mean Well SCW08B-12 DC-DC Converter - 8W 18~36V DC in 12V out

SKU:

SCW08B-12

$14.79 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

2: 1 wide input range

1000VDC I / O isolation

Built-in EMI filter

Protection: Short circuit / Overload

Cooling by free air convection

Five-sided shield metal case

100% full load burn-in test

Low cost, high reliability

2 years warranty

General Specification

Voltage set point accuracy	± 2% (max.)
Line regulation	± 0.5% (max.)
Load regulation	± 0.5% (max.) @ 10 ~ 100% load
Overload protection	110% ~ 250%, auto-recovery
Efficiency	82% (typical)
Short circuit protection	Continuous, auto-recovery
I / O isolation voltage	1000VDC (min.)
I / O isolation resistance	100MQ(min.)@500VDC
Working temperature	-40 ~ + 71 ° C (refer to output derating curve)
Storage temperature	-40 ° C to + 105 ° C
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Temp. Coefficient	± 0.03% / ° C (max.)
Dimension (LxWxH) (mm)	1.25 ""x 0.8"" x 0.48 ""
Case material	Five-sided shield metal case
Isolation capacitance	250pF (max.)

Specifications

Brand

Mean Well
Series

SCW Series
Power Rating

8 Watt
Output Voltage

12 Volt
Rated Current

0.67 Ampere
Input Voltage

18V~36V
No of Output

1
Dimming Control

None
Standards Met

EAC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~71°C
Warranty

2 Year
Length

1.25 in
Width

0.8 in
Height

0.48 in
Weight

0.03 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SCW08B-12 to power a small 12V industrial control circuit from an 18-36VAC source?

Yes, it is designed for a 18-36VAC input range and provides a constant 12V output. Its 8W rating and 0.67A output current make it a fit for low-power 12V control electronics rather than higher-load equipment.

Is the SCW08B-12 suitable for embedded 12V electronics inside compact equipment?

It can be a good fit for compact embedded designs because it measures 31.75 × 20.32 × 12.19 mm and weighs 0.015 kg. The output is constant 12V at up to 0.67A, so it is intended for small 12V loads within its 8W capacity.

Can this converter support 12V automation sensors or interface modules?

It is appropriate for 12V automation electronics that need constant voltage and stay within 0.67A output current. With an 8W output limit, it is better suited to light-duty sensor or interface loads than to larger 12V devices.

How does the SCW08B-12 compare with the other SCW08B models?

All three SCW08B models are rated at 8W. The SCW08B-05 provides 5V at 1.6A, the SCW08B-12 provides 12V at 0.67A, and the SCW08B-15 provides 15V at 0.53A.

Is the SCW08B-12 suitable for outdoor or harsh-temperature use?

The operating temperature range is -40°C to +71°C, so the temperature tolerance is broad. However, no IP rating is listed, so outdoor exposure or washdown suitability is not specified by these specs.
