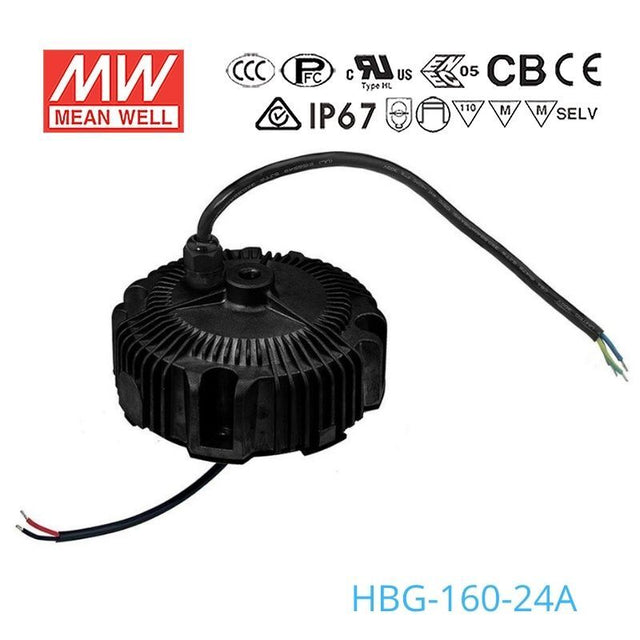

Mean Well HBG-160-24A Power Supply 160W 24V - Adjustable
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating156 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well HBG-160-24A for a 24V high bay or low bay LED light?
Yes, this model is intended for high bay and low bay lighting and has a circular housing that fits that style of fixture. It provides 24V output at 6.5A with 156W power, and its constant current operating range is 14-24V, so the light engine needs to match that range.
Is the HBG-160-24A suitable for 24V outdoor LED signage or wet-location lighting?
It is suitable for damp or outdoor exposure where an IP65 water-resistant LED driver is appropriate. The unit is rated IP65 and can operate from -40°C to +85°C, so the application still needs a compatible 24V, 6.5A, 156W lighting load.
Can this LED driver power 24V LED signage modules or strip-based lighting?
It can be used for 24V LED signage modules or strip-based lighting only if the load is designed to work with a constant current driver and stays within 24V, 6.5A, and 156W. Check that the lighting load operates inside the 14-24V constant current range before treating it as a match.
How much 24V LED strip can the HBG-160-24A run?
The driver is rated for 156W total at 24V, so the strip load must stay at or below 156W. Use the strip's rated watts per meter and calculate length as 156W divided by the strip watts per meter, then confirm the strip is compatible with a 24V constant current driver.
Can I use the HBG-160-24A in hot, cold, or industrial environments?
It is built for demanding environments, with an operating temperature range of -40°C to +85°C and a metal case on the 100W+ housing. It also accepts 90-305VAC input and carries CB, CCC, CE, EAC, ENEC, and UL certifications, which is useful for commercial and industrial lighting projects.
What is the difference between the HBG-160-24A and other HBG-160 A-type models?
Within the HBG-160 A-type range, the 24V model is 156W at 24V and 6.5A with a 14-24V constant current range, the 36V model is 158.4W at 36V and 4.4A with a 21-36V range, the 48V model is 158.4W at 48V and 3.3A with a 28-48V range, and the 60V model is 156W at 60V and 2.6A with a 36-60V range. The main difference is the output voltage window and corresponding output current.
