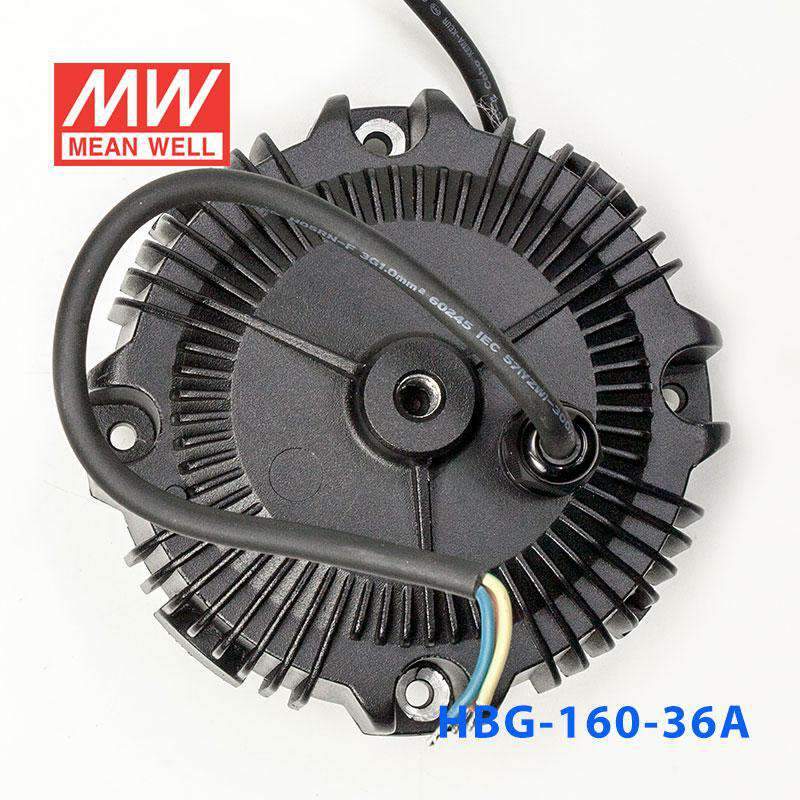

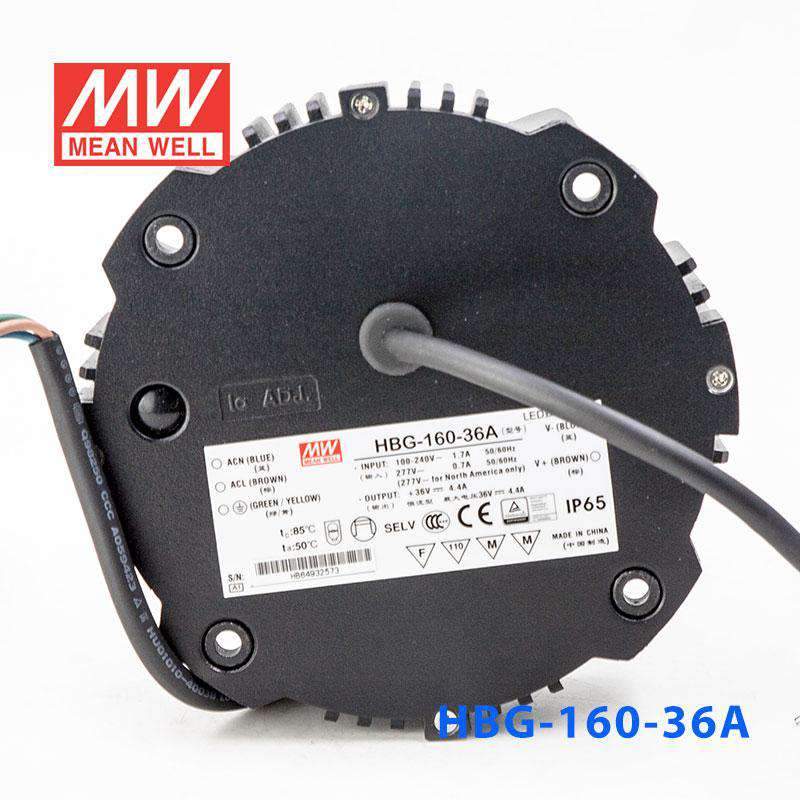

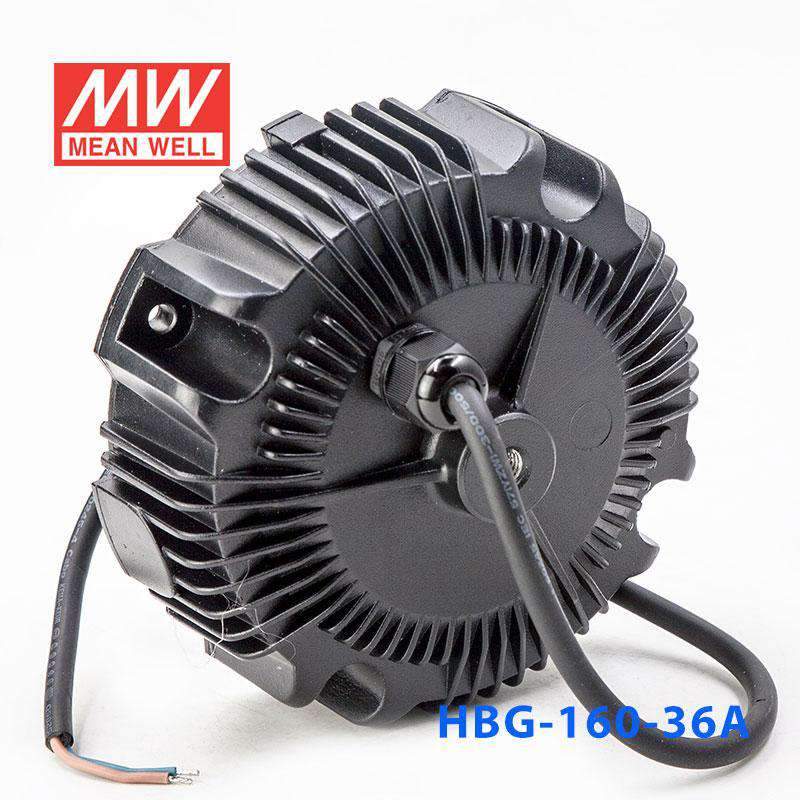

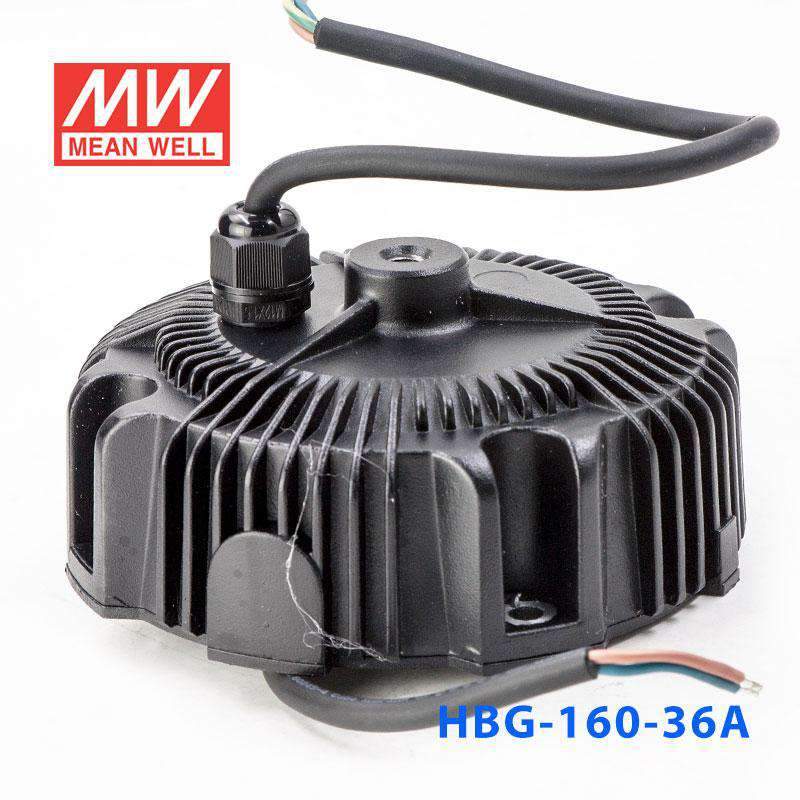

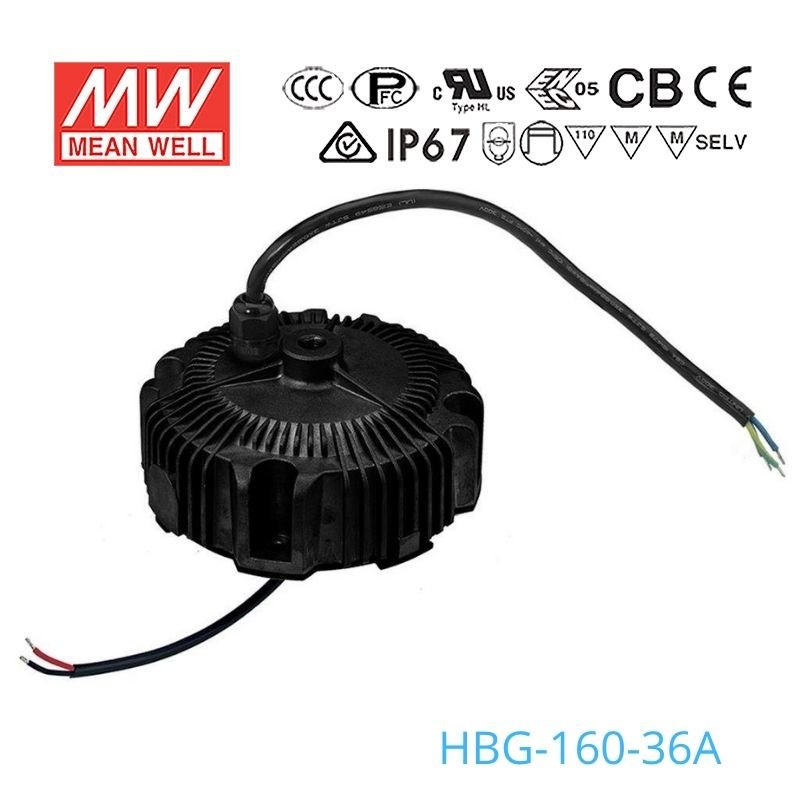

Mean Well HBG-160-36A Power Supply 160W 36V - Adjustable
Description
Description
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating158.4 Watt
-
Output Voltage36 Volt
-
Rated Current4.4 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HBG-160-36A for a 36V indoor sign or display lighting system?
It can fit a 36V lighting load if the total demand stays within 158.4W and 4.4A. This version is IP65 water-resistant, so it is better suited to indoor use or protected outdoor locations than fully exposed wet environments.
Is this adjustable 36V driver suitable for a high bay or low bay fixture?
Yes, the series is specified for high/low bay light use, and this model provides up to 158.4W at 36V. The connected fixture still needs to operate within the 21-36V constant current range.
Can the HBG-160-36A be used for covered outdoor lighting?
Its IP65 rating means it is water-resistant rather than waterproof. It can suit a protected outdoor lighting location if the 36V load stays within 158.4W and the environment does not require an IP67 enclosure.
How do I estimate the maximum 36V LED strip length for this driver?
Divide the driver's 158.4W maximum by the strip's rated watts per meter. The formula is 158.4 ÷ strip W/m, but you should check your strip rated power per meter and confirm it is a 36V load within the 21-36V CC range.
Is the HBG-160-36A OK for rain, washdown, or fully exposed outdoor locations?
This version is IP65 water-resistant, so it is intended for dust protection and resistance to water spray rather than full waterproof exposure. Its operating temperature range is -40°C to +85°C, but the enclosure rating is the main limit for outdoor placement.
How does the HBG-160-36A compare with the other HBG-160 voltage versions?
In the HBG-160 range, the 24V model is 156W at 6.5A with a 14-24V CC range, the 36V model is 158.4W at 4.4A with a 21-36V CC range, the 48V model is 158.4W at 3.3A with a 28-48V CC range, and the 60V model is 156W at 2.6A with a 36-60V CC range. This 36A version shares the 36V, 158.4W, and 4.4A electrical rating.
