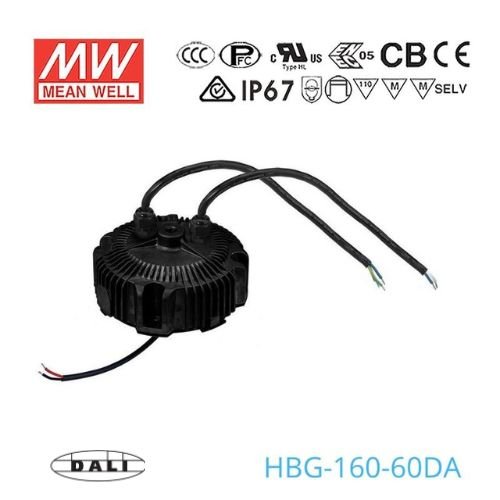

Mean Well HBG-160-60DA Power Supply 160W 60V - DALI

Yes, this model is designed for constant-current LED loads and provides 2.6A with a 36-60V constant-current range. Its circular shape and 156W rating make it suitable for high bay or low bay light fixtures that match those electrical requirements.

It is suitable for outdoor or wet-location use where an IP67 waterproof driver is required. The operating temperature range is -40°C to +85°C, so it can be used in demanding environmental conditions if the fixture itself is rated appropriately.

Yes, the HBG-160-60DA is a 60V LED driver with DALI in the model designation, and it operates in constant-current mode at 2.6A. It should only be paired with LED lighting products whose electrical requirements fall within the 36-60V constant-current range and 156W maximum power.

It can be used for 60V LED strip applications if the strip is compatible with a 60V, 2.6A, constant-current driver. For sizing, use the 156W maximum power and divide by your strip rated power per meter; for example, maximum length = 156W / strip watts per meter, and you should check your strip rated power per meter before selecting run length.

This driver is built for demanding conditions with an IP67 waterproof rating and an operating temperature range of -40°C to +85°C. Its metal case and 1.53 kg body are part of a design intended for higher-power lighting applications in harsher environments.

These HBG-160 DA models mainly differ by output voltage and output current while staying in the same power class. HBG-160-24DA is 156W at 24V and 6.5A with a 14-24V constant-current range, HBG-160-36DA is 158.4W at 36V and 4.4A with a 21-36V range, HBG-160-48DA is 158.4W at 48V and 3.3A with a 28-48V range, and HBG-160-60DA is 156W at 60V and 2.6A with a 36-60V range.
