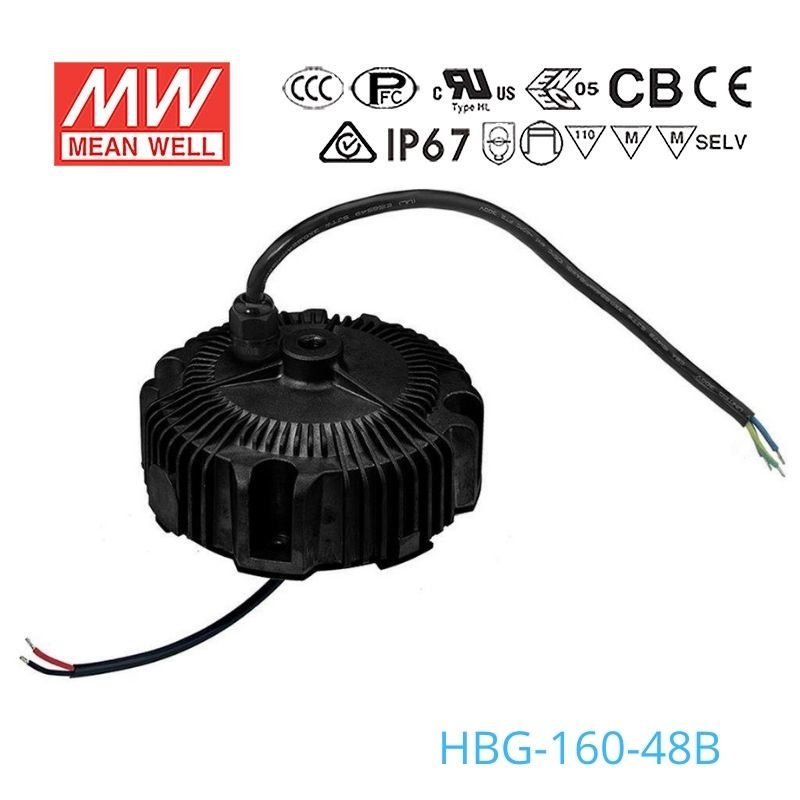

Mean Well HBG-160-48B Power Supply

Description

Features

Constant Voltage + Constant current mode output

Circular plastic housing with class I design

Built-in active PFC function

IP67 / IP65 rating for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	90~305VAC 127~417VDC
AC inrush current (max.)	Cold start, 65A at 230VAC
DC adjustment range	65%~100% rated current
Over current protection	95 ~ 108%; Constant current limiting
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-40~+85°C
Safety standards	UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 approved
EMC standards	EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11,
Connection	SJTW 18AWG/SVT 18AWG

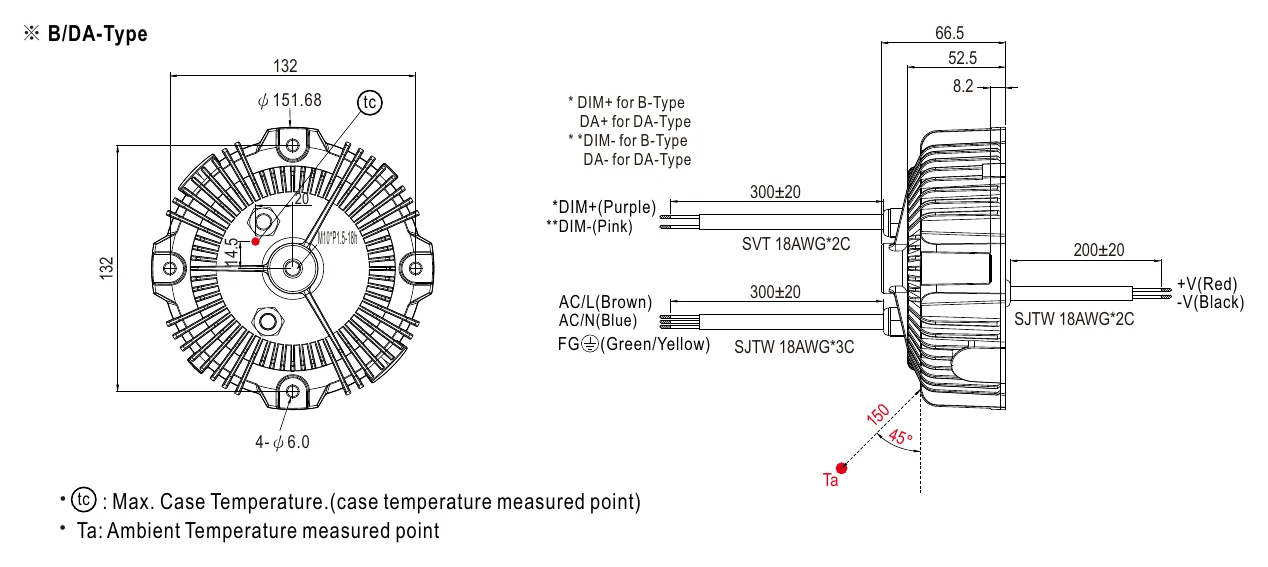

Dimension (DxH)	φ151.68x66.5mm
Packing	1.53Kg; 8pcs/13.8Kg/1.37CUFT

Specifications

Brand

Mean Well
Series

HBG Series
Power Rating

158.4 Watt
Output Voltage

48 Volt
Rated Current

3.3 Ampere
Input Voltage

90V~305V
No of Output

1
Dimming Control

10V PWM,1-10V,Resistance
Standards Met

CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current,Constant Voltage
Operating Temperature

-40°C~85°C
Warranty

5 Year
Length

5.97 in
Width

5.97 in
Height

2.62 in
Weight

3.37 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the Mean Well HBG-160-48B for a 48V high bay LED light?

Yes, this model is built for high and low bay lighting and provides a 48V output with 158.4W maximum power. It operates in constant current mode at 3.3A, so the fixture must be designed to work with a constant current LED driver in the 28-48V range.

Is the HBG-160-48B suitable for 48V low bay lighting?

Yes, this LED driver is intended for high and low bay light applications and has a circular shape that fits that style of fixture. Its 48V output, 3.3A output current, and 158.4W rating need to match the light engine's required constant current operating range of 28-48V.

Can I use this driver for outdoor 48V LED signage?

It can work for outdoor 48V signage if the sign lighting is designed for a constant current LED driver operating in the 28-48V range at 3.3A. The IP67 waterproof rating supports wet locations, but the lighting load still has to stay within 158.4W.

Will this work with 48V LED strip lighting?

It can only be used with 48V LED strip products that are specifically designed to run from a constant current driver. This unit outputs 3.3A in a 28-48V constant current range up to 158.4W, so check whether the strip requires constant current or constant voltage before pairing it.

How much 48V LED strip can the HBG-160-48B run?

The driver can supply up to 158.4W total at 48V. To estimate maximum strip length, divide 158.4W by your strip's rated power per meter, and check your strip rated power per meter so the total load stays within 158.4W.

Is the HBG-160-48B okay for outdoor or wet environments?

Yes, the housing is rated IP67 waterproof, so it is suited for wet and outdoor environments where that level of ingress protection is required. It is also rated for operation from -40°C to +85°C, which supports demanding temperature conditions.
