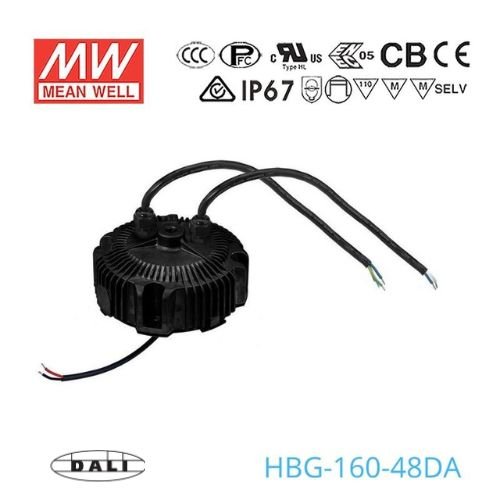

Mean Well HBG-160-48DA Power Supply 160W 48V - DALI

Yes, this constant current driver is a fit for high/low bay lighting because the product features explicitly list that application. It provides 48V output, 3.3A current, and 158.4W total power within a 28-48V CC range.

It can be used for outdoor 48V area lighting fixtures that are designed for constant current operation in the 28-48V range. The IP67 waterproof rating and -40°C to +85°C operating temperature range make it better suited to exposed environments than the IP65 versions.

Yes, if the signage lighting system is built for a 48V constant current driver and stays within 158.4W and 3.3A. The IP67 rating makes it a stronger option for wet-location sign enclosures and exposed outdoor conditions.

This driver can supply up to 158.4W, so the estimated strip length is calculated as 158.4W / strip watts per meter. For example, use that formula to find the maximum meters. Check your strip rated power per meter and verify that the strip is compatible with a 48V constant current driver.

It is rated IP67 waterproof, which is stronger environmental protection than IP65 water-resistant. That makes it suitable for outdoor and wet-location use where the driver may face dust and stronger water exposure.

Within the HBG-160 family, 24V models are 156W with a 14-24V CC range at 6.5A, 36V models are 158.4W with a 21-36V CC range at 4.4A, 48V models are 158.4W with a 28-48V CC range at 3.3A, and 60V models are 156W with a 36-60V CC range at 2.6A. The HBG-160-48DA is the 48V DALI version with IP67 protection.
