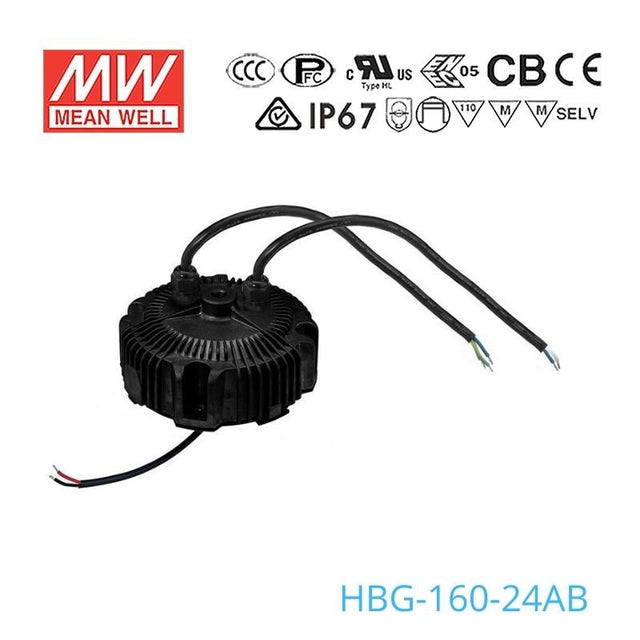

Mean Well HBG-160-24AB Power Supply 160W 24V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HBG-160-24AB Power Supply 160W 24V - Adjustable and Dimmable
The HBG-160 is a 160W Mean Well power converter.
Key Features
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating156 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
::specification::
Frequently Asked Questions
Can I use the Mean Well HBG-160-24AB for 24V LED strip lighting?
Yes, this LED driver is designed for 24V output and can supply up to 156W at 6.5A. For 24V LED strip projects, add up the total strip wattage and keep it within 156W. It is also IP65 water-resistant, so it can fit indoor or outdoor lighting applications where moisture resistance is needed.
Is the HBG-160-24AB a good choice for LED signage or channel letter lighting?
It can be a fit for 24V LED signage systems that need up to 156W total load. The 24V output, 6.5A output current, and IP65 water-resistant housing make it suitable for signage environments where dust or water exposure is a concern. Confirm the sign lighting load stays within 156W and matches the 24V requirement.
Can this power supply be used for high bay or low bay LED lighting?
Yes, this model is intended for high and low bay light use and has a circular shape with a metal case for 100W+ applications. It delivers 156W at 24V and operates in constant current mode with a 14-24V CC voltage range. Make sure the fixture is designed for a 24V driver within that operating range.
How much 24V LED strip can I run from the HBG-160-24AB?
This driver provides up to 156W, so the maximum supported strip length depends on your strip's rated power per meter. The sizing math is: 156W divided by your strip watts per meter equals the maximum meters. Check your strip rated power per meter and keep the total load at or below 156W.
Is the Mean Well HBG-160-24AB suitable for outdoor or wet locations?
It is IP65 water-resistant, which makes it suitable for environments where water spray and dust resistance are important. Its operating temperature range is -40°C to +85°C, so it is built for demanding conditions. Final suitability depends on the overall enclosure and whether your application requires more than IP65 water resistance.
What is the difference between the HBG-160-24AB and other HBG-160 series models?
Within the HBG-160 family, the 24V versions are rated at 156W with a 14-24V constant current range, the 36V versions are rated at 158.4W with a 21-36V range, the 48V versions are rated at 158.4W with a 28-48V range, and the 60V versions are rated at 156W with a 36-60V range. The HBG-160-24AB is the 24V AB version in that series. Model selection should be based on the output voltage and constant current range your fixture requires.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other HBG-160 Models
11 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HBG-160-60B Power Supply 160W 60V - Dimmable | 156W | 60V | 2.6A | IP67 | $62.31 | View |
| Mean Well HBG-160-36A Power Supply 160W 36V - Adjustable | 158.4W | 36V | 4.4A | IP65 | $60.58 | View |
| Mean Well HBG-160-60DA Power Supply 160W 60V - DALI | 156W | 60V | 2.6A | IP67 | $67.19 | View |
| Mean Well HBG-160-60AB Power Supply 160W 60V - Adjustable and Dimmable | 156W | 60V | 2.6A | IP65 | $63.25 | View |
| Mean Well HBG-160-60A Power Supply 160W 60V - Adjustable | 156W | 60V | 2.6A | IP65 | $60.58 | View |
| Mean Well HBG-160-60 Power Supply 160W 60V | 156W | 60V | 2.6A | IP67 | $52.25 | View |
| Mean Well HBG-160-48DA Power Supply 160W 48V - DALI | 158.4W | 48V | 3.3A | IP67 | $67.19 | View |
| Mean Well HBG-160-48B Power Supply 160W 48V - Dimmable | 158.4W | 48V | 3.3A | IP67 | $64.21 | View |
| Mean Well HBG-160-48AB Power Supply 160W 48V - Adjustable and Dimmable | 158.4W | 48V | 3.3A | IP65 | $63.25 | View |
| Mean Well HBG-160-48A Power Supply 160W 48V - Adjustable | 158.4W | 48V | 3.3A | IP65 | $62.42 | View |
| Mean Well HBG-160-48 Power Supply 160W 48V | 158.4W | 48V | 3.3A | IP67 | $52.25 | View |
