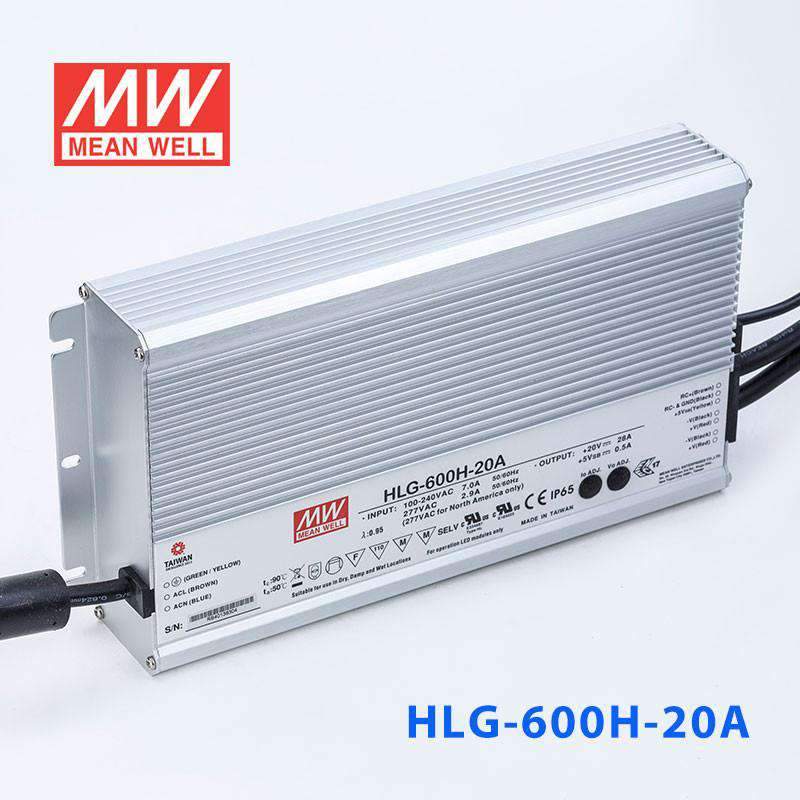

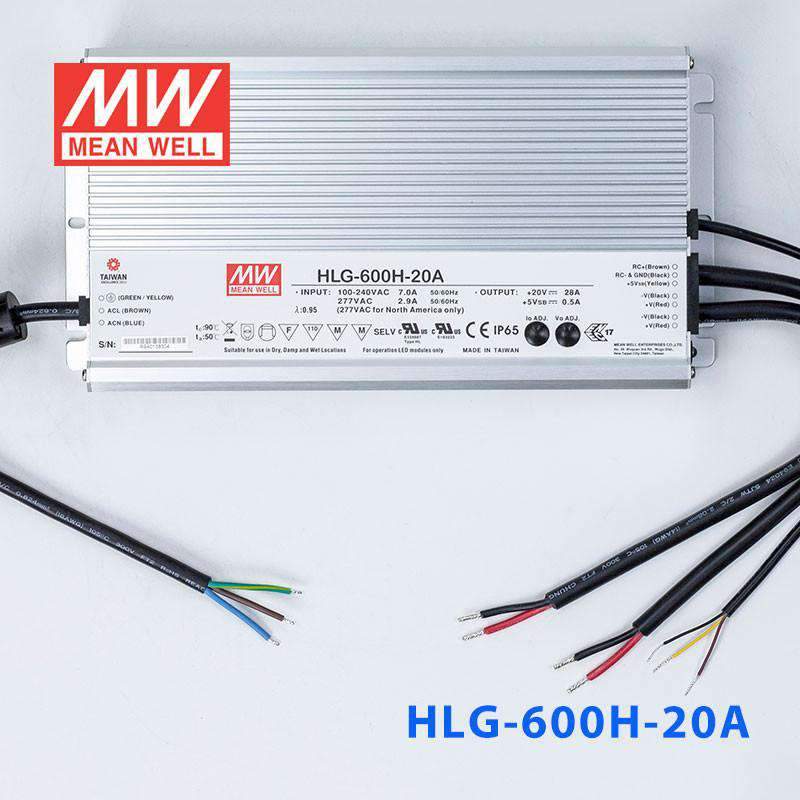

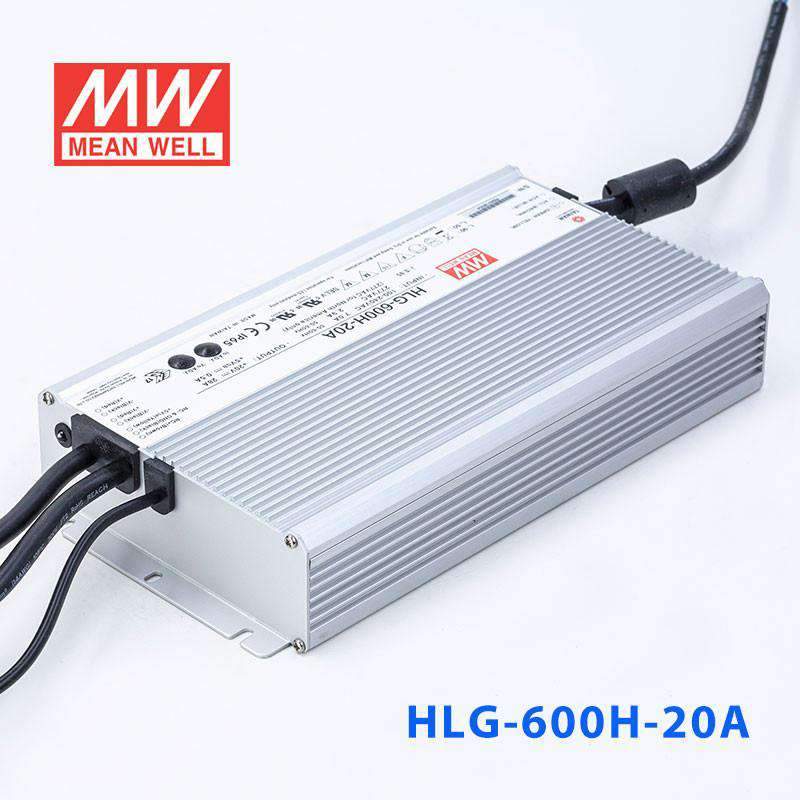

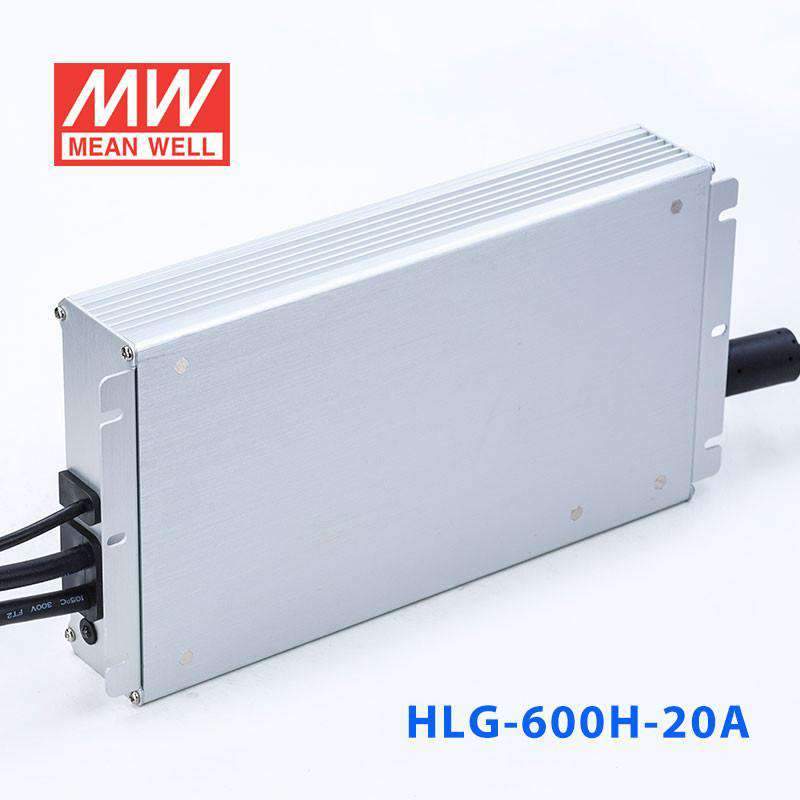

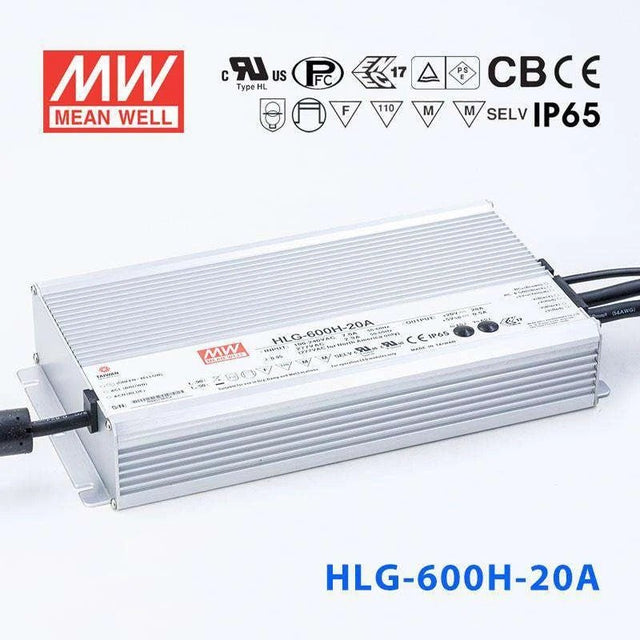

Mean Well HLG-600H-20A Power Supply 560W 20V - Adjustable
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating560 Watt
-
Output Voltage20 Volt
-
Rated Current28 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-20A to fine-tune the output for a 20V LED strip installation?
Yes. The A suffix means the HLG-600H-20A includes a built-in potentiometer that lets you trim the output voltage and current. This is useful for matching the driver precisely to your 20V LED strip load, improving efficiency and allowing slight brightness adjustments without an external dimmer.
Is the HLG-600H-20A powerful enough for large-scale 20V LED lighting in a warehouse or arena?
Yes. At 560W and 20V / 28A, it can drive substantial 20V LED strip or panel installations. The adjustable output gives you the flexibility to optimize the drive level for the specific LEDs in use, and the wide 90-305VAC input handles industrial and commercial mains voltages.
Can the HLG-600H-20A power 20V LED modules for illuminated commercial signage?
Yes. With 560W available at 20V, it has ample capacity for large 20V sign module arrays. The potentiometer lets you trim voltage to precisely match the LED module forward voltage, which can extend module life and reduce wasted power across the string.
How many meters of 20V LED strip can the HLG-600H-20A handle?
That depends on the strip's rated power per meter. The HLG-600H-20A provides up to 560W at 20V. For example, at 16W/m you could run up to 35 meters (560W / 16W per meter = 35m). Always check your strip's rated power per meter and keep total load at or below 560W.
Is the HLG-600H-20A suitable for a semi-sheltered outdoor installation?
Yes. Its IP65 water-resistant rating protects against dust ingress and low-pressure water jets, making it appropriate for covered outdoor areas such as canopies, soffits, building overhangs, and covered walkways. For fully exposed rain or submersion scenarios, use the IP67-rated HLG-600H-20 instead.
