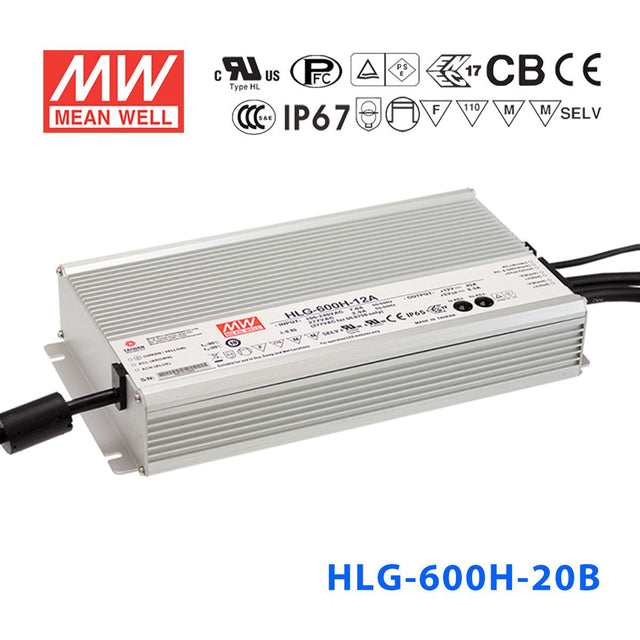

Mean Well HLG-600H-20AB Power Supply 560W 20V - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-600H-20AB Power Supply 560W 20V - Adjustable and Dimm...
The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating560 Watt
-
Output Voltage20 Volt
-
Rated Current28 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Built-in Potentiometer,Resistance
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty7 Year
-
Length11.02 in
-
Width5.67 in
-
Height1.91 in
-
Weight8.6 lb
::specification::
Frequently Asked Questions
Can I use the HLG-600H-20AB to power a large 20V LED strip installation with dimming?
Yes. The HLG-600H-20AB delivers 20V at up to 28A (560W), which is enough to drive extensive runs of 20V LED strips. It includes both output voltage/current adjustment and a 1-10V/PWM dimming input, so you can fine-tune brightness and match the driver precisely to your load. Its IP65 rating makes it suitable for sheltered outdoor or indoor installations.
Is the HLG-600H-20AB suitable for powering 20V LED signage on a commercial building?
Yes, provided the total sign load stays within 560W. The HLG-600H-20AB outputs 20V with a constant-current voltage range of 10-20V, accommodating LED sign modules that may operate at varying voltages within that window. The built-in dimming input allows automated brightness scheduling for day/night operation.
Can the HLG-600H-20AB drive 20V LED fixtures in a warehouse or industrial space?
Yes. With 560W of output at 20V and 28A, it can power high-bay or linear LED fixtures across a large area. The adjustable output lets you dial in the exact voltage and current your fixtures need. The aluminium casing and -40°C to +90°C operating range handle the temperature extremes common in industrial environments.
How many meters of 20V LED strip can the HLG-600H-20AB power?
Divide 560W by your strip's rated power per meter. For example, a 20V strip rated at 14W/m would allow up to 40 meters (560W / 14W per meter = 40m). A higher-density strip at 20W/m would allow 28 meters. Always check your strip's rated power per meter and keep the total load at or below 560W.
Can the HLG-600H-20AB be installed in an outdoor location exposed to rain?
The HLG-600H-20AB is rated IP65, which protects against low-pressure water jets and dust ingress but is not designed for submersion or prolonged direct rain exposure. It works well in sheltered outdoor locations such as under awnings, in enclosures, or beneath canopies. For fully exposed installations, consider the IP67-rated HLG-600H-20B.
What are the differences between the HLG-600H-20, 20A, 20AB, and 20B models?
All four share the same 560W / 20V / 28A core specs with a CC voltage range of 10-20V. The base HLG-600H-20 has fixed output and IP67 waterproofing. The -20A adds output voltage/current adjustment via potentiometer (IP65). The -20AB adds both adjustment and 1-10V/PWM dimming (IP65). The -20B provides dimming only and retains IP67 waterproofing.
